AMF Bruns | H470232 - 3101 Retractable Lap/Shoulder Belt w/ Height Adjuster, L Track fitting on Bottom - WheelchairStrap.com

AMF Bruns | Retractable Lap/Shoulder Belt w/Height Adjuster, L-Track Fitting on Bottom | H470232-3101

Vendor: AMF Bruns
Regular price: $200.00
Sale price: $200.00
Unit price: per

Shipping calculated at checkout.

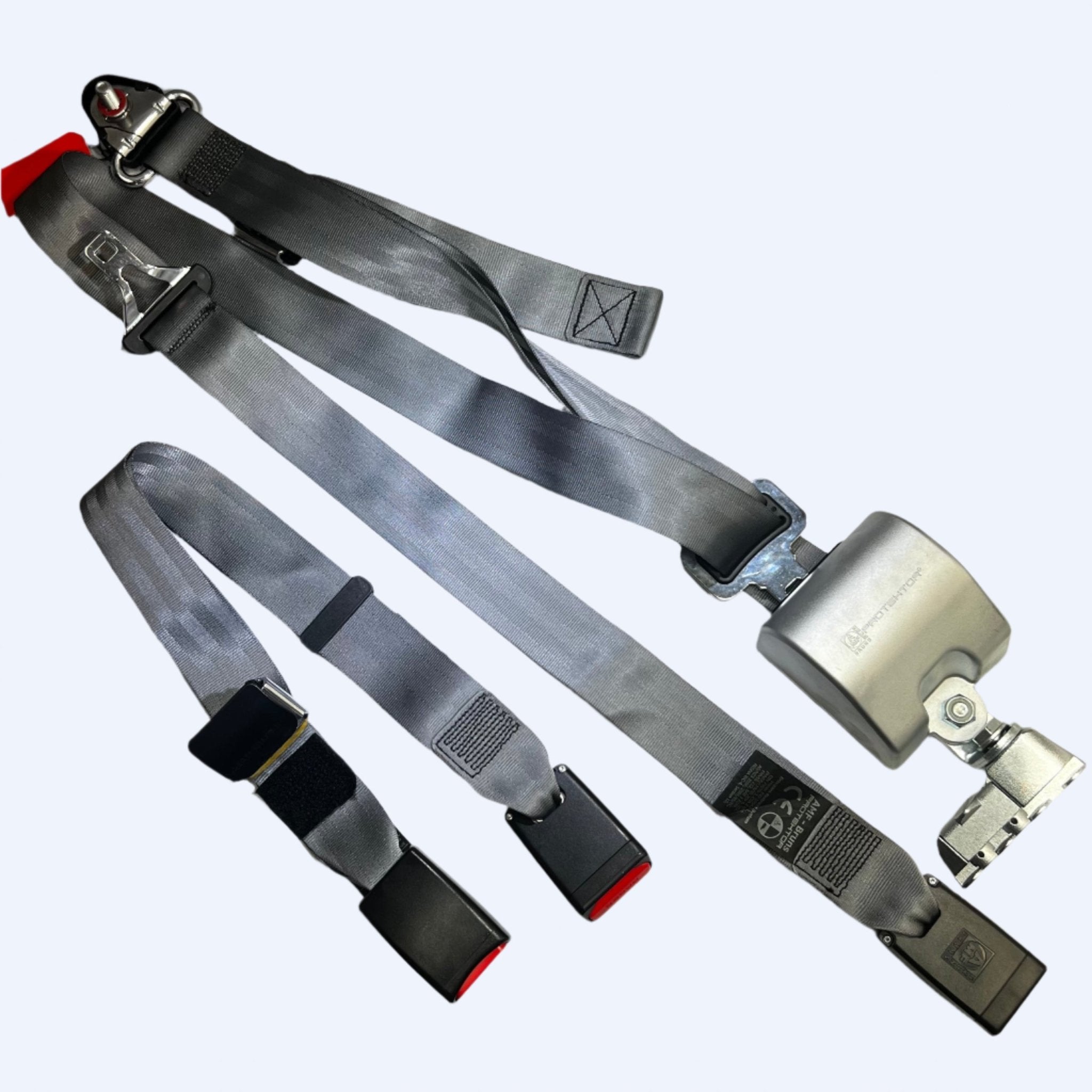

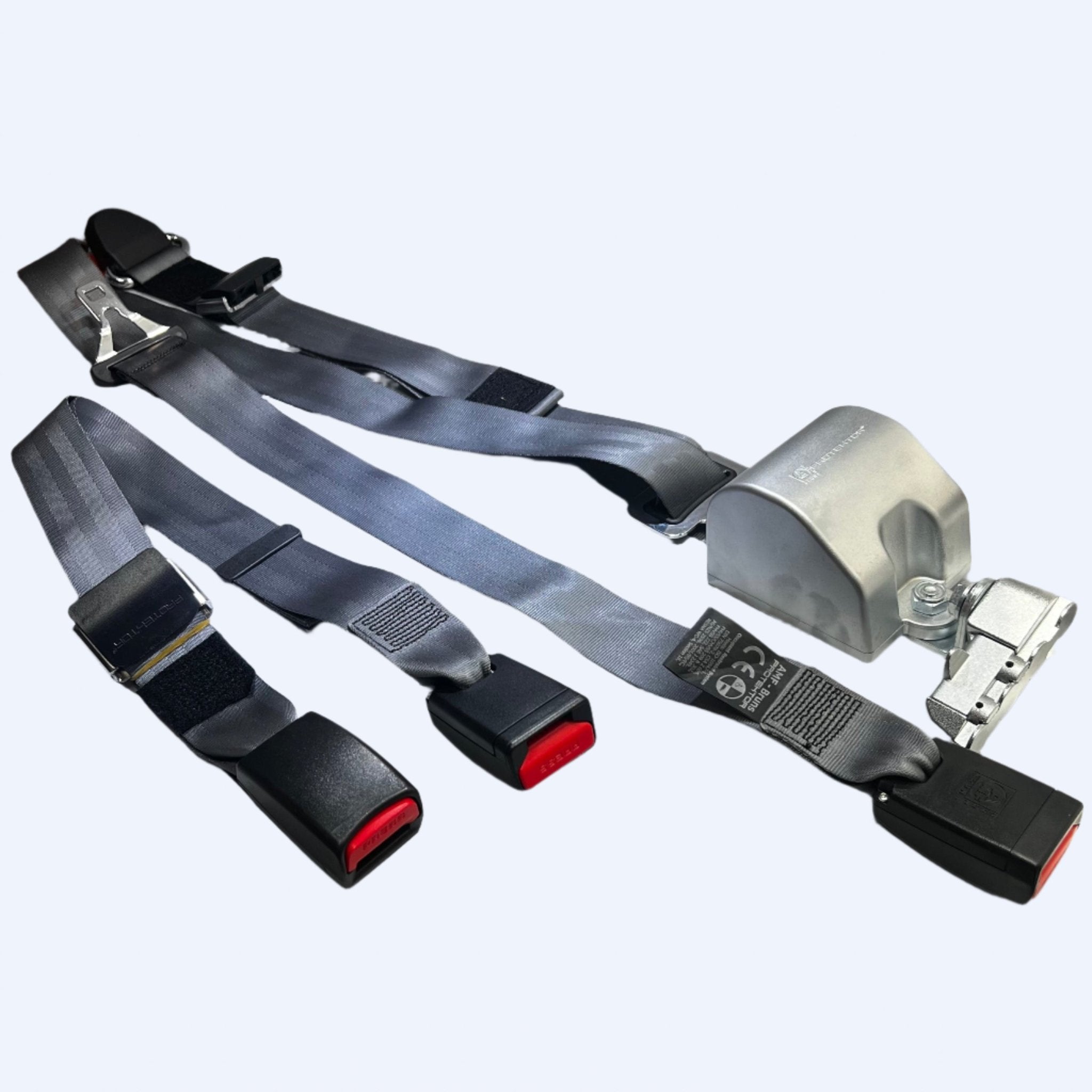

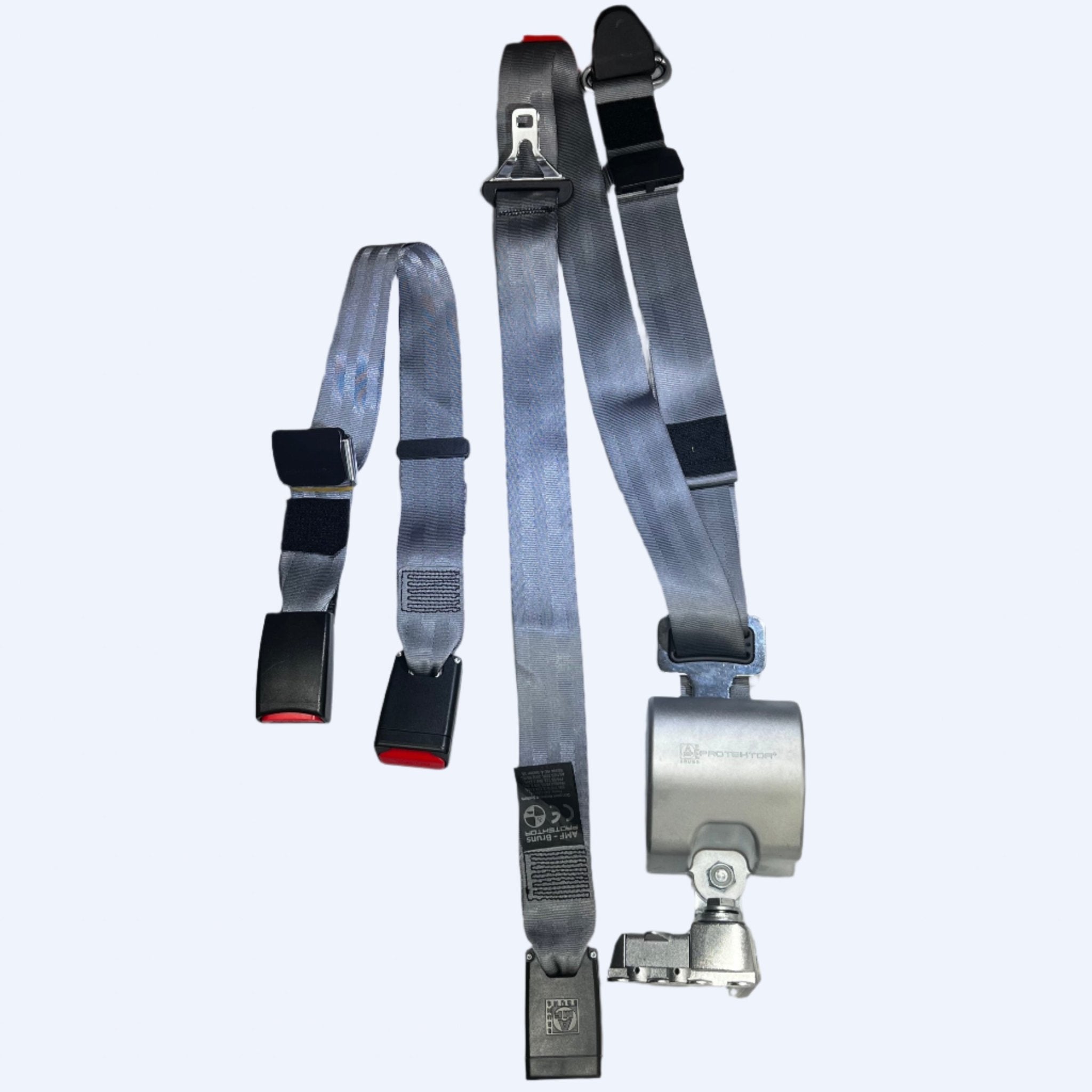

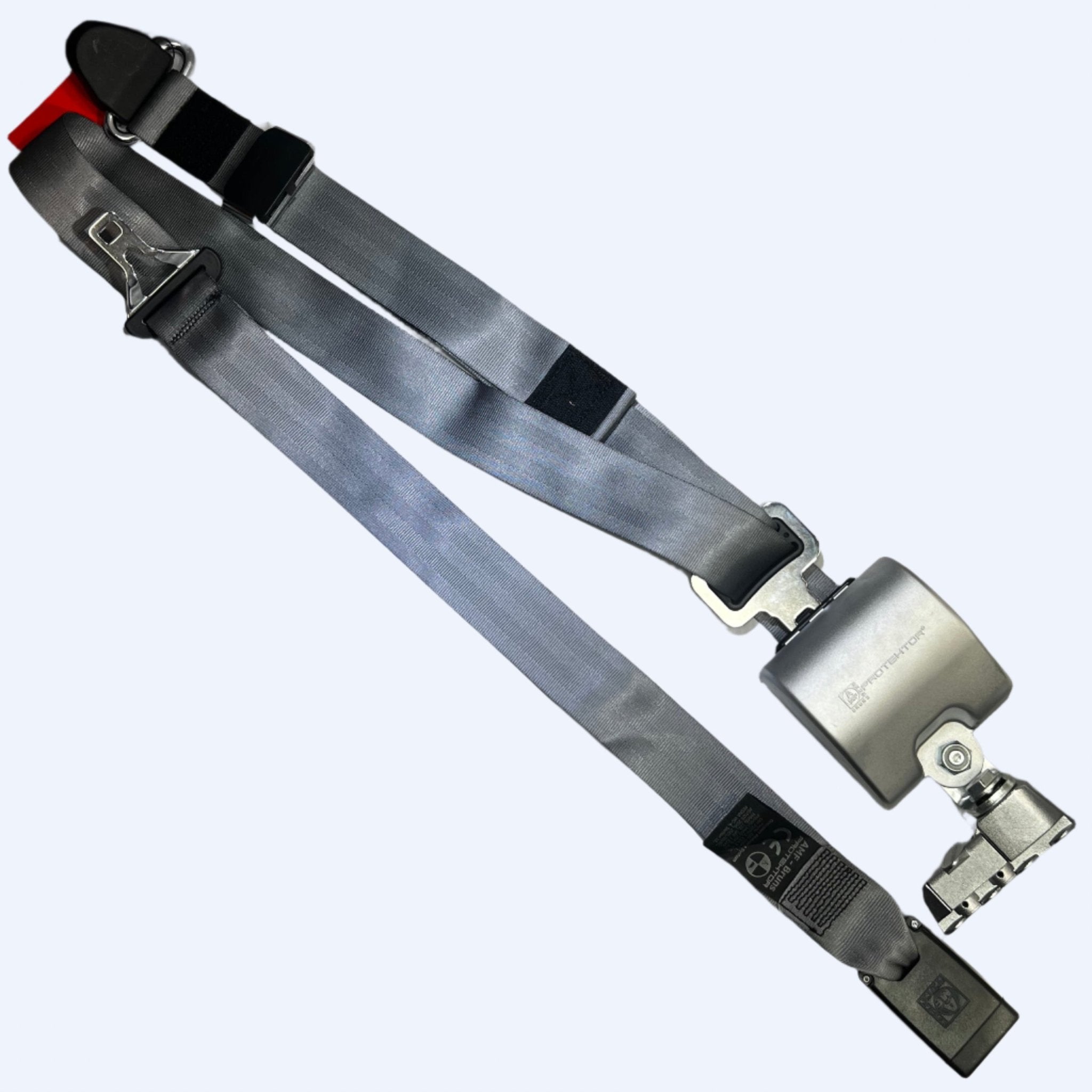

Deliver complete WC19-compliant occupant protection with the AMF Bruns H470232-3101 Retractable 3-Point Lap/Shoulder Belt. This full-automatic retractor assembly combines hybrid mounting (L-Track bottom + pin connector top) with manual height adjustment for secure wheelchair occupant restraint in accessible vehicles.

SKU: H470232-3101 | VENDOR: AMF BRUNS

AMF Bruns | Retractable Lap/Shoulder Belt w/Height Adjuster, L-Track Fitting on Bottom | H470232-3101

✔ Free Shipping 🪢 Complete Occupant Restraint 🏷 AMF Bruns

Key Features

🔄

Retractable Shoulder Belt

Shoulder belt automatically retracts when not in use, keeping the vehicle interior tidy.

📏

Manual Height Adjuster

Adjustable shoulder belt height for correct positioning across a range of occupant sizes.

📌

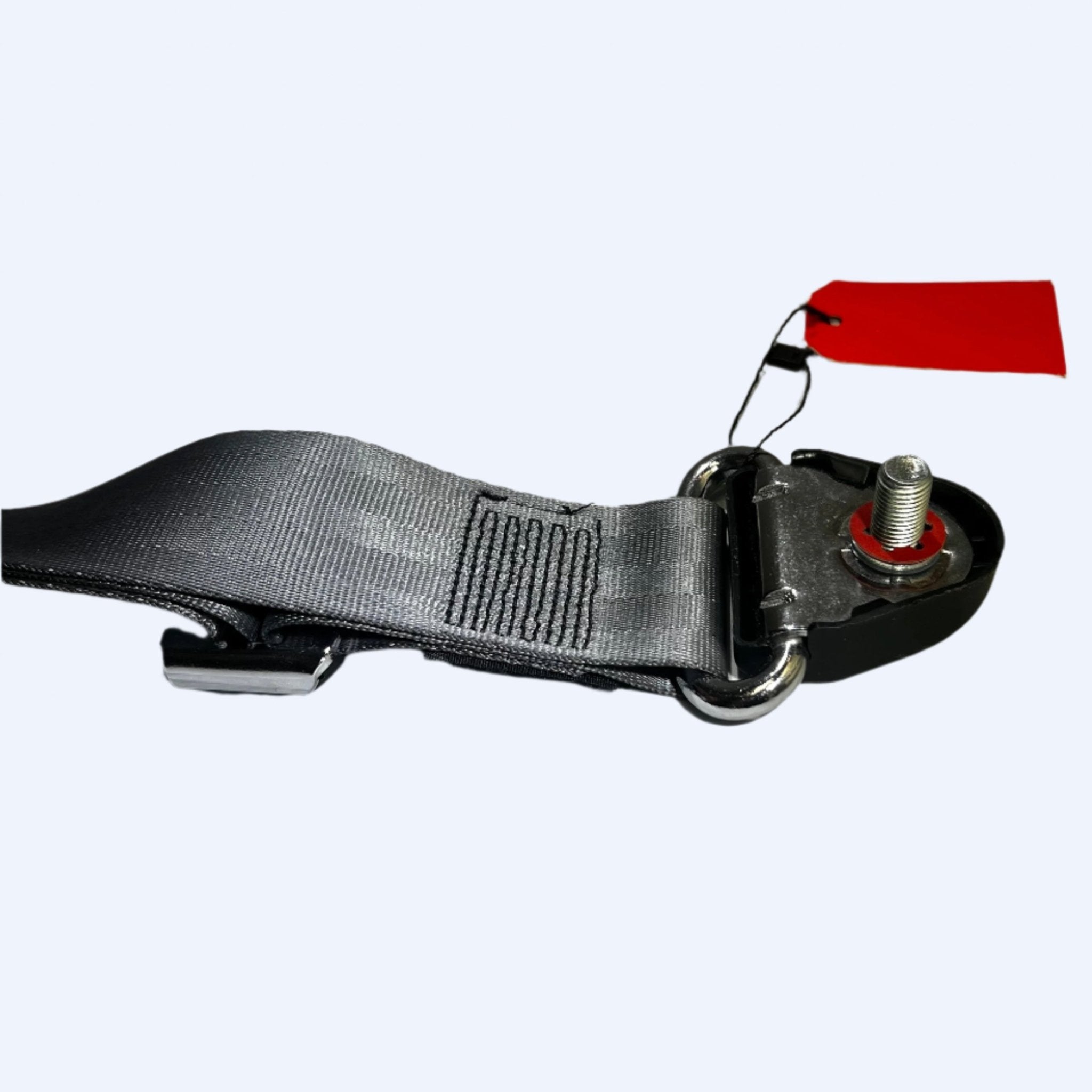

Pin Connectors

Secure pin-style connectors for reliable, repeatable attachment to the vehicle mounting point.

🔗

Integrated Lap Belt

Lap belt integrates directly with WC19-compliant wheelchair lap belt attachment points.

What's Included

Qty	Component	SKU
1	AMF Bruns Retractable Lap/Shoulder Belt w/Height Adjuster, L-Track Fitting on Bottom	H470232-3101

Vehicle Applications

🚌 School Bus🚌 City Bus / Transit Bus🚌 Coach Bus🚆 Rail / Community Transit🚑 Non-Emergency Medical Transport (NEMT)🚐 Wheelchair-Accessible Van (WAV)🚗 Personal Vehicle / Minivan

Full Feature Details

The single mechanism maintains constant tension on both lap and shoulder belts simultaneously, while the pin-secured manual height adjuster accommodates passengers from pediatric through adult sizes—ensuring optimal shoulder belt positioning for every passenger.

Kit Includes

1 Retractable Shoulder Belt with Manual Height Adjuster

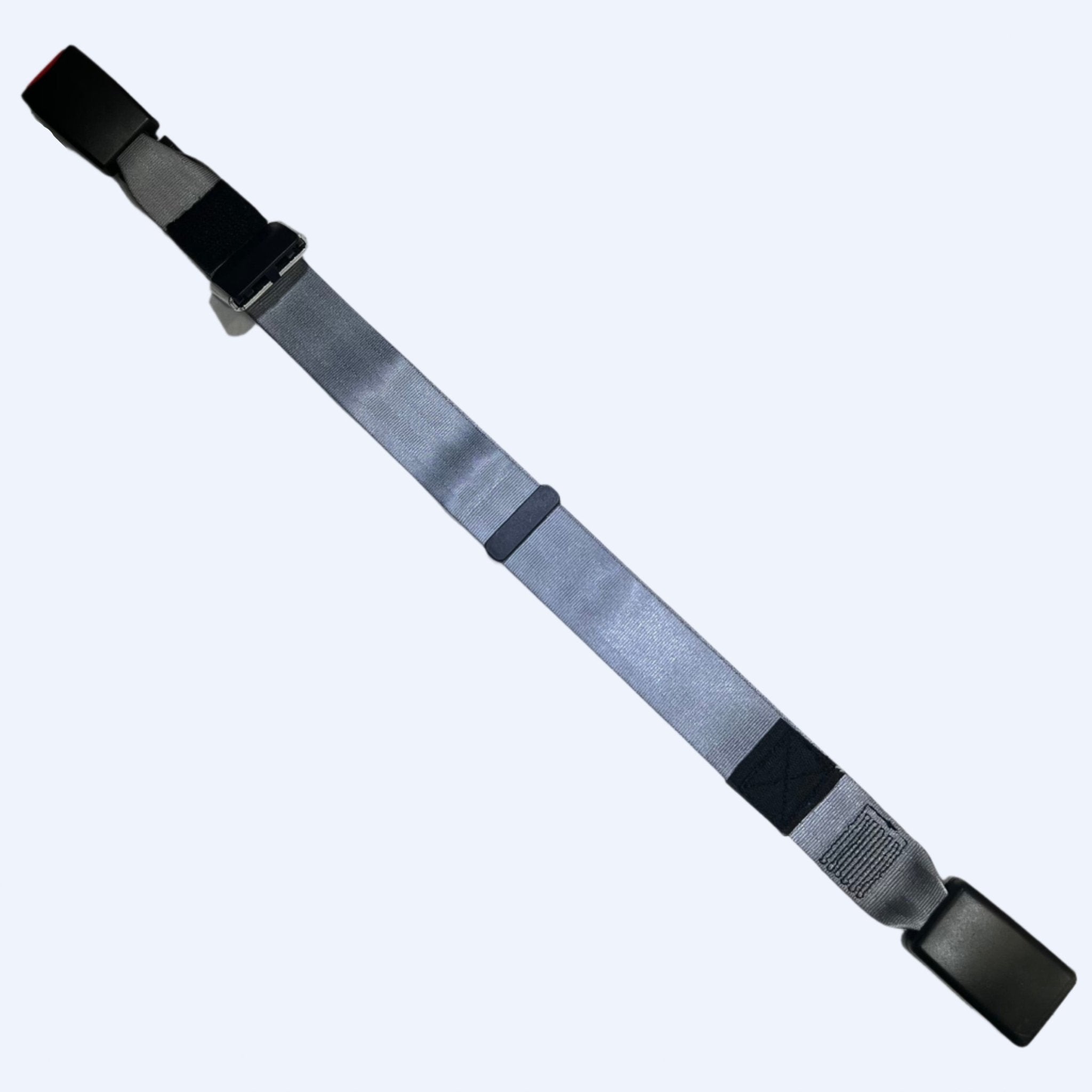

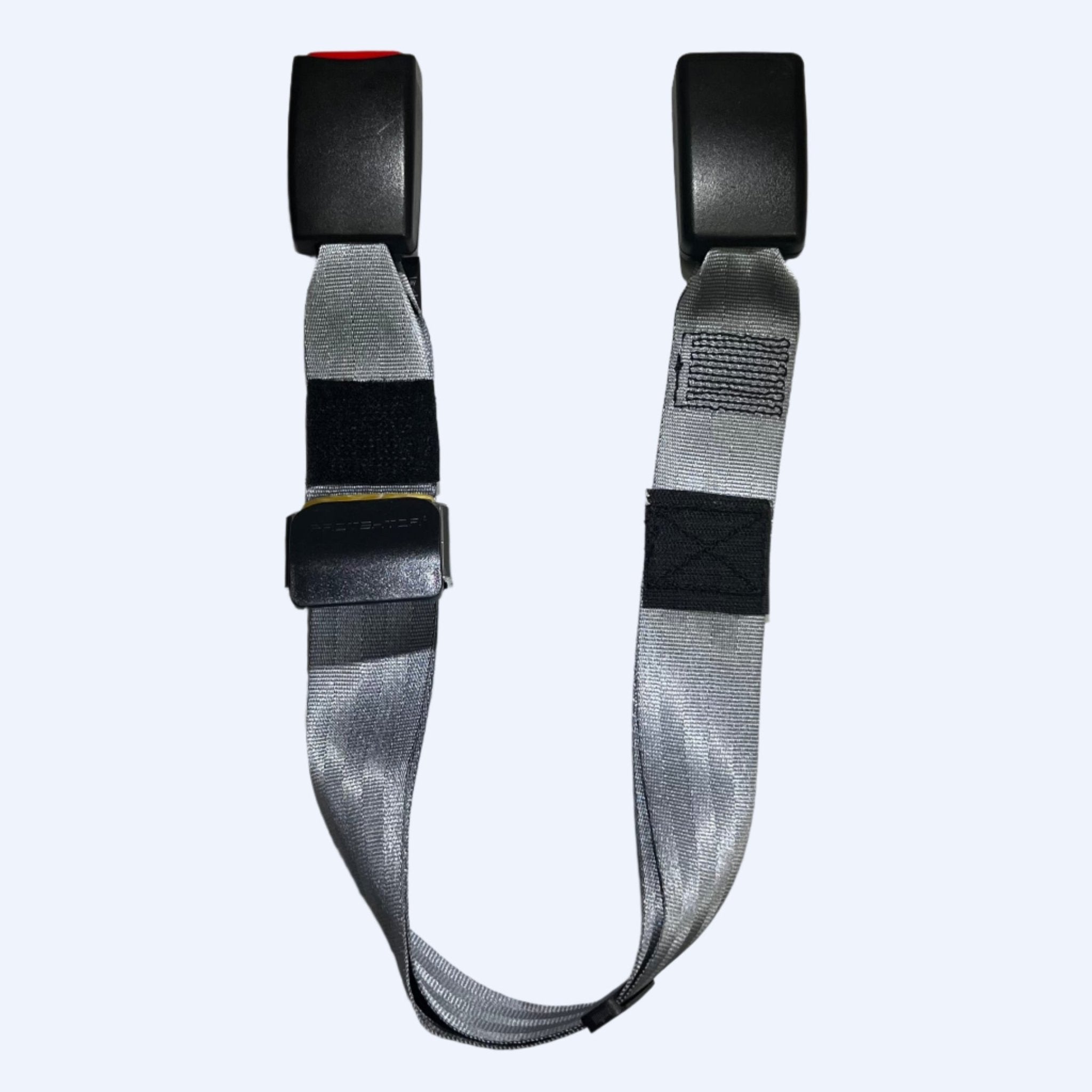

1 Lap Belt
1 L-Track Fitting (Bottom Attachment)

Feature	Description

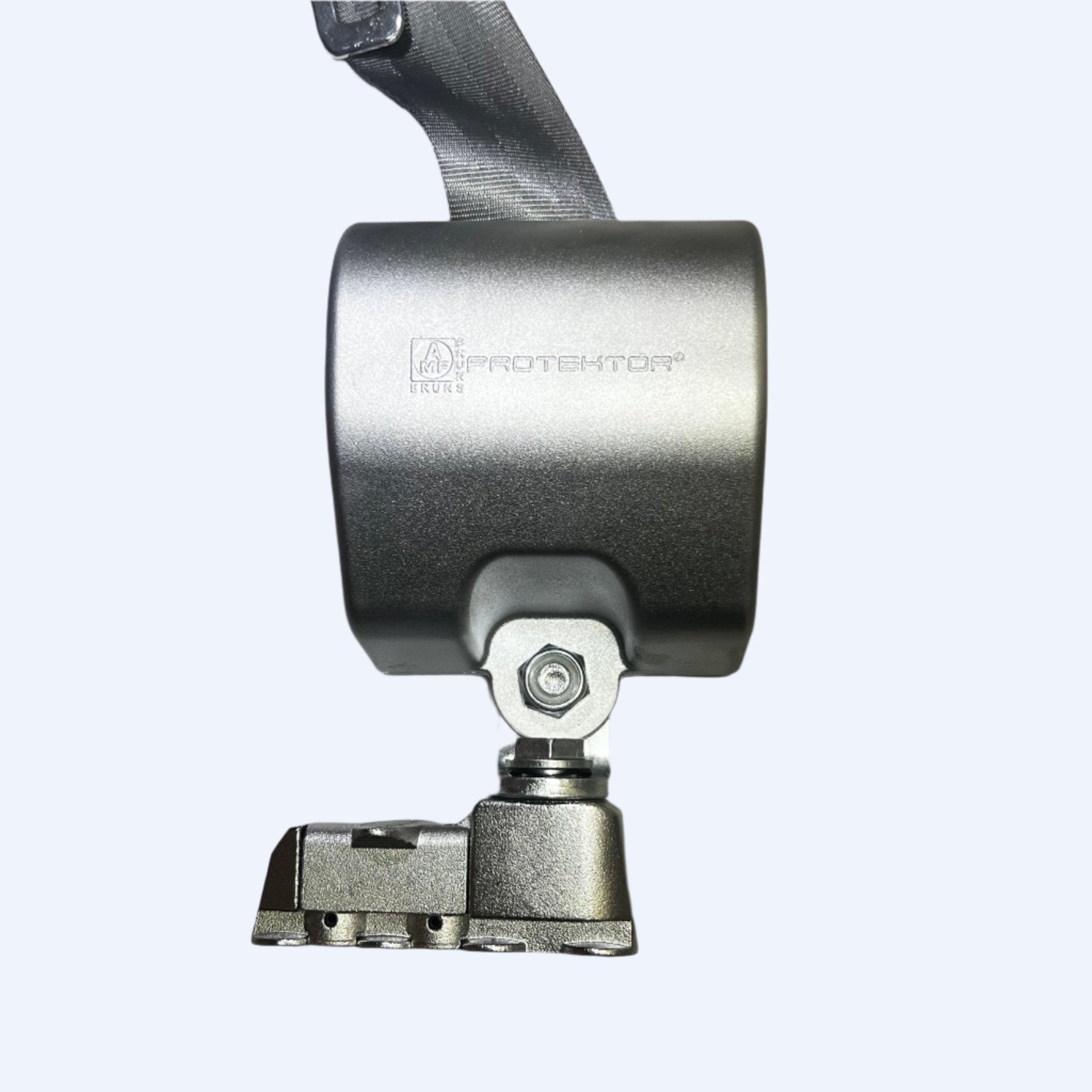

Hybrid Mounting System	L-Track bottom for retractor stability; pin connector top secures manual height adjuster
Automatic 3-Point Retraction	Single mechanism maintains tension on both lap and shoulder belts
Manual Height Adjustment	Pin-secured adjuster fits pediatric through adult shoulder positions
Complete Restraint System	Full lap/shoulder assembly for immediate WC19 occupant protection
Integrated Design	Automatic 3-point retractor with integrated lap and shoulder belts
Optimal Belt Tension	Ensures proper positioning across diverse passenger sizes

Standards & Compliance

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 302Flammability of Interior Materials

CMVSS 209Canadian Motor Vehicle Safety Standards — Seat Belt Assemblies

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

AS 2596Occupant Restraint Systems — Australia

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

🛡 Warranty: 1-year limited. Verify warranty terms at amfbrunsamerica.com.

⚠ Warranty terms should be verified directly with the manufacturer.

📄 Installation & User Guide: View Installation & User Guide List

📄 Product Documents: Installation instructions

Specifications

Specification	Detail
Brand	AMF Bruns
SKU	H470232-3101
Price	200.00 — price shown is per unit
Shipping	Free Shipping
Warranty	1-year limited
Use / Installation	Follow manufacturer instructions. Consult a qualified technician if vehicle integration is required.

Frequently Asked Questions

Is this belt designed specifically for wheelchair occupants? +

Yes. Wheelchair occupant restraints are purpose-built for wheelchair transport and are different from standard vehicle seatbelts. They are designed to account for the wheelchair seating position and attach to the vehicle floor track or rear tie-down points rather than a fixed vehicle seat.

Will this belt fit the occupant comfortably and safely? +

The same fit principles apply as any seatbelt: the lap portion should sit low across the pelvis — not the belly — and the shoulder portion should cross the center of the chest without cutting into the neck. If the belt rides up or doesn't fit correctly, check seating posture, belt length, and whether a positioning guide is needed.

Is this belt compatible with my existing securement system? +

It is recommended that all components — retractors, occupant belt, and floor anchorage — be from the same manufacturer. Contact us with your current system details and we will confirm compatibility before you order.

What are best practices for positioning lap and shoulder belts on riders? +

Lap belt: low on hips and pelvis, never across the stomach. Shoulder belt: mid-chest, over the shoulder bone, not the neck or under the arm. Both should be snug, flat, and untwisted. These same principles apply regardless of wheelchair or vehicle type.
