What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

FE200762 | 9" L - Track Section, Non - Flanged, with two 3/8" Mounting Holes - WheelchairStrap.com

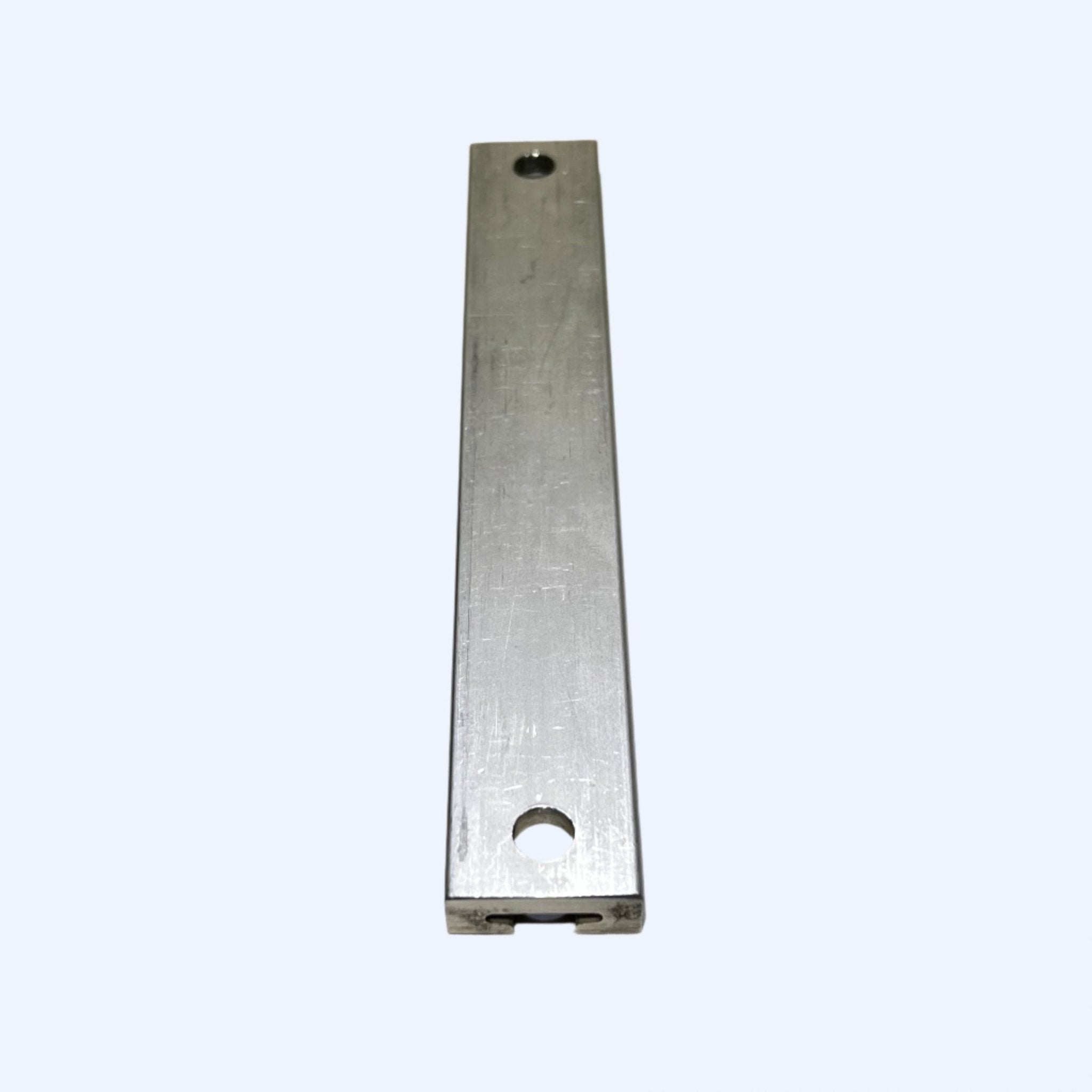

Sure-Lok 9" L-Track Section, Non-Flanged, with two 3/8" Mounting Holes | FE200762

Vendor: Sure-Lok
Regular price: $28.00
Sale price: $28.00
Unit price: per

Shipping calculated at checkout.

HD L-Track Section, Non-Flanged, with Two 3/8" Mounting Holes, 9 Inches Long Included: Qty 1 - 9" L-Track Section, Non-Flanged, with two 3/8" Mounting Holes | FE200762 Sure-Lok FE200762 HD L-Track Section (Non-Flanged) offers a compact 9" fixed-position heavy-duty track with dual 3/8" mounting holes, crafted from 7075-T6 aluminum for safety retractor anchors in transit and paratransit buses.

SKU: FE200762 | VENDOR: SURE-LOK

🚚 Free Shipping on Orders Over $100 🔩 Floor Anchorage Hardware 🏷 Sure-Lok

Key Features

🔩

Accepts L-Track Retractor Fittings

L-Track retractor fittings from Q'Straint, Sure-Lok, and AMF Bruns slide and lock directly into this floor pocket.

🔒

Secure Anchor Point

Provides the permanent, tested floor connection required for 4-point wheelchair securement systems.

What's Included

Qty	Component	SKU
1	Sure-Lok 9" L-Track Section, Non-Flanged, with two 3/8" Mounting Holes	FE200762

Full Feature Details

Included: Qty 1 - 9" L-Track Section, Non-Flanged, with two 3/8" Mounting Holes | FE200762

Feature	Description
Dual 3/8" Holes	Oversized mounting for heavy-duty Grade 8 bolts.
7075-T6 Alloy	Superior strength vs. standard 6061 aluminum tracks.
Non-Flanged Design	Ultra-low profile minimizes floor obstructions.
Adjustable Positioning	9" length enables precise retractor alignment.
Transit Optimized	Meets paratransit bus anchor spacing requirements.
End Caps	QC06058 Black / QC06088 Grey

Required Accessories

Item	SKU/Link	Purpose
End Caps Black	QC06058	Clean termination
End Caps Grey	QC06088	Clean termination
Filler Strip	FE200751X1	ADA T302 compliance

HD Track Section Comparison

Model	Length	Holes	Flange	Best Use
FE200762	9"	2 x 3/8"	Non-flanged	Heavy retractors
FE200765	9"	2 x 3/8"	Flanged	Adjustable positioning
FE200763	8"	4 x 1/4"	Non-flanged	Multiple 1/4" anchors

Standards & Compliance

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 222School Bus Passenger Seating & Crash Protection

FMVSS 302Flammability of Interior Materials

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

🛡 Warranty: 1-year limited. Verify warranty terms at sure-lok.com.

⚠ Warranty terms should be verified directly with the manufacturer.

📄 Installation & User Guide: View Installation & User Guide List

Specifications

Specification	Detail
Brand	Sure-Lok
SKU	FE200762
Price	$28.00 — price shown is per unit
Shipping	Free Shipping on Orders Over $100
Warranty	1-year limited
Use / Installation	Professional installation required by a qualified WAV modifier or accessibility vehicle technician.

Frequently Asked Questions

What is L-Track? +

L-Track (also called aero track) is the standard floor rail system used in wheelchair-accessible vehicles. Retractors and other equipment attach to L-Track via fitting hardware that slides along the track and locks into position.

Do I need professional installation? +

Yes. Floor anchorage components must be installed by a qualified WAV (wheelchair-accessible vehicle) modifier or certified accessibility vehicle technician.

How many floor anchors do I need? +

A standard 4-point wheelchair securement position requires 4 floor anchorage points — typically 2 rear and 2 front. Contact us with your vehicle type and number of wheelchair positions for a precise count.

Are all L-Track systems compatible? +

Q'Straint, Sure-Lok, and AMF Bruns retractors are compatible with OMNI-approved L-Track. Verify fitting compatibility before purchase.
