What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

AMF Bruns | H450240H1 Protektor Electric Belt With J - Hook | 2 PACK - WheelchairStrap.com

AMF Bruns | 11.8 Ft Protektor Electric Retractor With J-Hook | H450240H1

Vendor: AMF Bruns
Regular price: $198.00
Sale price: $198.00
Unit price: per

Shipping calculated at checkout.

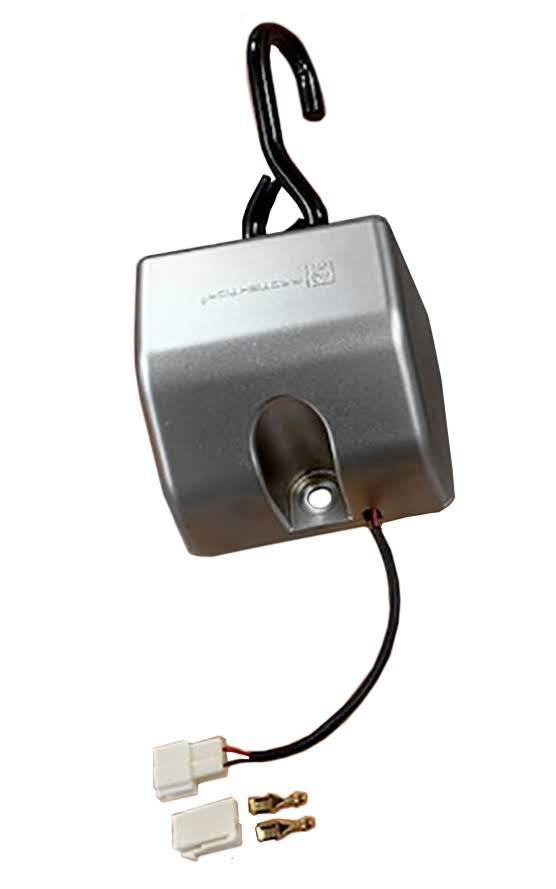

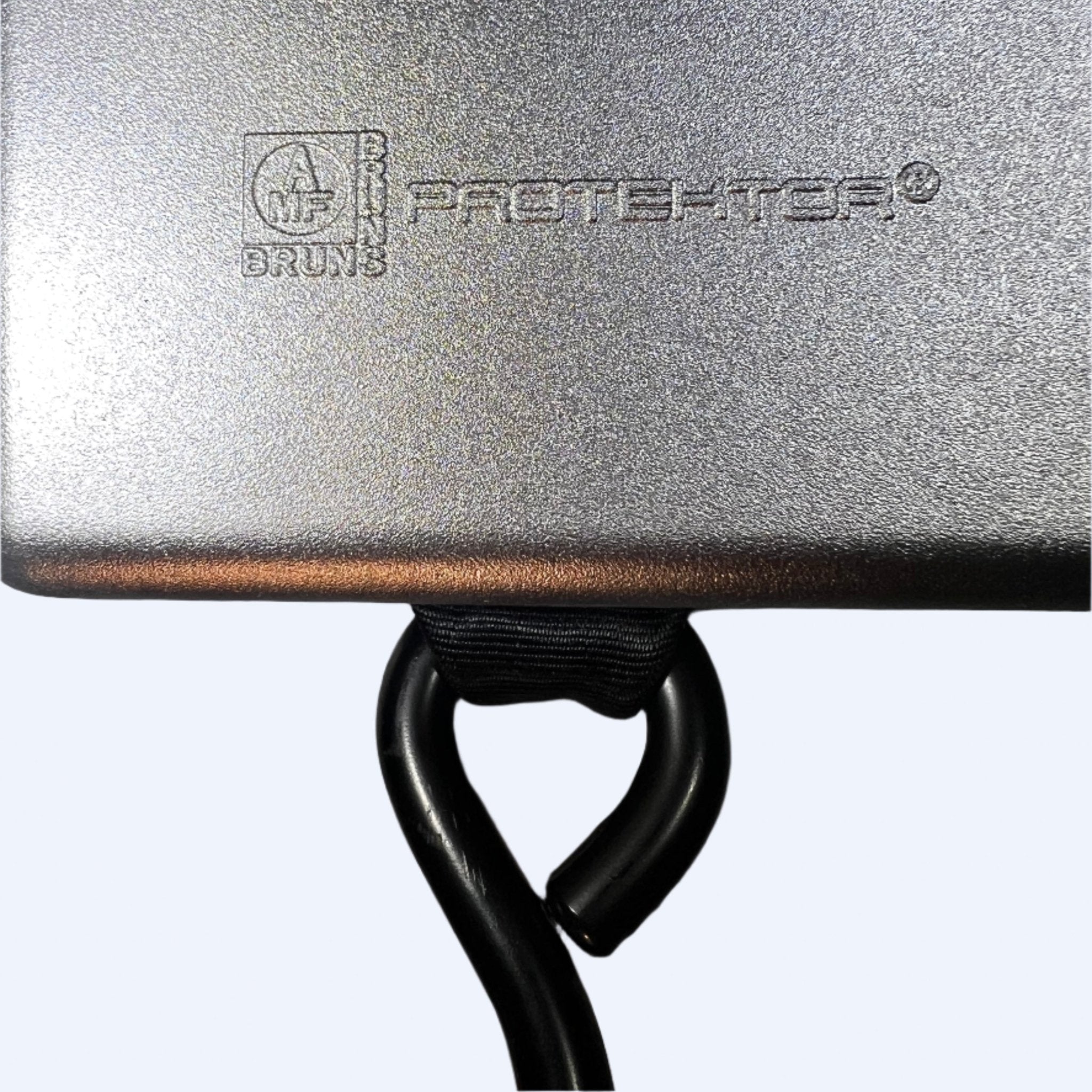

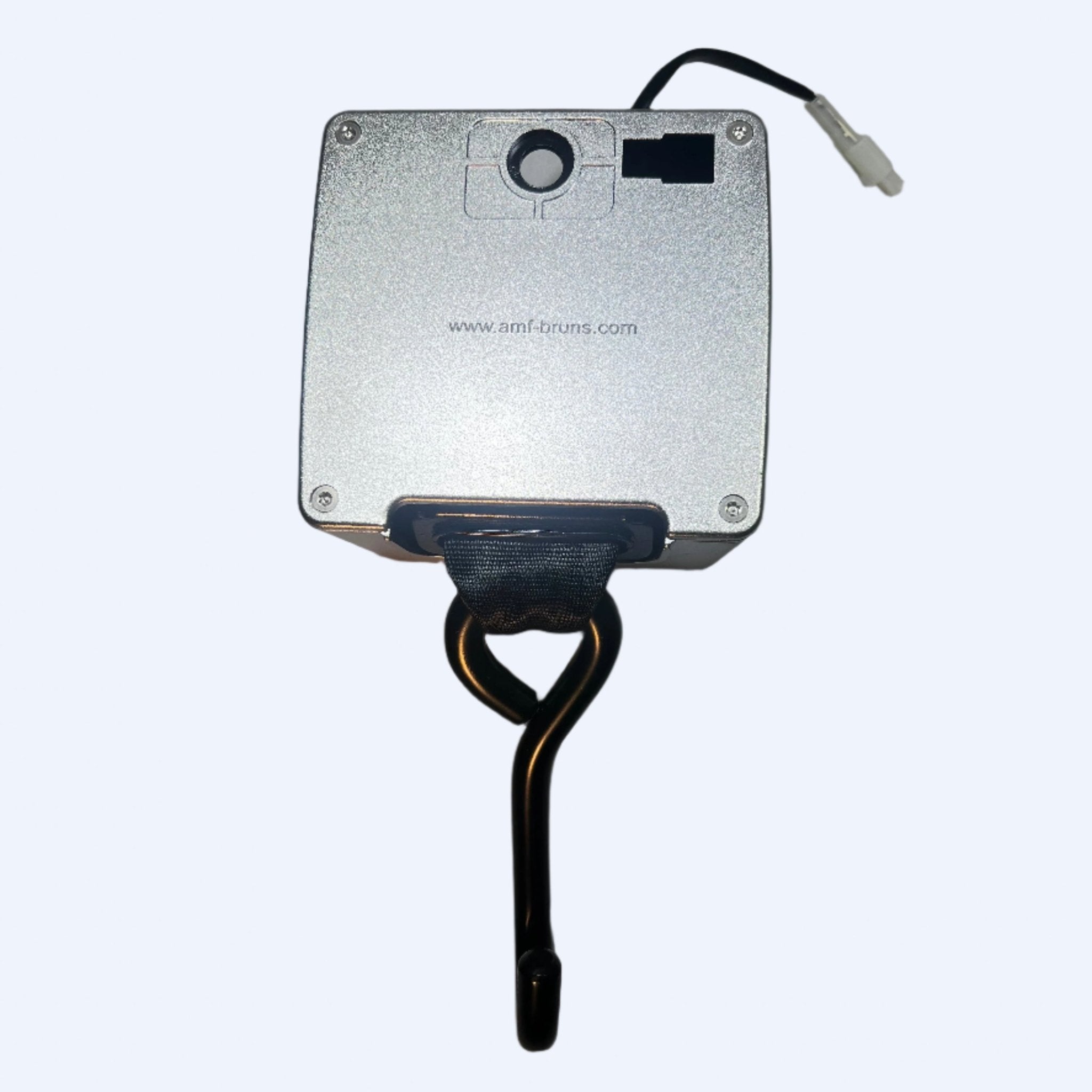

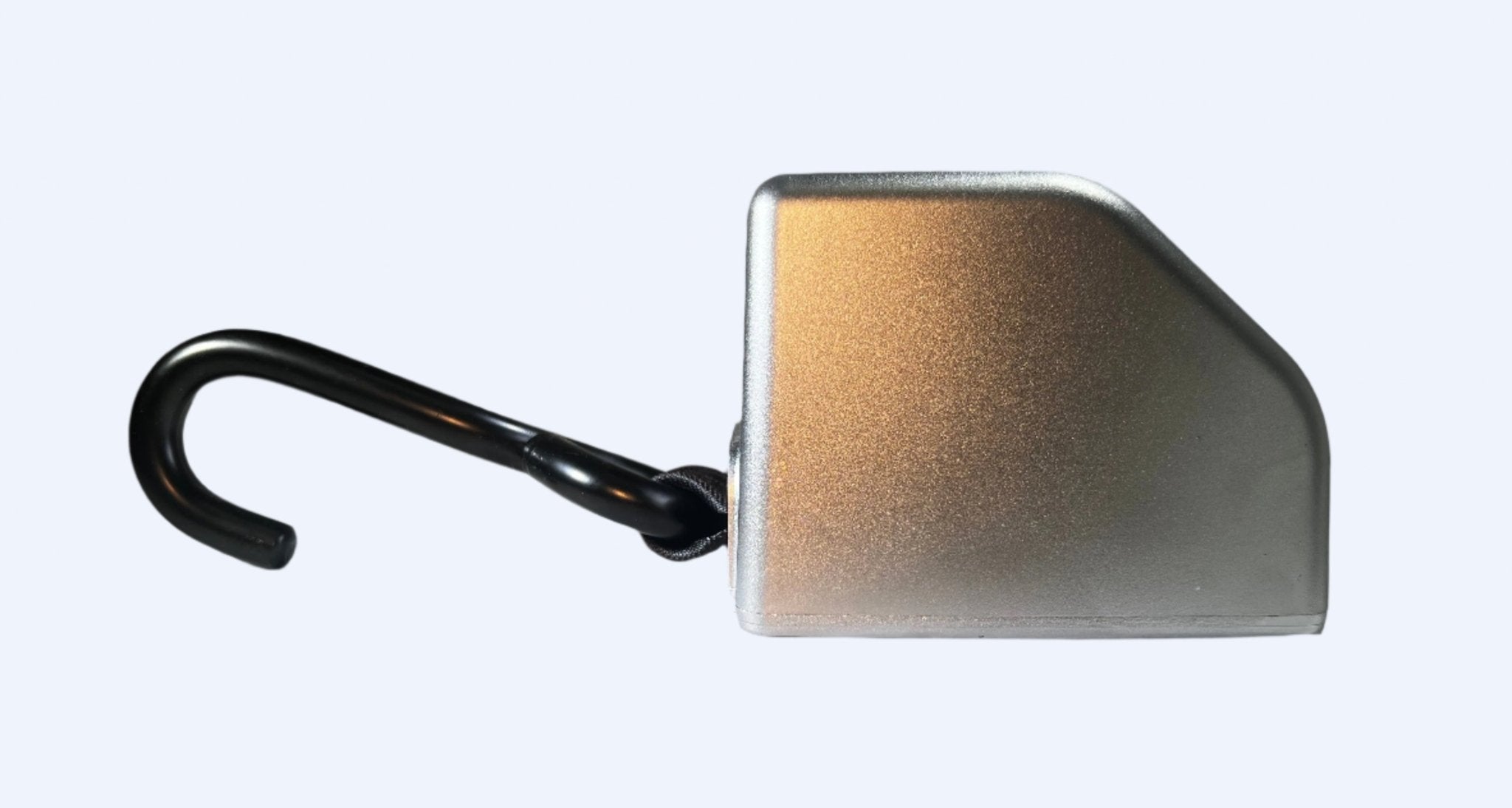

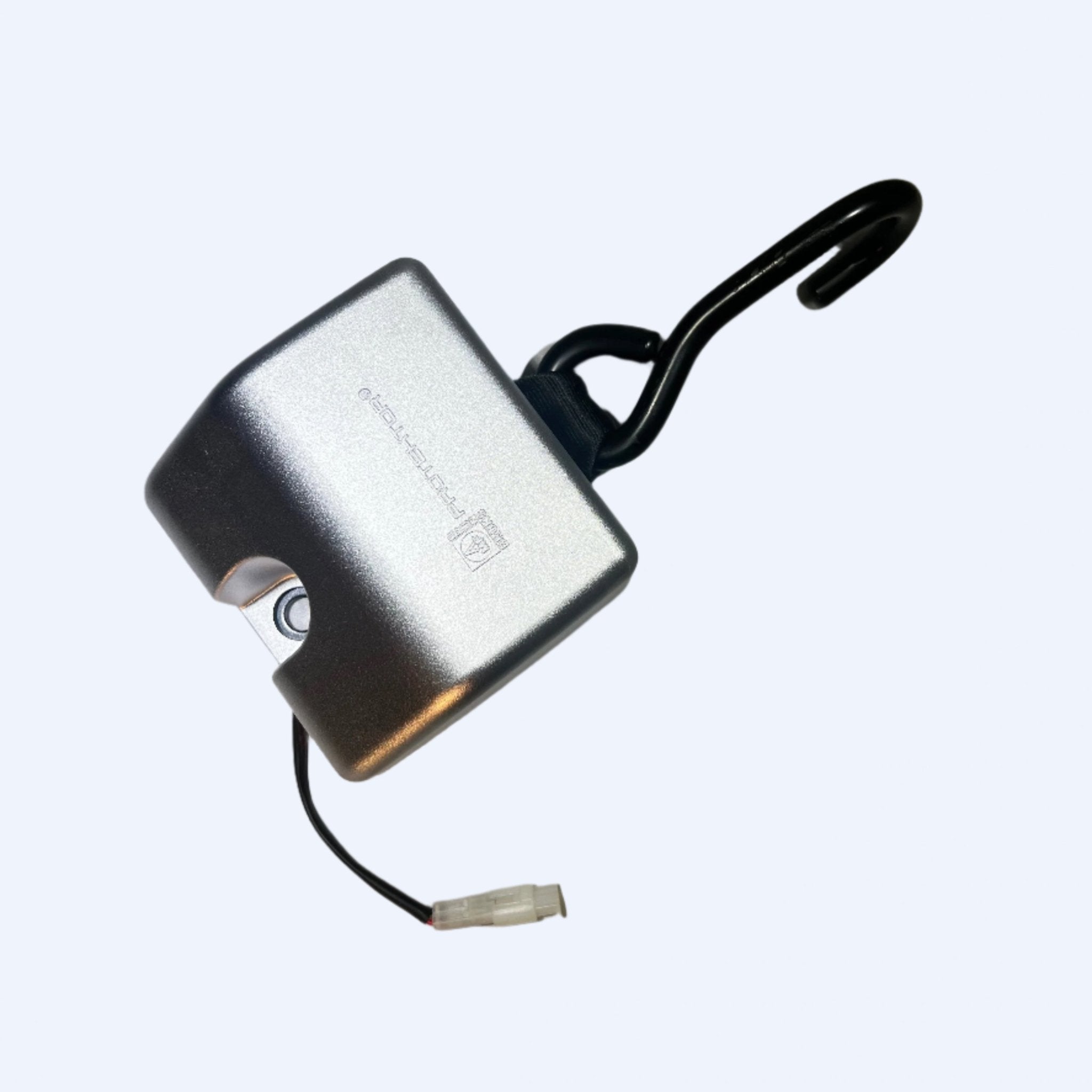

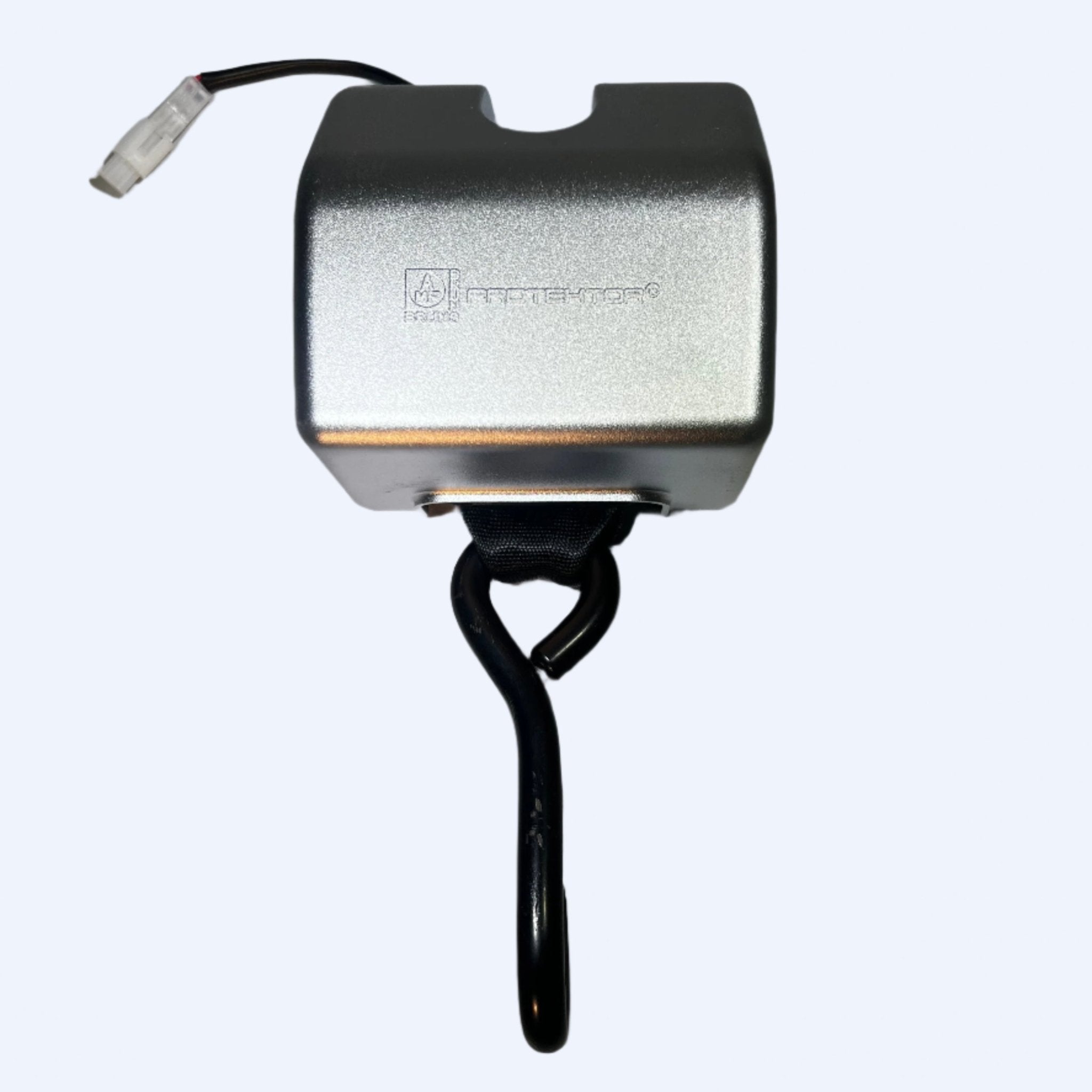

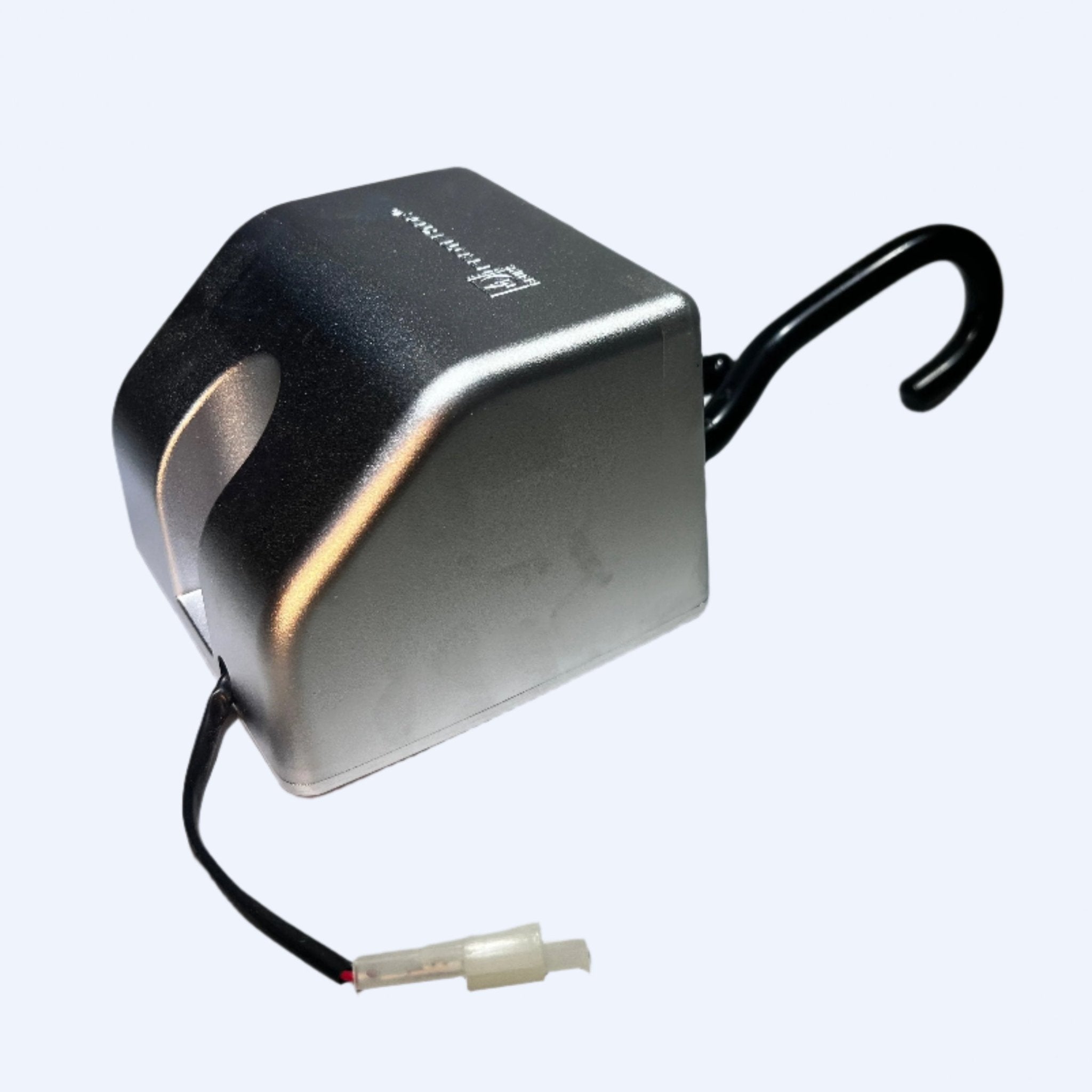

Protektor Electric Belt with J-Hook and Metal Cover Automated Electric Front Wheelchair Tie-Down for Tight-Space Minvans. The AMF Bruns H450240H1 Protektor Electric Retractor with J-Hook is an automated wheelchair securement retractor that integrates directly with the vehicle's electrical system to extend and retract webbing automatically.

SKU: H450240H1 | VENDOR: AMF BRUNS

AMF Bruns | Protektor Electric Retractor With J-Hook | H450240H1

✔ Free Shipping ⚡ Electric Retractor 🏷 AMF Bruns

Key Features

🔗

J-Hook Design

Reduces belt twisting and ensures proper securement angle — accommodates virtually all wheelchair designs.

⚡

Vehicle-Powered Retraction

Integrates with your vehicle's 12V electrical system for automatic belt deployment and retraction.

What's Included

Qty	Component	SKU
1	AMF Bruns 11.8 Ft Protektor Electric Retractor With J-Hook	H450240H1

Full Feature Details

Automated Electric Front Wheelchair Tie-Down for Tight-Space Minvans.

Feature	Description
Vehicle Power Control	12V integration eliminates manual cranking in confined spaces.
Extended 11.8 ft Reach	Perfect for front tie-downs in full-size accessible vehicles.
J-Hook Attachment	Quick, secure wheelchair frame connection prevents slippage.
Metal Cover Durability	Shields mechanism from daily fleet operations and debris.
H350240H1 Supersession	Updated SKU with identical fitment and performance.
Automatic extension/retraction	— no manual cranking or tensioning required
Automates wheelchair tie-downs	in tight spaces using vehicle power
Hands-free operation	— perfect for operators with limited mobility or space
J-Hook fitting	for sturdy attachment to wheelchair frame
fixed parts of wheelchair only	(not footrests, armrests)
11.8 ft / 3.6 m of webbing	for front attachment
Compact body with very flat belt angle	for optimal force flow
Considerable decrease in space and weight	vs. previous generation

Vehicle Applications

🚐 Wheelchair-Accessible Van (WAV)🚌 Paratransit / Minibus🚑 Non-Emergency Medical Transport (NEMT)🚌 School Bus🚐 Sprinter / Transit Van🚆 Rail / Community Transit

Standards & Compliance

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 302Flammability of Interior Materials

CMVSS 209Canadian Motor Vehicle Safety Standards — Seat Belt Assemblies

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

AS 2596Occupant Restraint Systems — Australia

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

🛡 Warranty: 1-year limited. Verify warranty terms at amfbrunsamerica.com.

⚠ Warranty terms should be verified directly with the manufacturer.

📄 Installation & User Guide: View Installation & User Guide List

📄 Product Documents: Electrical Retractor Installation and User Guide

Specifications

Specification	Detail
Brand	AMF Bruns
SKU	H450240H1
Price	$198.00 — price shown is per unit
Shipping	Free Shipping
Warranty	1-year limited
Use / Installation	Daily retractor operation requires no special tools. Vehicle electrical connection requires a qualified technician.
