What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

Sure - Lok | FF612S - 4C FF600 Series Wheelchair Retractor Kit S Hooks & Occupant Restraint - WheelchairStrap.com

Sure-Lok FF600 Series Wheelchair Retractor Kit S Hooks & Occupant Restraint | FF612S-4C

Vendor: Sure-Lok
Regular price: $608.00
Sale price: $608.00
Unit price: per

Shipping calculated at checkout.

The FF612S-4C is a heavy-duty Sure-Lok retractor kit designed for reliable wheelchair securement in Series L track applications. Built for strength, ease of use, and consistent performance, this kit includes a retractor system with an S-hook style occupant restraint setup for dependable passenger safety and secure positioning.

SKU: FF612S-4C | VENDOR: SURE-LOK

Sure-Lok FF600 Series Wheelchair Retractor Kit S Hooks & Occupant Restraint | FF612S-4C

✔ Free Shipping 🔒 4-Point Tie-Down Kit 🏷 Sure-Lok

Key Features

🔄

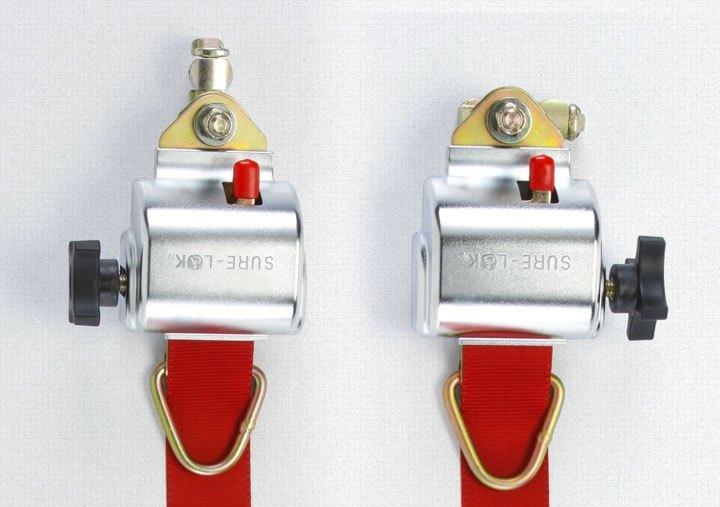

Free-Pivoting Fittings

Free-pivoting L-Track fittings automatically align to the belt angle — ensures optimum securement regardless of wheelchair position.

⚙️

Dual 24-Tooth Ratchet Tensioning

Dual 24-tooth sprocket ratchet mechanism provides smooth, controlled tensioning for precise securement.

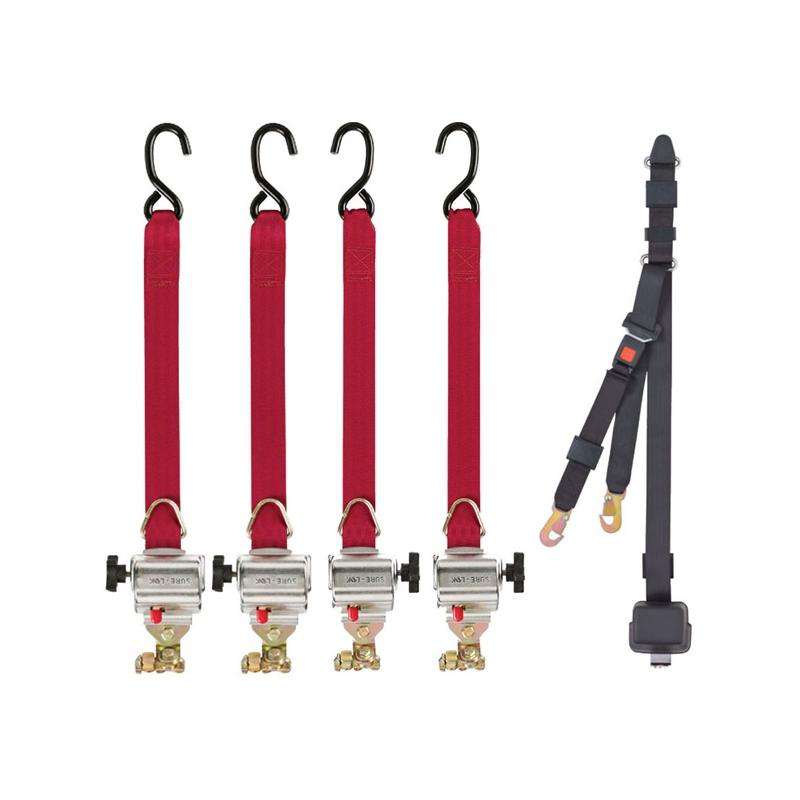

What's Included

Qty	Component	SKU
2	Right-Hand FF600 Retractor (L-Track/S-Hook)	FE200855
2	Left-Hand FF600 Retractor (L-Track/S-Hook)	FE200907
1	Integrated Combo Belt w/ Height Adjuster	FE200727HA

Full Feature Details

This kit is designed to support forward-facing wheelchair transportation and helps create a stable, organized restraint solution for mobility vehicles. With quality construction and user-friendly operation, it is an excellent choice for transportation providers looking for a trusted securement option.

Feature	Description
Complete WC19 System	4-point wheelchair tie-down + occupant lap/shoulder restraint.
S-Hook Attachments	One-handed wheelchair frame corner securement.
Height Adjuster	Accommodates diverse passenger statures (4'6″-6'6″).
Dual 24-Tooth Sprockets	60% reduced tensioning effort vs. standard cranks.
Pivoting L-Track Fittings	Automatic 45° securement angle optimization.

Vehicle Applications

🚌 School Bus🚌 City Bus / Transit Bus🚌 Coach Bus🚆 Rail / Community Transit🚑 Non-Emergency Medical Transport (NEMT)🚐 Wheelchair-Accessible Van (WAV)🚗 Personal Vehicle / Minivan

Standards & Compliance

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 222School Bus Passenger Seating & Crash Protection

FMVSS 302Flammability of Interior Materials

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

📘 Compliance & Documentation: For state-by-state Medicaid/NEMT requirements, ADA guidance, and fleet documentation tools, visit our Compliance Resource Center.

🛡 Warranty: 1-year limited. Verify warranty terms at sure-lok.com.

⚠ Warranty terms should be verified directly with the manufacturer.

📄 Installation & User Guide: View Installation & User Guide List

📄 Product Documents: FF600 Restraint Brochure

Specifications

Specification	Detail
Brand	Sure-Lok
SKU	FF612S-4C
Price	608.00 — price shown is per kit
Shipping	Free Shipping
Warranty	1-year limited
Use / Installation	Retractors require no special installation for daily use. Floor anchorage components require professional installation by a qualified WAV modifier.

Frequently Asked Questions

Does this kit include everything I need for one wheelchair position? +

A complete wheelchair tie-down and occupant restraint system — often called a 4-point securement system — has three primary components: floor anchorages (L-Track rail and floor pockets), wheelchair securement retractors (4-point tie-downs), and an occupant restraint (lap and shoulder belt). See the What's Included section for exactly what this kit contains and what may need to be purchased separately.

Do I need to buy floor anchors separately? +

Check the What's Included section. If L-Track rail or floor pockets are not listed, they need to be purchased separately. Your vehicle may already have floor anchorage installed — check before ordering.

Is professional installation required? +

The retractors connect to existing floor anchorage and require no special tools for daily use. Floor anchorage components must be installed by a qualified WAV modifier.

Can I mix brands within the same vehicle? +

We do not recommend mixing brands within the same 4-point wheelchair position. All four retractors at each position should be the same brand and series for system-level compatibility and compliance.
