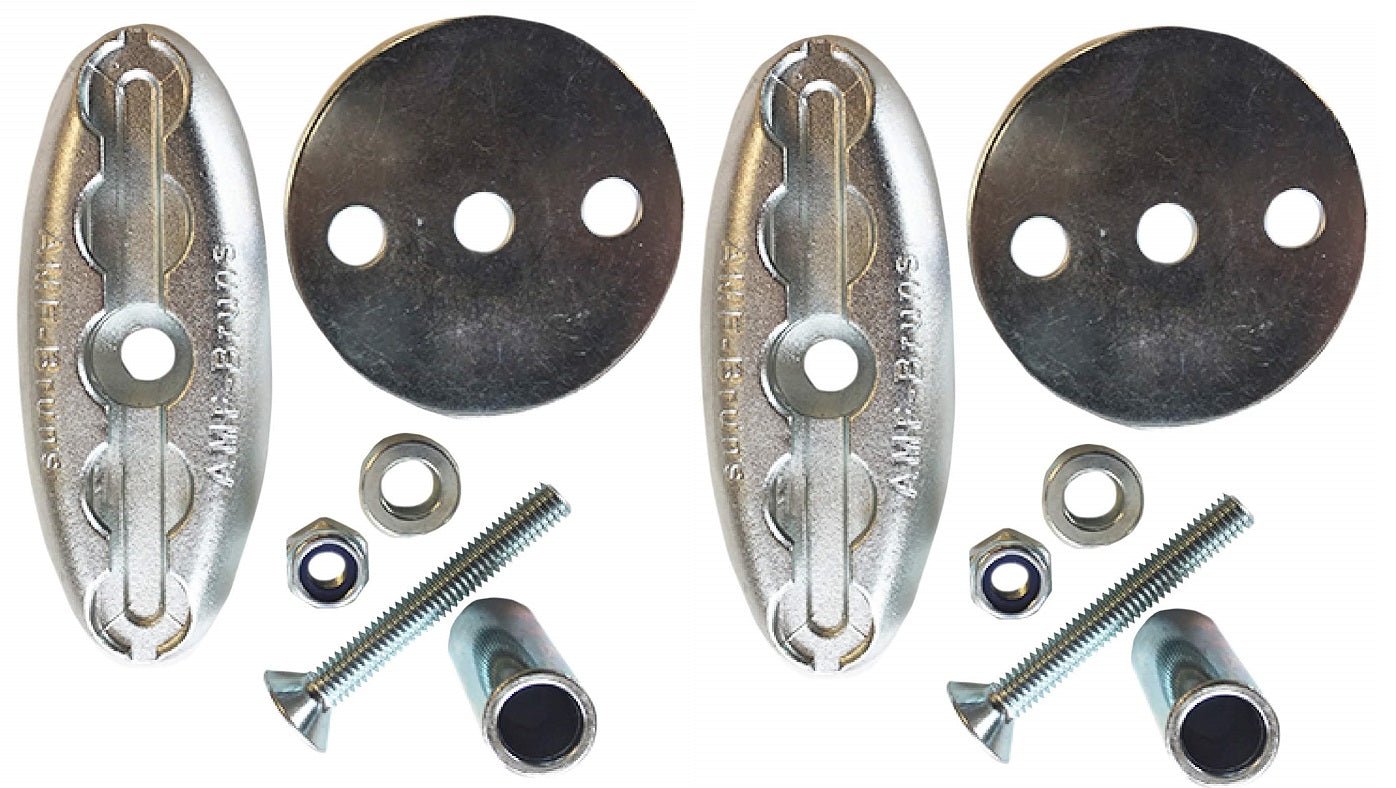

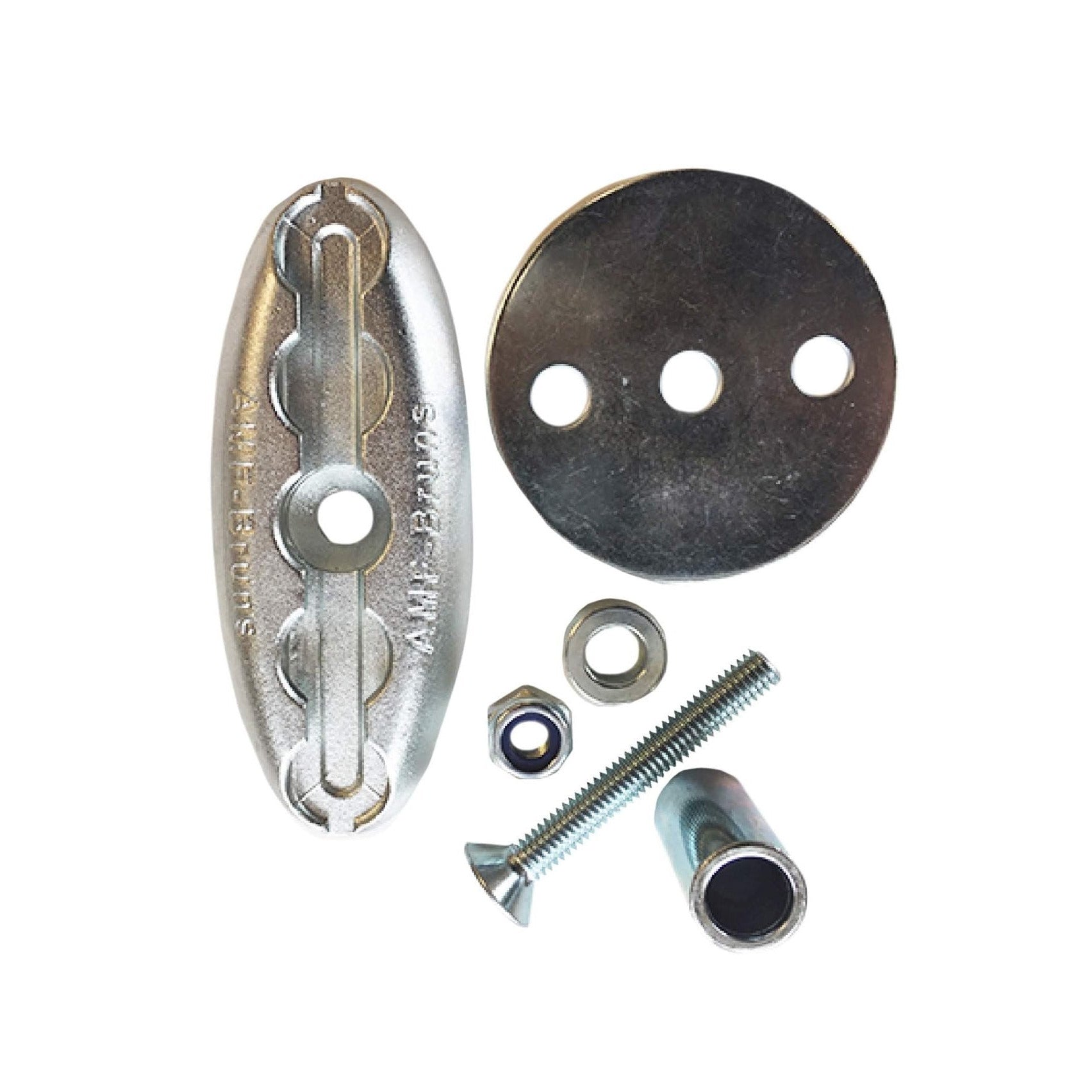

L-Track Floor Pocket (2-Pack Hardware Kit) provides recessed anchor points for wheelchair tie-down systems, including six each of M10 x 70mm bolts, washers, and nuts for complete installation. Included In Pack: Qty 2 Floor Pocket for L-Track | 200269390 Qty 2 M10 bolt Qty 2 70 mm / 2.76” long Qty 2 Washer Qty 2 Nut Key Features Complete Hardware : Two(2) M10 bolts (70mm/2.
SKU: 200269390X2 | VENDOR: AMF BRUNS
200269390 | Floor Pocket For L-Track | 2 PACK
🚚 Free Shipping on Orders Over $100🔩 Floor Anchorage Hardware🏷 AMF Bruns
Key Features
🔩
Accepts L-Track Retractor Fittings
L-Track retractor fittings from Q'Straint, Sure-Lok, and AMF Bruns slide and lock directly into this floor pocket.
📐
Surface Mount
Mounts to the existing vehicle floor without cutting through the floor structure.
🔲
Low-Profile Flush Fit
Recessed flush with the floor — minimizes tripping hazards and keeps the vehicle interior clean when not in use.
✅
OMNI-Approved
Compatible with Q'Straint, Sure-Lok, and AMF Bruns retractors on OMNI-approved anchorage systems.
L-Track Floor Pocket (2-Pack Hardware Kit) provides recessed anchor points for wheelchair tie-down systems, including six each of M10 x 70mm bolts, washers, and nuts for complete installation.
Feature
Description
Complete Hardware
Two(2) M10 bolts (70mm/2.76″ long), washers, nuts included for multiple installations.
Recessed Design
L-Track sits below floor level when stowed; deploys instantly for securement.
Universal Compatibility
Works with all L-Track retractors, static belts, and 4-point systems.
Caster Clearance
Low-profile prevents wheelchair wheel hang-ups during positioning.
Standards & Compliance
ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems
SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles
FMVSS 209Seat Belt Assemblies
FMVSS 210Seat Belt Assembly Anchorages
FMVSS 302Flammability of Interior Materials
CMVSS 209Canadian Motor Vehicle Safety Standards — Seat Belt Assemblies
CSA Z605Wheelchair Securement in Motor Vehicles (Canada)
AS 2596Occupant Restraint Systems — Australia
ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.
Professional installation required by a qualified WAV modifier or accessibility vehicle technician.
Frequently Asked Questions
What is L-Track? +
L-Track (also called aero track) is the standard floor rail system used in wheelchair-accessible vehicles. Retractors and other equipment attach to L-Track via fitting hardware that slides along the track and locks into position.
Do I need professional installation? +
Yes. Floor anchorage components must be installed by a qualified WAV (wheelchair-accessible vehicle) modifier or certified accessibility vehicle technician.
How many floor anchors do I need? +
A standard 4-point wheelchair securement position requires 4 floor anchorage points — typically 2 rear and 2 front. Contact us with your vehicle type and number of wheelchair positions for a precise count.
Are all L-Track systems compatible? +
Q'Straint, Sure-Lok, and AMF Bruns retractors are compatible with OMNI-approved L-Track. Verify fitting compatibility before purchase.
