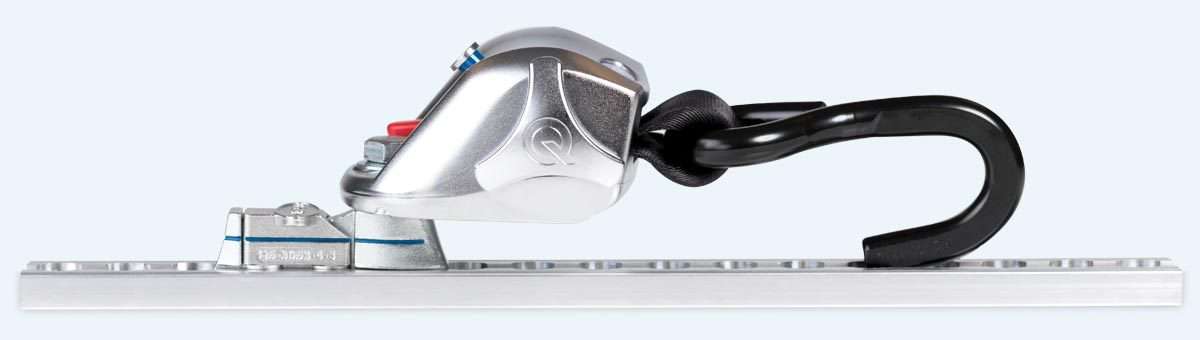

Single QRT-360 Retractor Mounted with L-Track Fitting BUILT TO MEET TOMORROW’S STANDARDS DS. Vehicle Applications: School Bus, City Bus, Coach Bus, Rail, Community Transport, Minivan, WAV Brouchure: QRT-360 FEATURES FULLY MEETS WC18/19 - Meets load requirements of up to 60% higher during a collision as specified by RESNA & the WC18 standard.
SKU: Q011012 | VENDOR: Q'STRAINT

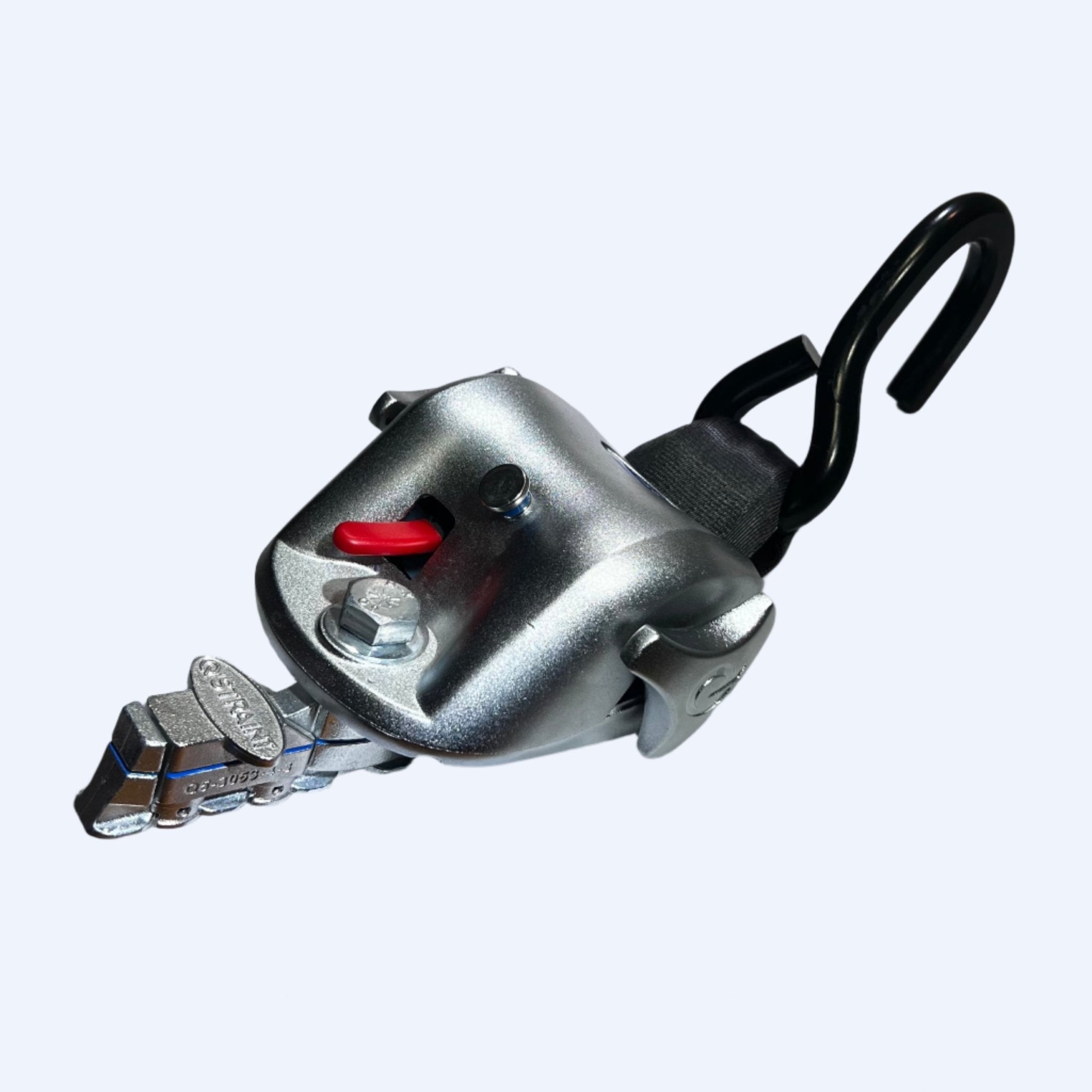

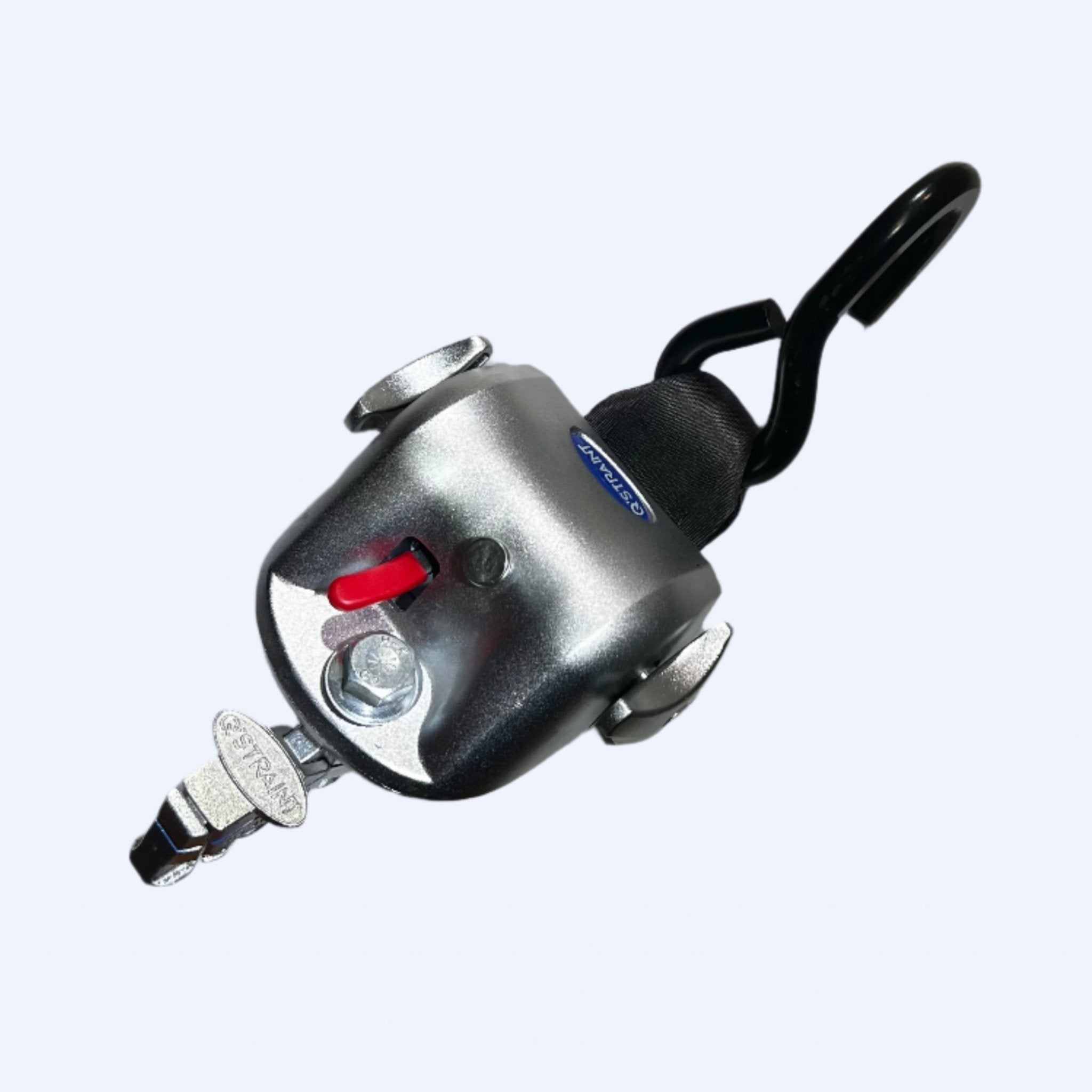

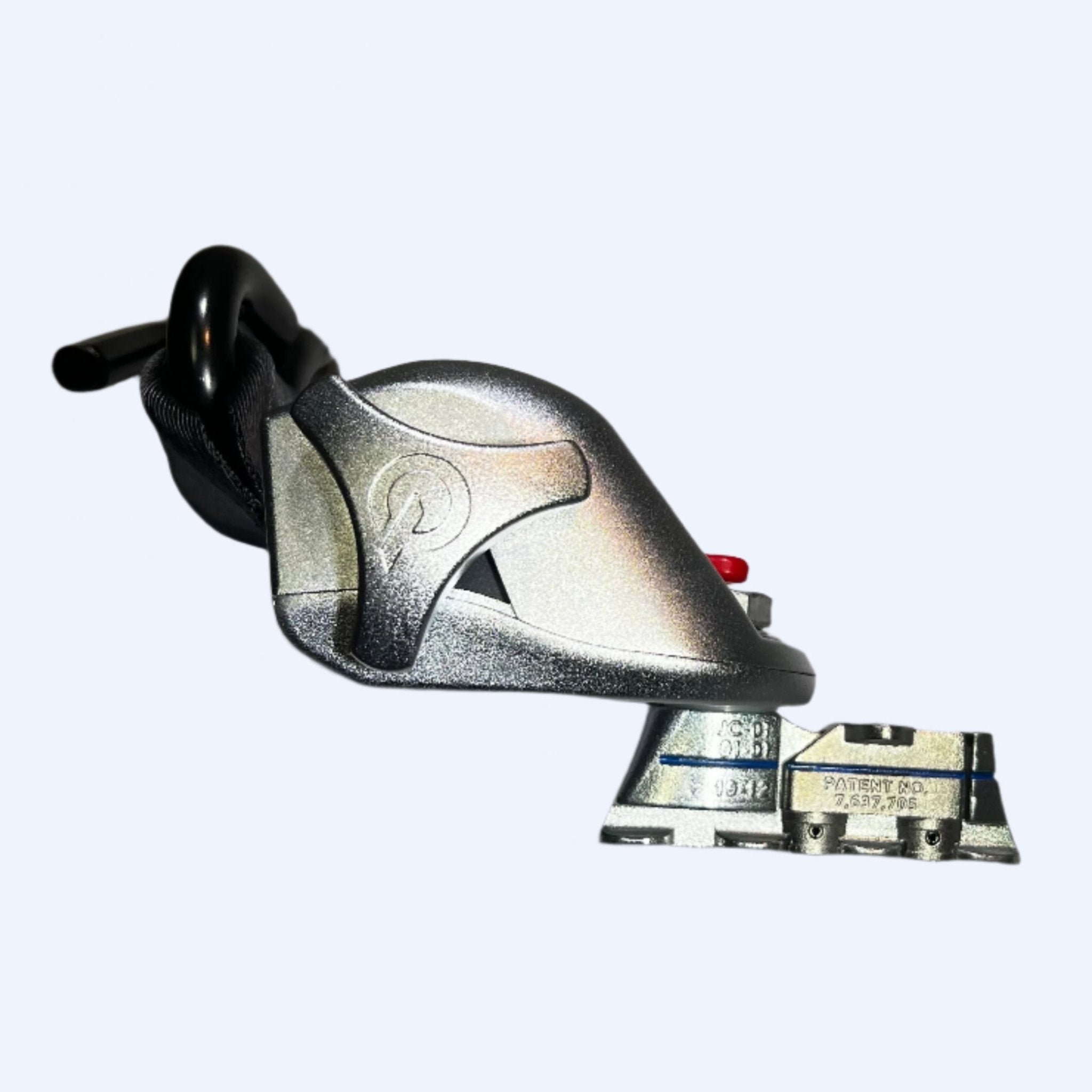

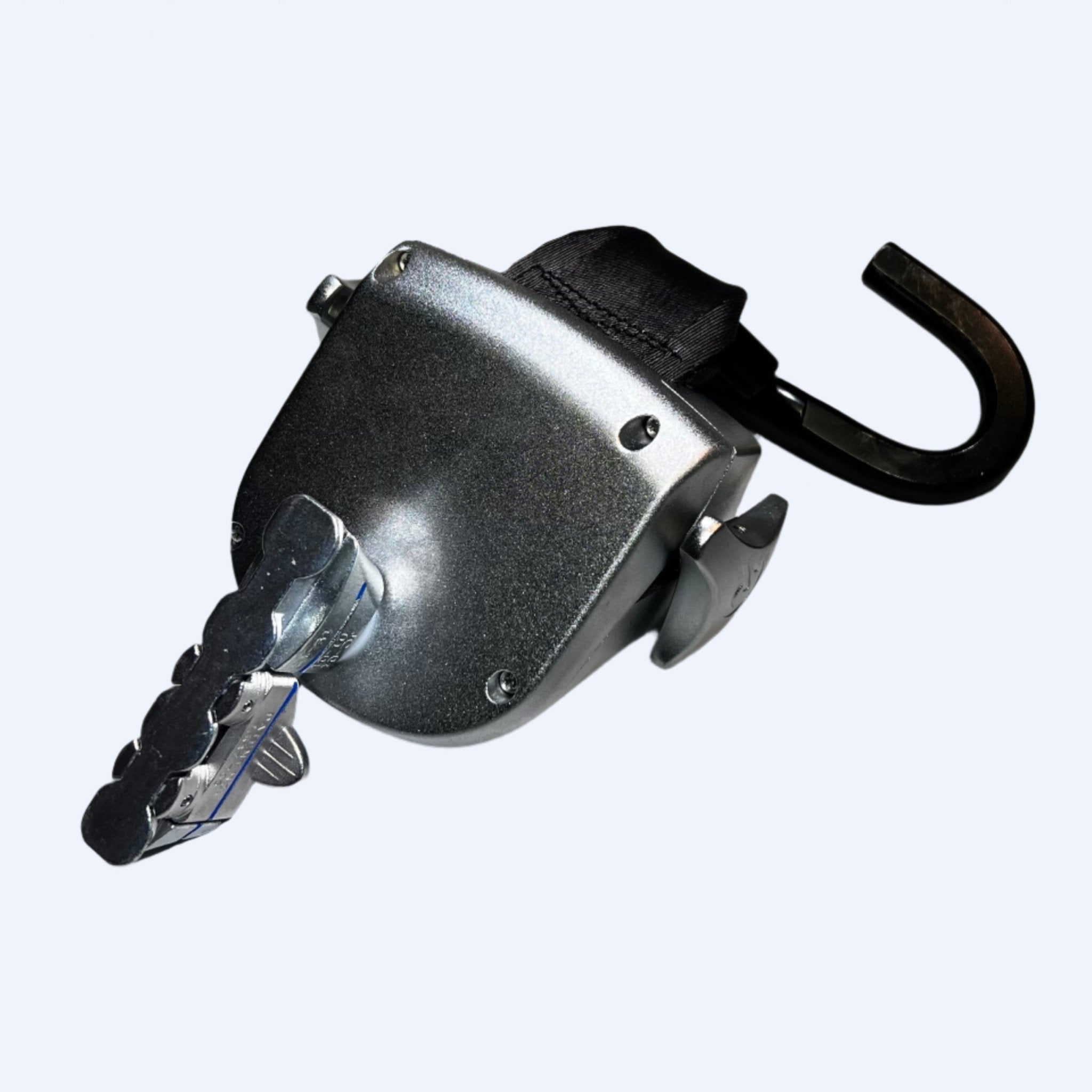

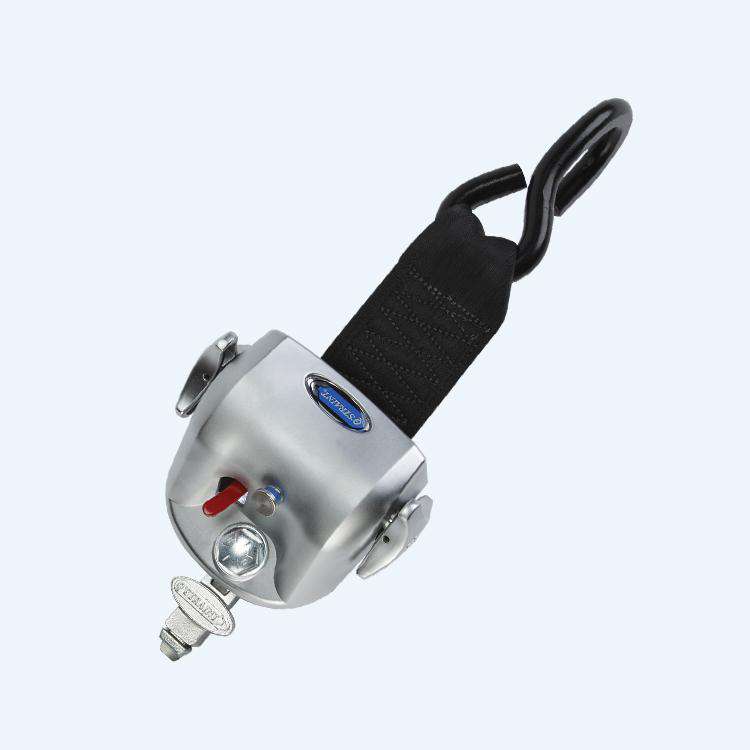

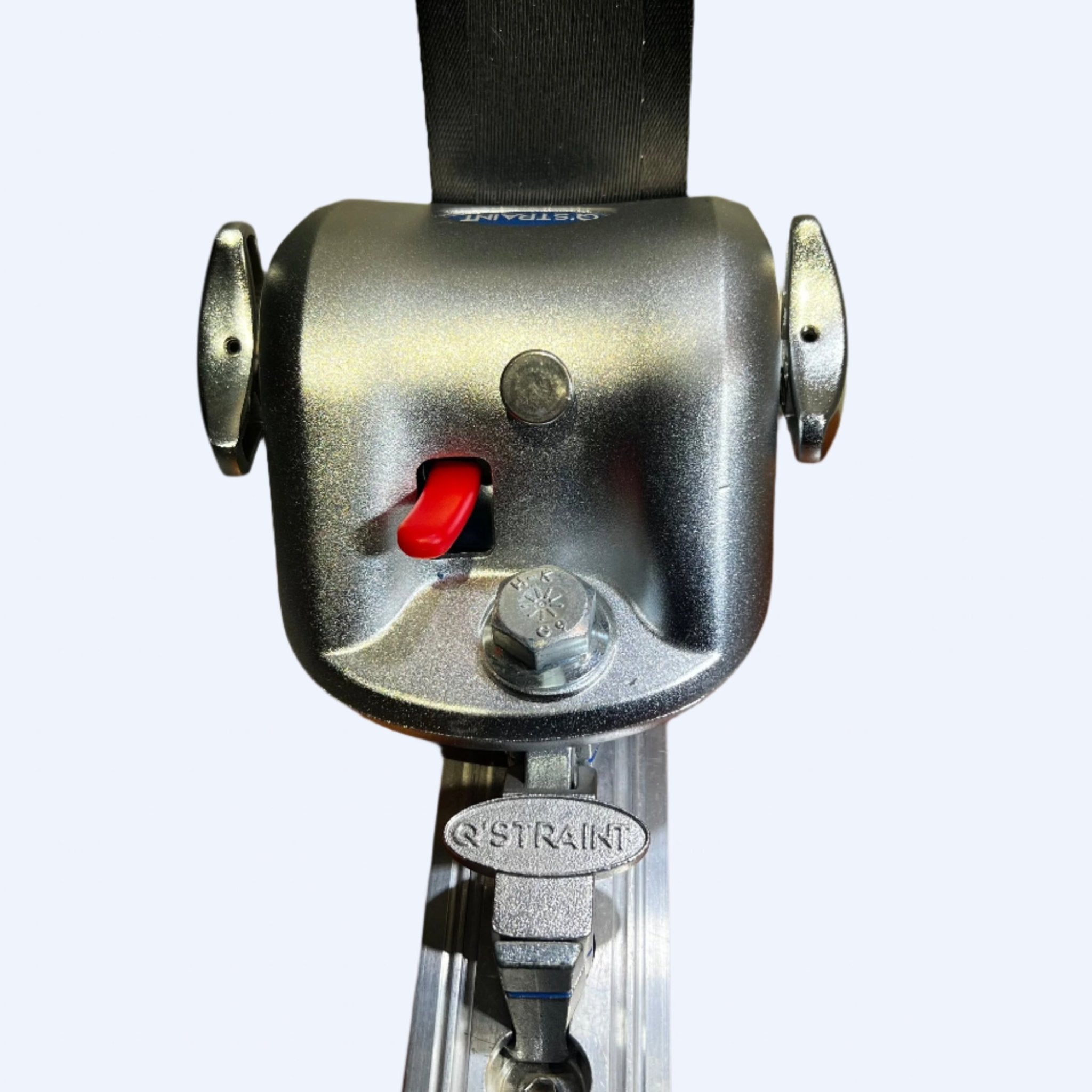

Q'Straint QRT-360 Retractor Mounted with L-Track Fitting | Q011012
✔ Free Shipping🔄 Replacement Retractor🏷 Q'Straint
Key Features
⚙️
Self-Tensioning
Automatically takes up slack — no manual tensioning required.
🟢

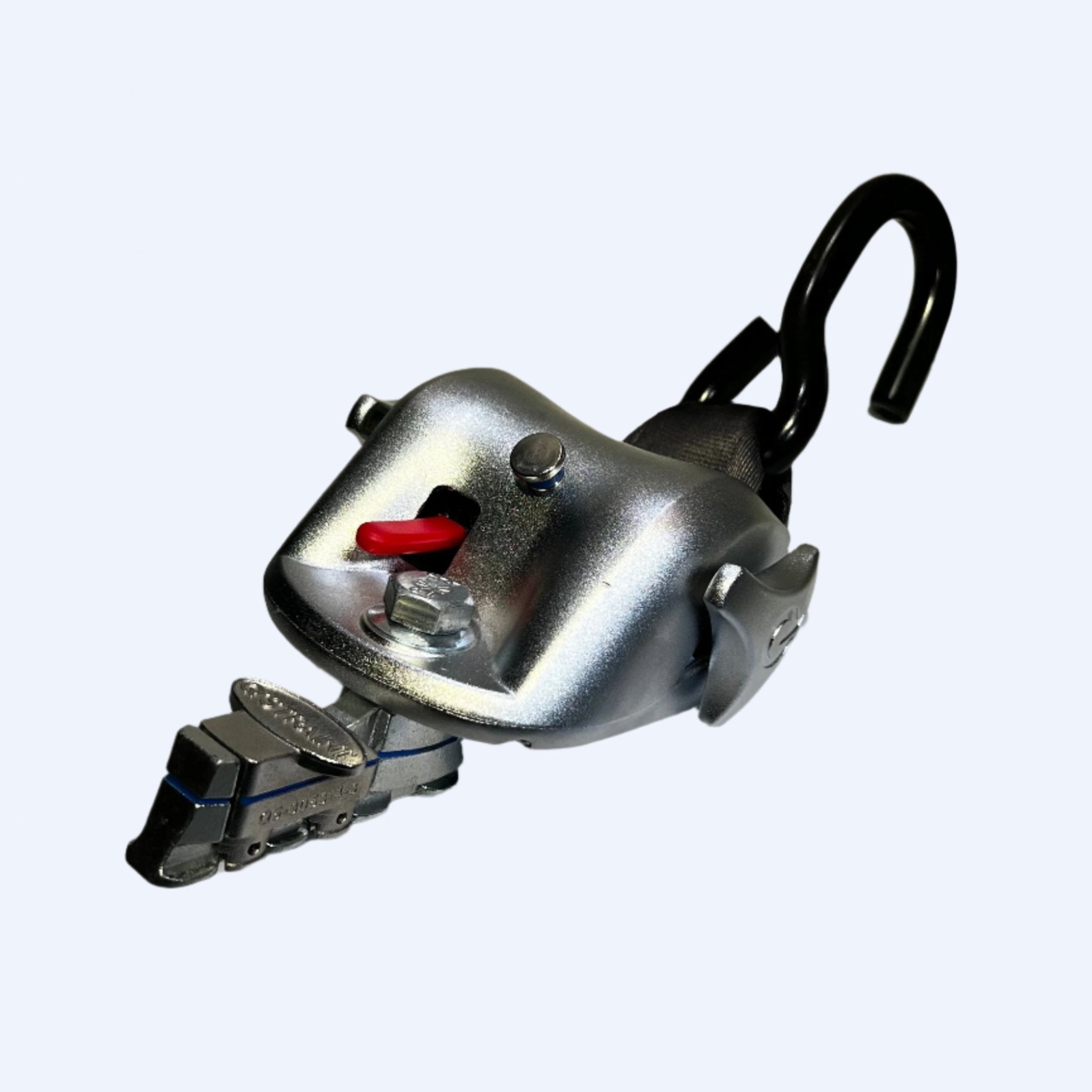

Positive Lock Indicator (PLI)
Clearly indicates when the fitting is locked into the anchorage. Eliminates guesswork for operators.
👟
Foot Release Lever
Hands-free release — operator can disengage the retractor with a foot lever without bending down.
🔗
J-Hook Design
Reduces belt twisting and ensures proper securement angle — accommodates virtually all wheelchair designs.
📐
Low Profile & Compact
No mounting bracket required — retractors fit under most wheelchair footrests.
🛡
Ultra-Durable Construction
Constructed from hardened steel and coated in zinc for maximum corrosion resistance.
↔️
Interchangeable
No designated right, left, front, or rear positions — any retractor works at any of the four securement points.
🏆
RESNA WC18 Rated
Built to the higher load requirements of the WC18 standard.
What's Included
Qty
Component
SKU
1
Qty 1 QRT-360 Retractor w/ L-Track Fitting
Q011012
Full Feature Details
STRONGER THAN ALL OTHER RETRACTORS
The first 4-point, heavy duty, fully automatic retractable tie-downs built to withstand the higher loads of the WC18 standard and be compatible with WC19 wheelchairs.
Feature
Description
Brouchure:
QRT-360
FULLY MEETS WC18/19
Meets load requirements of up to 60% higher during a collision as specified by RESNA & the WC18 standard. The QRT-360 is also fully compatible with newer WC19 Wheelchairs.
STRONGER THAN ALL OTHER RETRACTORS
The QRT-360 utilizes an innovative energy management design and new energy-absorbing steel frame to deliver the system’s full strength for maximum load capacity.
NEW WEBBING & TEETH
QRT-360 is the only retractor to feature both high-strength 58mm webbing and 25 interlocking teeth, that combine to allow for super fine adjust self-tensioning.
AUTOMATIC SELF-TENSIONING & LOCKING
Our industry-leading self-tensioning retractors automatically take up slack to ensure wheelchair passenger is always secured. The belts continue to tighten during low-g vehicle movements, reducing the potential for dangerous excursions in the event of a collision.
ACCOMMODATES LARGER WHEELCHAIRS
QRT-360 features a smaller retractor footprint than traditional securement, allowing for better placement flexibility and accommodation of large wheelchairs and scooters.

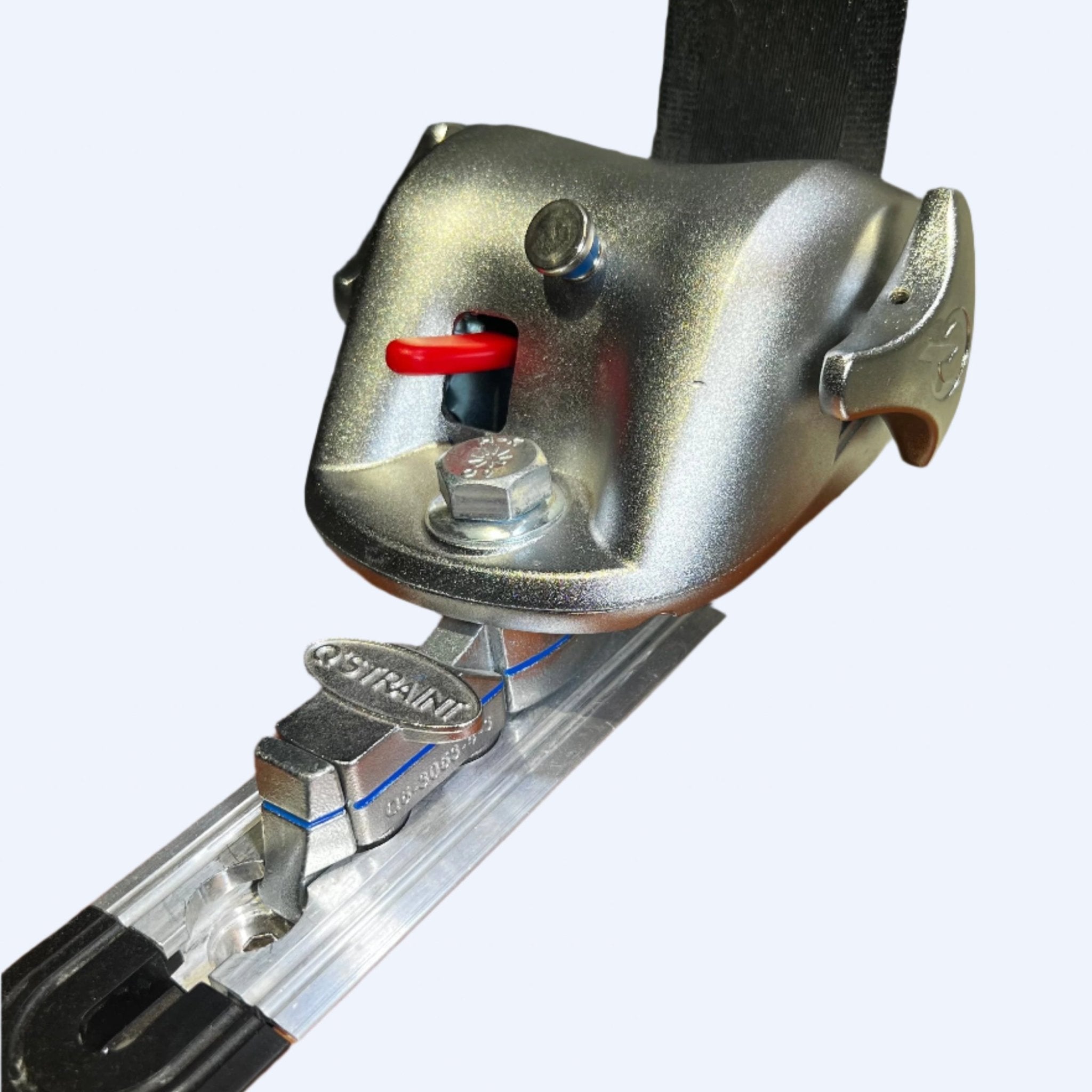

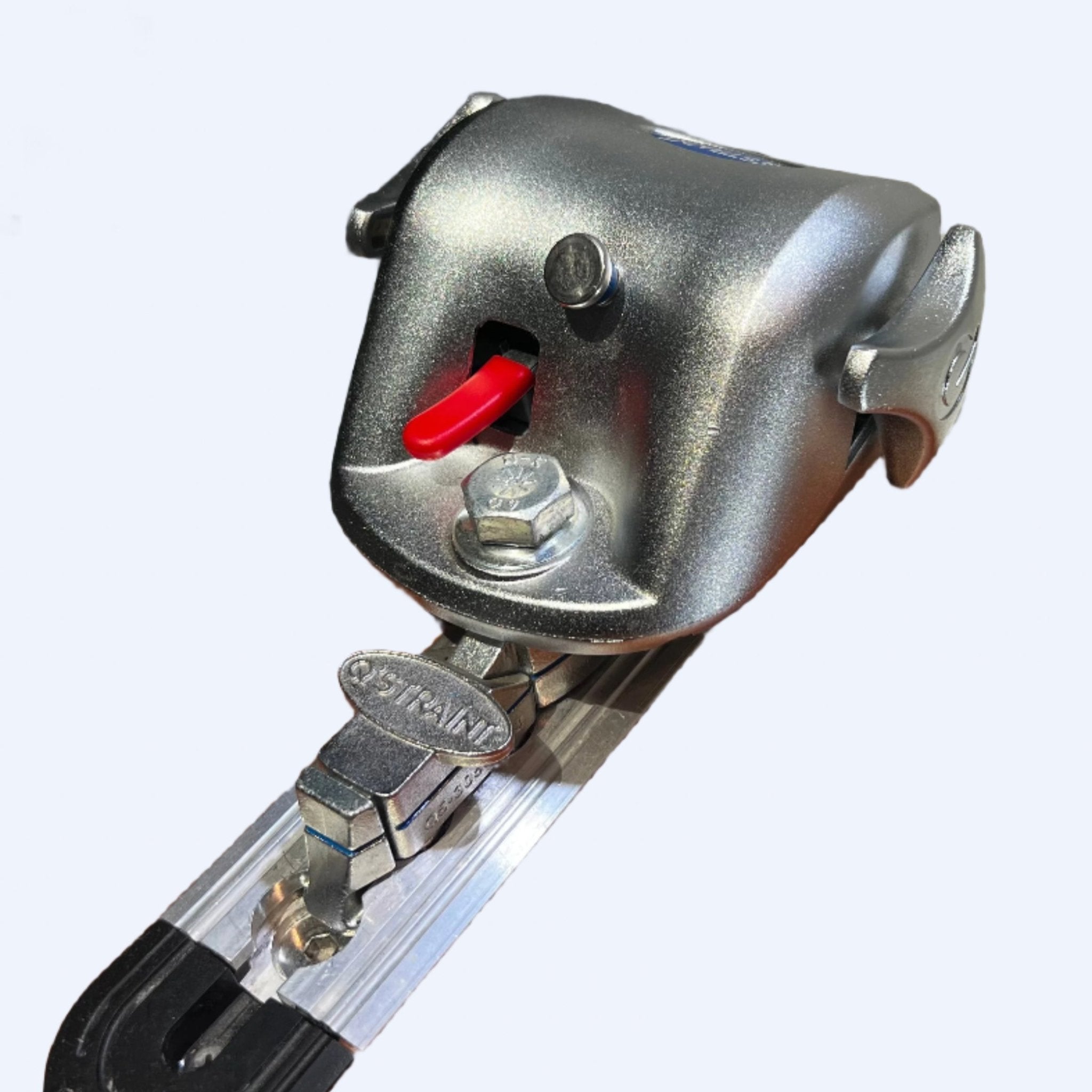

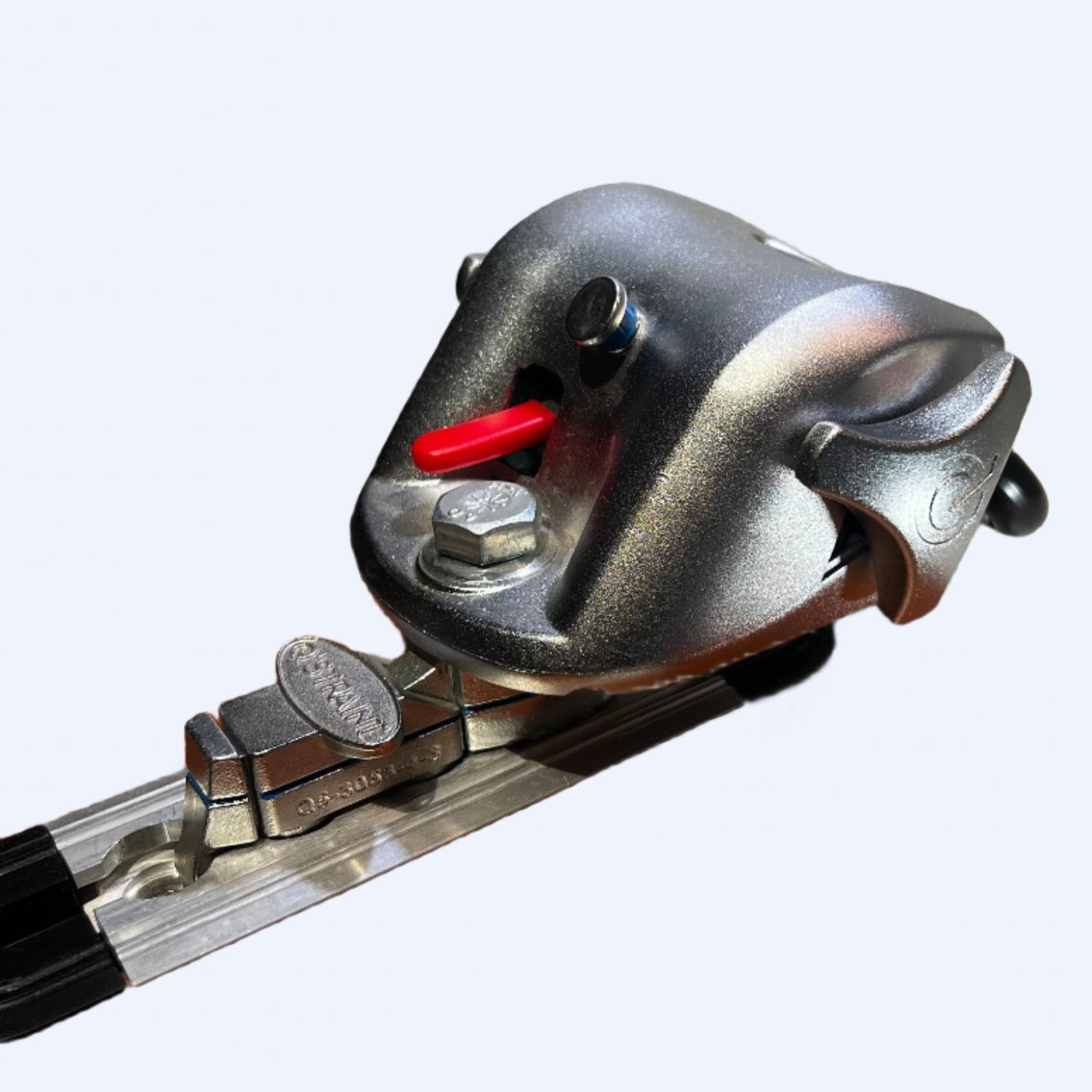

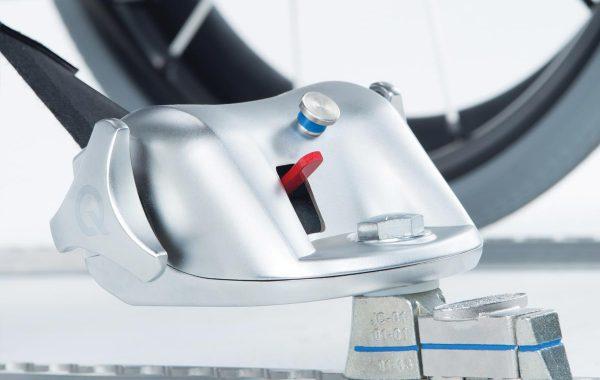

POSITIVE LOCK INDICATOR FOR L-TRACK
For L-Track and L-Pocket applications, the QRT-360 boasts a re-engineered PLI for an even clearer, more precise indication that the fitting is locked in the anchorage.

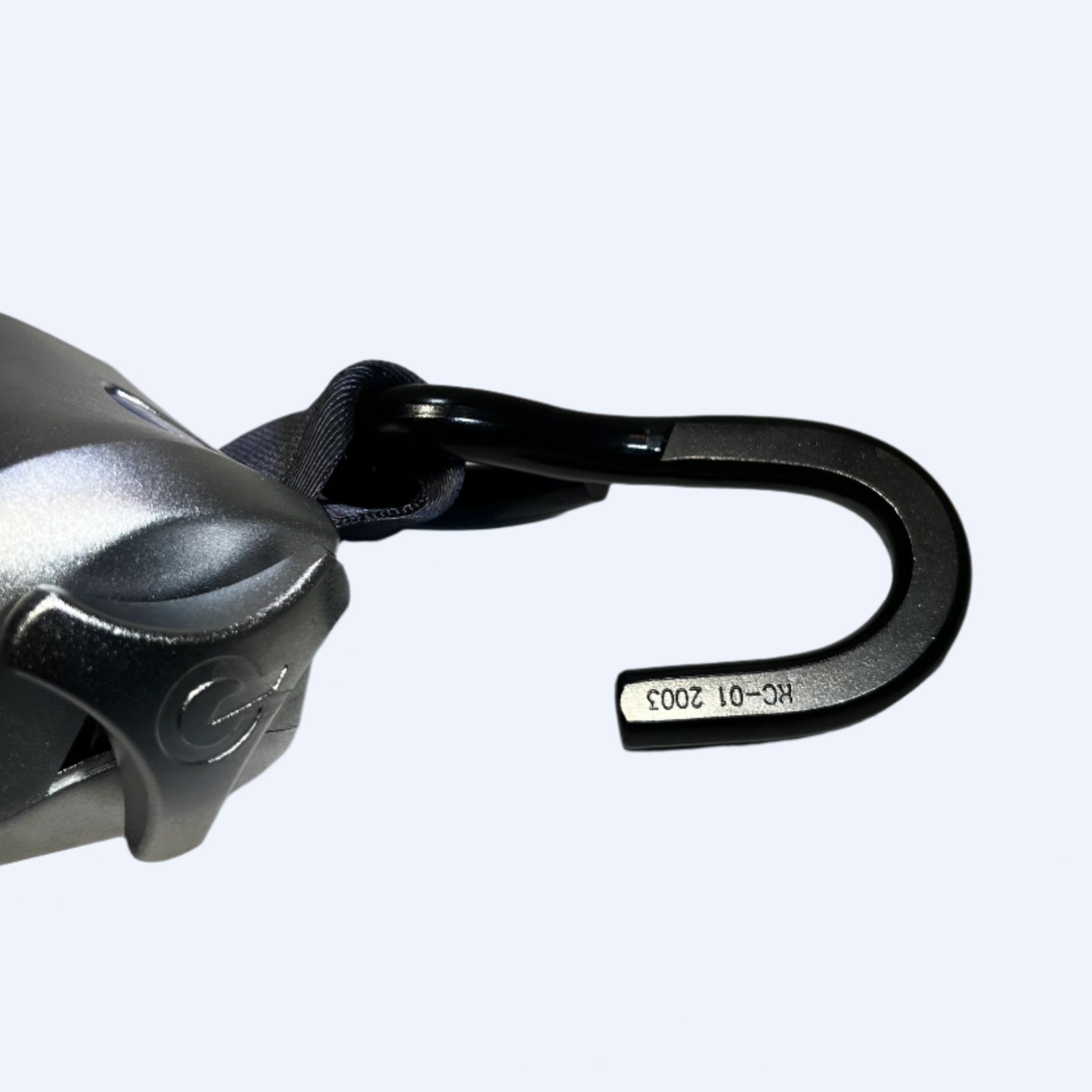

J-HOOKS
J-Hook attachments make it easy to secure virtually any device, and reduces the twisting of belts.
ENLARGED FOOT RELEASE
The foot release of the QRT-360 has been enlarged, making it easier to engage.
SNC ASSEMBLY FOR SLIDE ‘N CLICK
For Slide ‘N Click anchorages, the QRT-360 can use our patented SNC 360º assembly that eliminates alignment guesswork.
ULTRA-DURABLE
Constructed from hardened steel and coated in zinc for maximum corrosion resistance.

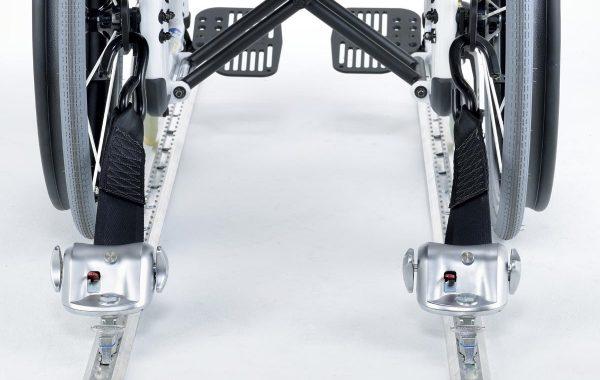

LOW PROFILE
No mounting bracket allows QRT-360 retractors to fit under most footrests.
INTERCHANGEABLE
Eliminates confusion: no right, left, front or rear locations.

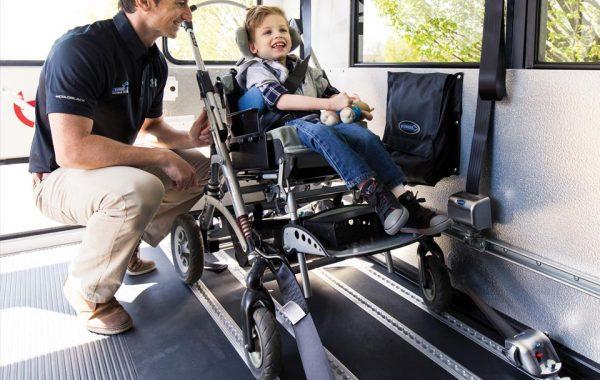

Vehicle Applications
🚐 Wheelchair-Accessible Van (WAV)🚌 Paratransit / Minibus🚑 Non-Emergency Medical Transport (NEMT)🚌 School Bus🚐 Sprinter / Transit Van🚆 Rail / Community Transit

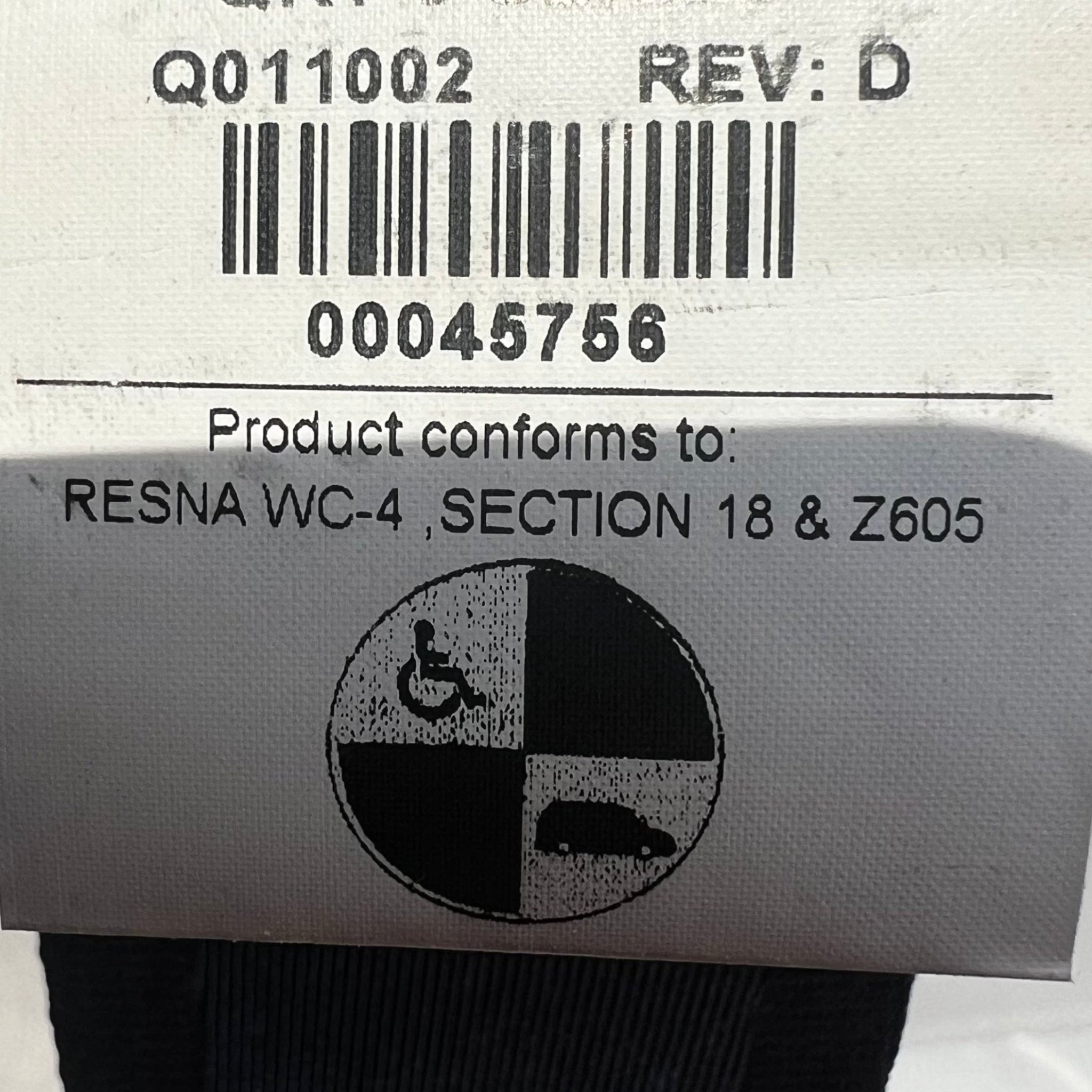

Standards & Compliance
ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems
RESNA WC18Wheelchair Tie-Down & Restraint Systems — Heavy Duty (ANSI/RESNA)
FMVSS 209Seat Belt Assemblies
FMVSS 210Seat Belt Assembly Anchorages
FMVSS 302Flammability of Interior Materials
CSA Z605Wheelchair Securement in Motor Vehicles (Canada)
ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.
🛡 Warranty: 5-year limited. * Registration required at qstraint.com for full coverage. Without registration, 1-year limited applies.
⚠ Warranty terms should be verified directly with the manufacturer.
⚠ California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See qstraint.com/prop-65
Is this a replacement for an existing retractor? +
Yes — this is a single replacement retractor unit. Match the brand, series, and fitting type to your existing system.
Do all four retractors need to be the same? +
Yes. All four retractors at each wheelchair securement position should be the same brand and series for system-level compatibility and compliance.
What fitting type do I need? +
Match to your existing floor anchorage: L-Track (most common in transit), Slide 'N Click (Q'Straint system), A-Track, or Smart Fitting (AMF Bruns). Check your current retractors or floor hardware to confirm.
Does this include floor hardware or a belt? +
No — this is a single retractor unit only. Floor anchorage and occupant belts are purchased separately.
What is the warranty? +
See the Warranty section above. Registration at qstraint.com is required for full warranty coverage.
Specifications
Specification
Detail
Brand
Q'Straint
SKU
Q011012
Price
$218.00 — price shown is per unit
Shipping
Free Shipping
Warranty
5-year limited
Use / Installation
No special installation required — designed for daily operator use.
