FE200763 | 8" L - Track Section, Flanged, with 1/4" Countersunk Mounting Holes - WheelchairStrap.com

8" L-Track Section, Flanged, with 1/4" Countersunk Mounting Holes | FE200763

Vendor: Sure-Lok
Regular price: $35.00
Sale price: $35.00
Unit price: per

Shipping calculated at checkout.

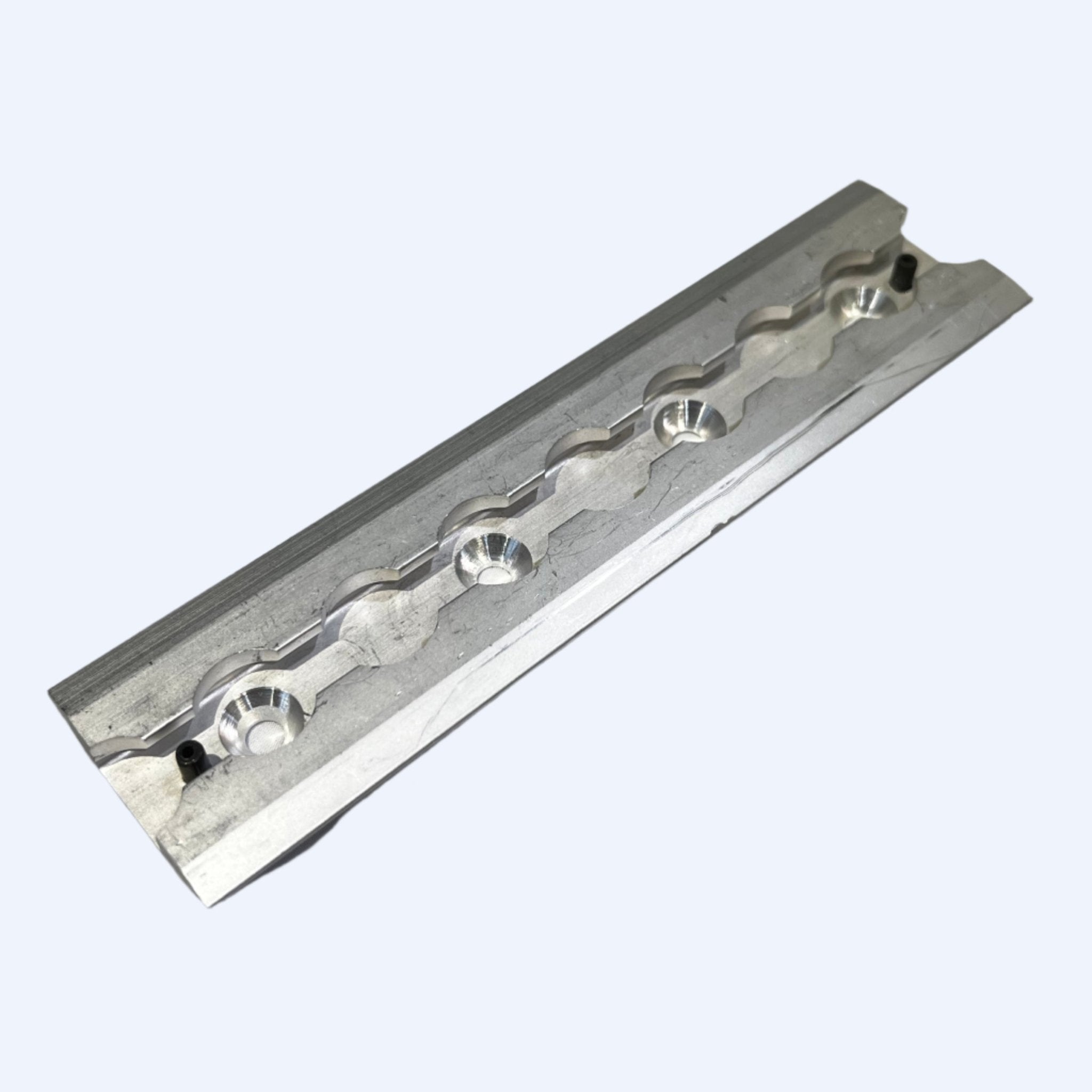

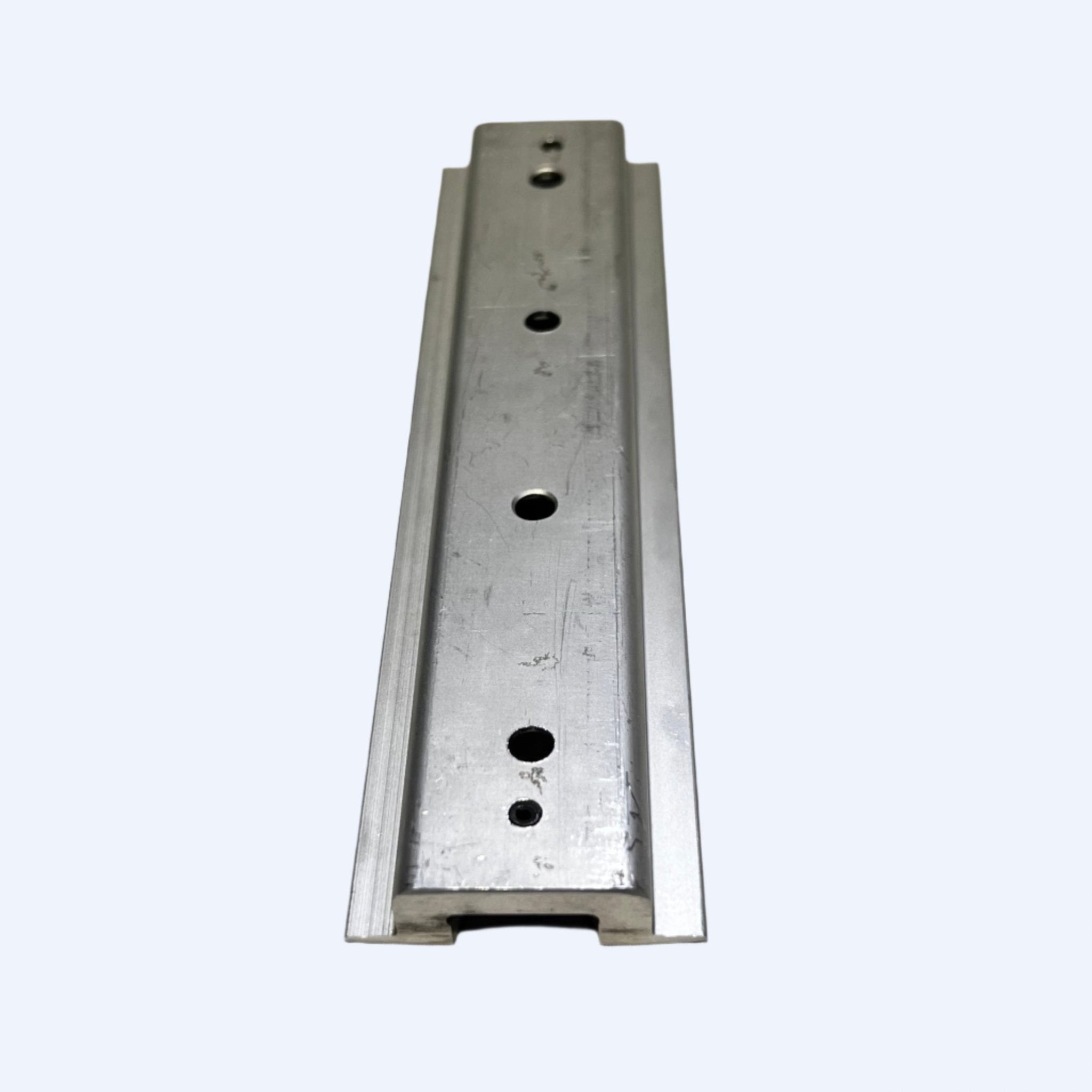

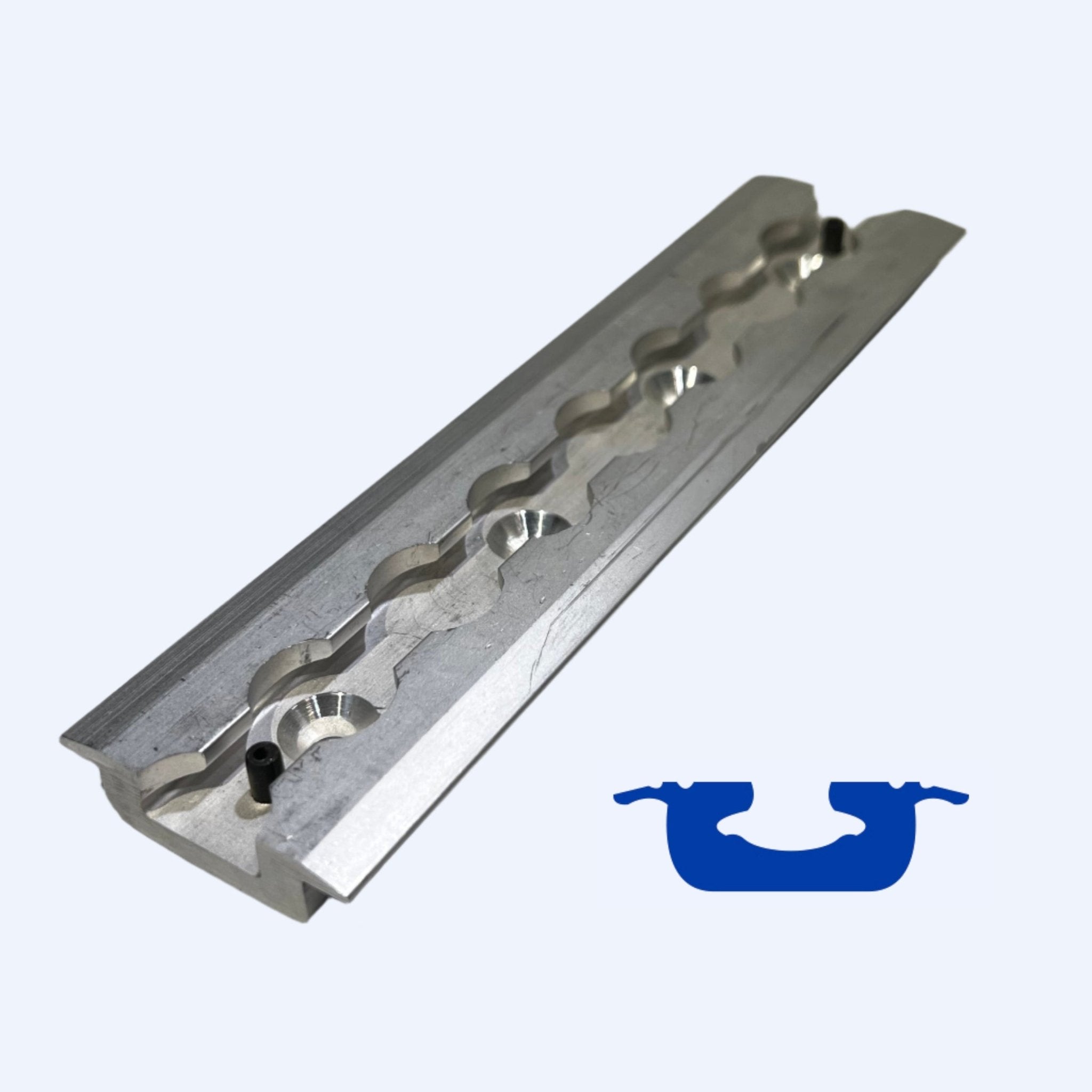

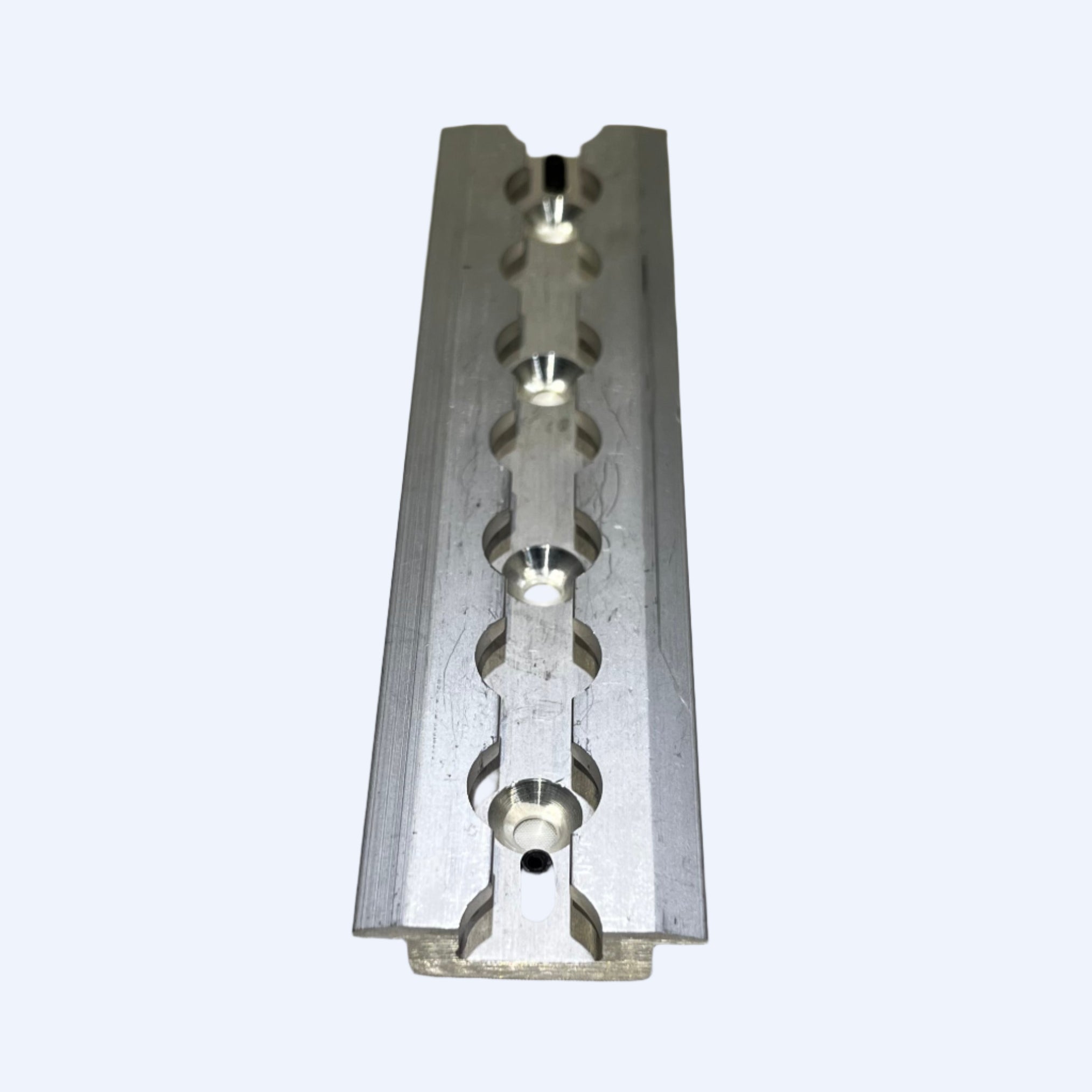

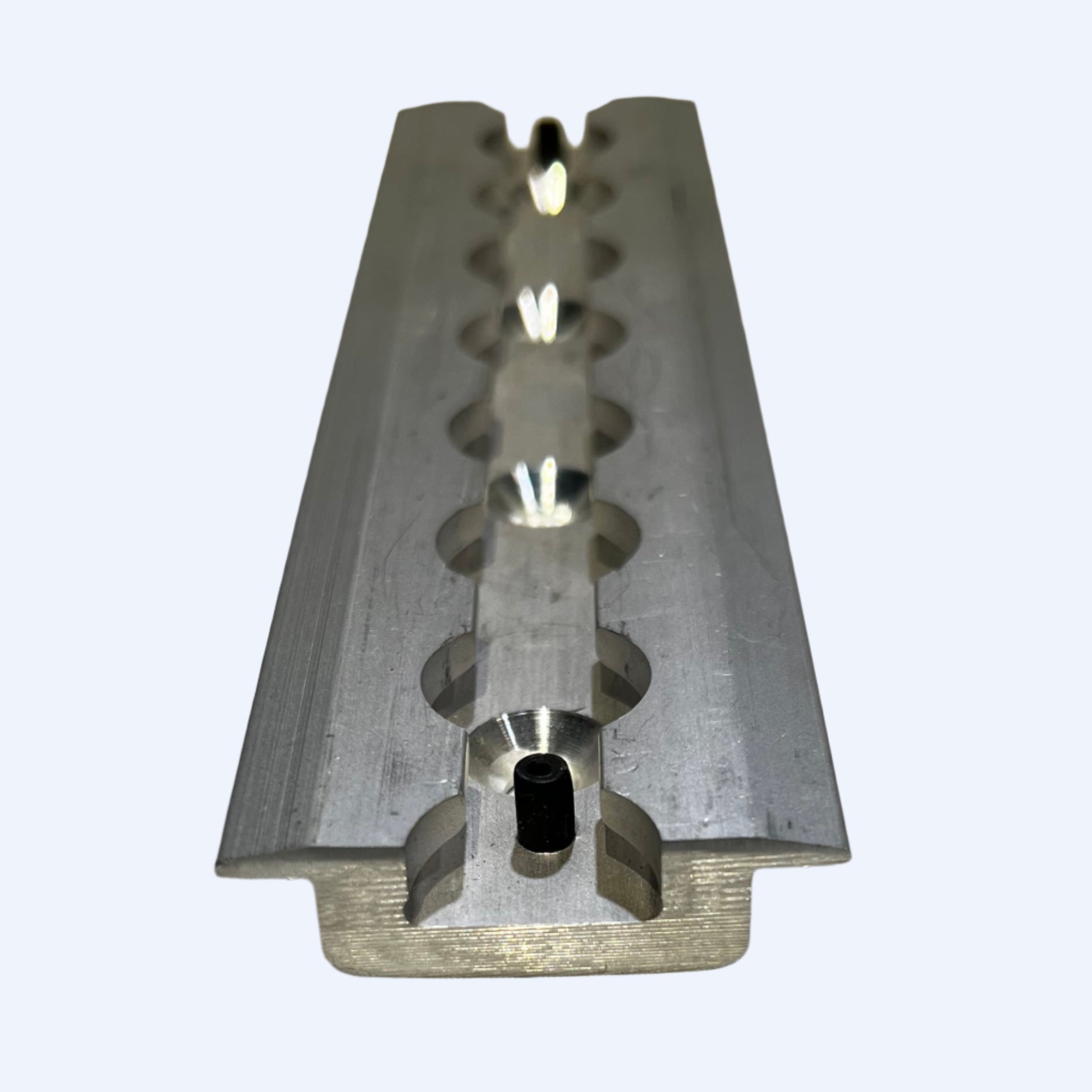

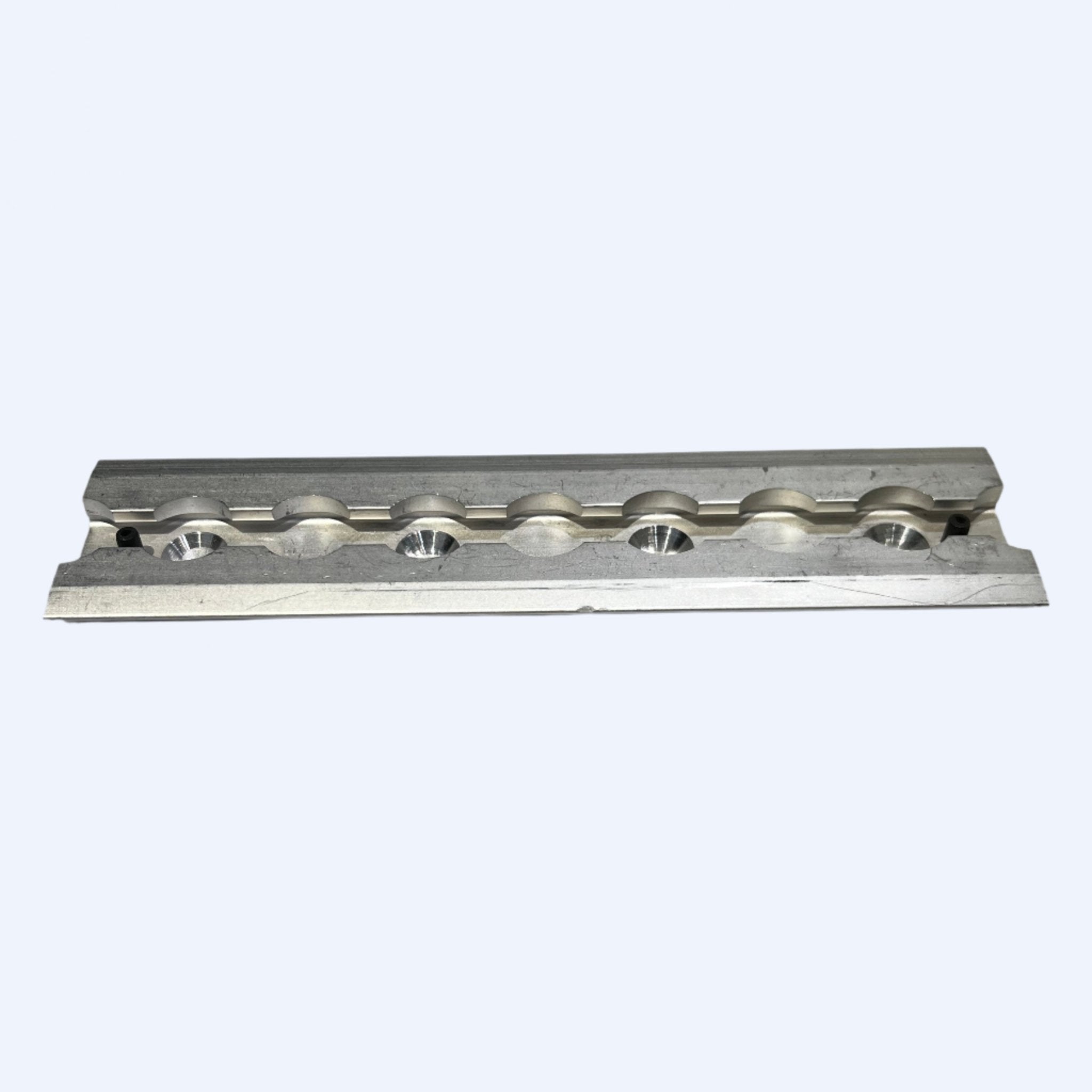

FE200763 | 8" L-Track Section, Flanged, with 1/4" Countersunk Mounting Holes Sure-Lok FE200763 HD L-Track Section (Non-Flanged) provides an 8" fixed-position heavy-duty track with four 1/4" countersunk mounting holes, constructed from ultra-strong 7075-T6 aluminum alloy for safety retractor anchors in transit and paratransit applications.

SKU: FE200763 | VENDOR: SURE-LOK

8" L-Track Section, Flanged, with 1/4" Countersunk Mounting Holes | FE200763

🚚 Free Shipping on Orders Over $100 🔩 Floor Anchorage Hardware 🏷 Sure-Lok

Key Features

🔩

Accepts L-Track Retractor Fittings

L-Track retractor fittings from Q'Straint, Sure-Lok, and AMF Bruns slide and lock directly into this floor pocket.

🔲

Low-Profile Flush Fit

Recessed flush with the floor — minimizes tripping hazards and keeps the vehicle interior clean when not in use.

What's Included

Qty	Component	SKU
1	8" L-Track Section, Flanged, with 1/4" Countersunk Mounting Holes	FE200763

Full Feature Details

Sure-Lok FE200763 HD L-Track Section (Non-Flanged) provides an 8" fixed-position heavy-duty track with four 1/4" countersunk mounting holes, constructed from ultra-strong 7075-T6 aluminum alloy for safety retractor anchors in transit and paratransit applications.

Feature	Description
7075-T6 Alloy	Maximum strength-to-weight ratio.
Four Countersunk Holes	Flush 1/4" mounting with FE201005 hardware.
Non-Flanged Design	Minimal floor protrusion for cleaner installs.
Retractor-Optimized	Precise positioning for safety automatic retractors.

Required Accessories:

Item	SKU/Link	Purpose
End Caps (Black)	QC06058	Track termination
End Caps (Grey)	QC06088	Track termination
Fastener Kit	FE201005X100	1/4" mounting hardware
Filler Strip	FE200751X1	ADA compliance

Comparisson: 8" vs 9" HD Sections:

Model	Holes	Flange	Length
FE200763	4 x 1/4"	Non-flanged	8"
FE200765	2 x 3/8"	Flanged	9"

Standards & Compliance

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 222School Bus Passenger Seating & Crash Protection

FMVSS 302Flammability of Interior Materials

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

🛡 Warranty: 1-year limited. Verify warranty terms at sure-lok.com.

⚠ Warranty terms should be verified directly with the manufacturer.

📄 Installation & User Guide: View Installation & User Guide List

Specifications

Specification	Detail
Brand	Sure-Lok
SKU	FE200763
Price	$35.00 — price shown is per unit
Shipping	Free Shipping on Orders Over $100
Warranty	1-year limited
Use / Installation	Professional installation required by a qualified WAV modifier or accessibility vehicle technician.

Frequently Asked Questions

What is L-Track? +

L-Track (also called aero track) is the standard floor rail system used in wheelchair-accessible vehicles. Retractors and other equipment attach to L-Track via fitting hardware that slides along the track and locks into position.

Do I need professional installation? +

Yes. Floor anchorage components must be installed by a qualified WAV (wheelchair-accessible vehicle) modifier or certified accessibility vehicle technician.

How many floor anchors do I need? +

A standard 4-point wheelchair securement position requires 4 floor anchorage points — typically 2 rear and 2 front. Contact us with your vehicle type and number of wheelchair positions for a precise count.

Are all L-Track systems compatible? +

Q'Straint, Sure-Lok, and AMF Bruns retractors are compatible with OMNI-approved L-Track. Verify fitting compatibility before purchase.
