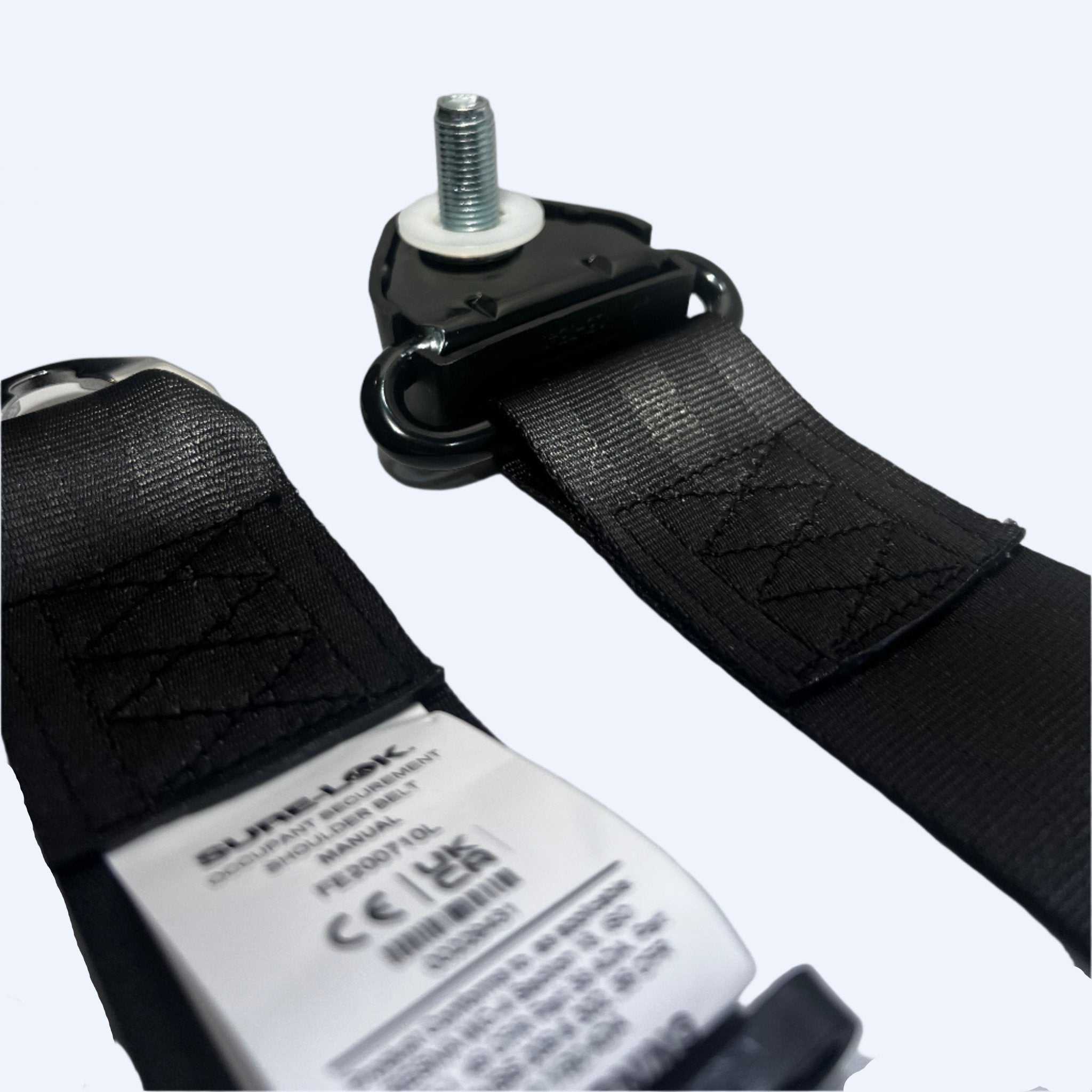

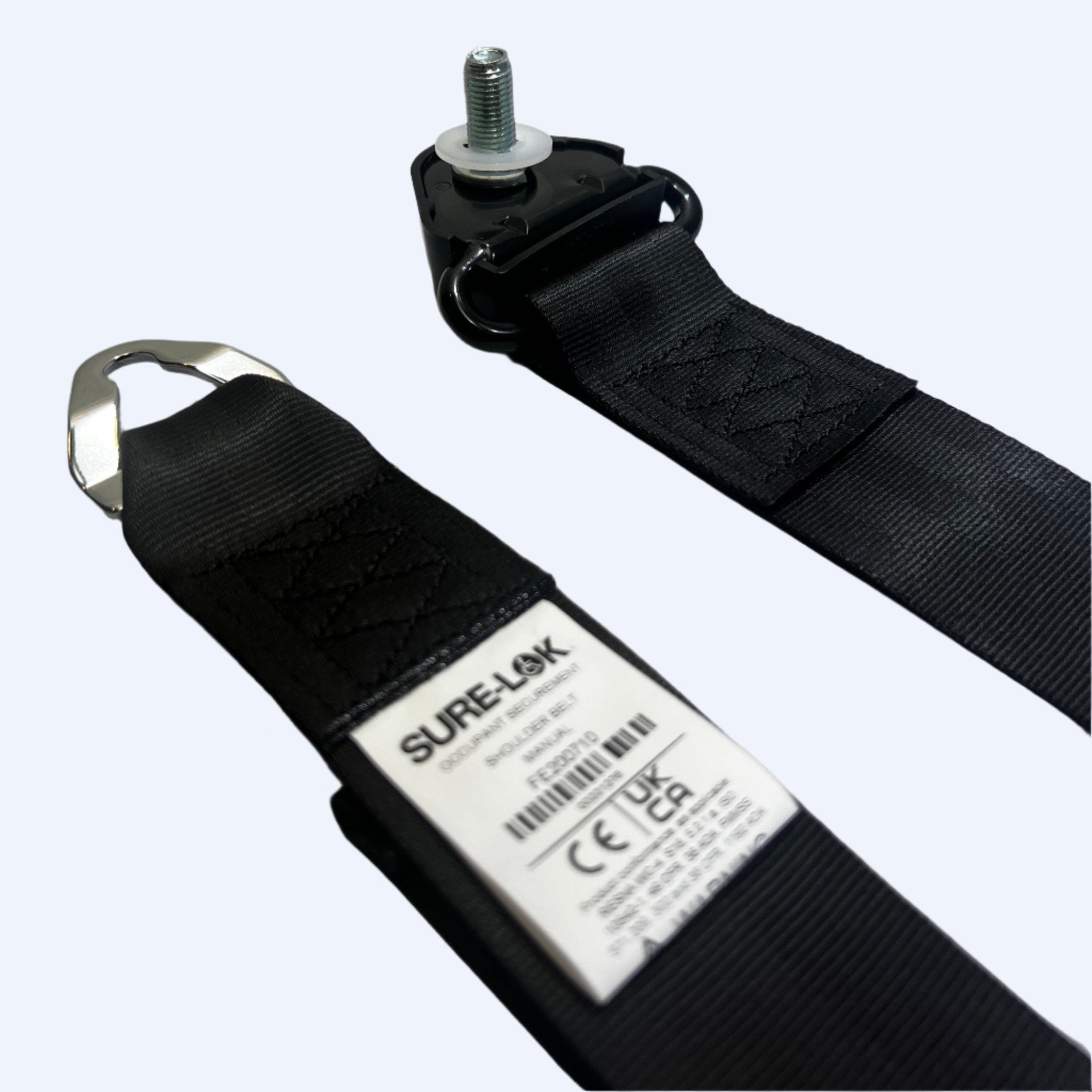

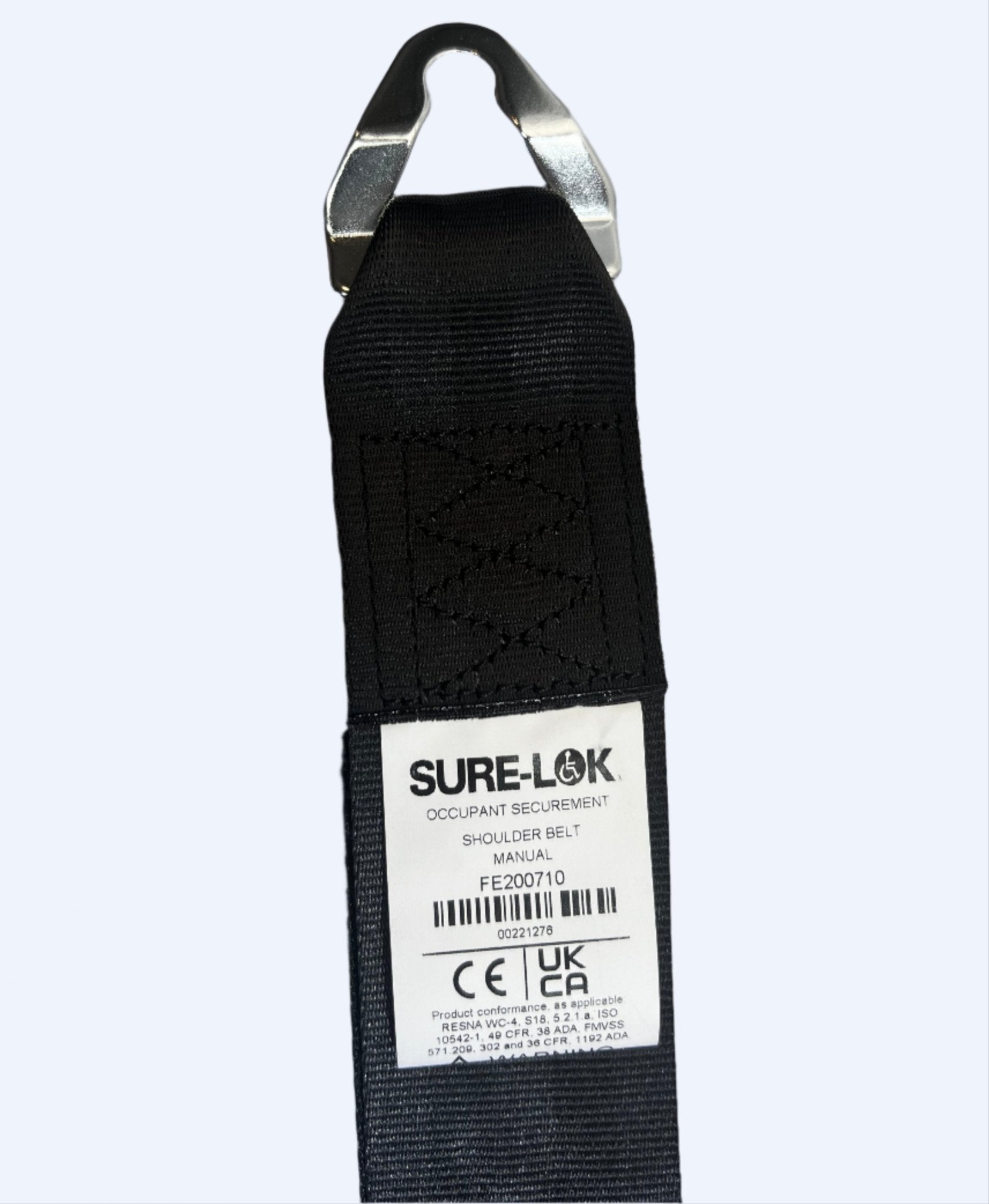

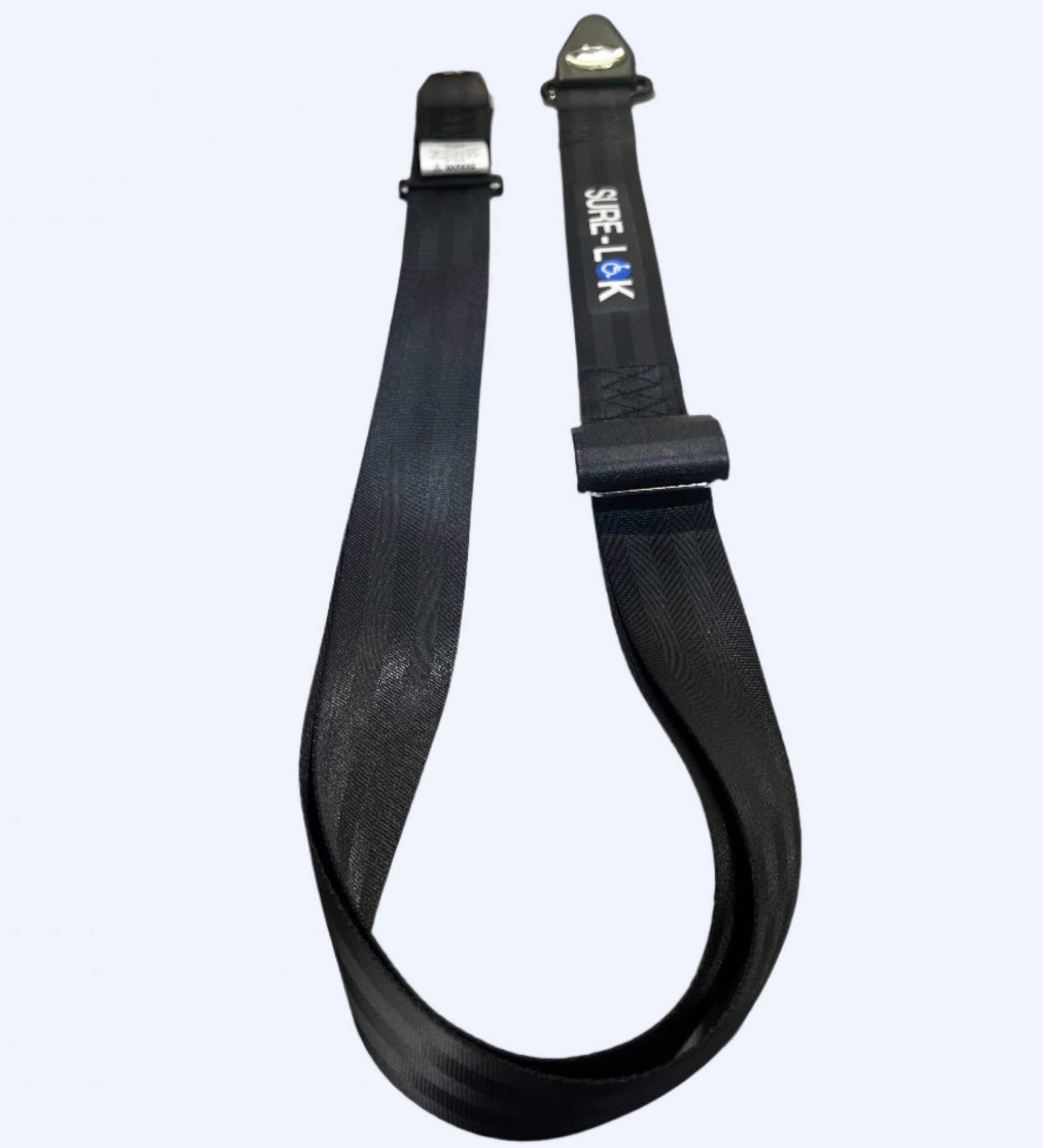

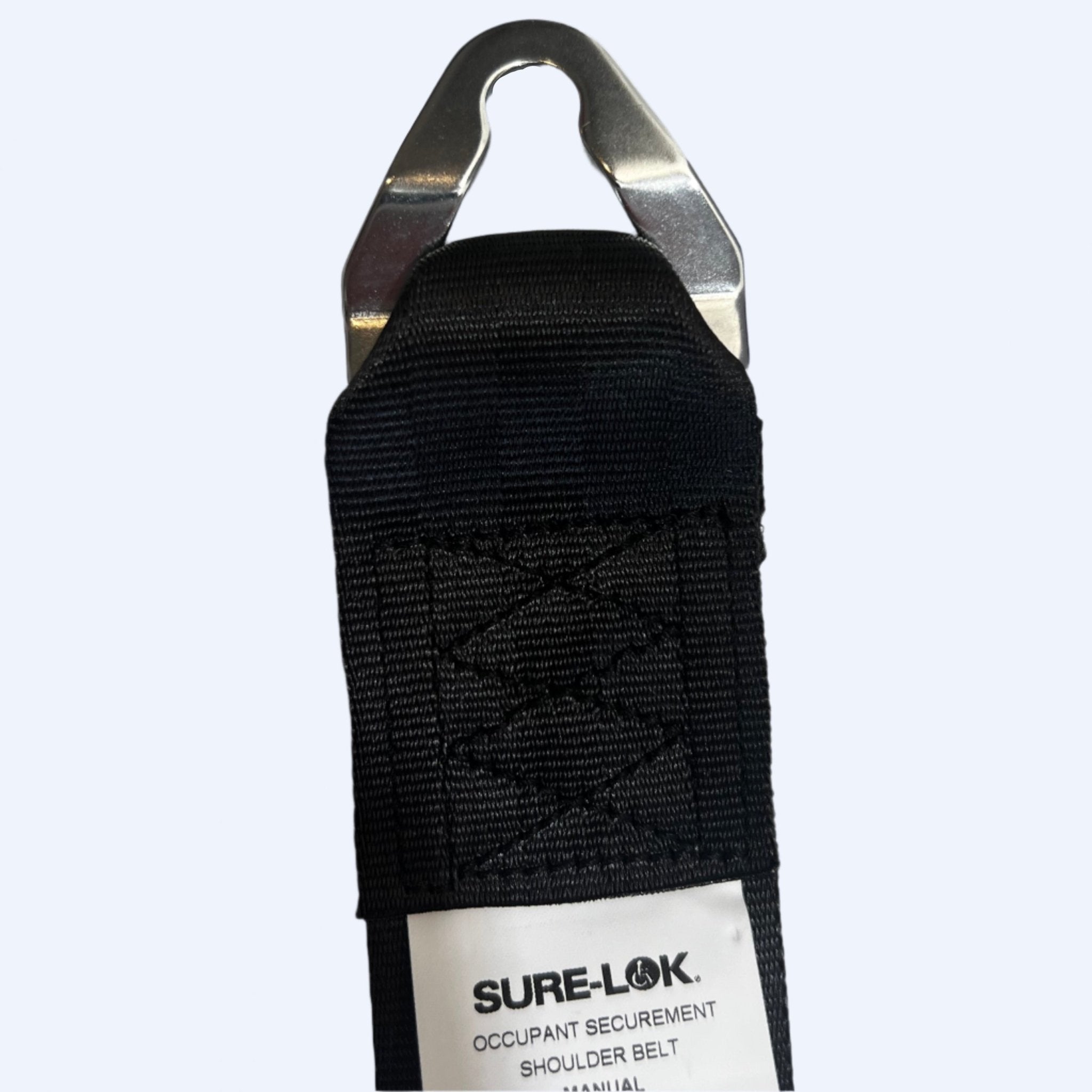

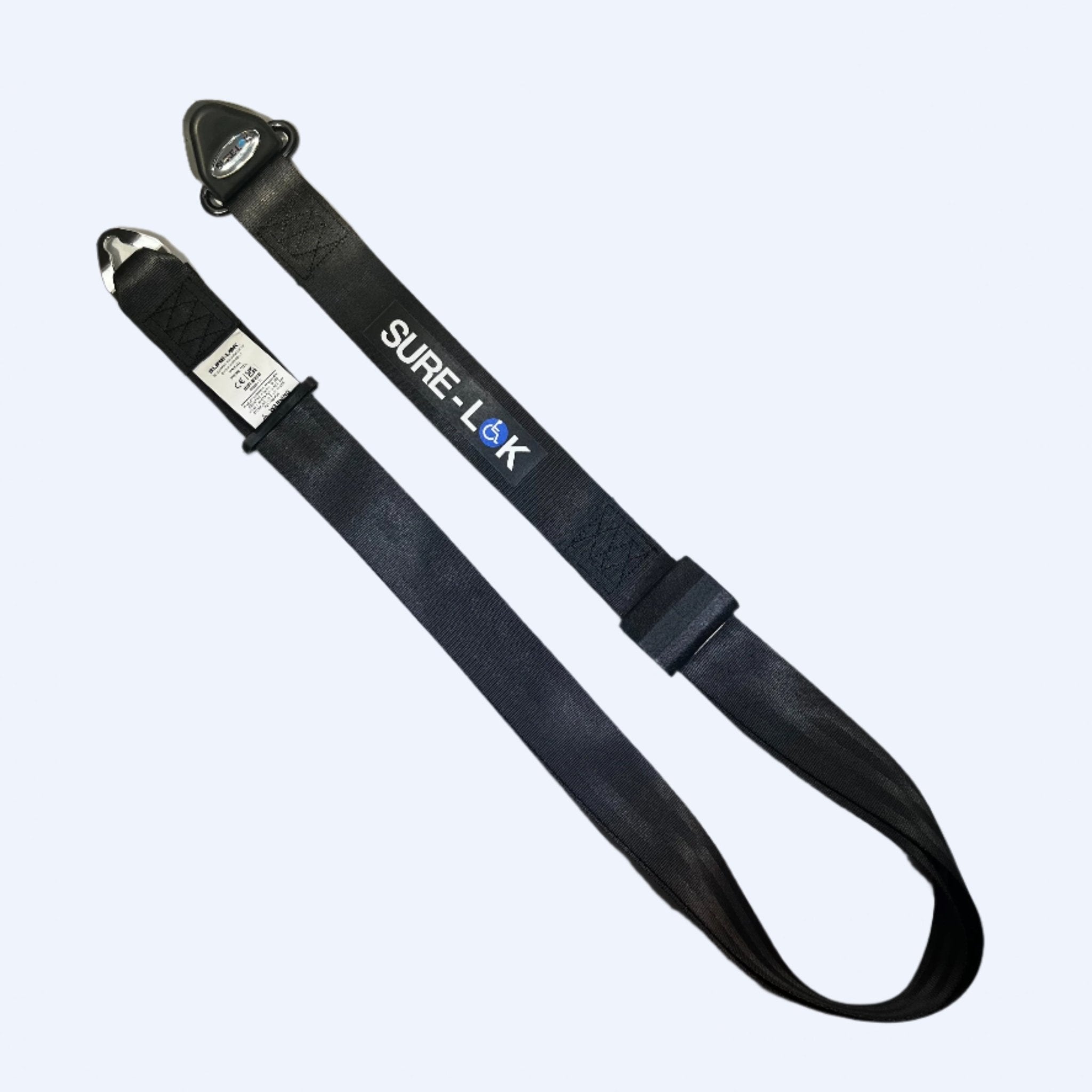

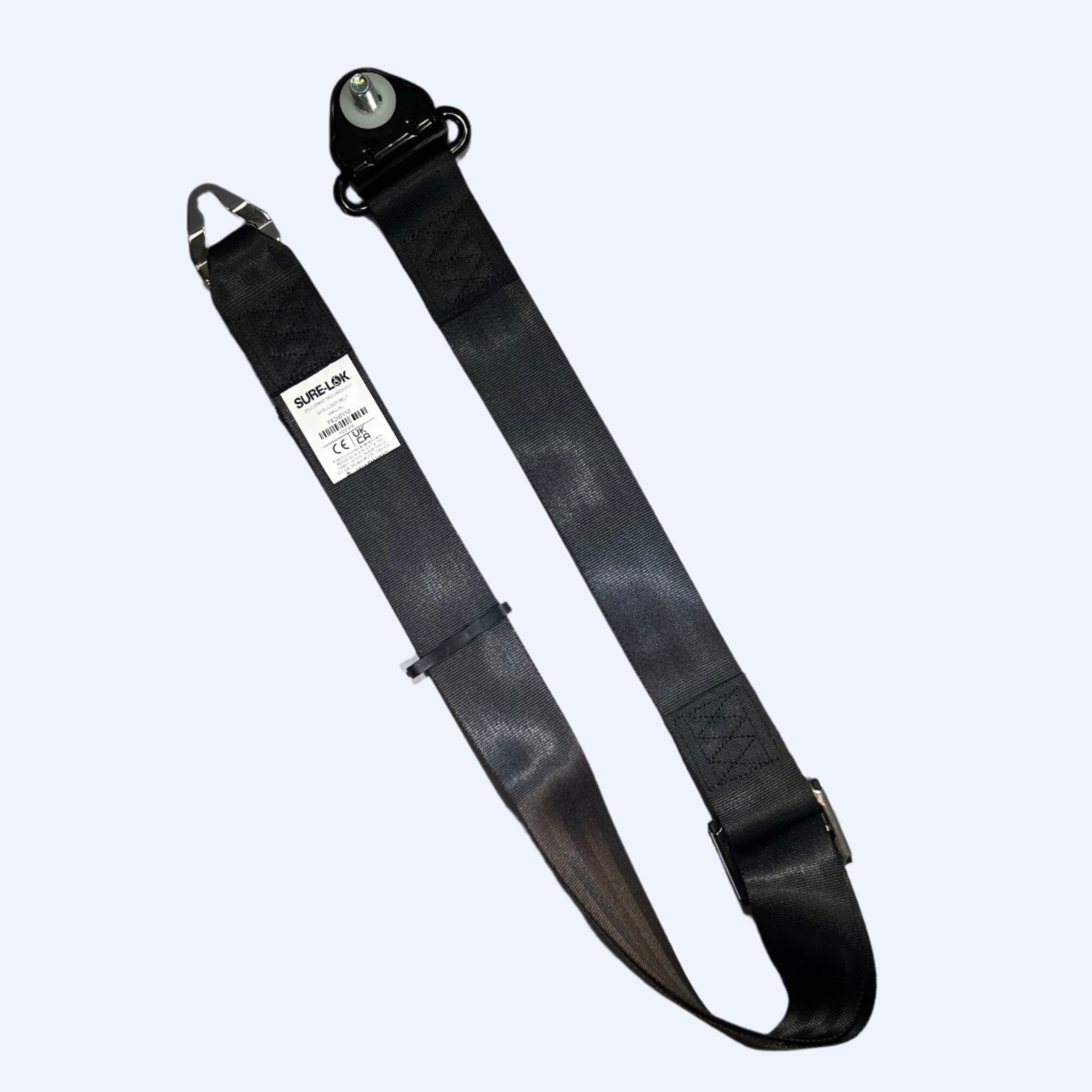

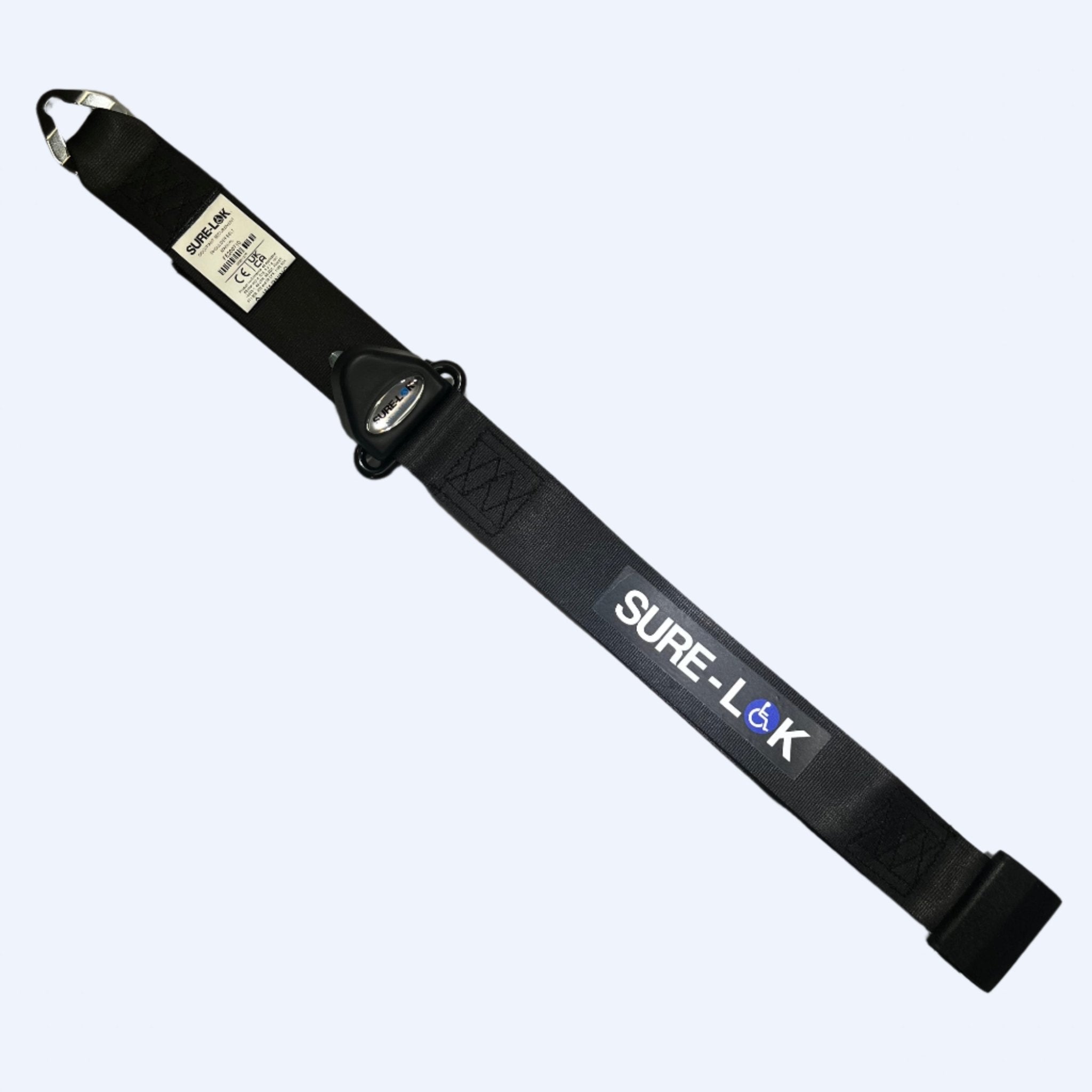

Non-Retractable Fixed Point Shoulder Belt Non-Retractable Fixed-Point Shoulder Belt (FE200710 / FE200710L) is a simple fixed-length shoulder belt that mounts to the vehicle sidewall or to Series L-Track using the specified mounting kits.
SKU: FE200710 | VENDOR: SURE-LOK
Sure-Lok | Non-Retractable Fixed Point Shoulder Belt | FE200710/FE200710L
🚚 Free Shipping on Orders Over $100🪢 Replacement Belt🏷 Sure-Lok
Key Features
🔄
Retractable Shoulder Belt
Shoulder belt automatically retracts when not in use, keeping the vehicle interior tidy.
🛡
FMVSS 209 Compliant
Meets federal seat belt assembly standards for use in transit and transport vehicles.
What's Included
Qty
Component
SKU
1
Non-Retractable Fixed Point Shoulder Belt
FE200710 or E200710L
Length Options
SKU
Length
Typical Use
FE200710
52"
Standard seating/wheelchair bay where anchor is close to passenger
FE200710
82"
Deeper bays or higher mounting needing extra belt length
Full Feature Details
This non-retractable shoulder belt comes in 52″ (FE200710) and 82″ (FE200710L) lengths and is designed as the upper-torso part of a complete occupant restraint system for wheelchair passengers. It anchors at a fixed point on the sidewall or into L-Track using FE200745, FE200747, or FE200736 hardware, allowing you to place the shoulder belt at the correct location for your vehicle layout.
Mounting & Use Notes:

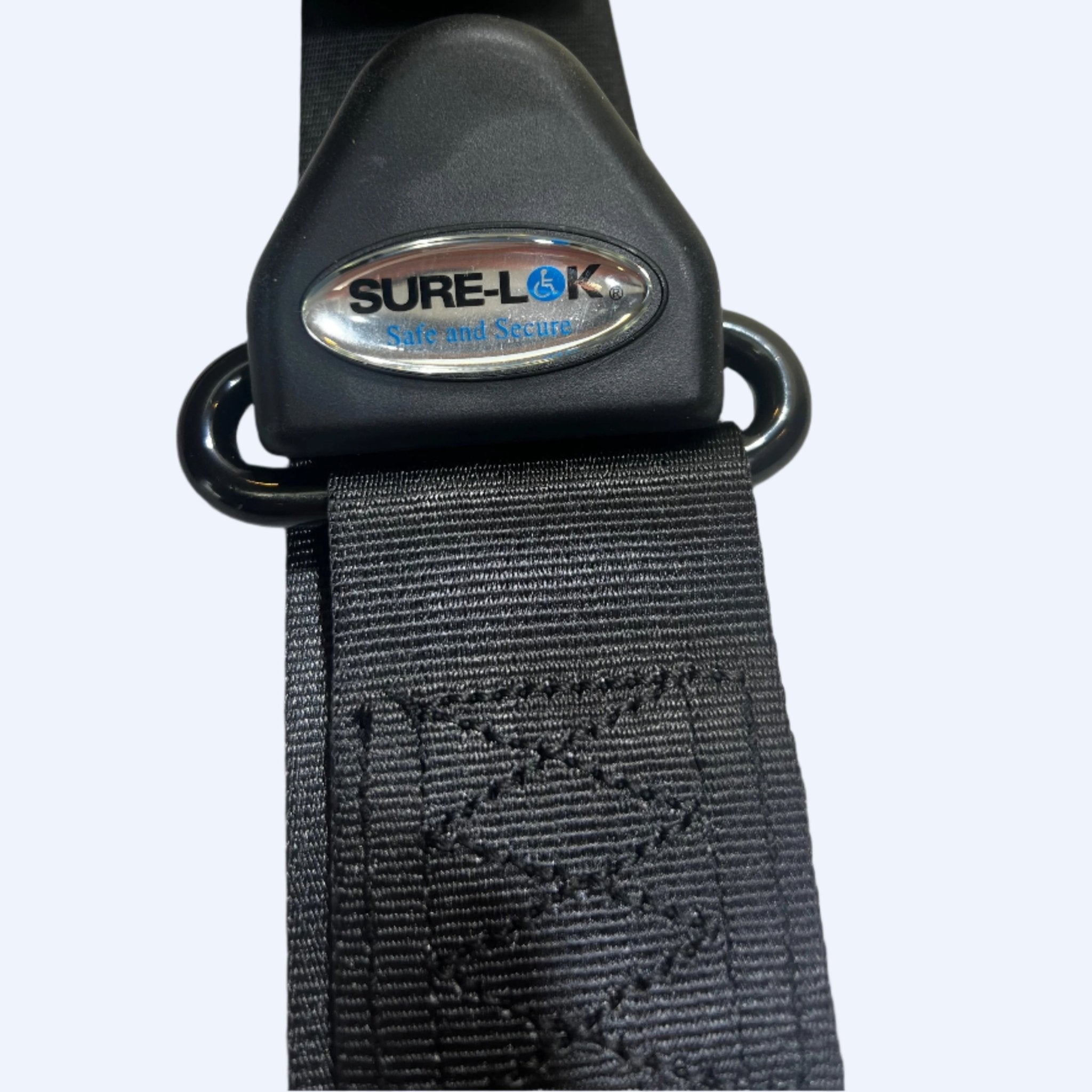

Mount the upper end of the belt to sidewall or L-Track using the appropriate kit (FE200745/747/736) at a height and location that gives good shoulder contact without crossing the neck.
Always pair with an approved lap belt and a properly installed wheelchair tie-down system; the shoulder belt alone is not a wheelchair securement.
Feature
Description
Fixed-Point Design
Non-retractable shoulder belt set to a defined length for predictable fit.
Flexible Mounting
Mounts directly to vehicle sidewall or to Series L-Track using FE200745, FE200747, or FE200736 mounting kits.
System Compatible
Designed to be used with Sure-Lok lap belts and wheelchair tie-downs as part of a complete WC19-compliant system.
Compliance Tested

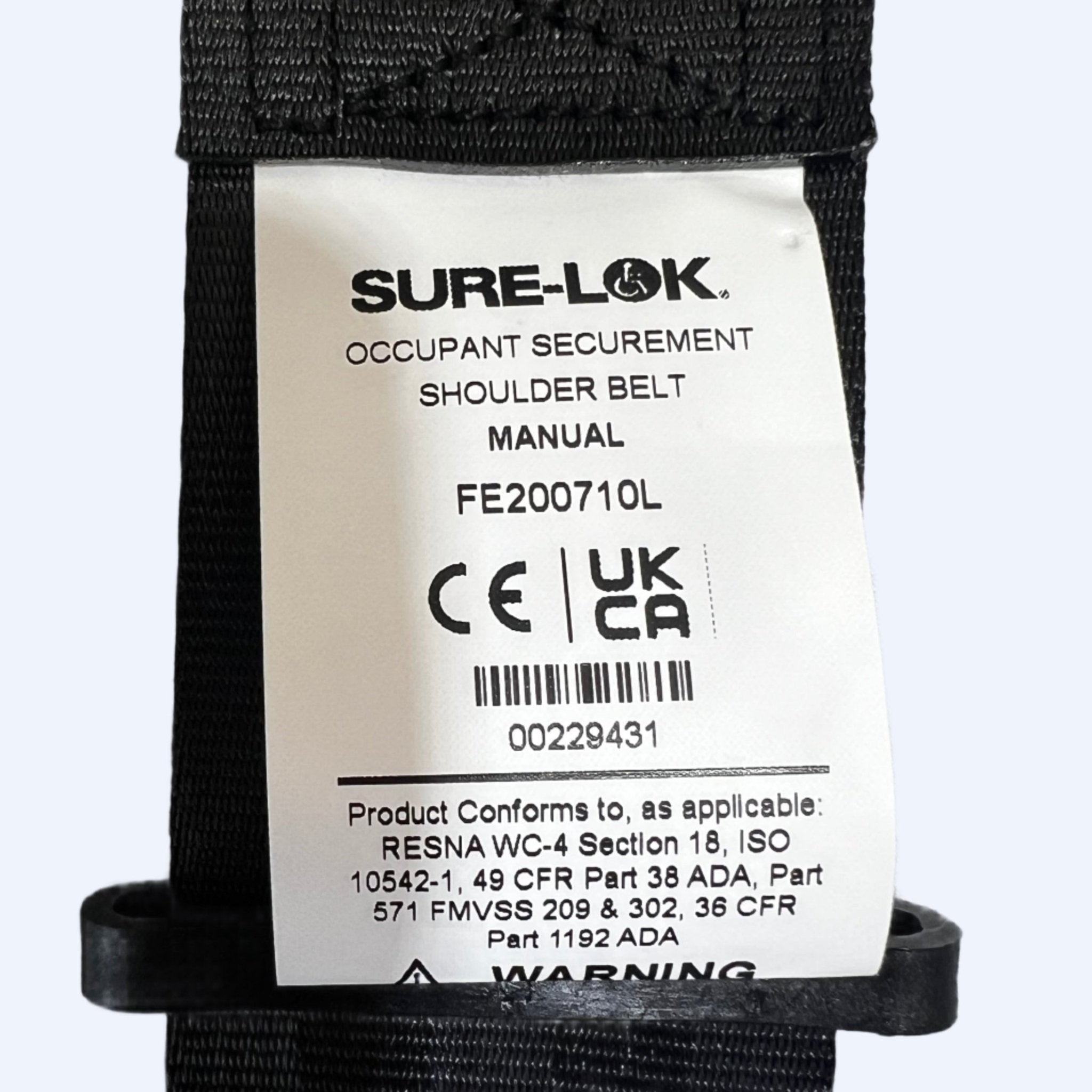

When used in a full Sure-Lok system, meets SAE J2249 30mph/20g, CSA Z605, school bus standards, ADA 49 CFR Part 38, FMVSS 222, and FMVSS 302 flammability.
upper end
of the belt to sidewall or L-Track using the appropriate kit (FE200745/747/736) at a height and location that gives good shoulder contact without crossing the neck.
lap belt
and a properly installed wheelchair tie-down system; the shoulder belt alone is not a wheelchair securement.
Vehicle Applications
🚐 Wheelchair-Accessible Van (WAV)🚌 Paratransit / Minibus🚑 Non-Emergency Medical Transport (NEMT)🚌 School Bus🚐 Sprinter / Transit Van🚆 Rail / Community Transit
Standards & Compliance
SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles
ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems
FMVSS 209Seat Belt Assemblies
FMVSS 210Seat Belt Assembly Anchorages
FMVSS 222School Bus Passenger Seating & Crash Protection
FMVSS 302Flammability of Interior Materials
CSA Z605Wheelchair Securement in Motor Vehicles (Canada)
ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.
🛡 Warranty: 1-year limited. Verify warranty terms at sure-lok.com.
⚠ Warranty terms should be verified directly with the manufacturer.
Follow manufacturer instructions. Consult a qualified technician if vehicle integration is required.
Frequently Asked Questions
Is this belt designed specifically for wheelchair occupants? +
Yes. Wheelchair occupant restraints are purpose-built for wheelchair transport and are different from standard vehicle seatbelts. They are designed to account for the wheelchair seating position and attach to the vehicle floor track or rear tie-down points rather than a fixed vehicle seat.
Will this belt fit the occupant comfortably and safely? +
The same fit principles apply as any seatbelt: the lap portion should sit low across the pelvis — not the belly — and the shoulder portion should cross the center of the chest without cutting into the neck. If the belt rides up or doesn't fit correctly, check seating posture, belt length, and whether a positioning guide is needed.
Is this belt compatible with my existing securement system? +
It is recommended that all components — retractors, occupant belt, and floor anchorage — be from the same manufacturer. Contact us with your current system details and we will confirm compatibility before you order.
What are best practices for positioning lap and shoulder belts on riders? +
Lap belt: low on hips and pelvis, never across the stomach. Shoulder belt: mid-chest, over the shoulder bone, not the neck or under the arm. Both should be snug, flat, and untwisted. These same principles apply regardless of wheelchair or vehicle type.
