What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

Sure - Lok | FE200710HA Non - Retractable Fixed - Point Shoulder Belt with Height Adjuster - WheelchairStrap.com

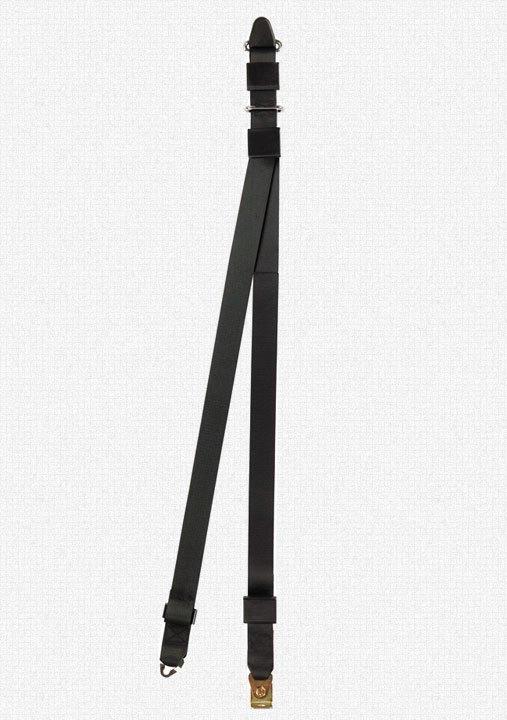

Sure-Lok | Non-Retractable Fixed-Point Shoulder Belt with Height Adjuster| FE200710HA

Vendor: Sure-Lok
Regular price: $87.00
Sale price: $87.00
Unit price: per

Shipping calculated at checkout.

Non-Retractable Fixed-Point Shoulder Belt with Height Adjuster Sure-Lok FE200710HA Non-Retractable Fixed-Point Shoulder Belt with Height Adjuster (72″ length) features nearly 12″ vertical adjustment for optimal shoulder positioning across diverse passenger heights with versatile sidewall/L-Track mounting.

SKU: FE200710HA | VENDOR: SURE-LOK

Sure-Lok | Non-Retractable Fixed-Point Shoulder Belt with Height Adjuster| FE200710HA

🚚 Free Shipping on Orders Over $100 🪢 Replacement Belt 🏷 Sure-Lok

Key Features

🔄

Retractable Shoulder Belt

Shoulder belt automatically retracts when not in use, keeping the vehicle interior tidy.

📏

Manual Height Adjuster

Adjustable shoulder belt height for correct positioning across a range of occupant sizes.

What's Included

Qty	Component	SKU
1	Velcro Organization : Clean stowage prevents trip hazards.	No SKU
1	Non-Retractable : Fixed tension maintains belt geometry.	No SKU

⚠ Also required — not included: L-Track rail and floor pocket hardware

Full Feature Details

WARNING

Sure-Lok FE200710HA Non-Retractable Fixed-Point Shoulder Belt with Height Adjuster (72″ length) features nearly 12″ vertical adjustment for optimal shoulder positioning across diverse passenger heights with versatile sidewall/L-Track mounting.

Mounting Options:

Component	Hardware Kits
Web Guide (Upper)	FE200745, FE200747, FE200736
Bottom Bracket (Lower)	FE200747, FE201037, FE201039

Feature	Description
12″ Height Range	Fits passengers 4'6″-6'6″ without multiple belt sizes.
Dual Mounting	Web guide + bottom bracket independent positioning.
Track Convertible	Fixed → adjustable L-Track positioning.
Velcro Organization	Clean stowage prevents trip hazards.
Non-Retractable	Fixed tension maintains belt geometry.

Vehicle Applications

🚌 School Bus🚌 City Bus / Transit Bus🚌 Coach Bus🚆 Rail / Community Transit🚑 Non-Emergency Medical Transport (NEMT)🚐 Wheelchair-Accessible Van (WAV)🚗 Personal Vehicle / Minivan

Standards & Compliance

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 222School Bus Passenger Seating & Crash Protection

FMVSS 302Flammability of Interior Materials

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

📘 Compliance & Documentation: For state-by-state Medicaid/NEMT requirements, ADA guidance, and fleet documentation tools, visit our Compliance Resource Center.

🛡 Warranty: 1-year limited. Verify warranty terms at sure-lok.com.

⚠ Warranty terms should be verified directly with the manufacturer.

📄 Installation & User Guide: View Installation & User Guide List

Specifications

Specification	Detail
Brand	Sure-Lok
SKU	FE200710HA
Price	87.00 — price shown is per unit
Shipping	Free Shipping on Orders Over $100
Warranty	1-year limited
Use / Installation	Follow manufacturer instructions. Consult a qualified technician if vehicle integration is required.

Frequently Asked Questions

Is this belt designed specifically for wheelchair occupants? +

Yes. Wheelchair occupant restraints are purpose-built for wheelchair transport and are different from standard vehicle seatbelts. They are designed to account for the wheelchair seating position and attach to the vehicle floor track or rear tie-down points rather than a fixed vehicle seat.

Will this belt fit the occupant comfortably and safely? +

The same fit principles apply as any seatbelt: the lap portion should sit low across the pelvis — not the belly — and the shoulder portion should cross the center of the chest without cutting into the neck. If the belt rides up or doesn't fit correctly, check seating posture, belt length, and whether a positioning guide is needed.

Is this belt compatible with my existing securement system? +

It is recommended that all components — retractors, occupant belt, and floor anchorage — be from the same manufacturer. Contact us with your current system details and we will confirm compatibility before you order.

What are best practices for positioning lap and shoulder belts on riders? +

Lap belt: low on hips and pelvis, never across the stomach. Shoulder belt: mid-chest, over the shoulder bone, not the neck or under the arm. Both should be snug, flat, and untwisted. These same principles apply regardless of wheelchair or vehicle type.
