What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

Q04BR101 | Rigid Sport Frame Drive - In Entry QLK - 150 Bracket - WheelchairStrap.com

Q04BR102 | Rigid Sport Frame Back-In Entry QLK-150 Bracket

Vendor: Q'Straint
Regular price: $561.00
Sale price: $561.00
Unit price: per

Shipping calculated at checkout.

Liquid error (sections/product-template line 237): Could not find asset snippets/product-trust-signals.liquid

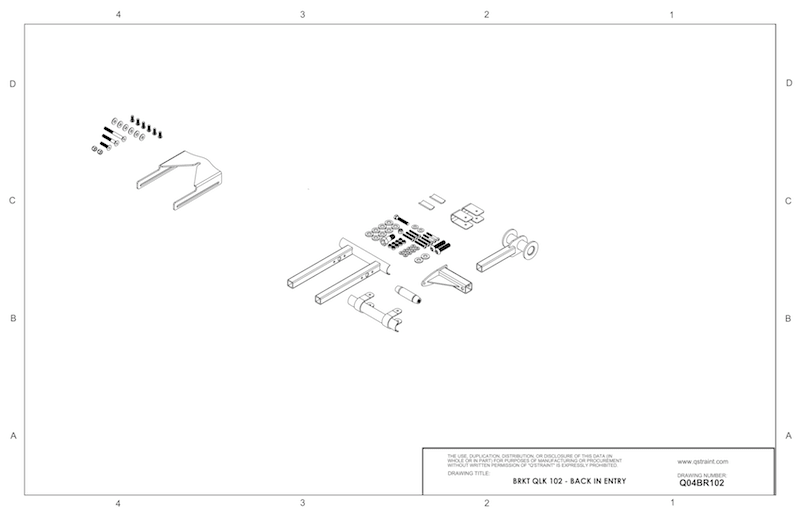

Rigid Sport Frame QLK-150 Bracket - Q04BR102

NOTE: Wheelchair must have camber tube and cross tube, and tube diameter must be between 0.875″ to 1.37″. Distance from cross tube to camber tube must be between 4.5″ to 11.25″ to use this bracket. If your chair has a distance from 11.25″ to 15.25″, please use bracket Q04BR112. Click here to view instructions as a PDF.

Manufacturer	ANY
Series	ANY
Model	Rigid Sport Frame Wheelchair
Entry Type	Back-In Entry
QLK-150 Part #	Q04BR102

Manufacturer	Sunrise Medical
Series	Quickie
Model	Q7, 7R, 7RS, QRI, 5R
Entry Type	Back-In Entry
QLK-150 Part #	Q04BR102

Manufacturer	TiLite
Series	Youth, Rigid
Model	YR, YRA, Aero T, Aero Z, TR, TRA, ZR, ZRA
Entry Type	Back-In Entry
QLK-150 Part #	Q04BR102

Manufacturer	Kuschall
Series	K
Model	K3, K4, Champ 1000
Entry Type	Back-In Entry
QLK-150 Part #	Q04BR102

Manufacturer	KI Mobility
Series	Rogue, Tsunami, Little Wave, Ethos
Model	ALX, Clik XP/XPE, XP, Ethos
Entry Type	Back-In Entry
QLK-150 Part #	Q04BR102

Manufacturer	Motion Composites
Series	Apex A, Apex C
Model	Aluminum Rigid Wheelchair, Carbon Rigid Wheelchair
Entry Type	Back-In Entry
QLK-150 Part #	Q04BR102

Back to Wheelchair Docking Systems
