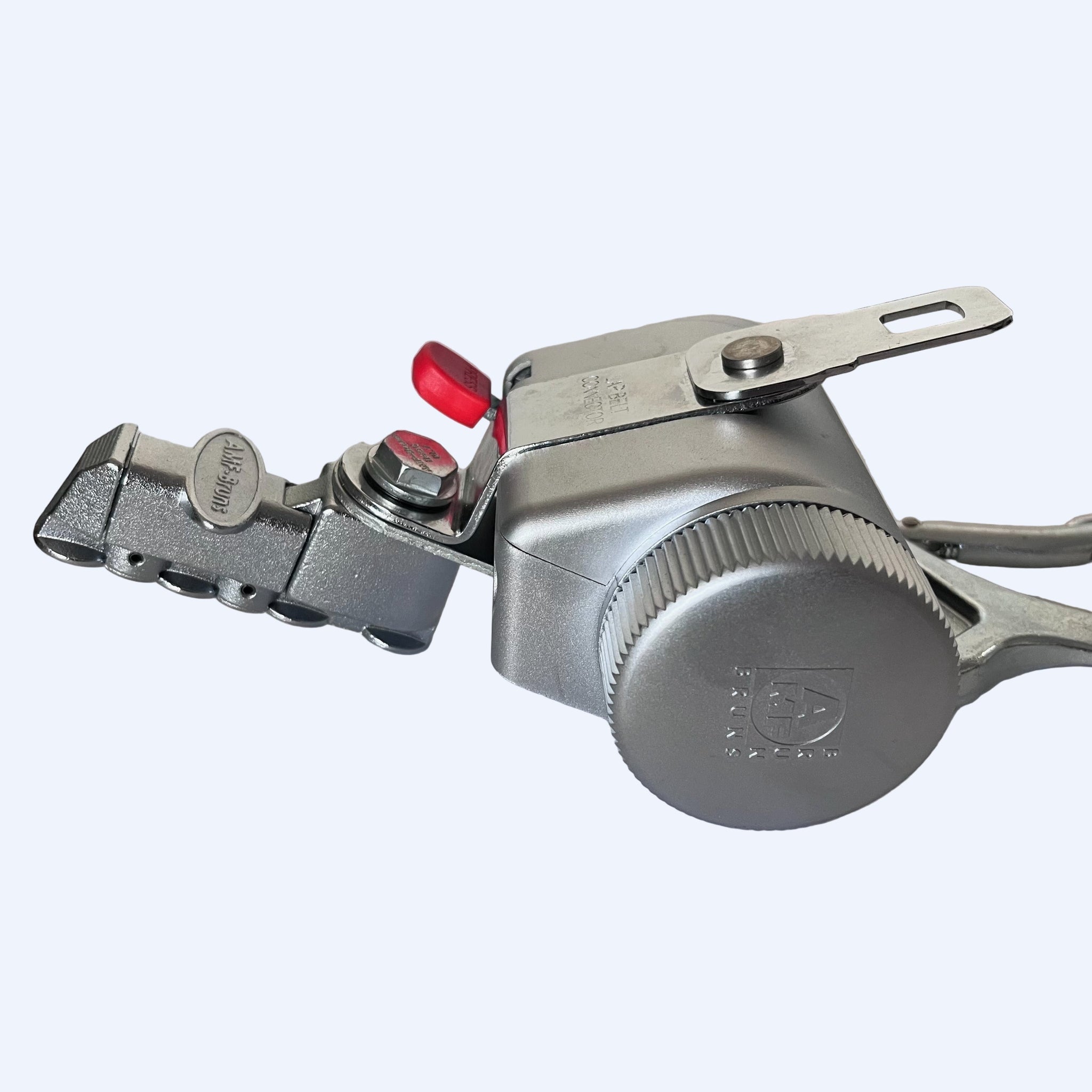

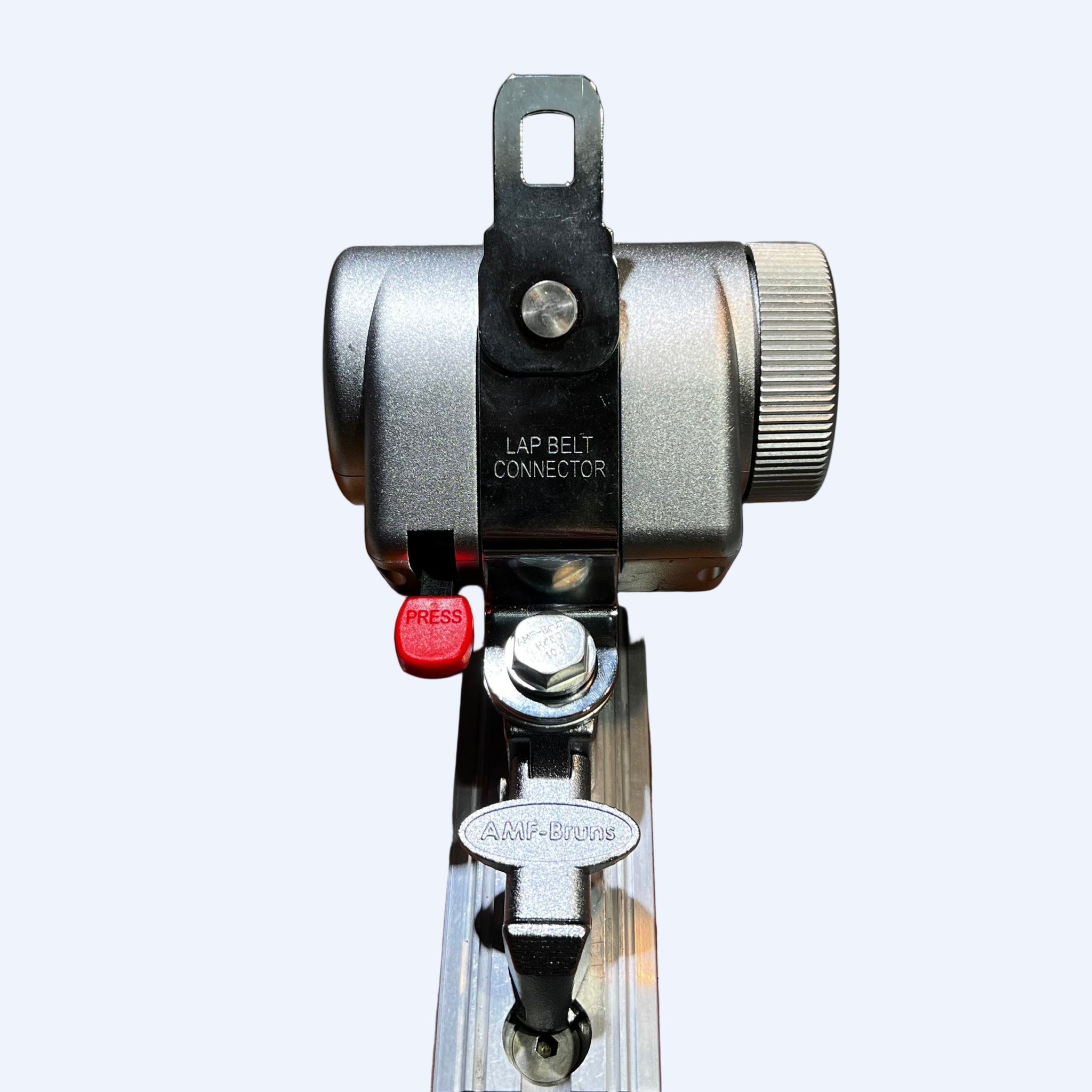

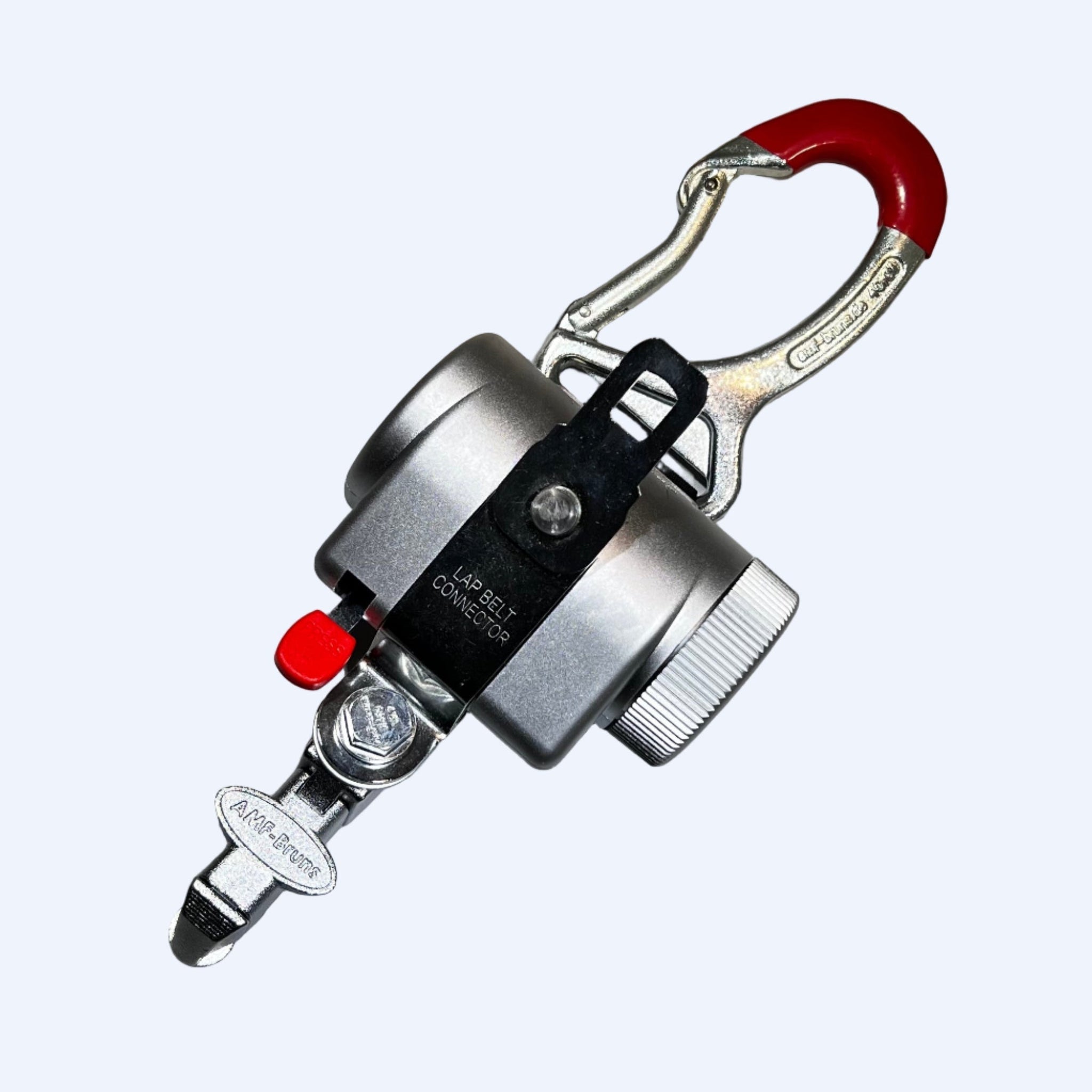

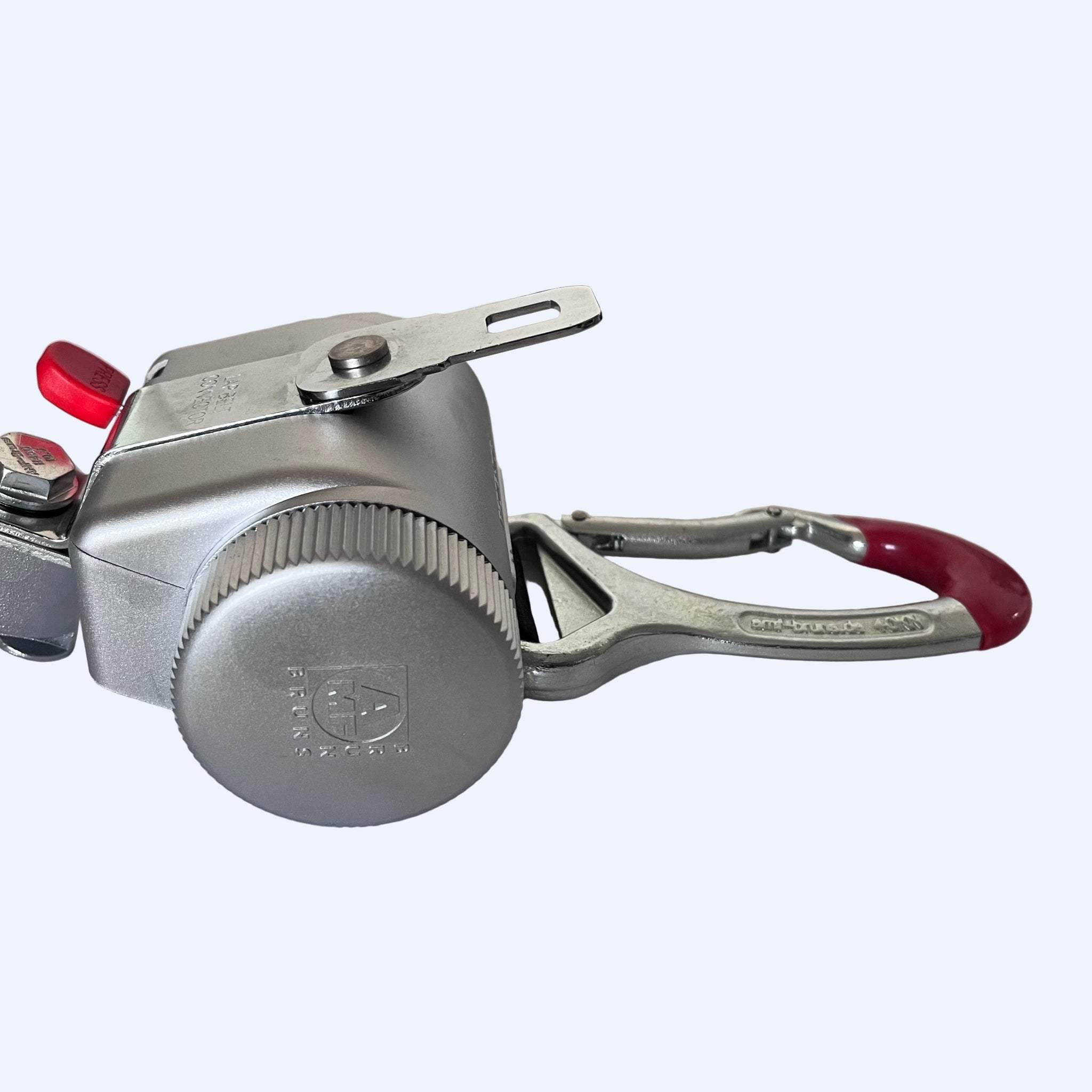

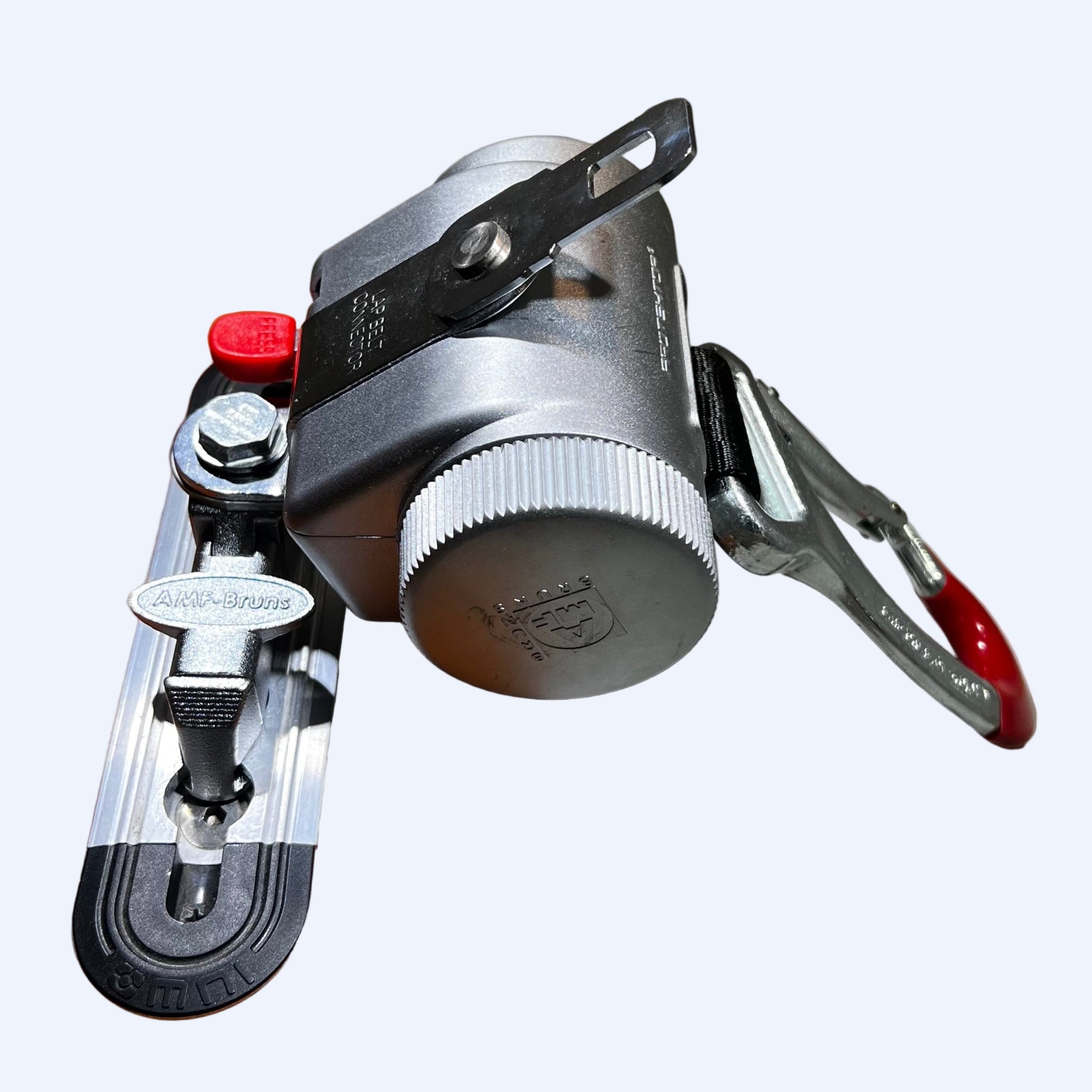

PLATINUMSERIES - PROTEKTOR®-System Wheelchair and Restraints - 4 PACK KIT PlatinumSeries Product Sheet PDF Protektor Installation Manual Protektor User Manual 10-day lead time for the carabiner and belt loop retractors The PLATINUMSERIES PROTEKTOR® 4-pack kit features robust retractors with foot release, single-knob tensioning, and options for J-hook, carabiner, or loop attachments.
Automatically takes up slack — no manual tensioning required.
👟
Foot Release Lever
Hands-free release — operator can disengage the retractor with a foot lever without bending down.
🔗

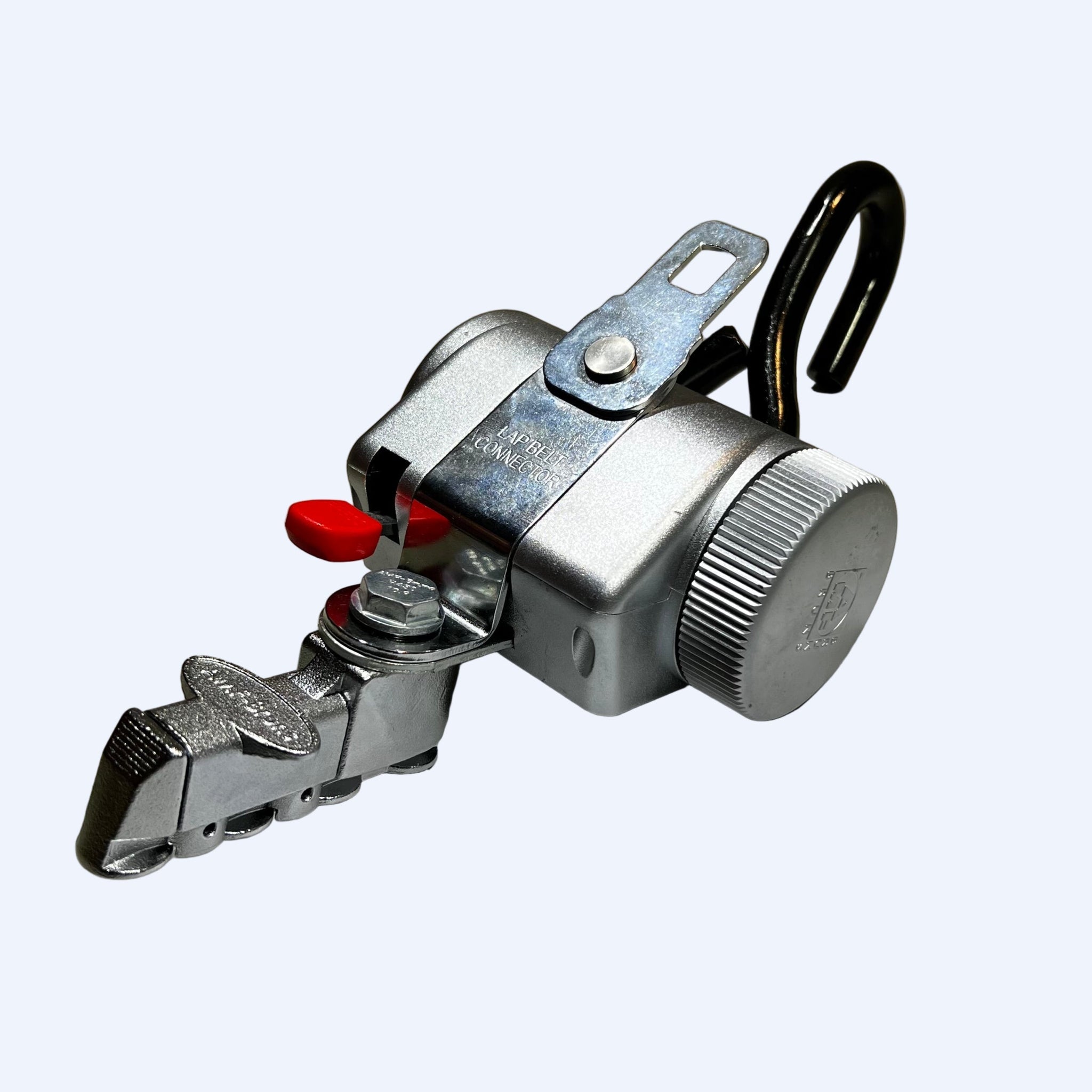

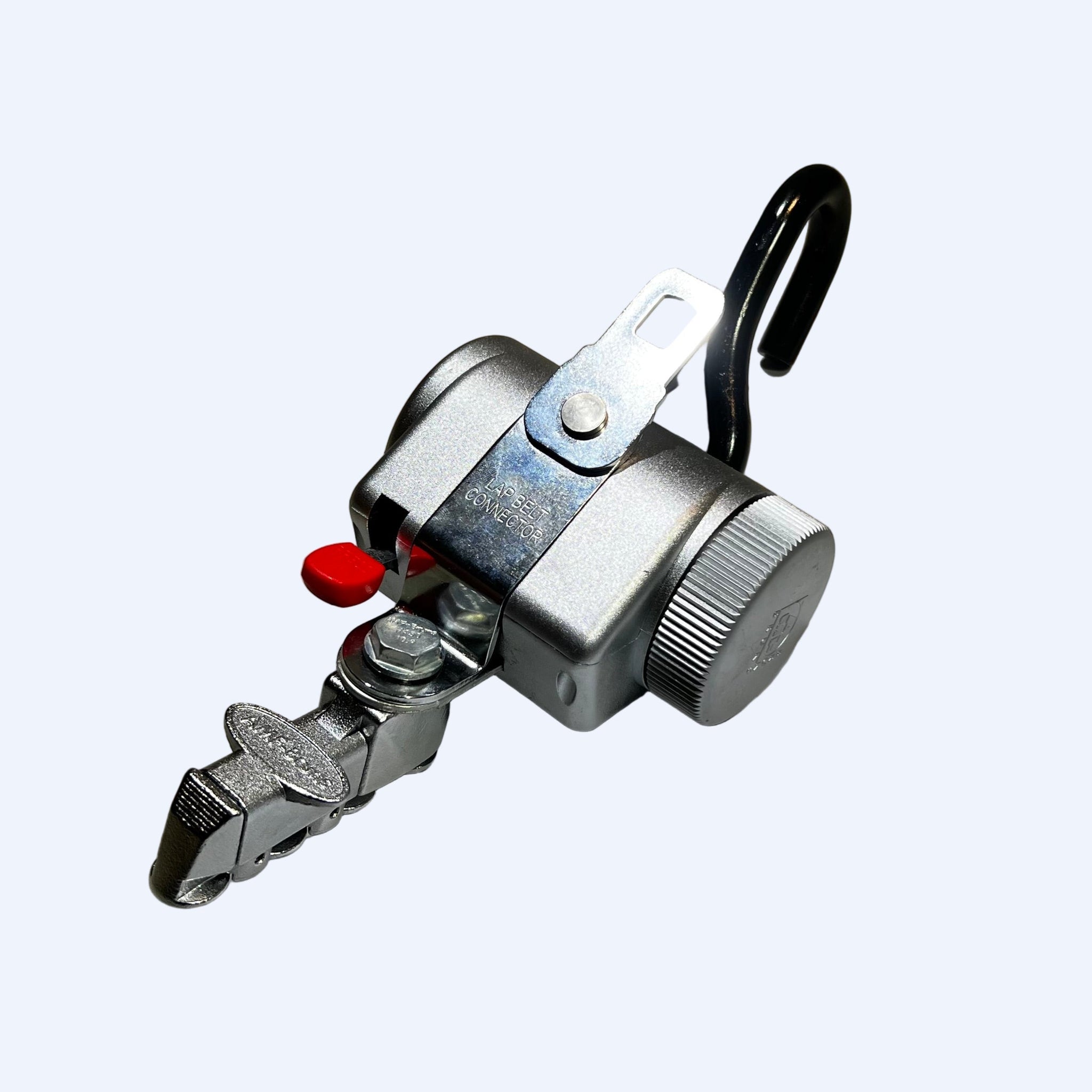

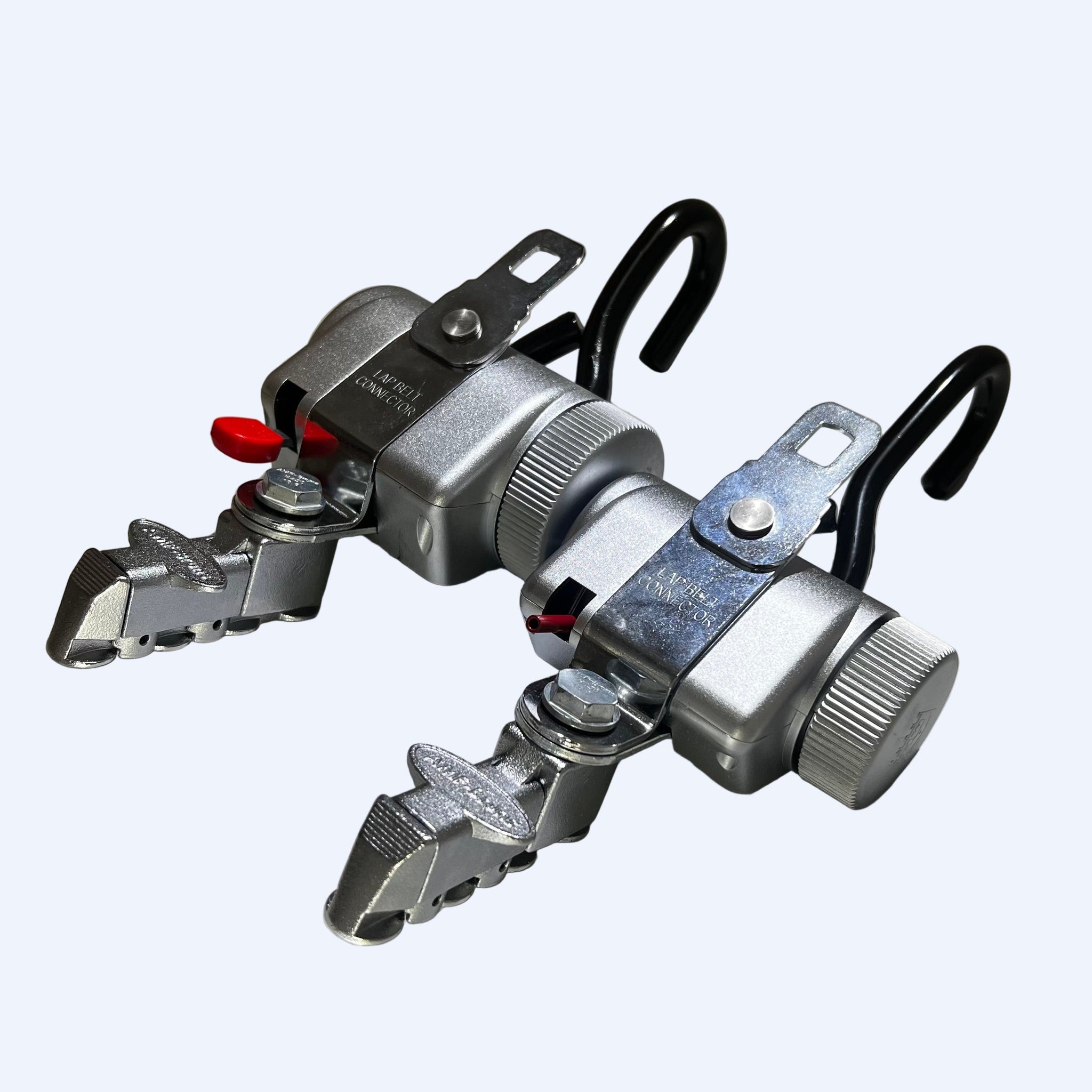

J-Hook Design
Reduces belt twisting and ensures proper securement angle — accommodates virtually all wheelchair designs.
📐
Low Profile & Compact
No mounting bracket required — retractors fit under most wheelchair footrests.
🏆
RESNA WC18 Rated
Built to the higher load requirements of the WC18 standard.

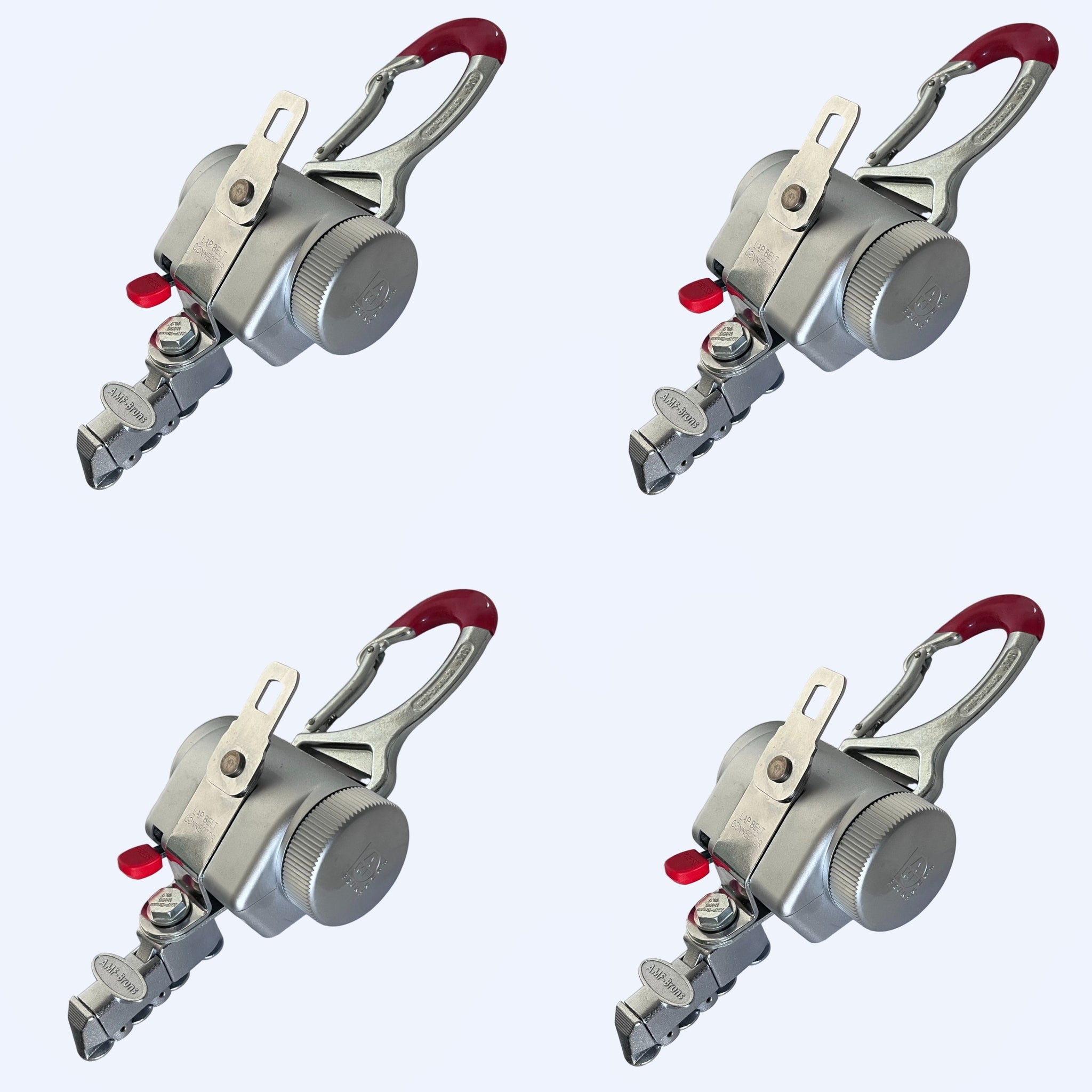

What's Included
Qty
Component
SKU
4
AMF Bruns PLATINUMSERIES - PROTEKTOR®-System Wheelchair and Restraints
K800224-0000HL
Full Feature Details
PlatinumSeries Product Sheet PDF Protektor Installation Manual Protektor User Manual
Feature
Description
Heavy-Duty Capacity
Supports up to 160 kg, ideal for powered wheelchairs with integrated lap belts (ProSafe adapter compatible).
Self-Tensioning Design
Automatic pull-out, low-profile zinc die-cast cover, and foot release lever for quick, intuitive one-person operation.
Versatile Anchoring

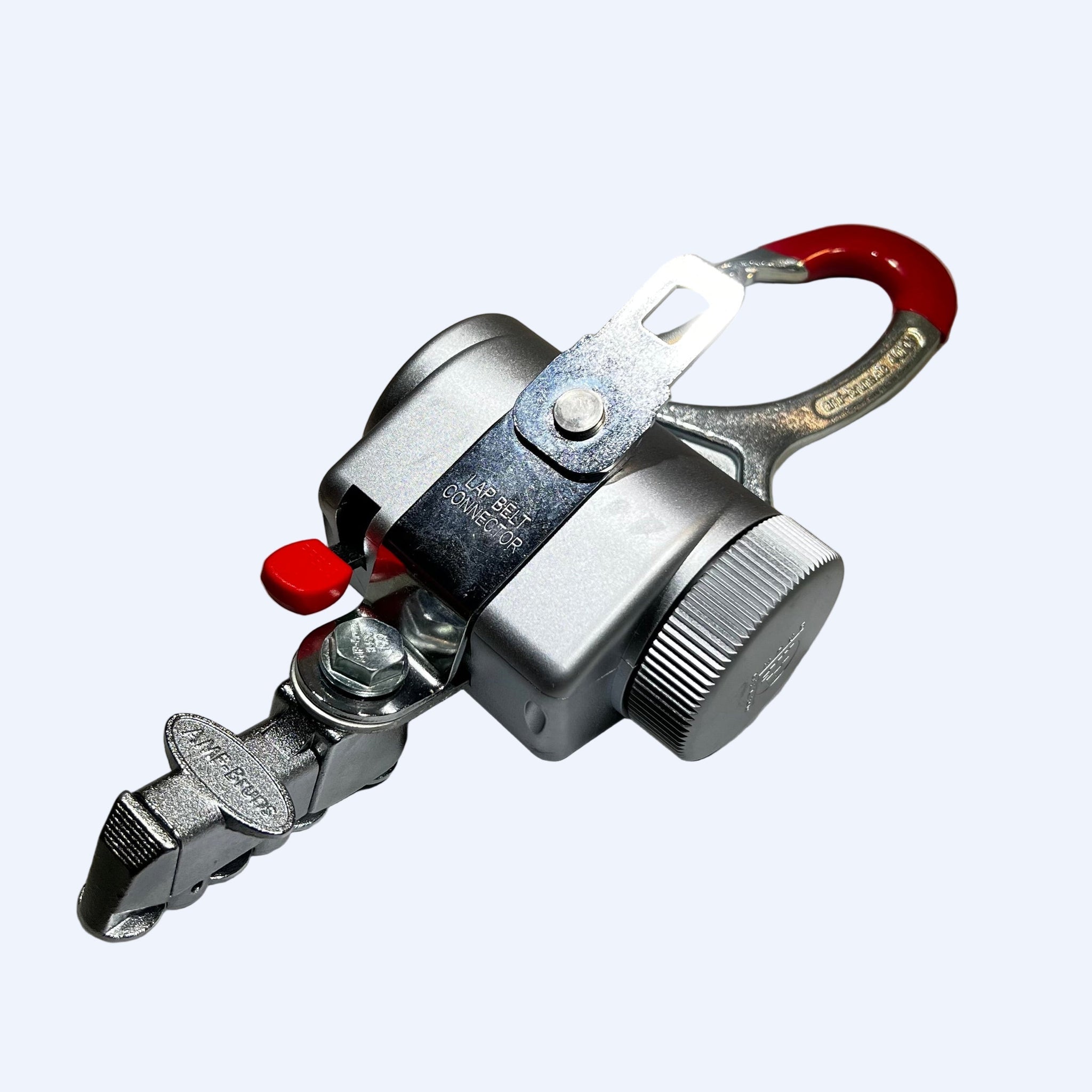

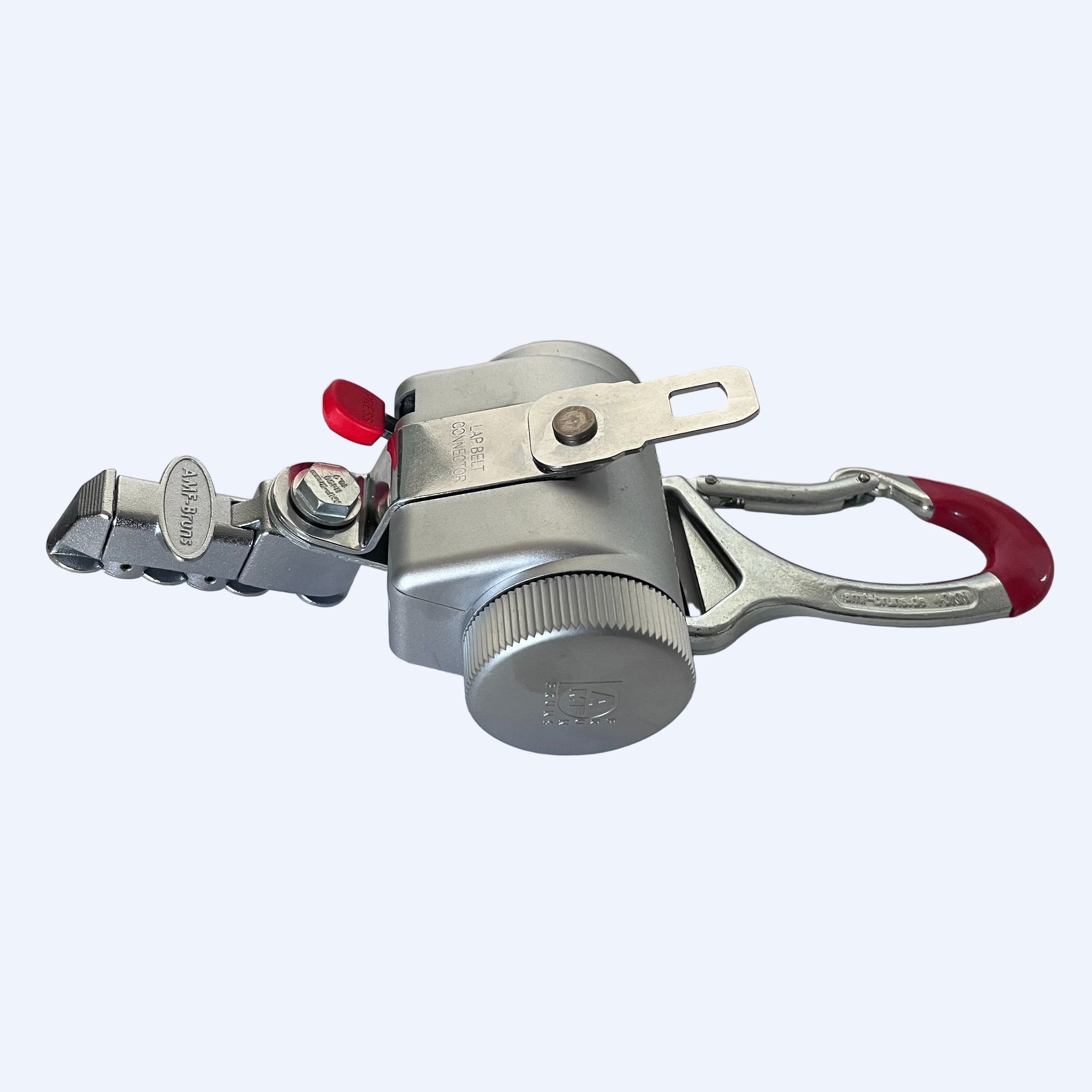

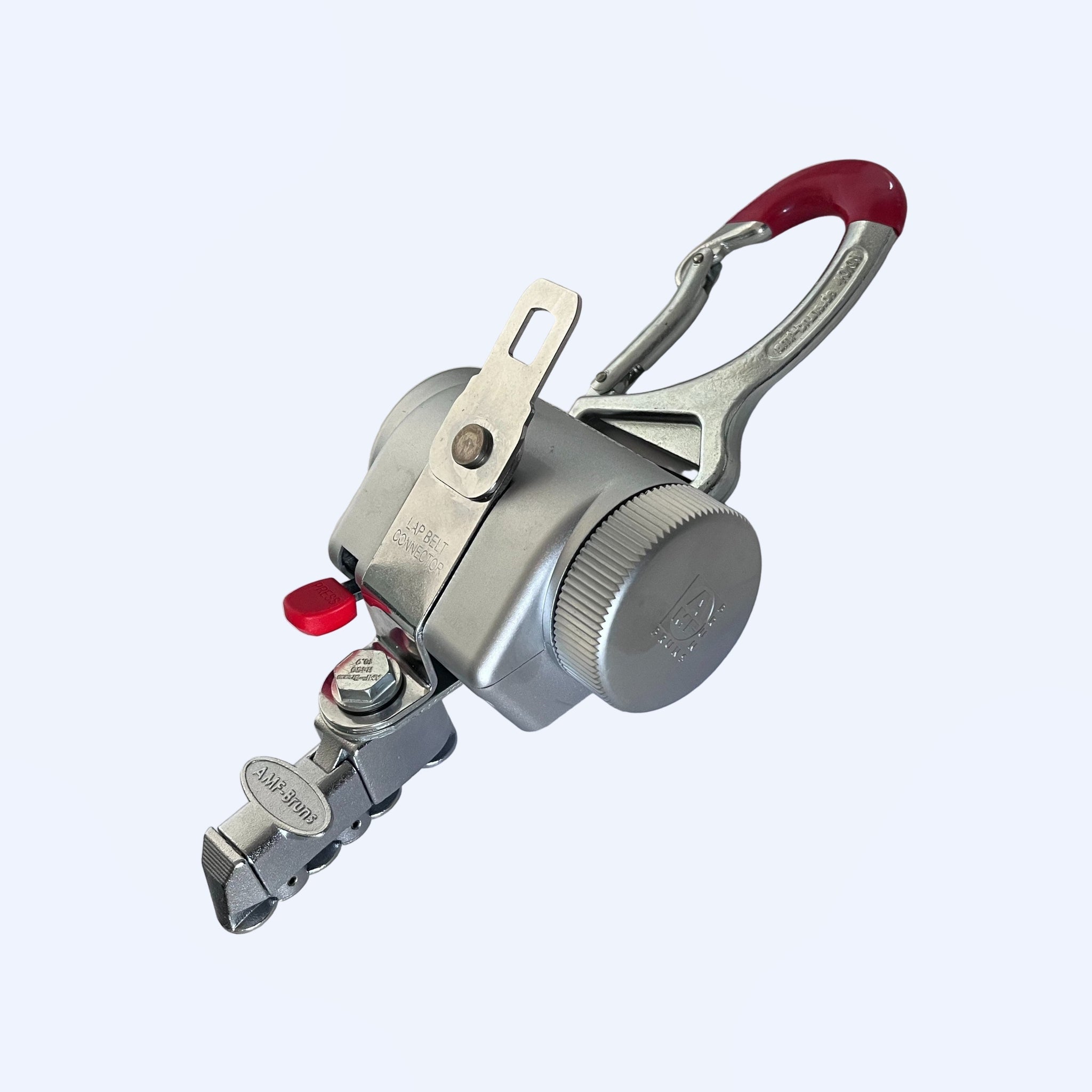

Floor points with 4-stud or mono fittings; wheelchair ends via J-hook (standard), carabiner, or loop.
Proven Safety
Meets WC18/WC19, ISO 10542, DIN 75078; crash-tested for dynamic loads.
Vehicle Applications
🚐 Wheelchair-Accessible Van (WAV)🚌 Paratransit / Minibus🚑 Non-Emergency Medical Transport (NEMT)🚌 School Bus🚐 Sprinter / Transit Van🚆 Rail / Community Transit
Standards & Compliance
ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems
RESNA WC18Wheelchair Tie-Down & Restraint Systems — Heavy Duty (ANSI/RESNA)
FMVSS 209Seat Belt Assemblies
FMVSS 210Seat Belt Assembly Anchorages
FMVSS 302Flammability of Interior Materials
CMVSS 209Canadian Motor Vehicle Safety Standards — Seat Belt Assemblies
CSA Z605Wheelchair Securement in Motor Vehicles (Canada)
AS 2596Occupant Restraint Systems — Australia
ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.
Retractors require no special installation for daily use. Floor anchorage components require professional installation by a qualified WAV modifier.
Frequently Asked Questions
Does this kit include everything I need for one wheelchair position? +
A complete wheelchair tie-down and occupant restraint system — often called a 4-point securement system — has three primary components: floor anchorages (L-Track rail and floor pockets), wheelchair securement retractors (4-point tie-downs), and an occupant restraint (lap and shoulder belt). See the What's Included section for exactly what this kit contains and what may need to be purchased separately.
Do I need to buy floor anchors separately? +
Check the What's Included section. If L-Track rail or floor pockets are not listed, they need to be purchased separately. Your vehicle may already have floor anchorage installed — check before ordering.
Is professional installation required? +
The retractors connect to existing floor anchorage and require no special tools for daily use. Floor anchorage components must be installed by a qualified WAV modifier.
Can I mix brands within the same vehicle? +
We do not recommend mixing brands within the same 4-point wheelchair position. All four retractors at each position should be the same brand and series for system-level compatibility and compliance.
