What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

Q'Straint INQLINE Securement Base Kit | Rear-Entry Wheelchair Winch System | Q-84030

Vendor: Q'Straint
Regular price: $3,090.00
Sale price: $3,090.00
Unit price: per

Shipping calculated at checkout.

INQLINE® SECUREMENT SYSTEM | Rear-Entry Winch & Retractor System with Integrated Front Tie-Downs qstraint.com/inqline ↗

INQLINE Securement — Choose Your Kit Level:

TIER 1 — YOU ARE HERE

Base Kit (Q-84030)

TIER 2

+ Retractors (Q-84039 / Q-84040)

TIER 3

+ Install Kit (Q-84041)

TIER 4 — COMPLETE

Full System (Q-84042 / Q-84043)

SKU: Q-84030 | VENDOR: Q'STRAINT

INQLINE® Securement Base Kit
Rear-Entry Winch & Retractor System | Q-84030

✔ Free Shipping 🏆 ADA Compliant 💥 Crash Tested 30 mph / 20G 🔒 Rear-Entry System

30 mph

Crash Tested

Force Rating

27 lbs

System Weight

2 Year

Warranty*

The INQLINE Securement Base Kit (Q-84030) is the only heavy-duty winch and restraint system to feature dual automatic retractors that act as front tie-downs — making it the ideal single solution for both passenger onboarding and securement. With an ergonomic thumb controller, wall control panel, and patent-pending 360° webbing guide, INQLINE gives operators complete, confident control over the rear-entry boarding process from start to finish.

How It Works

Attach & Connect

Operator releases INQLINE belts and attaches J-hooks to the wheelchair frame to secure the mobility device before boarding.

Steer Up the Ramp

Operator uses the ergonomic thumb controller to steer the wheelchair occupant up the ramp and precisely into position inside the vehicle.

Secure & Go

Operator attaches rear tie-downs and applies the 'final squeeze' via the wall control unit — electronic sensors ensure perfect tensioning every time.

Key Features

🕹️

Controlled Steering

Ergonomic thumb controller lets operators precisely guide any wheelchair up or down the ramp — overcoming curbside parking, uneven surfaces, and shifting weight distribution with confidence.

🔄

Integrated Front Tie-Downs

INQLINE SECUREMENT is the only system where the winch retractors also serve as front tie-downs — completely eliminating a separate, time-consuming securement step.

⚡

Dual Automatic Retractors

Two world-class Q'STRAINT automatic retractors feature self-tensioning and auto-locking, allowing easy one-handed securement without manual tensioning.

🎛️

Wall Control Panel

Intuitive 2-button wall-mounted panel manages engaging, releasing, and tensioning of the system — all while keeping the operator's attention on the passenger.

↩️

360° Webbing Guide

Patent-pending over-the-top webbing design routes belts at ideal angles every time — keeping webbing twist-free, eliminating footrest interference, and allowing more passenger leg room.

📡

'Final Squeeze' Technology

Electronic sensors determine exactly how much tension to apply — no swaying, no guesswork. The wheelchair feels like part of the vehicle and passengers arrive settled and secure.

"INQLINE Securement alleviates most problems and accidents during the loading and unloading process, which is extremely important in our industry."

Brock Rosayn

President, Metro Taxi

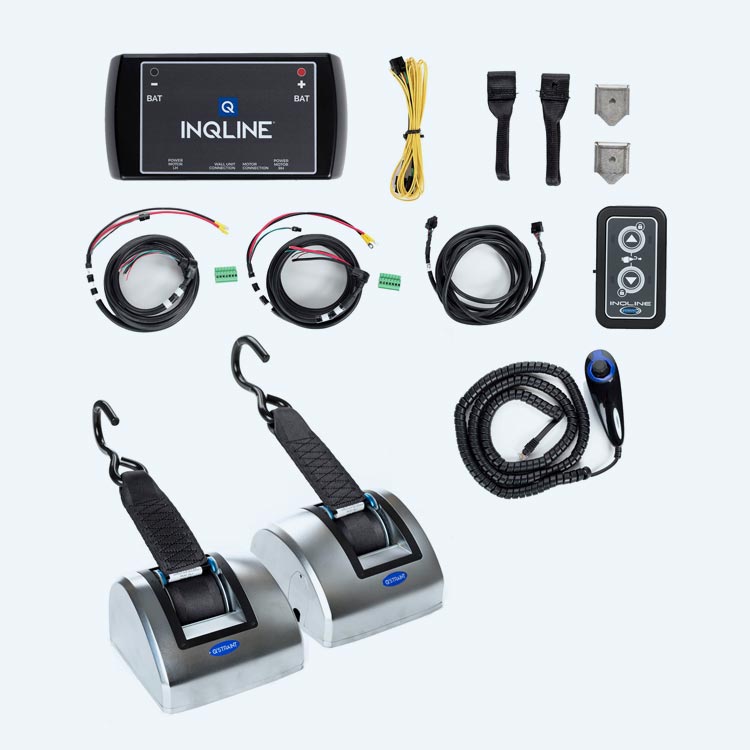

What's Included — Q-84030

Qty	Component	Part #
1	Main Controller, INQLINE	QS01093
1	Cable Harness, Splitter INQLINE	QS00140
2	INQLINE Hook Hanger	QS00202
1	LH SECUREMENT Cable Harness	QS00148
1	RH SECUREMENT Cable Harness	QS00149
1	Joy Stick Cable Harness	QS00143
1	Wall Unit, INQLINE	QS00156
1	Joy Stick, INQLINE	QS00157
1	INQLINE SECUREMENT, RH (Right-Hand Unit)	Q840030
1	INQLINE SECUREMENT, LH (Left-Hand Unit)	Q840031

⚠ Not Included in This Kit: Rear tie-down retractors, floor mounting hardware, installation kit, and occupant lap/shoulder belt. Want everything in one box? See our complete kit options — Q-84039 (+ QRT Deluxe Retractors), Q-84040 (+ QRT-360 Retractors), Q-84041 (+ Install Kit), or Q-84042/Q-84043 for a complete turn-key system. Contact us if you need help choosing.

Vehicle Applications

🚑 Non-Emergency Medical Transport (NEMT) 🚌 Paratransit / Minibus 🚐 Wheelchair-Accessible Van (WAV) 🚐 Rear-Access Community Transport 🏫 School & Senior Transport

ℹ️ Entry Type: INQLINE SECUREMENT is designed for rear-entry vehicles only. For side-entry or rear-entry flexibility, see the INQLINE ASSIST system (Q-84027 / Q-84035).

Standards & Compliance

ISO 10542-1 Wheelchair Tie-Down & Occupant Restraint

RESNA WC-4 §18 Wheelchair Securement Systems

FMVSS & CMVSS 209 Seat Belt Assemblies (US & Canada)

FMVSS 302 Flammability of Interior Materials

CSA Z605 Wheelchair Securement (Canada)

Fully ADA Compliant Americans with Disabilities Act

ℹ️ ADA Note: Designed for ADA-accessible transportation. Verify installation meets applicable ADA requirements for your vehicle type and use.

📘 Compliance Resources: For Medicaid/NEMT requirements, ADA guidance, and fleet documentation, visit our Compliance Resource Center.

🛡 Warranty: 2-year limited warranty when registered at qstraint.com. Without registration, 1-year limited applies. Registration is required for full coverage.

⚠ Warranty terms should be verified directly with the manufacturer prior to purchase.

⚠ California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See qstraint.com/prop-65

📄 Installation & User Guide: View Installation & User Guide List

📄 Product Documents: INQLINE Securement Brochure | INQLINE System Data Sheet | INQLINE Securement Installation Manual (QC17027) | INQLINE Securement Use & Care Manual (QC17014)

Specifications

Specification	Detail
Brand	Q'Straint
SKU	Q-84030
System	INQLINE Securement — Rear-Entry Winch & Retractor
Entry Type	Rear-Entry Only
System Weight	27 lbs.
Crash Test Rating	30 mph (48 kph) / 20G — Certified
Shipping	Free Shipping
Warranty	2-year limited (registration required); 1-year without registration
Regional Availability	USA & Europe
Installation	Professional installation required — sold separately (see QS12054 Install Kit)

Frequently Asked Questions

Is Q-84030 a complete ready-to-install system? +

The Q-84030 Base Kit includes the core INQLINE SECUREMENT winch units, controller, joystick, wall panel, and all cable harnesses. It does not include rear tie-down retractors, installation mounting hardware, or occupant belt — those are in our complete kits (Q-84041 through Q-84043). If you already have compatible rear retractors and hardware, the base kit may be all you need. Contact us to confirm.

What's the difference between INQLINE SECUREMENT and INQLINE ASSIST? +

INQLINE SECUREMENT (this product) is a rear-entry-only system where the winch retractors also function as integrated front tie-downs — passenger boarding and securement are handled by a single system. INQLINE ASSIST (Q-84027 / Q-84035) is for side-entry or rear-entry vehicles — it handles boarding only and requires separate wheelchair tie-down securements. ASSIST is ideal if your vehicle already has a compliant 4-point securement system and you just need powered boarding control.

Does INQLINE work with any wheelchair? +

INQLINE is designed to work with the vast majority of manual and power wheelchairs. The 360° webbing guide and improved belt angles allow larger chairs to fit in tighter vehicle spaces while maintaining proper securement angles. Contact us if you have a specific wheelchair model in mind.

Does installation require a certified installer? +

Yes. INQLINE SECUREMENT requires vehicle-specific installation by a qualified mobility equipment installer or upfitter. Q'STRAINT recommends installation be performed by a certified technician. Once installed, the system is designed for easy daily operator use with no special training beyond the operator tutorial.

How does the warranty work? +

INQLINE carries a 2-year limited warranty when you register the product at qstraint.com/register. Without registration, a 1-year limited warranty applies. We strongly recommend registering immediately after installation.

Can the same vehicle handle both wheelchair and cot transport? +

INQLINE SECUREMENT is optimized for wheelchair boarding in rear-entry vehicles. For cot securement in the same vehicle, see our AMBULOK cot securement system. Contact us to discuss a dual-use vehicle setup.
