What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

Sure - Lok | AL827S - 4C TITAN800 Retractor Kit J - Hook | L - Track - WheelchairStrap.com

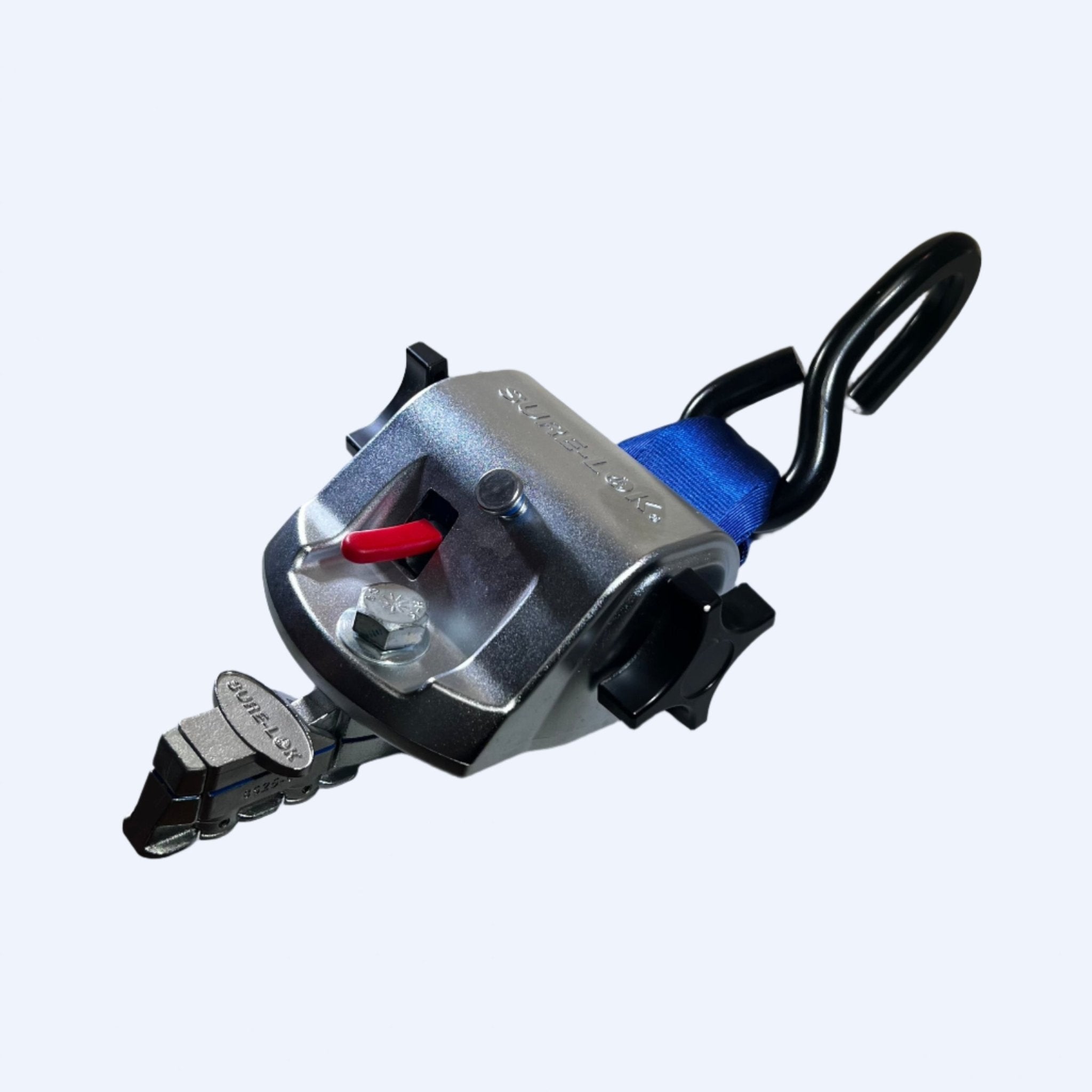

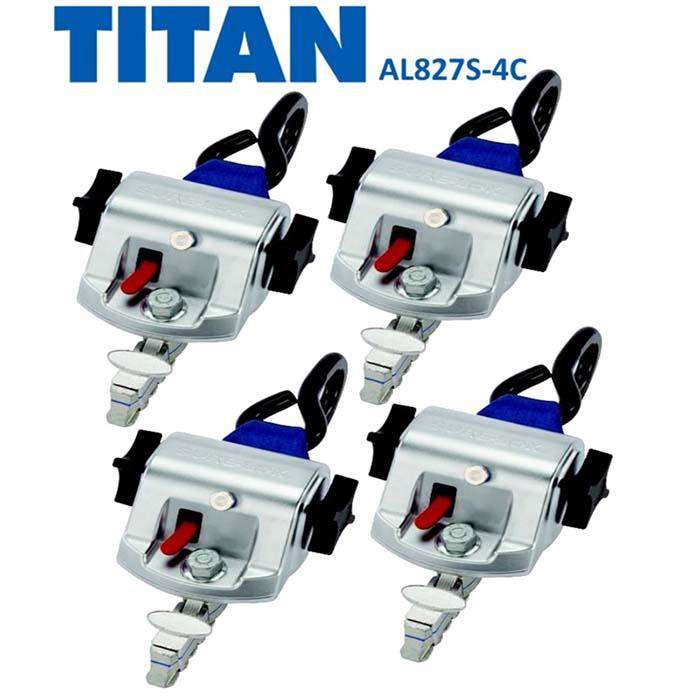

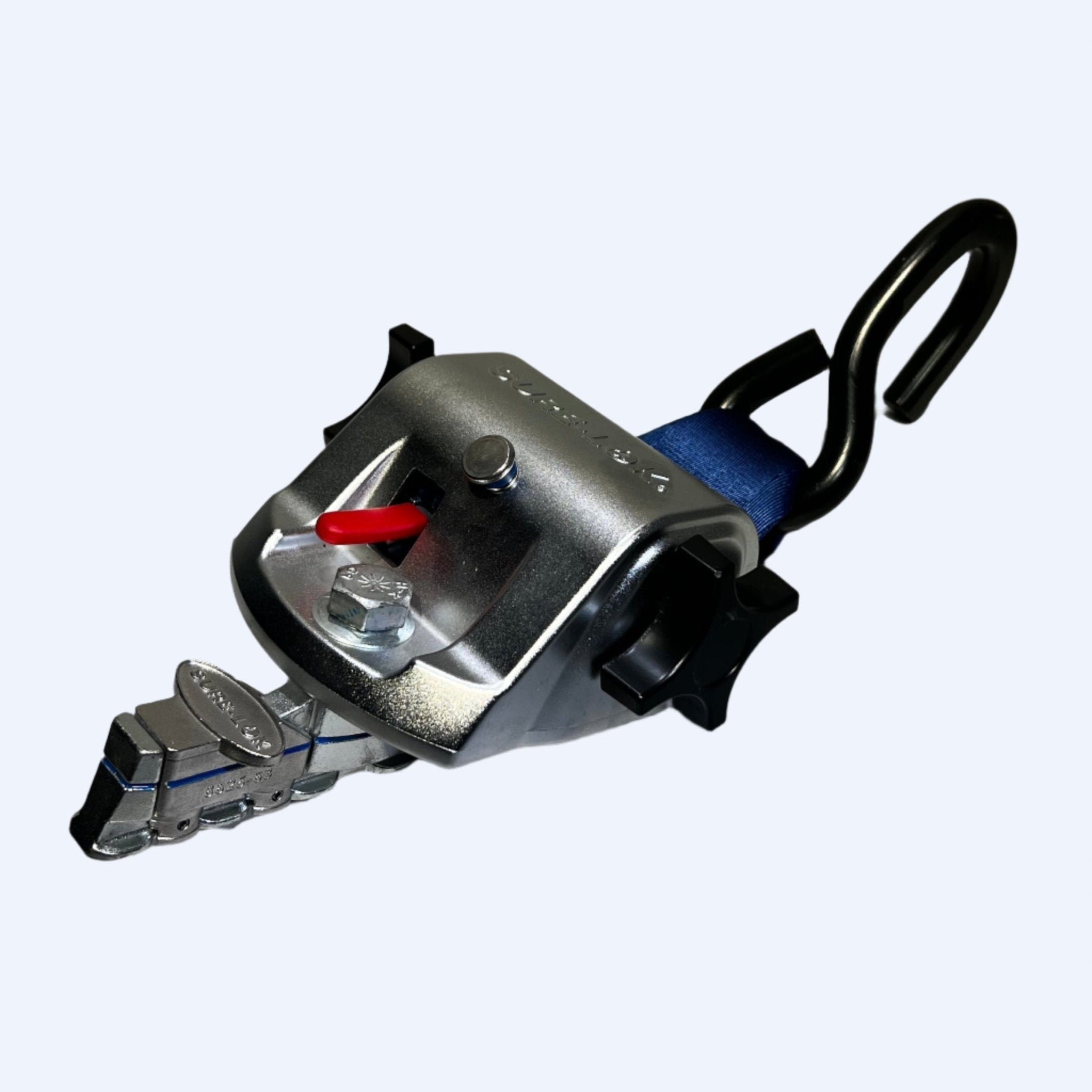

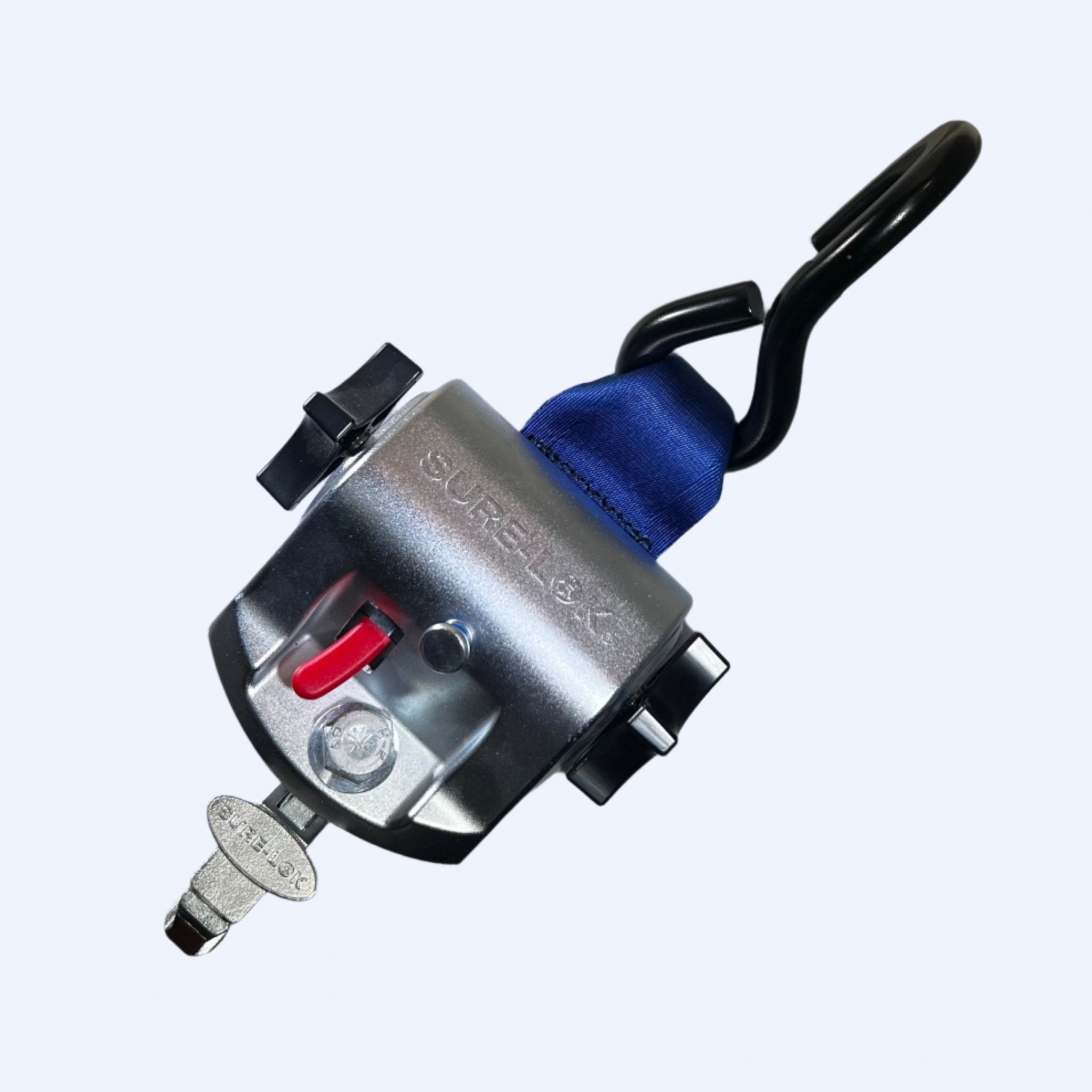

Sure-Lok TITAN800 Retractor Kit J-Hook L-Track | AL827S-4C

Vendor: Sure-Lok
Regular price: $783.00
Sale price: $783.00
Unit price: per

Shipping calculated at checkout.

Key Features

Automatic, Self-Locking

Allows easy, one-handed hook-up of wheelchairs without a manual locking step.

⚙️

Self-Tensioning

Automatically takes up slack — no manual tensioning required.

🟡

Locked Indicator

Highly visible indicator tag confirms the retractor is in locked mode — eliminates guesswork for operators.

🔗

J-Hook Design

Reduces belt twisting and ensures proper securement angle — accommodates virtually all wheelchair designs.

📐

Low Profile & Compact

No mounting bracket required — retractors fit under most wheelchair footrests.

🏆

RESNA WC18 Rated

Built to the higher load requirements of the WC18 standard.

Qty	Component	SKU
4	Sure-Lok TITAN800 Retractor Kit J-Hook L-Track	AL800855S

Qty

Component

SKU

Sure-Lok TITAN800 Retractor Kit J-Hook L-Track

AL800855S

Full Feature Details

The TITAN800 is the strongest TITAN retractor ever made. Built on the trusted foundation of the original TITAN platform — familiar technology, distinctive blue webbing, and proven auto-tension and auto-lock performance — the TITAN800 takes wheelchair securement to the next level with an innovative energy distribution design engineered specifically to meet the higher load requirements of the latest WC18 industry standards.

Feature	Description
WC18 Energy Distribution Design:	Built from the ground up to meet the higher load requirements of the newest WC18 standards. The TITAN800's innovative internal energy distribution design absorbs and disperses crash forces more effectively than previous generations — providing maximum load capacity where it matters most.
Stronger Webbing:	Upgraded webbing construction delivers the tensile strength needed to satisfy the latest RESNA WC18 test criteria, giving fleet operators and passengers confidence in every securement.

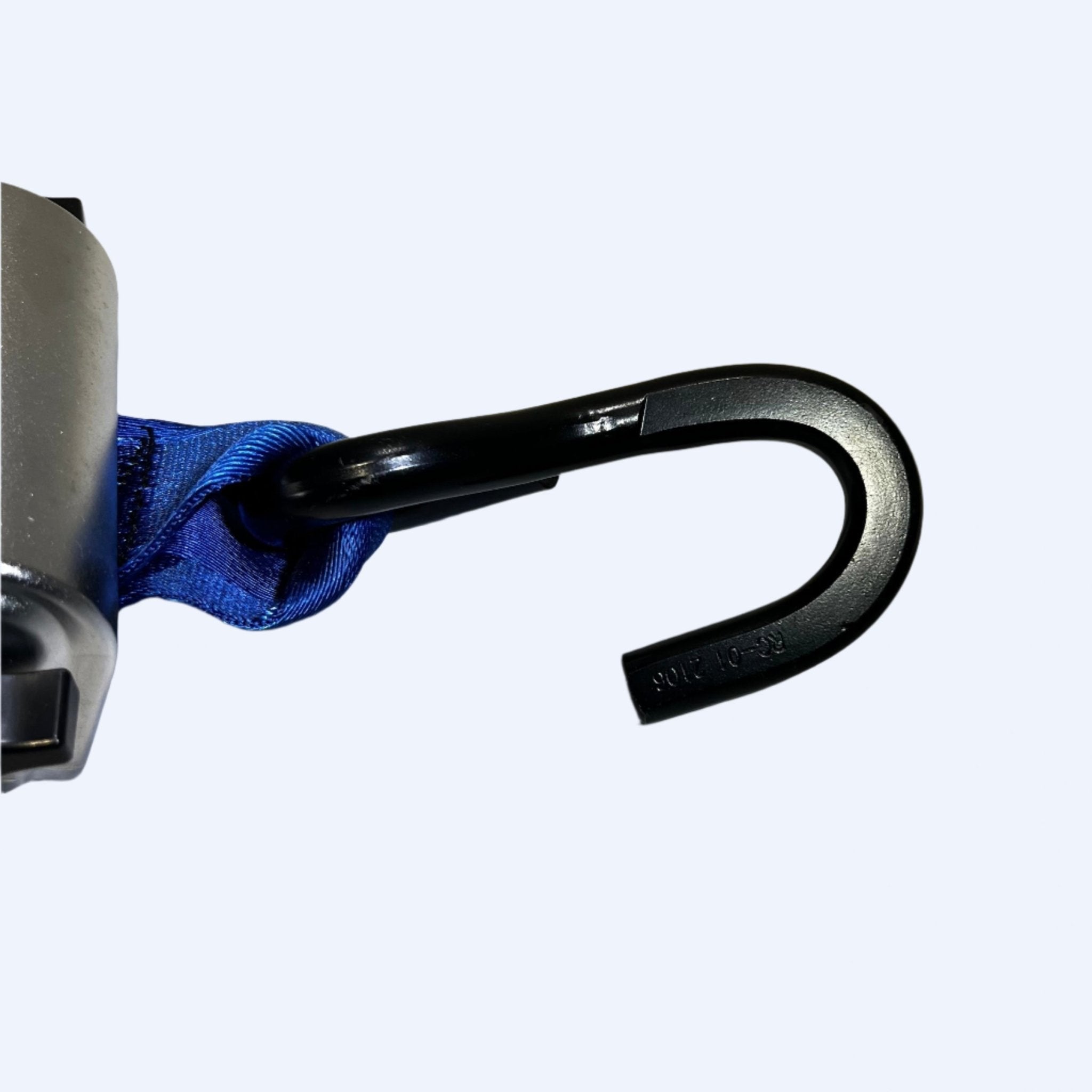

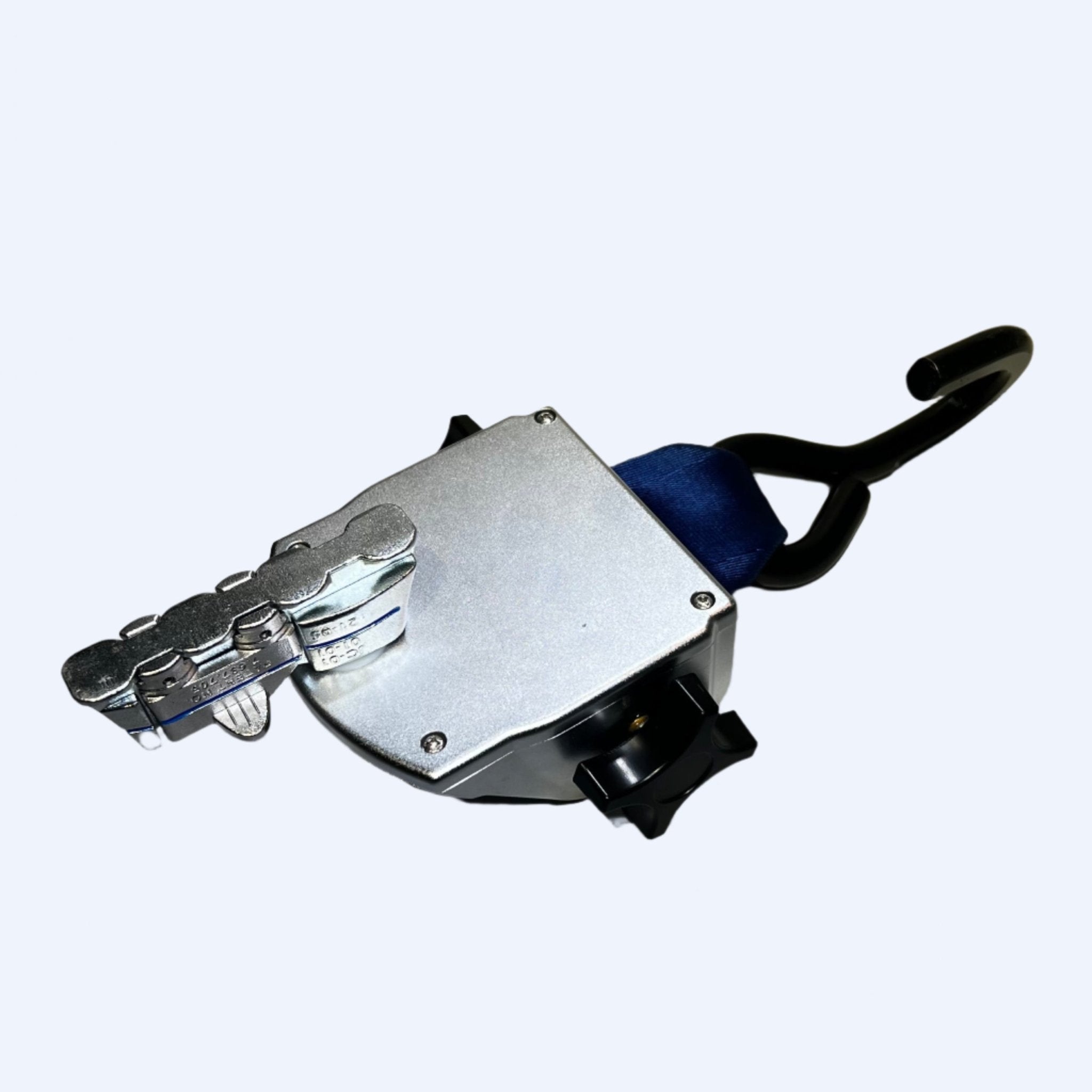

J-Hook Attachment:	The J-hook improves belt angles by minimizing webbing twists between the retractor and the wheelchair frame. Proper belt angle means better securement geometry, reduced wear on the webbing, and a cleaner, more professional installation.

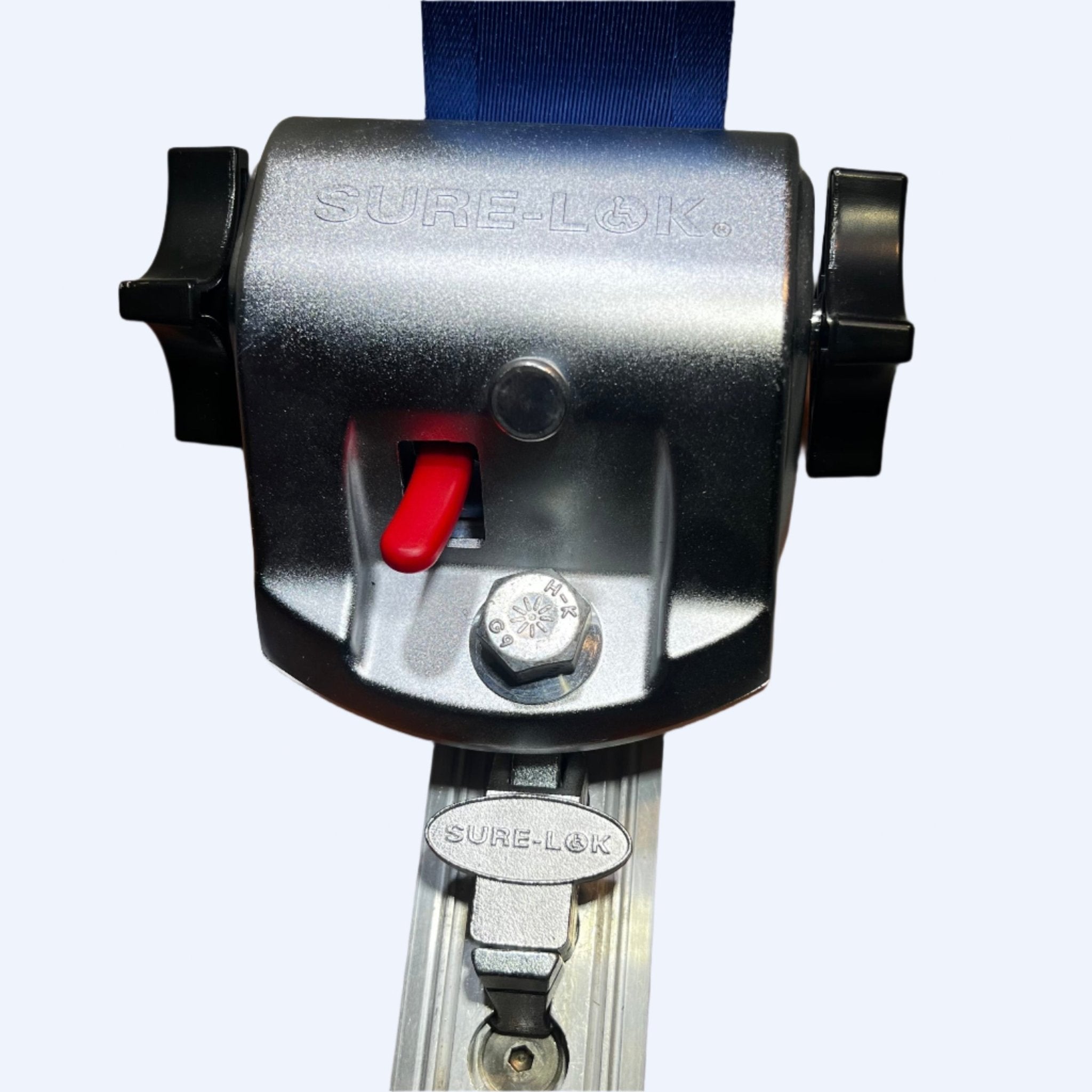

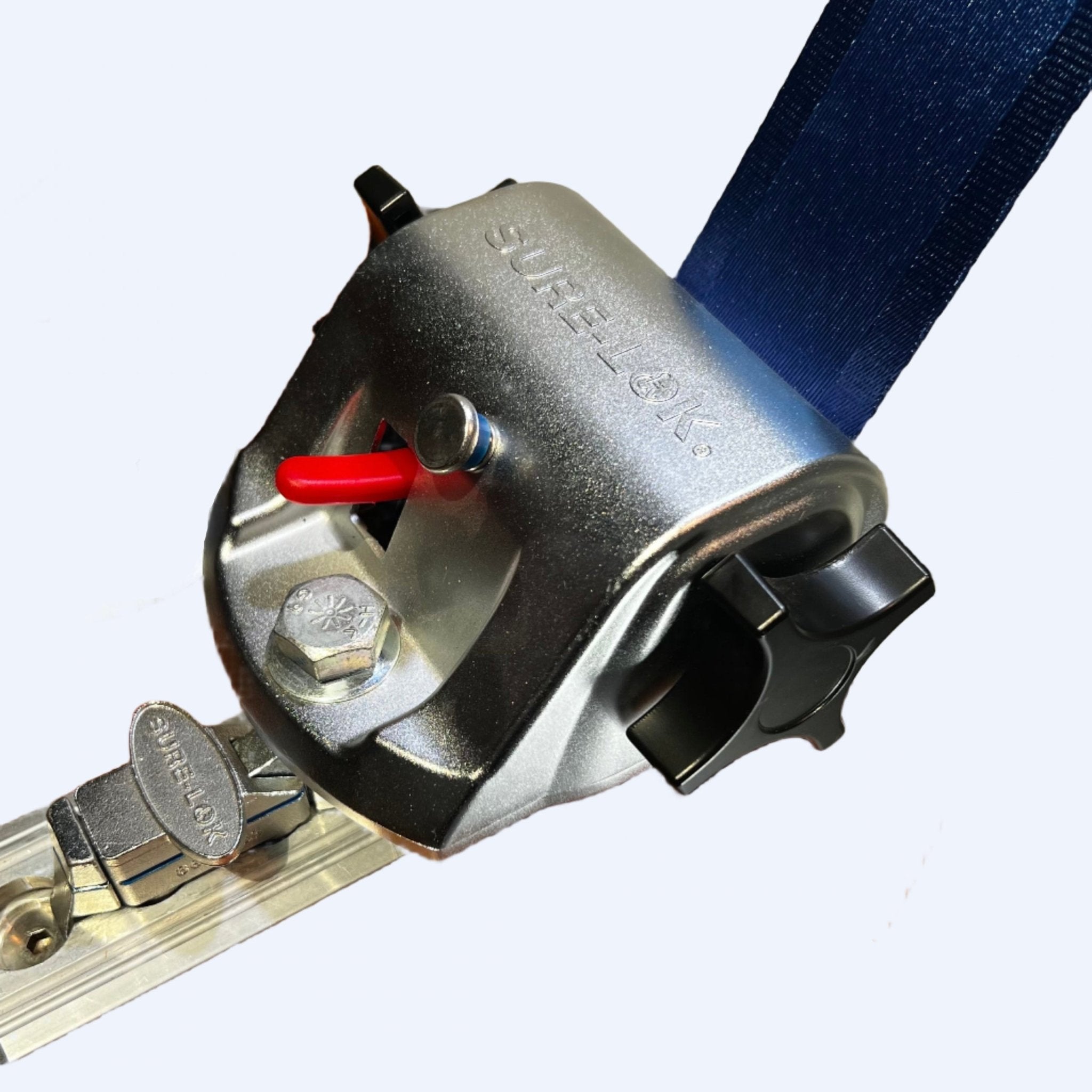

Positive Locking Interface (PLI) Fitting:	An innovative PLI fitting provides clear tactile and audible confirmation when the retractor is fully locked into the L-Track — operators know instantly that the retractor is secured before tensioning the belt. Eliminates guesswork and reduces the risk of improperly seated fittings.

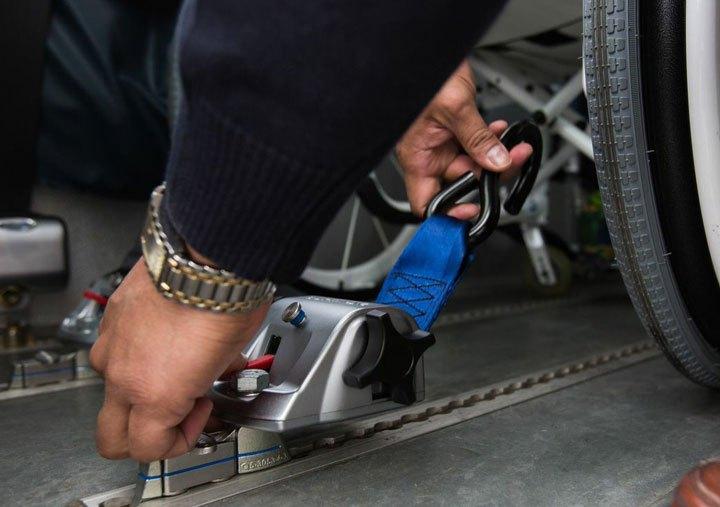

Auto-Tension & Auto-Lock:	Like all TITAN retractors, the TITAN800 automatically tensions and locks at any webbing length, allowing a complete securement in seconds with just one hand.
Low Profile Design:	The slim housing minimizes interference with wheelchair frames and footrests, eliminating potential tripping hazards in the aisle — critical for high-traffic transit environments.

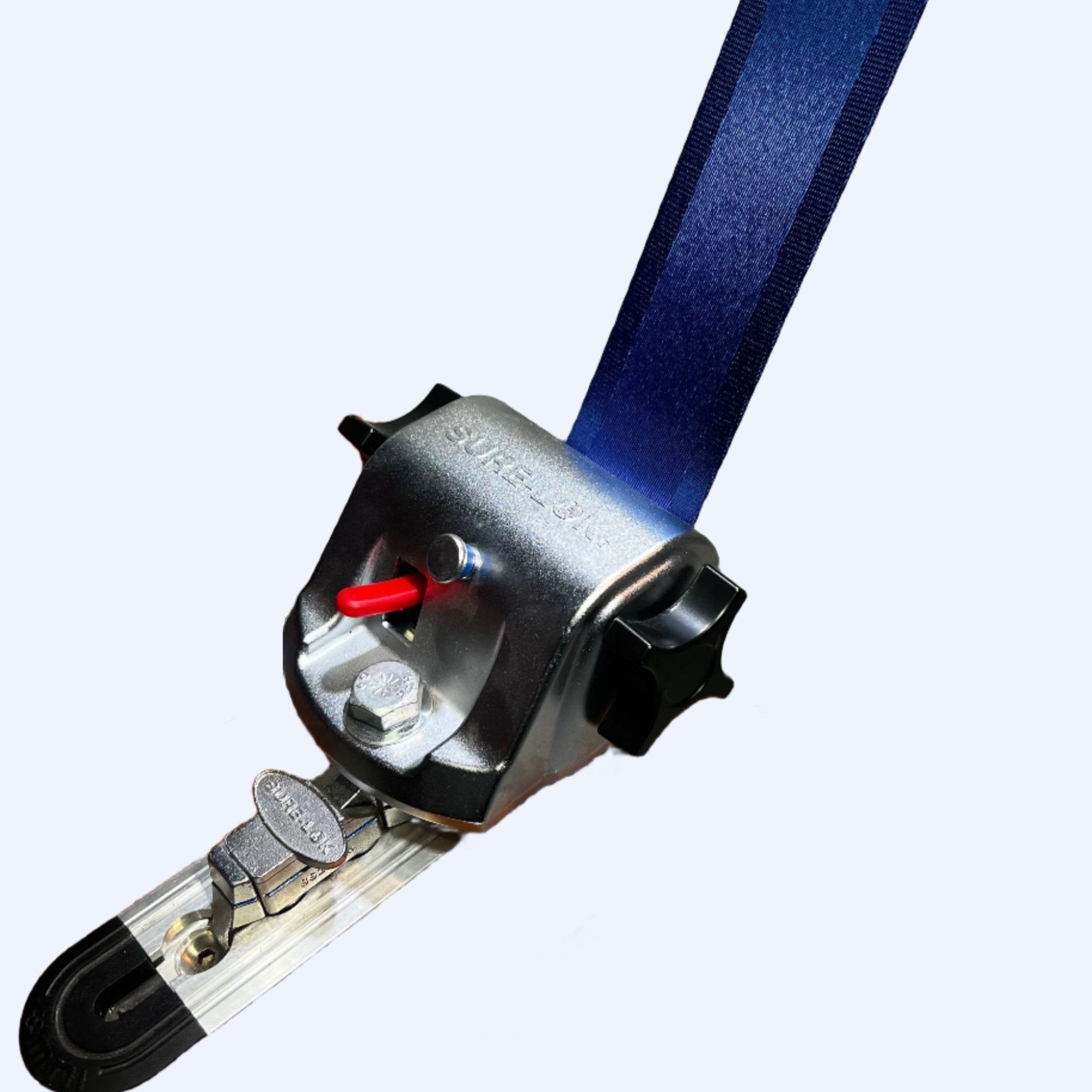

Distinctive Blue Webbing:	The signature TITAN blue webbing makes retractors easy to identify and inspect at a glance, supporting fast operator checks and consistent visual audits across your fleet.

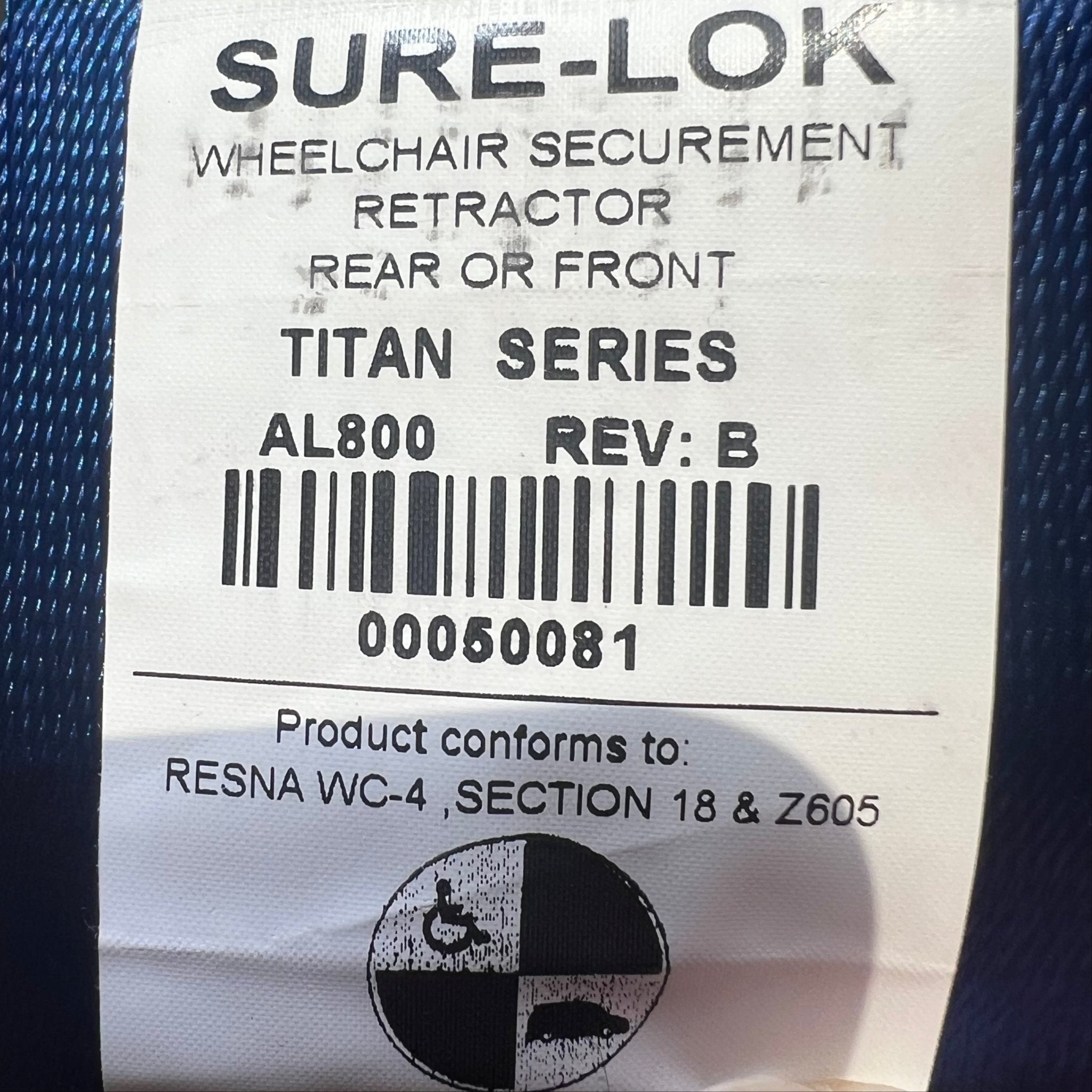

Standards & Compliance

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

RESNA WC18Wheelchair Tie-Down & Restraint Systems — Heavy Duty (ANSI/RESNA)

FMVSS 222School Bus Passenger Seating & Crash Protection

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 302Flammability of Interior Materials

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

🔒 WC18 Certified: This product meets ANSI/RESNA WC18 — the crash-tested standard for heavy-duty WTORS hardware. For procurement language and certification documentation, see our RESNA WC18 Standard Guide.

Specifications

Specification	Detail
Brand	Sure-Lok
SKU	AL827S-4C
Price	783.00 — price shown is per kit
Shipping	Free Shipping
Warranty	5-year limited
Use / Installation	Retractors require no special installation for daily use. Floor anchorage components require professional installation by a qualified WAV modifier.

Frequently Asked Questions

Does this kit include everything I need for one wheelchair position? +

A complete wheelchair tie-down and occupant restraint system — often called a 4-point securement system — has three primary components: floor anchorages (L-Track rail and floor pockets), wheelchair securement retractors (4-point tie-downs), and an occupant restraint (lap and shoulder belt). See the What's Included section for exactly what this kit contains and what may need to be purchased separately.

Do I need to buy floor anchors separately? +

Check the What's Included section. If L-Track rail or floor pockets are not listed, they need to be purchased separately. Your vehicle may already have floor anchorage installed — check before ordering.

Is professional installation required? +

The retractors connect to existing floor anchorage and require no special tools for daily use. Floor anchorage components must be installed by a qualified WAV modifier.

Can I mix brands within the same vehicle? +

We do not recommend mixing brands within the same 4-point wheelchair position. All four retractors at each position should be the same brand and series for system-level compatibility and compliance.
