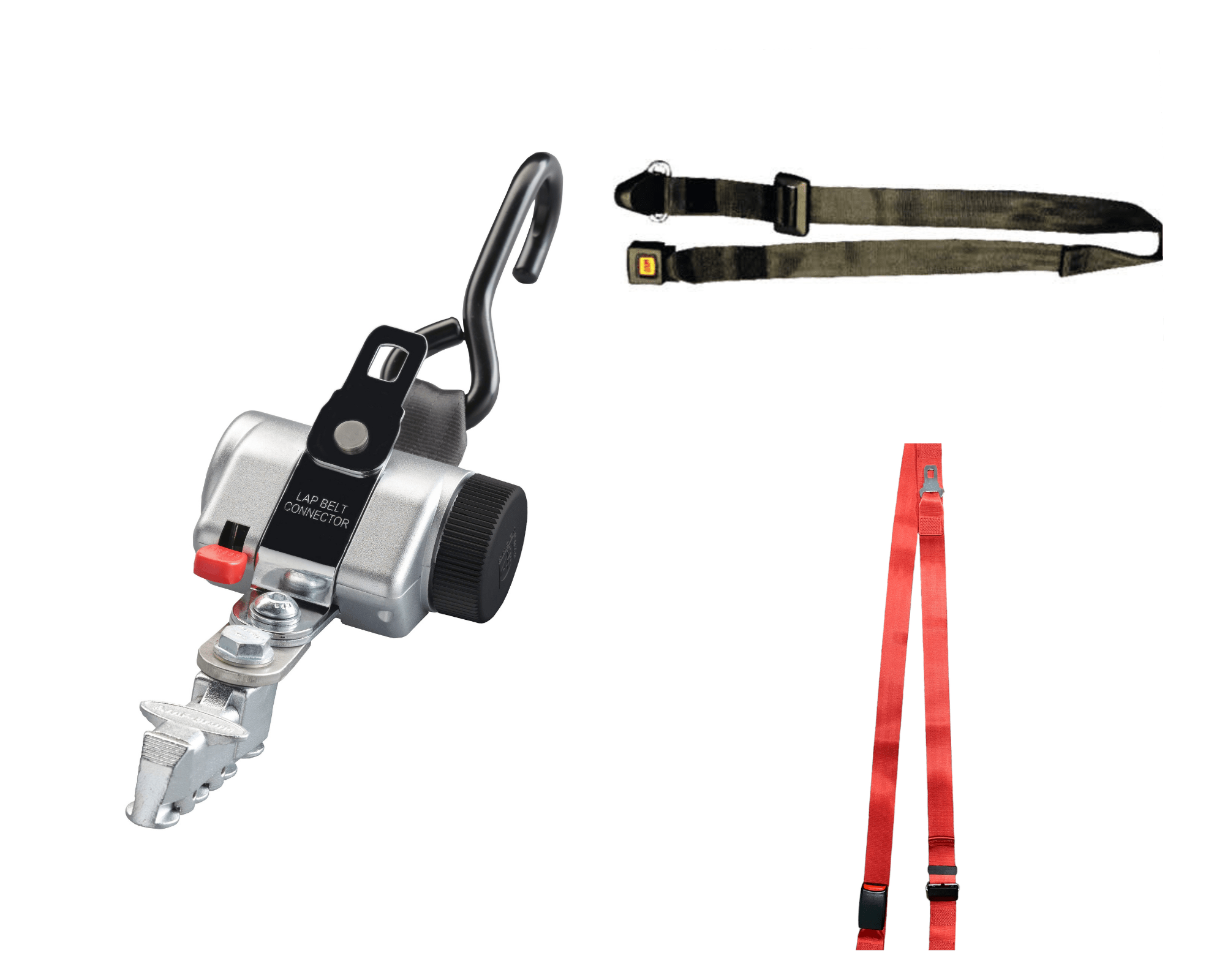

Complete 4-Point Wheelchair Securement Kit with Occupant Restraint - RED DOT DESIGN AWARD 2020 recipient. The AMF Bruns K534225-1000HL BronzeSeries Retractor System is a complete 4-point wheelchair securement kit featuring 4 high-strength retractors with J-hook connectors and L-Track fittings, plus static lap and shoulder belts for occupant restraint.
SKU: K534225-1000HL | VENDOR: AMF BRUNS
AMF Bruns | BronzeSeries Retractors J Hook & L-Track with Lap Belt, Shoulder Belt | K534225-1000HL
✔ Free Shipping🦺 4-Point WTORS Kit🏷 AMF Bruns
Key Features
⚙️
Self-Tensioning
Automatically takes up slack — no manual tensioning required.
🔗
J-Hook Design
Reduces belt twisting and ensures proper securement angle — accommodates virtually all wheelchair designs.
📐
Low Profile & Compact
No mounting bracket required — retractors fit under most wheelchair footrests.
🏅
Red Dot Design Award 2020
Recognized for combination of safety engineering and operator-friendly design.
The AMF Bruns K534225-1000HL BronzeSeries Retractor System is a complete 4-point wheelchair securement kit featuring 4 high-strength retractors with J-hook connectors and L-Track fittings, plus static lap and shoulder belts for occupant restraint. Designed for secure, comfortable transport in school buses, minivans, and wheelchair-accessible vehicles (WAVs) , this comprehensive system provides both wheelchair securement and passenger safety in one integrated package.
Feature
Description
Single Tensioning
Manual pull-out retractors with one knob for effortless tightening.
Universal J-Hooks
Anti-twist attachment fits all wheelchair frames and scooters.
L-Track Ready
BronzeSeries durability for school/community transport fleets.
RED DOT 2020 for safety, design, and material quality.
(4) high-strength BronzeSeries retractors
for complete 4-point wheelchair securement
J-hook connectors
reduce belt twisting and allow sturdy attachment to wheelchair frame
L-Track fittings
for easy installation in vehicles with L-Track anchorages

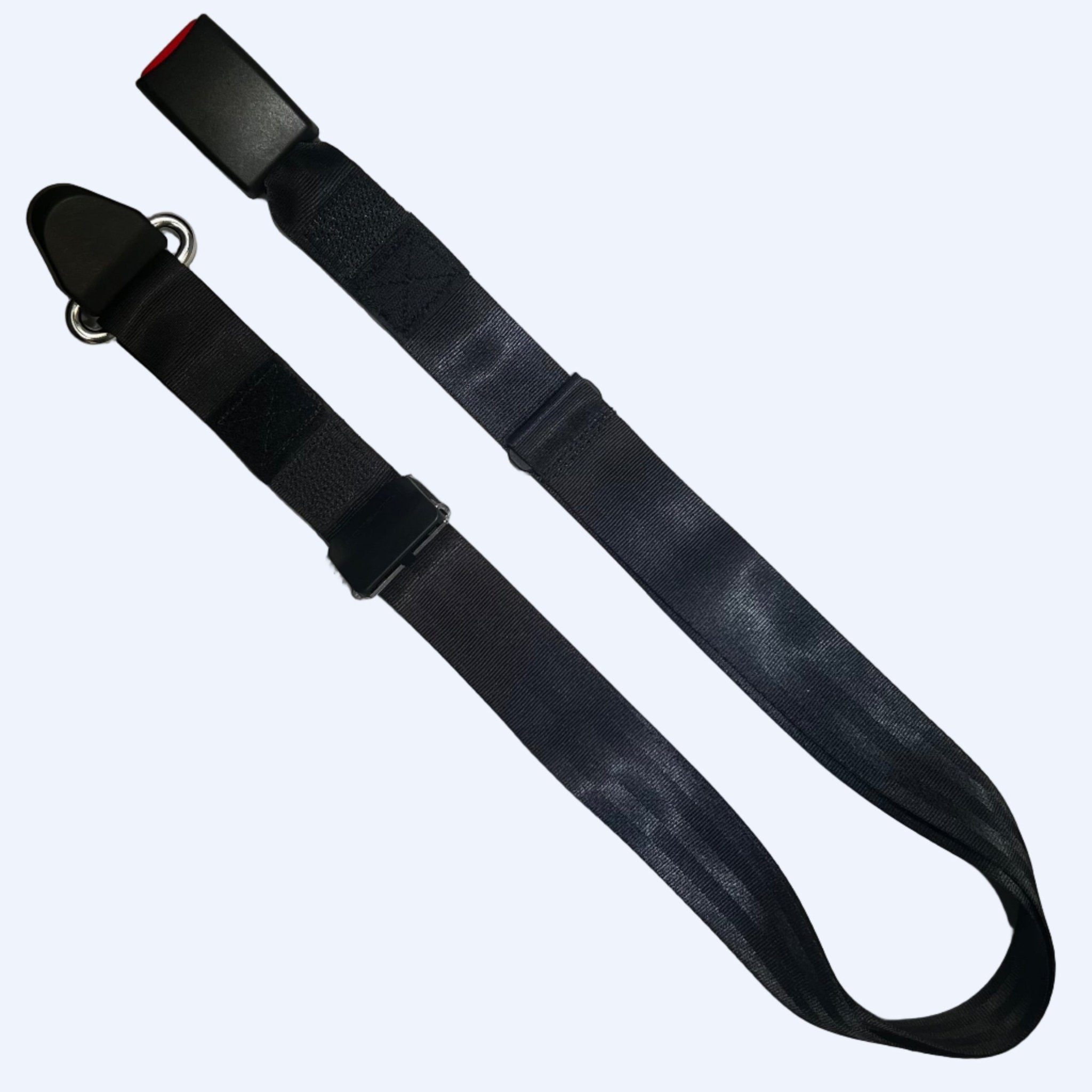

Static (manual) lap belt
for passenger pelvic restraint
Static shoulder belt
for upper body restraint
L-Track tie-down anchorages
in vehicle floors and walls
Low profile and durable
design minimizes obstruction
WC19 compliant
— meets ANSI/RESNA WC19 standards for wheelchair occupant securement
Vehicle Applications
🚐 Wheelchair-Accessible Van (WAV)🚌 Paratransit / Minibus🚑 Non-Emergency Medical Transport (NEMT)🚌 School Bus🚐 Sprinter / Transit Van🚆 Rail / Community Transit
Standards & Compliance
ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems
SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles
FMVSS 209Seat Belt Assemblies
FMVSS 210Seat Belt Assembly Anchorages
FMVSS 302Flammability of Interior Materials
CMVSS 209Canadian Motor Vehicle Safety Standards — Seat Belt Assemblies
CSA Z605Wheelchair Securement in Motor Vehicles (Canada)
AS 2596Occupant Restraint Systems — Australia
ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.
Retractors require no special installation for daily use. Floor anchorage components require professional installation by a qualified WAV modifier.
Frequently Asked Questions
Does this kit include everything I need for one wheelchair position? +
A complete wheelchair tie-down and occupant restraint system — often called a 4-point securement system — has three primary components: floor anchorages (L-Track rail and floor pockets), wheelchair securement retractors (4-point tie-downs), and an occupant restraint (lap and shoulder belt). See the What's Included section for exactly what this kit contains and what may need to be purchased separately.
Do I need to buy floor anchors separately? +
Check the What's Included section. If L-Track rail or floor pockets are not listed, they need to be purchased separately. Your vehicle may already have floor anchorage installed — check before ordering.
Is professional installation required? +
The retractors connect to existing floor anchorage and require no special tools for daily use. Floor anchorage components must be installed by a qualified WAV modifier.
Can I mix brands within the same vehicle? +
We do not recommend mixing brands within the same 4-point wheelchair position. All four retractors at each position should be the same brand and series for system-level compatibility and compliance.
