What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

AMF Bruns PROTEKTOR 2.0 SilverSeries 4-Point WTORS Kit | Retractor Shoulder Belt | J-Hook / L-Track

Vendor: AMF Bruns
Regular price: $735.95
Sale price: $735.95
Unit price: per

Shipping calculated at checkout.

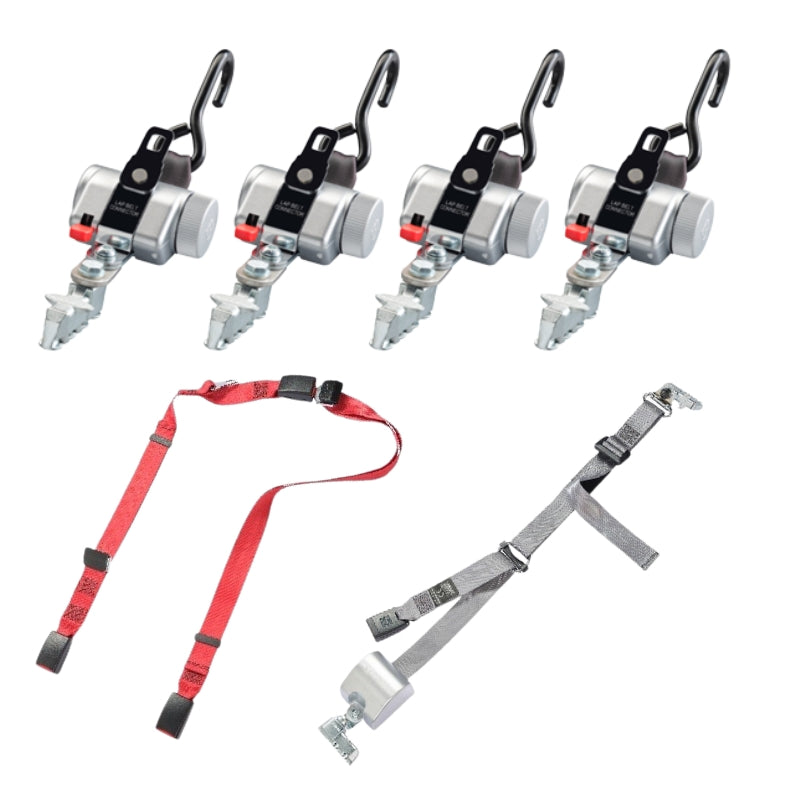

The AMF Bruns PROTEKTOR 2.0 SilverSeries 4-Point WTORS Kit with Retractor Shoulder Belt is a complete, fleet-grade wheelchair occupant restraint system built for high-demand paratransit, NEMT, and accessible transit operations. This kit pairs four automatic PROTEKTOR 2.0 SilverSeries wheelchair retractors with a manual pelvis lap belt and an automatic retractor shoulder belt featuring a manual height adjuster — giving operators precise, per-passenger positioning every trip.

Unlike static shoulder belt kits, the H370255 retractor shoulder belt self-stows when not in use, eliminating loose webbing and reducing boarding time. The integrated manual height adjuster accommodates passengers from children through adults in a single hardware setup. All four wheelchair retractors mount to L-Track via L-Track fittings, with J-Hook wheelchair attachment, while the shoulder belt mounts top-and-bottom to L-Track via a 90° bracket — a fully track-based system requiring no bolt drilling into vehicle structure.

Key Features

Auto-Retracting Shoulder Belt

H370255 self-stows when not in use — no dangling webbing, faster boarding cycle.

📏

Manual Height Adjuster

Positions shoulder belt correctly for children and adults without swapping hardware.

🔩

Full L-Track System

Retractors and shoulder belt both mount to L-Track — no drilling required.

⚡

PROTEKTOR 2.0 SilverSeries Retractors

Automatic ELR retractors with J-Hook wheelchair attachment. Proven in paratransit fleets.

🎗️

Manual Pelvis Lap Belt

H450199 with dual-side adjustment and 12" extended webbing for wider passenger fit range.

🛡️

SilverSeries 3-Year Warranty

PROTEKTOR 2.0 SilverSeries retractors backed by AMF Bruns' 3-year limited warranty.

What's Included

SKU	Component	Qty	Details
K530311-0000HL	AMF Bruns PROTEKTOR 2.0 SilverSeries Wheelchair Restraints 4-Pack Kit	1 kit (4 retractors)	J-Hook attachment / L-Track fitting. Automatic ELR. Gray webbing. Replaces K530211 series.
H450199	AMF Bruns Manual Pelvis Lap Belt	1	Dual-side adjustment. Extended webbing (+12"). Hip buckle connection point for lap and shoulder.
H370255	AMF Bruns Retractor Shoulder Belt — Manual Height Adjuster, L-Track 90° Bracket	1	Auto-retracting. Manual height adjuster. L-Track fittings top & bottom. 90° bracket. Gray webbing. Replaces H350250.
Kit Total

Not Included: L-Track floor rail (for retractor mounting). L-Track must be installed in vehicle floor prior to installation. Wall/ceiling L-Track is not required — the H370255 shoulder belt mounts fully to L-Track via its top and bottom L-Track fittings and 90° bracket.

Vehicle Applications

Minivans (WAVs) Paratransit Cutaways NEMT Vans School Buses (Special Needs) Transit Buses Ambulances Mobility Coaches L-Track Equipped Vehicles

Requires existing L-Track floor rail installation. Verify track spacing and anchor point locations before ordering. Contact our team for fleet specification support.

Standards & Compliance

Retractors (K530311-0000HL)

ISO 10542

International standard for wheelchair tiedown and occupant restraint systems.

Retractors (K530311-0000HL)

SAE J2249

Wheelchair tiedowns and occupant restraint systems for ground vehicles.

Lap & Shoulder Belts

FMVSS 209

Federal Motor Vehicle Safety Standard — seat belt assemblies.

Lap & Shoulder Belts

FMVSS 210

Federal Motor Vehicle Safety Standard — seat belt assembly anchorages.

School Bus Applications

FMVSS 222

School bus passenger seating and crash protection standard.

Webbing Materials

FMVSS 302

Flammability of interior materials — compliant webbing construction.

Note: The PROTEKTOR 2.0 SilverSeries meets ISO 10542 and SAE J2249. This product line does not carry ANSI/RESNA WC18 (REQS/WC19) certification. For WC18-certified options, see our Q'Straint and Sure-Lok product lines.

For state-by-state compliance requirements and fleet documentation resources, visit our Compliance Resource Center.

📄 Installation & User Guide: View Installation & User Guide List

📄 Product Documents: Protektor Installation Manual | Protektor User Manual | Protektor SilverSeries Product Data Sheet

Specifications

Specification	Detail
Kit SKU	K530310-2111HL
Kit Price	$751.85
Shipping	Free Shipping
Retractor Model	PROTEKTOR 2.0 SilverSeries (K530311-0000HL) — 4-Pack
Retractor Type	Automatic ELR (Emergency Locking Retractor)
Wheelchair Attachment	J-Hook
Retractor Track Fitting	L-Track
Shoulder Belt Model	H370255 — Auto-Retractor, Manual Height Adjuster
Shoulder Belt Type	Automatic retractor with manual height adjuster
Shoulder Belt Mounting	L-Track fittings top & bottom, 90° bracket at retractor
Shoulder Belt Webbing	Gray polyester
Lap Belt Model	H450199 — Manual Pelvis Lap Belt
Lap Belt Adjustment	Dual-side, extended webbing (+12")
Retractor Warranty	3-Year Limited (SilverSeries) — AMF Bruns
Shoulder / Lap Belt Warranty	1-Year Limited — AMF Bruns
Brand	AMF Bruns
Standards	ISO 10542, SAE J2249, FMVSS 209/210/222/302

Frequently Asked Questions

How is the retractor shoulder belt different from a static shoulder belt?

The H370255 is an automatic retractor — the shoulder belt winds itself back into the housing when not in use, keeping the vehicle interior tidy and reducing trip-over risk for drivers and passengers. A static shoulder belt hangs fixed in position and must be manually managed. For high-volume routes with frequent passenger changes, a retractor shoulder belt significantly reduces boarding and deboarding time. The manual height adjuster is an additional advantage: you can reposition the belt for each passenger without removing or replacing hardware.

Does the shoulder belt require L-Track on the wall or ceiling?

No. The H370255 mounts exclusively to floor-level or side-wall L-Track via L-Track fittings on both the top and bottom of the unit, with a 90° bracket at the retractor body. No overhead or ceiling track section is required. The L-Track floor rail used by the four retractors (included in K530311-0000HL) is the only track infrastructure this complete kit requires.

Can this kit accommodate passengers of different heights?

Yes. The H370255 shoulder belt includes a manual height adjuster that allows the upper anchor point to be repositioned for shorter or taller passengers — from pediatric to large adult — without changing any hardware. The H450199 lap belt features dual-side adjustment with extended webbing (+12") for a broad fit range. Together, these two occupant restraints make this kit well suited to mixed-population routes.

What is the warranty coverage for this kit?

The PROTEKTOR 2.0 SilverSeries retractors (K530311-0000HL) carry AMF Bruns' 3-year limited warranty — the longest coverage in the PROTEKTOR lineup. The H370255 shoulder belt and H450199 lap belt each carry a 1-year limited warranty. Warranty details and registration information are available at amfbrunsamerica.com/support/warranty. Contact WheelchairStrap.com for warranty support assistance.

AMF Bruns PROTEKTOR 2.0 SilverSeries 4-Point WTORS Kit | Retractor Shoulder Belt | J-Hook / L-Track

Auto-Retracting Shoulder Belt

Manual Height Adjuster

Full L-Track System

PROTEKTOR 2.0 SilverSeries Retractors

Manual Pelvis Lap Belt

SilverSeries 3-Year Warranty

PROTEKTOR 2.0 SilverSeries 4-Pack Kit — Static Shoulder Belt w/ Pin Connector

AMF Bruns H370255 — Retractor Shoulder Belt, Manual Height Adjuster, L-Track 90° Bracket

AMF Bruns H450199 — Manual Pelvis Lap Belt

PROTEKTOR 2.0 SilverSeries 4-Pack Retractor Kit — J-Hook / L-Track

Questions About This Kit?
