What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

Front Static Belt With Loop & L-Track Fitting | H350510LV AMF Bruns

AMF Bruns Front Static Belt With Loop & L-Track Fitting | H350510LV

Vendor: AMF Bruns
Regular price: Sold out
Sale price: $45.00
Unit price: per

Shipping calculated at checkout.

Quantity

Quantity must be 1 or more

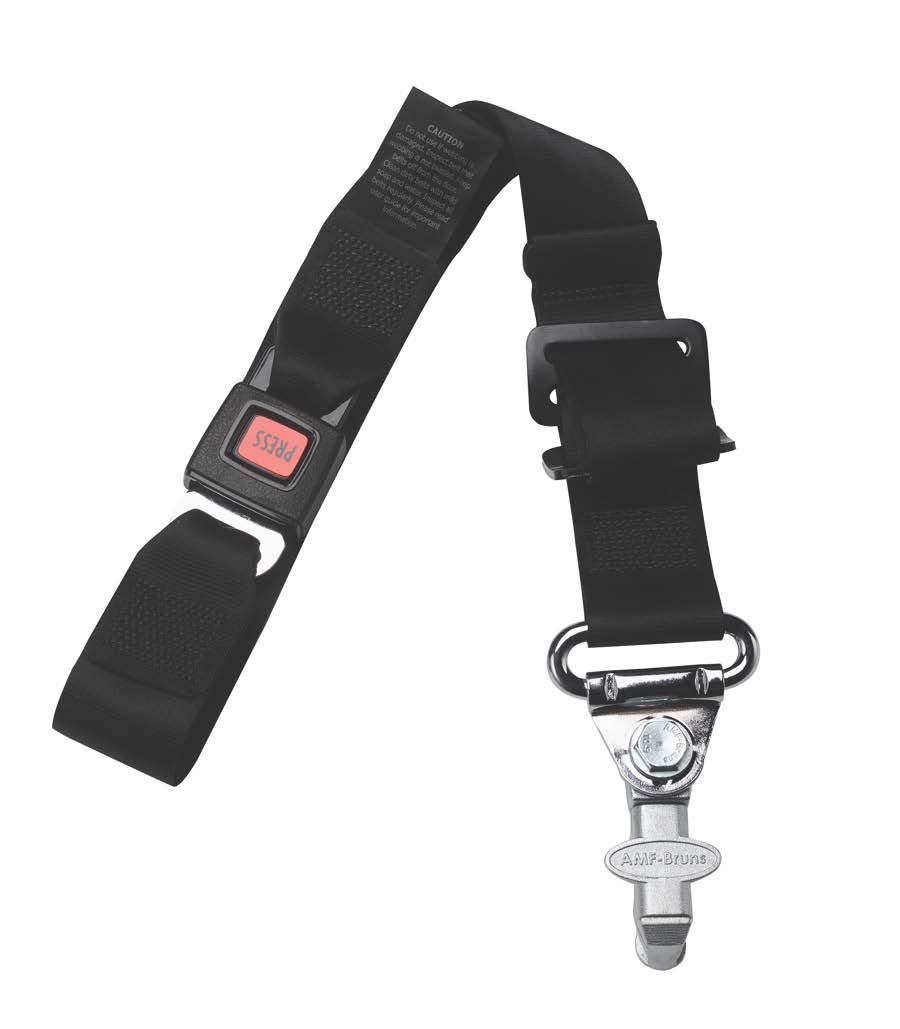

Protektor Front static belt with loop and L-track fitting SKU: H350510LV

SKU: H350510LV | VENDOR: AMF BRUNS

AMF Bruns Front Static Belt With Loop & L-Track Fitting | H350510LV

🚚 Free Shipping on Orders Over $100 🪢 Occupant Restraint 🏷 AMF Bruns

Key Features

🛡

FMVSS 209 Compliant

Meets federal seat belt assembly standards for use in transit and transport vehicles.

Vehicle Applications

🚐 Wheelchair-Accessible Van (WAV)🚌 Paratransit / Minibus🚑 Non-Emergency Medical Transport (NEMT)🚌 School Bus🚐 Sprinter / Transit Van🚆 Rail / Community Transit

Standards & Compliance

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 302Flammability of Interior Materials

CMVSS 209Canadian Motor Vehicle Safety Standards — Seat Belt Assemblies

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

AS 2596Occupant Restraint Systems — Australia

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

🛡 Warranty: 1-year limited. Verify warranty terms at amfbrunsamerica.com.

⚠ Warranty terms should be verified directly with the manufacturer.

📄 Installation & User Guide: View Installation & User Guide List

Frequently Asked Questions

What is the difference between a lap belt and a lap & shoulder belt? +

A lap belt secures the passenger's pelvis only. A lap & shoulder belt adds a diagonal shoulder strap for upper-body protection. ADA and FMVSS standards require a lap and shoulder belt combination for compliant wheelchair passenger transport.

Is this belt compatible with my retractor system? +

Most occupant belts are designed to work within the same brand's retractor system. Check that the belt attachment style matches your floor anchorage (L-Track pin connector, Slide 'N Click, or A-Track). Contact us to confirm compatibility with your specific setup.

Does the lap belt attach to the wheelchair or the vehicle? +

The lap belt attaches to the vehicle floor track or rear tie-down points — not to the wheelchair. The shoulder belt attaches to the vehicle sidewall or an integrated retractor mount. Check the product description for your specific model's mounting details.

Is an occupant belt required for compliant securement? +

Yes. A lap and shoulder belt is required alongside the 4-point wheelchair tie-down system for ADA and FMVSS compliant wheelchair passenger transport. The tie-downs secure the chair; the occupant belt secures the passenger.

What does "retractable" mean for a shoulder belt? +

A retractable shoulder belt automatically retracts back into its housing when unbuckled, keeping the vehicle interior tidy and reducing trip hazards between boardings.

What is the warranty? +

See the Warranty section above. Verify warranty terms directly with the manufacturer.

Specifications

Specification	Detail
Brand	AMF Bruns
SKU	H350510LV
Price	$45.00 — price shown is per unit
Shipping	Free Shipping on Orders Over $100
Warranty	1-year limited
Use / Installation	Follow manufacturer instructions. Consult a qualified technician if vehicle integration is required.
