What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

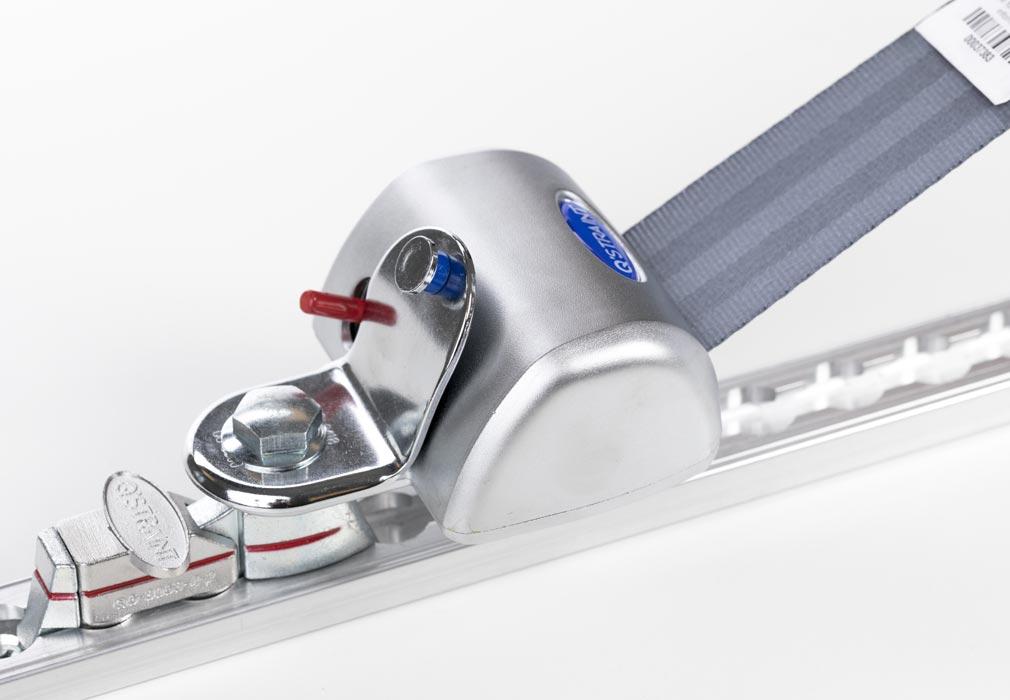

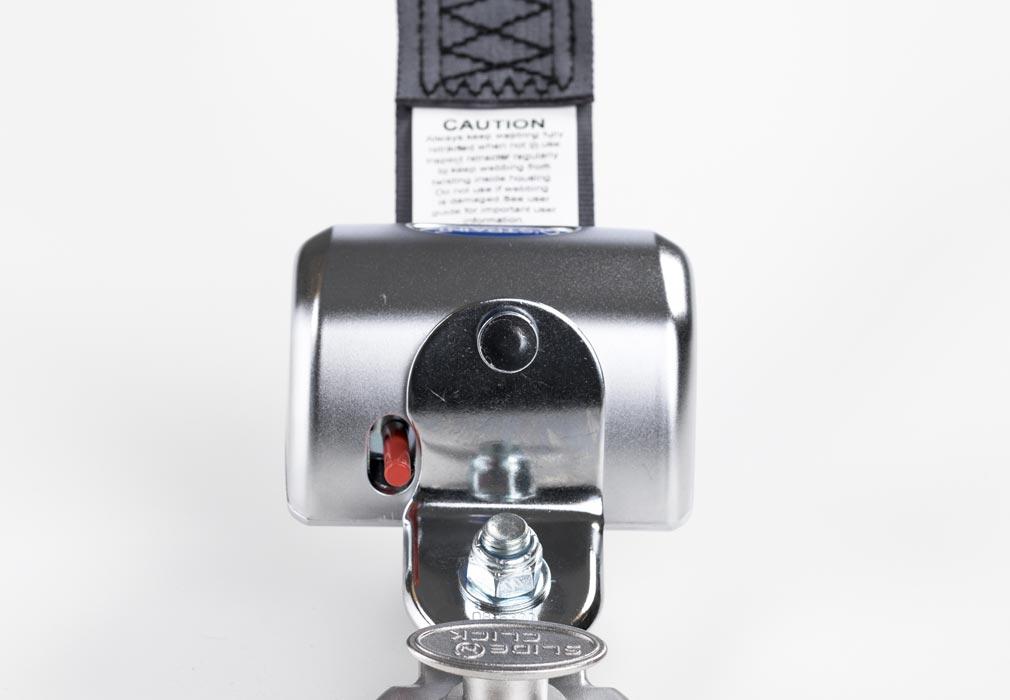

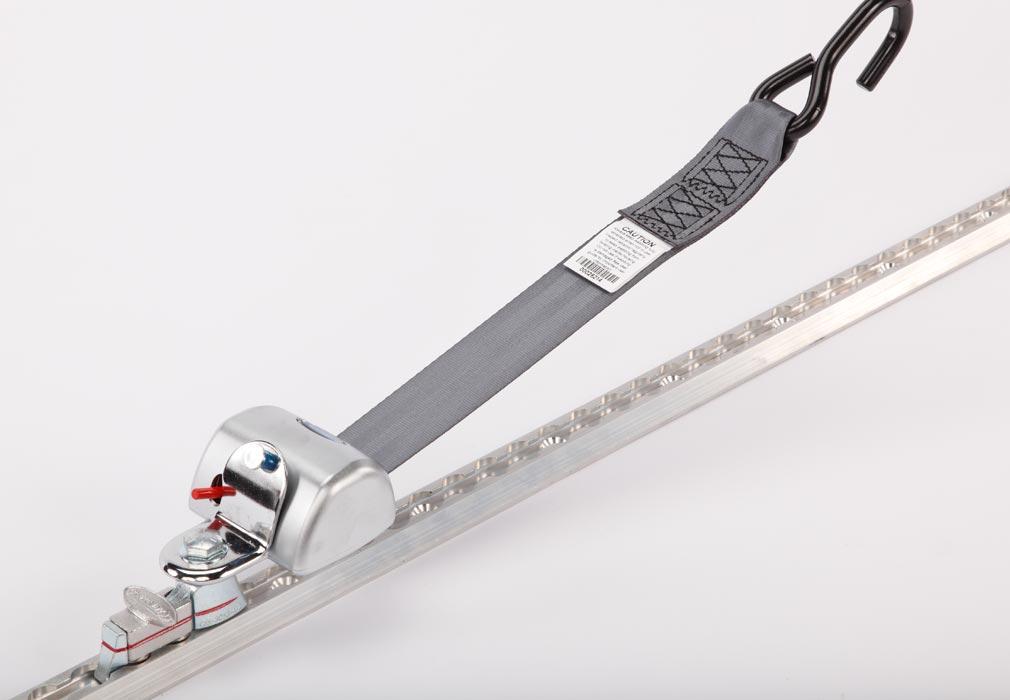

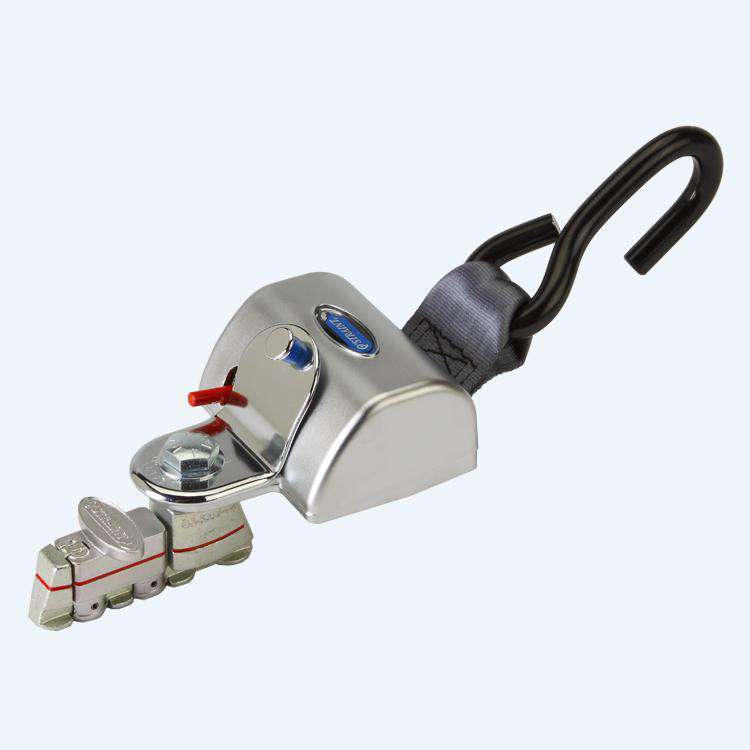

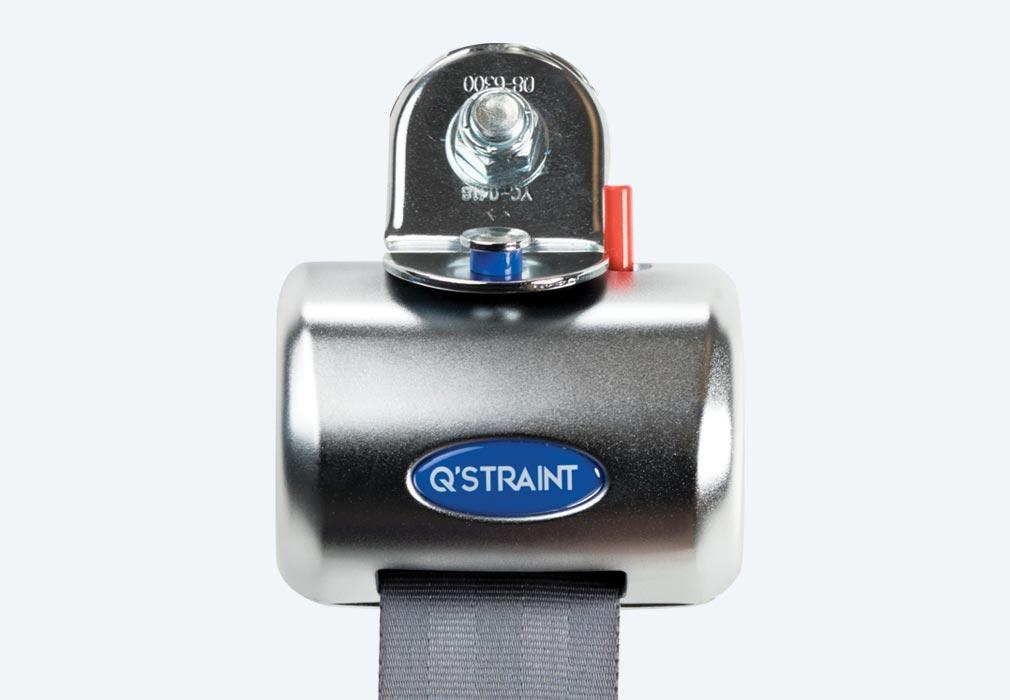

Replacement Fully Automatic QRT Max Retractor (knobless) Mounted with L-Track Fitting | Q8-6209-L

Vendor: Q'Straint
Regular price: $174.95
Sale price: $174.95
Unit price: per

Shipping calculated at checkout.

Single, fully automatic QRT Max retractor (knobless) mounted with L-Track fitting Includes: Qty 1 QRT Max Retractor w/ PLI | Q8-6209-L SETTING A NEW STANDARD IN RETRACTOR SYSTEMS The QRT MAX is the premium series of self-locking and self-tensioning retractable wheelchair securement system. This fully automatic , knobless retractor provides a variety of innovative features which maximize ease of use to ensure passenger safety. Vehicle Applications: School Bus, City Bus, Coach Bus, Rail, Community

SKU: Q8-6209-L | VENDOR: Q'STRAINT

Replacement Fully Automatic QRT Max Retractor (knobless) Mounted with L-Track Fitting | Q8-6209-L

✔ Free Shipping 🔄 Retractor 🏷 Q'Straint

Key Features

🎛

Knobless Operation

No knobs to interfere with wheelchair wheels or footrests. Eliminates confusion about whether additional tightening is needed.

🔒

Automatic, Self-Locking

Allows easy, one-handed hook-up of wheelchairs without a manual locking step.

⚙️

Self-Tensioning

Automatically takes up slack — no manual tensioning required.

🟢

Positive Lock Indicator (PLI)

Clearly indicates when the fitting is locked into the anchorage. Eliminates guesswork for operators.

What's Included

Qty	Component	SKU
1	Qty 1 QRT Max Retractor w/ PLI	Q8-6209-L

⚠ Also required — not included: L-Track rail and floor pocket hardware

Vehicle Applications

🚐 Wheelchair-Accessible Van (WAV)🚌 Paratransit / Minibus🚑 Non-Emergency Medical Transport (NEMT)🚌 School Bus🚐 Sprinter / Transit Van🚆 Rail / Community Transit

Standards & Compliance

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 302Flammability of Interior Materials

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

🛡 Warranty: 3-year limited. * Registration required at qstraint.com for full coverage. Without registration, 1-year limited applies.

⚠ Warranty terms should be verified directly with the manufacturer.

⚠ California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See qstraint.com/prop-65

📄 Installation & User Guide: View Installation & User Guide List

📄 Product Documents: Download

Frequently Asked Questions

Is this a replacement for an existing retractor? +

Yes — this is a single replacement retractor unit. Match the brand, series, and fitting type to your existing system.

Do all four retractors need to be the same? +

Yes. All four retractors at each wheelchair securement position should be the same brand and series for system-level compatibility and compliance.

What fitting type do I need? +

Match to your existing floor anchorage: L-Track (most common in transit), Slide 'N Click (Q'Straint system), A-Track, or Smart Fitting (AMF Bruns). Check your current retractors or floor hardware to confirm.

Does this include floor hardware or a belt? +

No — this is a single retractor unit only. Floor anchorage and occupant belts are purchased separately.

What is the warranty? +

See the Warranty section above. Registration at qstraint.com is required for full warranty coverage.

Specifications

Specification	Detail
Brand	Q'Straint
SKU	Q8-6209-L
Price	$150.00 — price shown is per unit
Shipping	Free Shipping
Warranty	3-year limited
Use / Installation	No special installation required — designed for daily operator use.

Additional Product Information

QRT Brochure: Download Warranty: 3 years* limited warranty coverage. FEATURES KNOBLESS, ONE-HANDED OPERATION - No knobs to interfere with wheels and footrests and eliminates confusion as to whether additional tightening is required. AUTOMATIC, SELF-LOCKING - Allows easy, one-handed hook-up of wheelchairs. SELF-TENSIONING - No manual tensioning required. Retractors automatically take up ‘slack’ to ensure wheelchair passenger is always secured. POSITIVE LOCK INDICATOR - Patented feature clearly indicates when fitting is locked in anchorage (L-track application only). INTERCHANGEABLE - Eliminates confusion; no right, left, front or rear locations. LOW PROFILE & COMPACT - No mounting bracket allows retractors to fit under most footrests. ACCOMMODATES LARGER WHEELCHAIRS - Reduced overall retractor length leaves more room for wheelchairs. UNIVERSAL DESIGN - Accommodates virtually all wheelchair designs, including scooters. ULTRA-DURABLE - Constructed from hardened steel and coated in zinc for maximum corrosion resistance. J-HOOK - Reduces twisting of belts and ensures proper securement with a quarter turn accommodating virtually all wheelchair designs. FOOT RELEASE LEVER - Easy release eliminates the need to bend down. SKU: Q8-6209L
