What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

Manual Lap & Shoulder Belt w/ Shoulder Belt Adapter | Q8 - 6325 - AP - WheelchairStrap.com

Q'Straint | Manual Lap & Shoulder Belt w/ Shoulder Belt Adapter | Q8-6325-AP

Vendor: Q'Straint
Regular price: $180.00
Sale price: $180.00
Unit price: per

Shipping calculated at checkout.

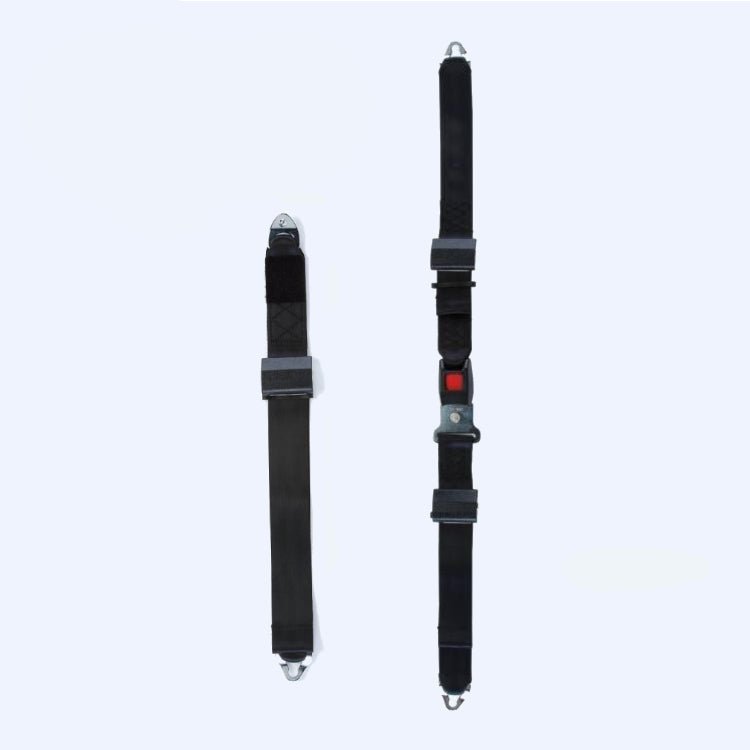

Manual Lap & Shoulder Belt | Q8-6325-AP

Q'straint adjustable lap and shoulder belt kit. Adapter allows to easily mount anchor point for shoulder belt while keeping existing belts in van in place. Shoulder belt connects to adapter at top, stud on lap belt at bottom. Lap belt connects to pin connectors on wheelchair securements behind wheelchair.

Kit Contains :

Qty (1) Q8-6325 | Lap belt
Qty (1) Q5-6410-BLK-P | Shoulder Belt w/ male & female pin connector

*Shoulder belt connects to shoulder belt adapter (S5-6410-S) not included in this kit

Secure your passenger with confidence using the Q'Straint Manual Lap & Shoulder Belt Assembly with Shoulder Belt Adapter (Q8-6325-AP). This complete occupant restraint system includes a lap belt and shoulder belt with integrated adapter, providing reliable, crash-tested securement for wheelchair passengers in transit vehicles.

Designed for flexibility and ease of use, this manual belt system features webbing adjusters for a customized fit and a push-button buckle for simple operation. The included shoulder belt adapter allows connection to mounting points that may not be naturally compatible, making it ideal for custom installations or vehicles without factory anchor points.

Key Features

Complete Two-Belt System: Includes lap belt and shoulder belt with adapter
Shoulder Belt Adapter Included: Q8-3030-A adapter for versatile mounting options
Webbing Adjusters: Customize fit for passenger comfort and safety
Push-Button Buckle: Easy one-hand operation for quick fastening and release
Crash Tested: Validated for use in crash-tested securement systems (when used with compatible QRT retractors at 30 mph / 50 km/h)
Compatible with QRT Systems: Works with QRT Max, QRT Deluxe, and QRT Standard wheelchair tie-downs
Made in the USA: Quality manufacturing you can trust

Ideal For

Transit and paratransit vehicles
Wheelchair-accessible vans and buses
Vehicles without factory shoulder belt anchor points
Custom occupant securement installations
Fleet operations requiring reliable manual belt systems
Replacing worn or outdated lap and shoulder belt assemblies

Installation Notes

Lap belt attaches directly to rear QRT retractor tie-downs

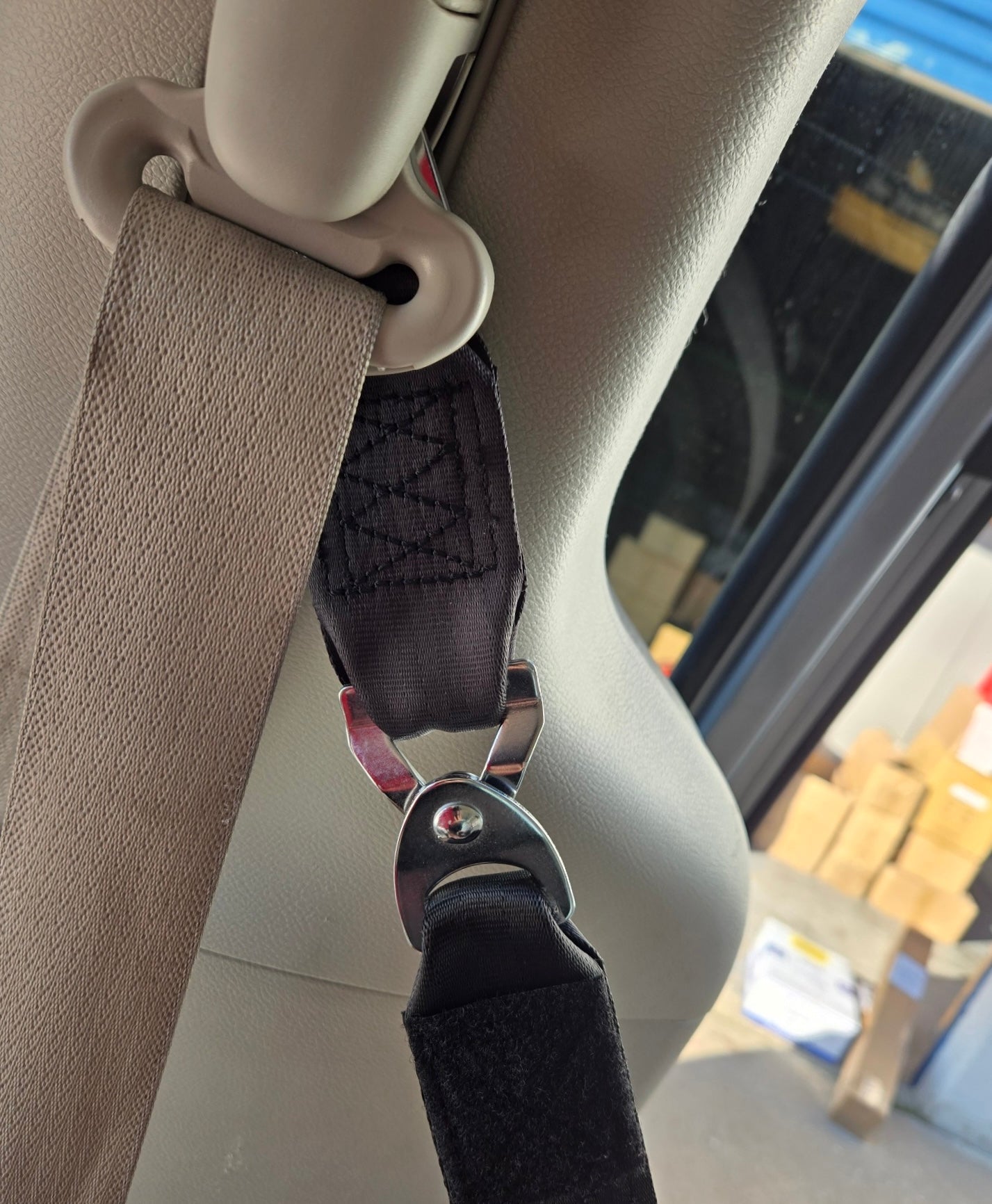

Shoulder belt connects via adapter to mounting bracket (Q5-6500A-5 if no factory anchor exists)
Install according to Q'Straint guidelines for optimal performance
Ensure all connections are fully secured before vehicle operation
