What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

PROTEKTOR® Surface L-Track | LENGTH OPTIONS

Vendor: AMF Bruns
Regular price: $108.28
Sale price: $108.28
Unit price: per

Shipping calculated at checkout.

Drilled

Length

Quantity

Quantity must be 1 or more

PROTEKTOR® Surface L-Track – Aluminum Wheelchair Securement Track Profile | Predrilled or Non-Predrilled | Multiple Lengths

Professional Surface-Mount Wheelchair Securement Track: This PROTEKTOR Surface L-Track aluminum profile provides the foundation for PROTEKTOR wheelchair securement systems. Choose from three length options and decide whether you need the track predrilled for immediate installation or undrilled for custom drilling patterns.

⚠️ PURCHASING RESTRICTION: ONLY AVAILABLE FOR WILL CALL OR CALL FOR SHIPPING QUOTE
This product cannot be shipped via standard online checkout. Contact us for shipping options or order for will call pickup.

SKU: H 150 135 | VENDOR: AMF BRUNS

PROTEKTOR® Surface L-Track | LENGTH OPTIONS

✔ Free Shipping 🔄 Replacement Retractor 🏷 AMF Bruns

What's Included

Qty	Component
1	PROTEKTOR® Surface L-Track

Full Feature Details

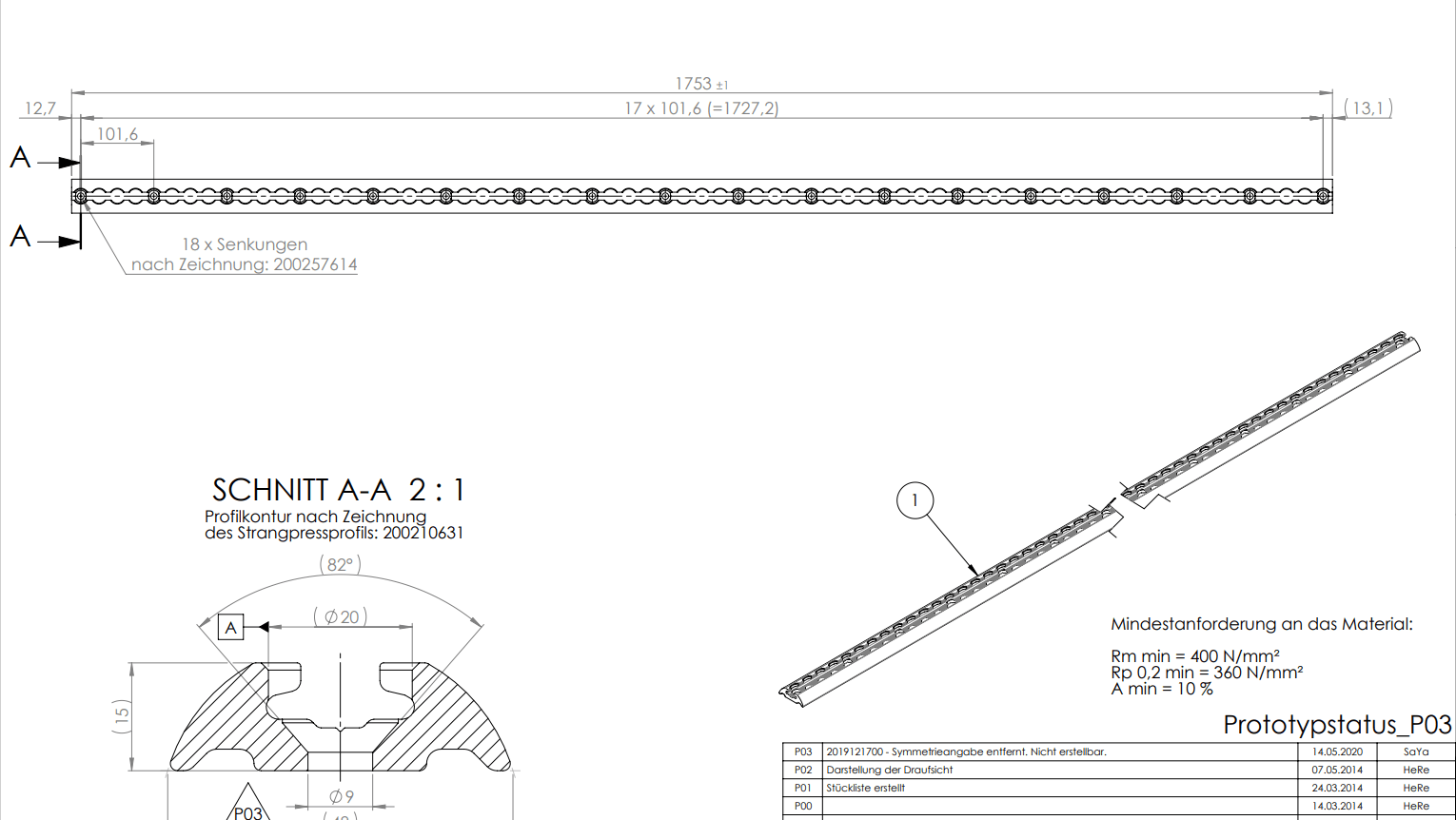

The aluminum construction features precision-engineered 82° countersunk holes with pre-drilled spacing every 4" (102 mm) to accommodate 5/16" (8 mm) bolts. Specifically designed for surface-mount installations in wheelchair-accessible vehicles and commercial transport applications.

Available Options

Length	Predrilled	Non-Predrilled
69"	✅	✅
100"	✅	✅
118"	✅	✅

Select your preferred length and drilling option when purchasing.

Feature	Description
Aluminum Construction	Lightweight, durable, corrosion-resistant
Multiple Length Options	69", 100", 118" available
Predrilled or Not	Choose for immediate install or custom drilling
Precision Hole Spacing	4" (102 mm) spacing for 5/16" (8 mm) bolts
Surface-Mount Design	Ideal for surface installation applications

Vehicle Applications

🚌 School Bus🚌 City Bus / Transit Bus🚌 Coach Bus🚆 Rail / Community Transit🚑 Non-Emergency Medical Transport (NEMT)🚐 Wheelchair-Accessible Van (WAV)🚗 Personal Vehicle / Minivan

Standards & Compliance

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 302Flammability of Interior Materials

CMVSS 209Canadian Motor Vehicle Safety Standards — Seat Belt Assemblies

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

AS 2596Occupant Restraint Systems — Australia

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

🛡 Warranty: 1-year limited. Verify warranty terms at amfbrunsamerica.com.

⚠ Warranty terms should be verified directly with the manufacturer.

📄 Installation & User Guide: View Installation & User Guide List

Specifications

Specification	Detail
Brand	AMF Bruns
SKU	H 150 135
Price	From 108.28 — price shown is per unit (varies by option)
Shipping	Free Shipping
Warranty	1-year limited
Use / Installation	No special installation required — designed for daily operator use.

Frequently Asked Questions

Is this a replacement for an existing retractor? +

Yes — this is a single replacement retractor unit. Match the brand, series, and fitting type to your existing system.

Do all four retractors need to be the same? +

Yes. All four retractors at each wheelchair securement position should be the same brand and series for system-level compatibility and compliance.

What fitting type do I need? +

Match to your existing floor anchorage: L-Track (most common in transit), Slide 'N Click (Q'Straint system), A-Track, or Smart Fitting (AMF Bruns). Check your current retractors or floor hardware to confirm.

Does this include floor hardware or a belt? +

No — this is a single retractor unit only. Floor anchorage and occupant belts are purchased separately.

PROTEKTOR® Surface L-Track | LENGTH OPTIONS

What's Included

Full Feature Details

Vehicle Applications

Standards & Compliance

Specifications

Frequently Asked Questions

Related Products

Need help identifying the right replacement retractor?
