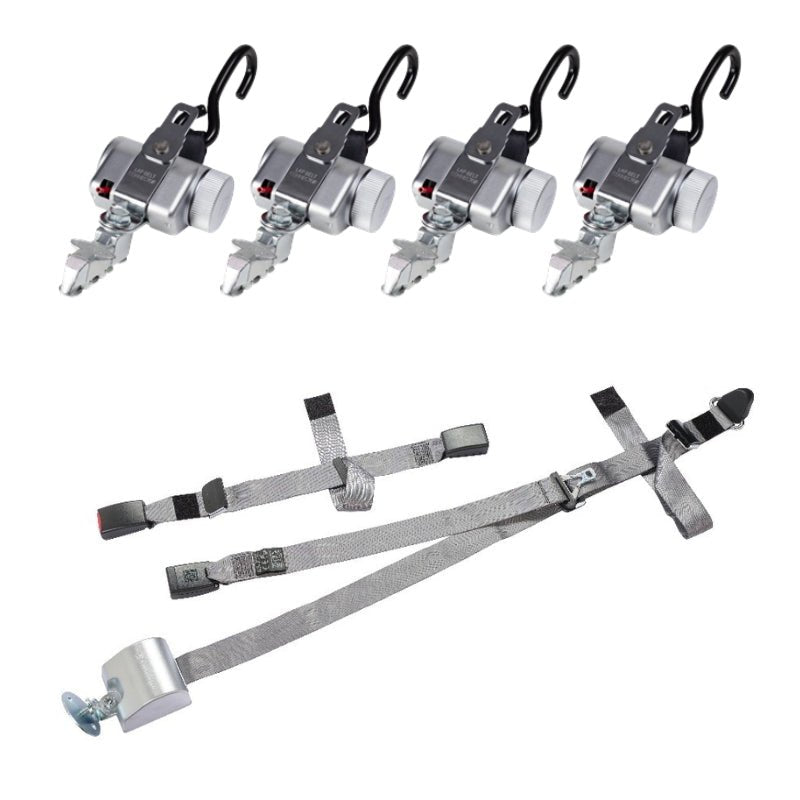

The PROTEKTOR 2.0 SilverSeries Complete 4-Point WTORS Kit is a fully bundled wheelchair securement and occupant restraint solution engineered for commercial paratransit, school bus, and accessible vehicle applications. It combines the premium PROTEKTOR 2.0 SilverSeries 4-Pack Tie-Down Retractor Kit (K530311-0000HL) with the AMF Bruns Automatic 3-Point Retractor with Retractable Height Adjuster (H470232-3100), giving operators everything needed in a single purchase: four fully automatic, self-tensioning wheelchair retractors plus a complete integrated lap-and-shoulder occupant restraint system. Optimized for L-Track floor anchorages with J-Hook attachment and compatible with all wheelchairs and power scooters.
Upgrade legacy SilverSeries installations with one complete kit. Four fully automatic, self-tensioning PROTEKTOR 2.0 wheelchair retractors paired with an integrated automatic 3-point lap-and-shoulder occupant restraint — ready for L-Track floor anchorage systems with J-Hook attachment. Built to ISO 10542 and SAE J2249 standards for universal wheelchair and scooter compatibility in all transit environments.
All four retractors automatically take up slack — no manual tensioning required for daily operation.
Robust zinc die-cast housing on the PROTEKTOR 2.0 retractors delivers superior durability under daily vehicle use.
Final adjustment of the wheelchair tie-down via a single knob — minimal operator effort required.
The H470232-3100 tensions both lap and shoulder belts simultaneously with a single automatic mechanism.
Self-stowing positioning with manual override accommodates diverse passenger sizes from pediatric through adult.
Bottom mounting bracket prevents twisting in floor and wall installations for a stable, repeatable fit.
Flat retractor design secures large wheelchairs and scooters even in tight vehicle floor spaces.
Configured for L-Track floor anchorage with J-Hook attachment. Other configurations available — see variant options.
| Qty | Component | SKU |
|---|---|---|
| 1 | AMF Bruns | PROTEKTOR 2.0 SilverSeries Wheelchair Restraints | 4-Pack Kit (J-Hook / L-Track) | K530311-0000HL |
| 1 | AMF Bruns | Automatic 3 Pt Retractor Retractable Height Adjuster | H470232-3100 |
⚠️ Floor anchorage hardware (L-Track) is not included. Retractor floor anchors require professional installation by a qualified WAV modifier. The H470232-3100 occupant restraint replaces legacy H370231 with identical performance specifications.
PROTEKTOR 2.0 SilverSeries 4-Pack Retractors (K530311-0000HL): Four complete, fully automatic pull-out retractors with single-knob tensioning meet ISO 10542, SAE J2249, and FMVSS 209/210/222/302 standards. The premium SilverSeries design offers a noble aesthetic alongside robust zinc die-cast construction for universal wheelchair and scooter compatibility via J-Hook, carabiner, or loop — though this specific kit is configured for J-Hook with L-Track floor anchorage. Alternative configurations (Carabiner/Smart Fitting and J-Hook/Smart Fitting) are available as separate SKUs.
| Configuration | Attachment | Floor System | SKU |
|---|---|---|---|
| Carabiner | Carabiner | Smart Fitting | K530240-000CM |
| This Kit | J-Hook | L-Track | K530311-0000HL |
| J-Hook / SF | J-Hook | Smart Fitting | K530315-000HM |
Automatic 3-Point Occupant Restraint (H470232-3100): A single automatic retraction mechanism tensions both the lap belt and shoulder belt simultaneously. The retractable height adjuster self-stows when not in use and includes a manual override for precise fit across a wide range of passenger sizes. The protective metal cover with 90° bottom bracket ensures stable, twist-free vehicle installation. This is a complete, ready-to-install assembly — no additional components required for occupant restraint functionality.
⚠️ Warranty terms should be verified directly with the manufacturer at amfbrunsamerica.com/support/warranty/. Each component carries its own separate limited warranty.
📄 Installation & User Guides: View Installation & User Guide List | Protektor Installation Manual | Protektor User Manual | SilverSeries Product Data Sheet
⚠️ Update document links above with verified URLs from wheelchairstrap.com.
| Brand | AMF Bruns |
| Kit SKU | [ASSIGN NEW SKU — contact store admin] |
| Included SKUs | K530311-0000HL + H470232-3100 |
| Series | PROTEKTOR 2.0 SilverSeries (retractors) + AMF Bruns (occupant restraint) |
| Price | [SET IN SHOPIFY — component sum: $415.00 + $175.00 = $590.00] |
| Shipping | Free Shipping |
| Warranty — Retractors | 3-Year Limited (K530311-0000HL / SilverSeries) |
| Warranty — Occupant Restraint | 1-Year Limited (H470232-3100) |
| Floor Anchorage | L-Track (hardware not included) |
| Attachment Type | J-Hook |
| Retractor Operation | Fully Automatic / Self-Tensioning |
| Occupant Restraint | Automatic 3-Point (Lap + Shoulder, simultaneous) |
| Height Adjuster | Retractable, self-stowing, manual override |
| Installation | Retractors: no special daily-use installation required. Floor anchorage and occupant restraint bracket: professional WAV modifier installation recommended. |
⚠️ Verify individual product URLs against wheelchairstrap.com before publishing. Update placeholder links above with confirmed product page URLs.
Fleet specialists, compliance questions, installation guidance — we're here to help you get it right.
