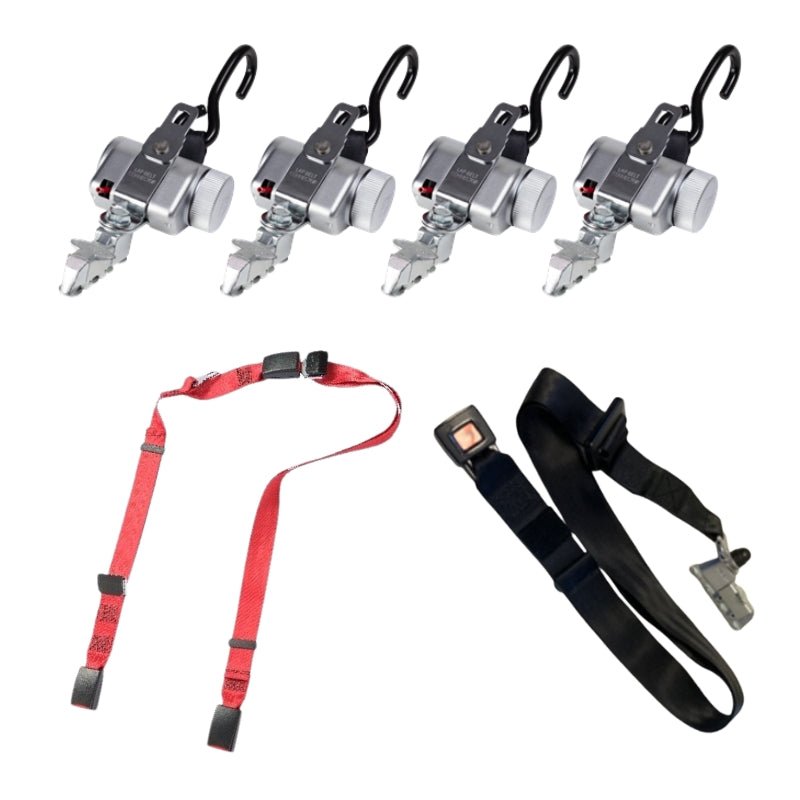

The AMF Bruns PROTEKTOR 2.0 SilverSeries Complete 4-Point WTORS Kit (K530217-1010HL) bundles everything needed for full wheelchair securement and passenger occupant restraint in a single purchase. The kit combines four fully automatic, self-tensioning PROTEKTOR 2.0 SilverSeries wheelchair retractors configured for J-Hook / L-Track anchorage, a manual pelvis lap belt (H450199), and a static shoulder belt with L-Track top fitting (H450226-1010). Designed for paratransit operators, school bus fleets, NEMT providers, and wheelchair-accessible vehicle (WAV) converters who need a complete, standards-compliant securement system without sourcing components individually.
Four fully automatic PROTEKTOR 2.0 SilverSeries wheelchair retractors (J-Hook / L-Track) paired with a manual pelvis lap belt and a static shoulder belt with L-Track top fitting — everything required for complete 4-point wheelchair tie-down and occupant restraint, sourced from one kit. Meets ISO 10542, SAE J2249, and FMVSS 209/210/222/302 standards. Free shipping included.
All four PROTEKTOR 2.0 retractors automatically take up slack — no manual tensioning of the wheelchair tie-down required.
Robust die-cast housings on the PROTEKTOR 2.0 retractors deliver superior durability under daily commercial vehicle use.
Final wheelchair adjustment via a single knob — minimal operator effort for a secure, consistent lock every time.
Retractors attach to existing L-Track floor anchorage via J-Hook — no new floor hardware needed if L-Track is already installed.
H450199 features dual-side adjustable webbing with 12" extra length and a push-button release for fast, ergonomic buckle operation.
Extra 12" of webbing accommodates diverse body types and seating configurations without an extension belt in most applications.

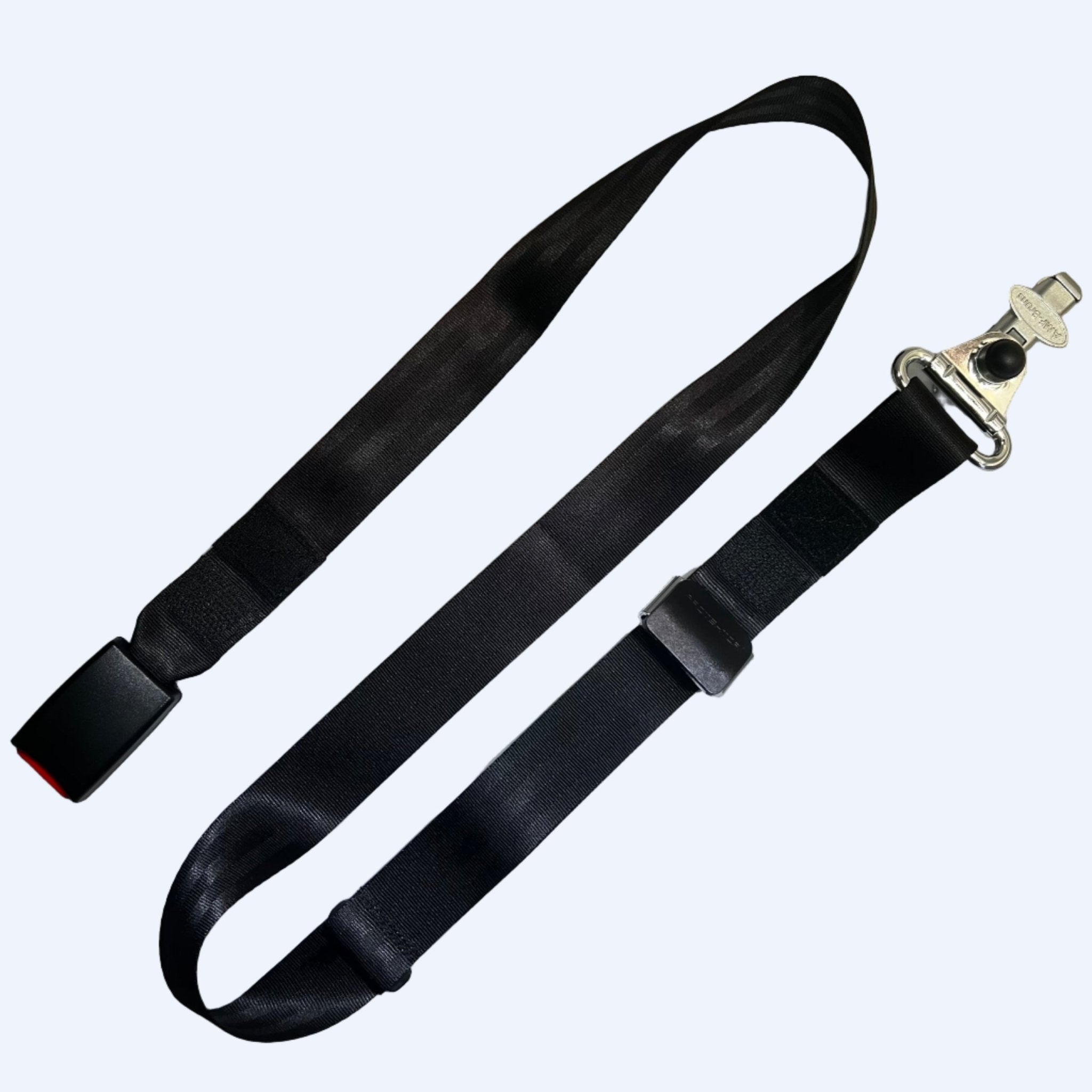

H450226-1010 provides upper-body occupant restraint with 72" webbing (78" overall) and L-Track top fitting for wall or ceiling mounting.
Flat retractor design secures large wheelchairs and scooters even in tight vehicle floor spaces — compatible with virtually all wheelchair designs.
| Qty | Component | SKU |
|---|---|---|
| 1 | AMF Bruns | PROTEKTOR 2.0 SilverSeries Wheelchair Restraints | 4-Pack Kit (J-Hook / L-Track) | K530311-0000HL |
| 1 | AMF Bruns | Manual Pelvis Lap Belt | H450199 |
| 1 | AMF Bruns | Static Shoulder Belt w/ L-Track Top Fitting | H450226-1010 |
| Brand | AMF Bruns |
| Kit SKU | K530217-1010HL |
| Included SKUs | K530311-0000HL · H450199 · H450226-1010 |
| Series | PROTEKTOR 2.0 SilverSeries (retractors) |
| Price | [SET IN SHOPIFY — component total: $455.95 + $84.95 + $90.95 = $631.85] |
| Shipping | Free Shipping |
| Retractor Operation | Fully Automatic / Self-Tensioning (PROTEKTOR 2.0) |
| Floor Anchorage | L-Track (not included — professional installation required) |
| Attachment Type | J-Hook |
| Lap Belt Operation | Manual (push-button release) |
| Lap Belt Webbing | Dual-side adjustable with 12" extra length |
| Shoulder Belt Type | Static (non-retractable) |
| Shoulder Belt Webbing | 72" webbing / 78" overall assembly |
| Shoulder Belt Mounting | L-Track top fitting (wall or ceiling) |
| Warranty — Retractors | 3-Year Limited (K530311-0000HL / SilverSeries) |
| Warranty — Lap Belt | 1-Year Limited (H450199) |
| Warranty — Shoulder Belt | 1-Year Limited (H450226-1010) |
⚠️ Each component carries its own separate limited warranty. Verify terms directly with the manufacturer at amfbrunsamerica.com/support/warranty/.
📄 Installation & User Guides: View Full Guide List · PROTEKTOR Series Installation Manual (TR600001)
Fleet specialists are ready to help with compatibility, compliance questions, and installation guidance.
