What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

Q04BR023 | Merits Regal/Gemini QLK Bracket

Vendor: Q'Straint
Regular price: $309.00
Sale price: $309.00
Unit price: per

Shipping calculated at checkout.

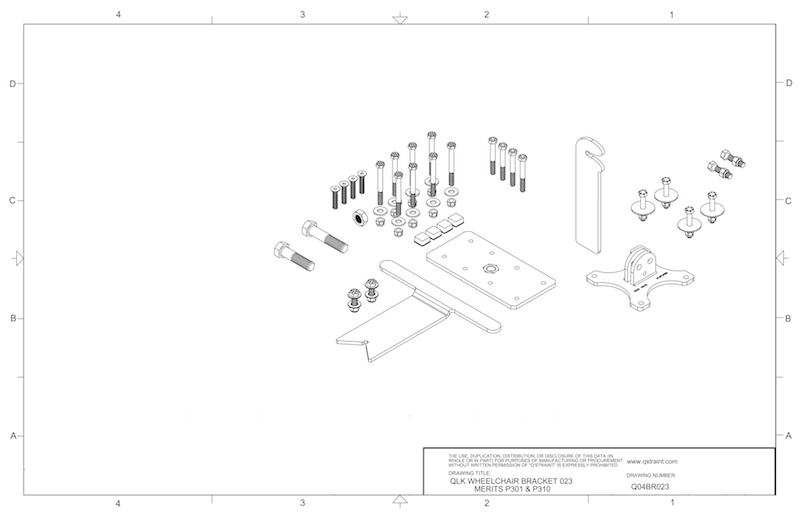

Merits Regal/Gemini QLK Bracket - Q04BR023 Manufacturer Merits Series Regal, Gemini Model P301, P310(MP3C), P-313 Notes Note: Bolt is installed under the actuator in the center of the chair. Front or rear entry is more recommended as locking into the system and turning may not be possible. QLK Part # Q04BR023 Instructions Click here to view as a PDF

SKU: Q04BR023 | VENDOR: Q'STRAINT

Q04BR023 | Merits Regal/Gemini QLK Bracket

✔ Free Shipping 🔒 Front Docking System 🏷 Q'Straint

Key Features

🔒

Single-Step Front Docking

Wheelchair locks into the docking base as it rolls forward — no strap routing required at the front.

🟢

Positive Lock Indicator

Clearly indicates when the fitting is locked into the floor anchorage.

✅

Quality Construction

Built to the same quality standards as the full securement systems it supports.

⚡

Easy to Use

Designed for daily use without special tools or training required.

What's Included

Qty	Component	SKU
1	Q04BR023	Q04BR023

Vehicle Applications

🚐 Wheelchair-Accessible Van (WAV)🚌 Paratransit / Minibus🚑 Non-Emergency Medical Transport (NEMT)🚌 School Bus🚐 Sprinter / Transit Van🚆 Rail / Community Transit

Standards & Compliance

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 302Flammability of Interior Materials

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

🛡 Warranty: 3-year limited*. * Registration required at qstraint.com for full coverage. Without registration, 1-year limited applies.

⚠ Warranty terms should be verified directly with the manufacturer.

⚠ California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See qstraint.com/prop-65

📄 QLK Bracket Guide: View QLK Bracket Instruction List | All User Guides

📄 Product Documents: here

Frequently Asked Questions

What is a wheelchair docking system? +

A docking system secures the front of a WC19-compliant wheelchair to the vehicle floor as it rolls into position. Rear 2-point tie-downs and an occupant belt are still required to complete the full securement system.

Does my wheelchair need to be WC19 compliant? +

Yes. Docking systems require a WC19-compliant (transit) wheelchair with four standard anchor points and an integrated lap belt attachment. Check with your wheelchair manufacturer.

Is professional installation required? +

Yes. Docking base mounts must be professionally installed by a certified WAV modifier.

What is the warranty? +

See the Warranty section above. Registration at qstraint.com is required for full warranty coverage.

Specifications

Specification	Detail
Brand	Q'Straint
SKU	Q04BR023
Price	$309.00 — price shown is per unit
Shipping	Free Shipping
Warranty	3-year limited*
Use / Installation	Professional installation required by a certified WAV modifier.
