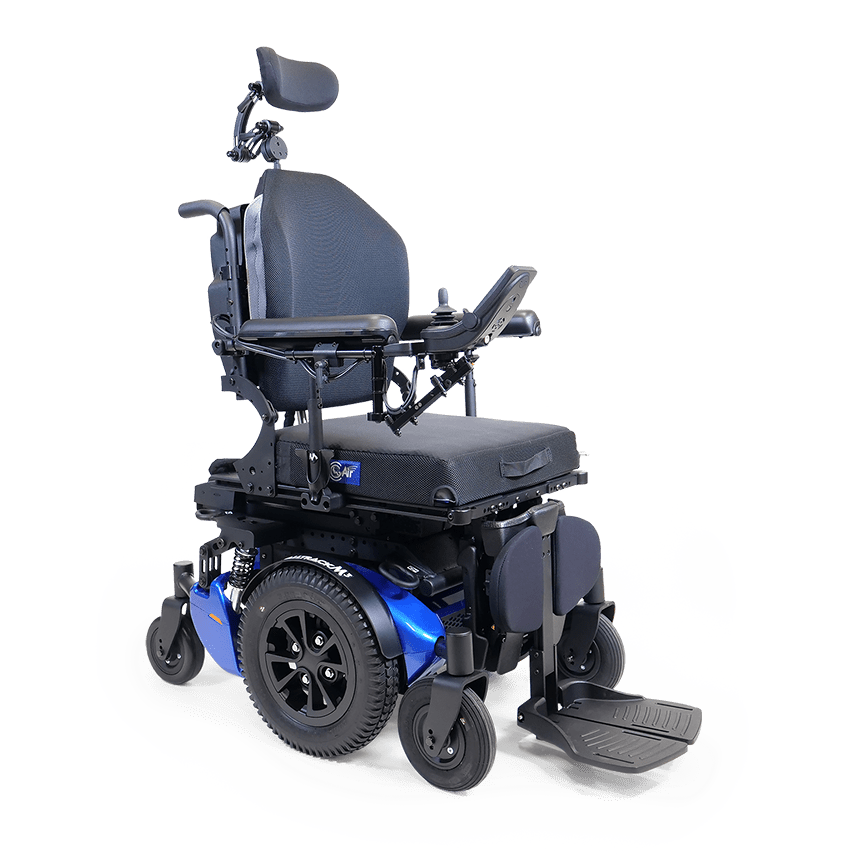

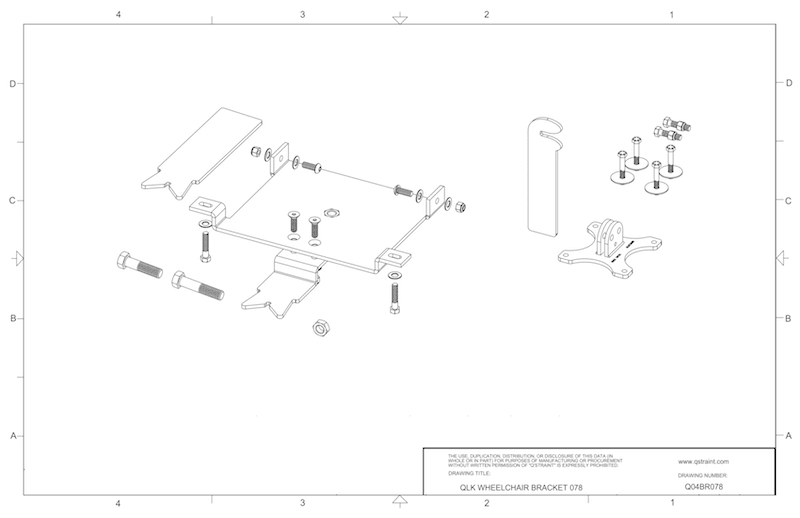

Amylior/Sunrise Medical QLK Bracket - Q04BR078 Click here to view instructions as a PDF Manufacturer Amylior Series Quickie, Alltrack Model Xperience2, 323, M, M3, M3 HD Notes Fits battery tray width of 10.90″ , Total wheelchair base width is 25 3/8″ Option 1 Group 24 Batteries QLK Part # Q04BR078 Manufacturer Sunrise Medical Series Quickie Model 323 Notes Fits battery tray width of 11″.
SKU: Q04BR078 | VENDOR: Q'STRAINT
Q04BR078 | Amylior/Sunrise Medical QLK Bracket
✔ Free Shipping🔒 Front Docking System🏷 Q'Straint
Key Features
🔒
Single-Step Front Docking
Wheelchair locks into the docking base as it rolls forward — no strap routing required at the front.
🟢
Positive Lock Indicator
Clearly indicates when the fitting is locked into the floor anchorage.
✅
Quality Construction
Built to the same quality standards as the full securement systems it supports.
⚡
Easy to Use
Designed for daily use without special tools or training required.
What's Included
Qty
Component
SKU
1
Q04BR078
Q04BR078
Full Feature Details
Vehicle Applications
🚐 Wheelchair-Accessible Van (WAV)🚌 Paratransit / Minibus🚑 Non-Emergency Medical Transport (NEMT)🚌 School Bus🚐 Sprinter / Transit Van🚆 Rail / Community Transit
Standards & Compliance
SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles
ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems
FMVSS 209Seat Belt Assemblies
FMVSS 210Seat Belt Assembly Anchorages
FMVSS 302Flammability of Interior Materials
CSA Z605Wheelchair Securement in Motor Vehicles (Canada)
ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.
🛡 Warranty: 3-year limited*. * Registration required at qstraint.com for full coverage. Without registration, 1-year limited applies.
⚠ Warranty terms should be verified directly with the manufacturer.
⚠ California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See qstraint.com/prop-65
A docking system secures the front of a WC19-compliant wheelchair to the vehicle floor as it rolls into position. Rear 2-point tie-downs and an occupant belt are still required to complete the full securement system.
Does my wheelchair need to be WC19 compliant? +
Yes. Docking systems require a WC19-compliant (transit) wheelchair with four standard anchor points and an integrated lap belt attachment. Check with your wheelchair manufacturer.
Is professional installation required? +
Yes. Docking base mounts must be professionally installed by a certified WAV modifier.
What is the warranty? +
See the Warranty section above. Registration at qstraint.com is required for full warranty coverage.
Specifications
Specification
Detail
Brand
Q'Straint
SKU
Q04BR078
Price
$309.00 — price shown is per unit
Shipping
Free Shipping
Warranty
3-year limited*
Use / Installation
Professional installation required by a certified WAV modifier.
