Sunrise Medical Quickie QLK Bracket - Q04BR082
| Manufacturer | Sunrise Medical |
| Series | Quickie |

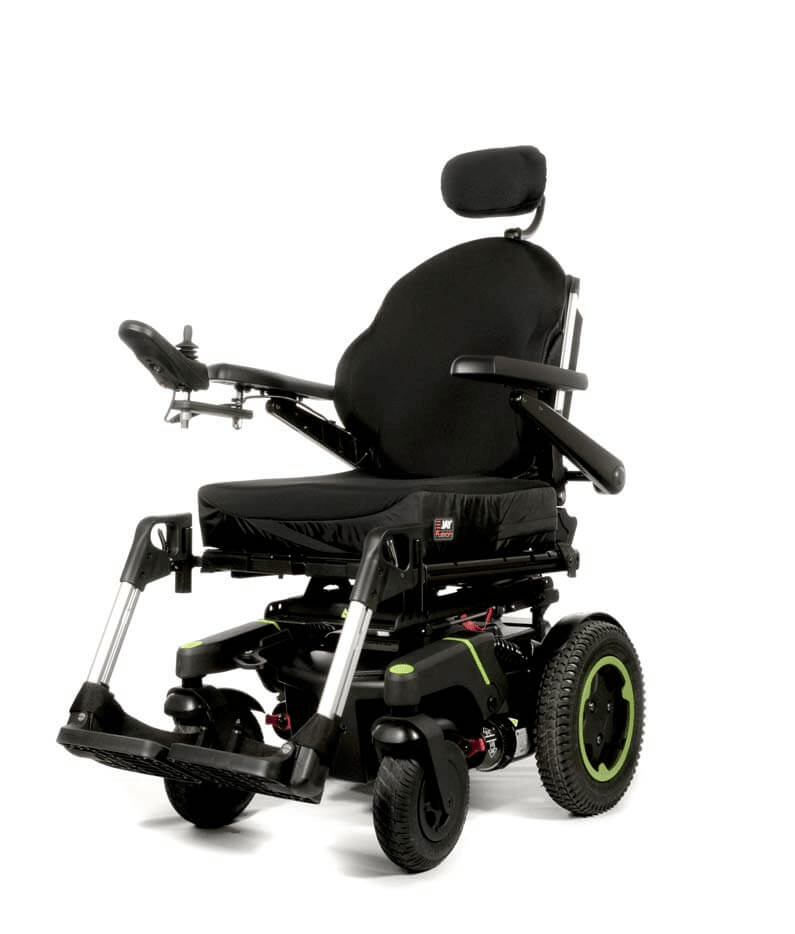

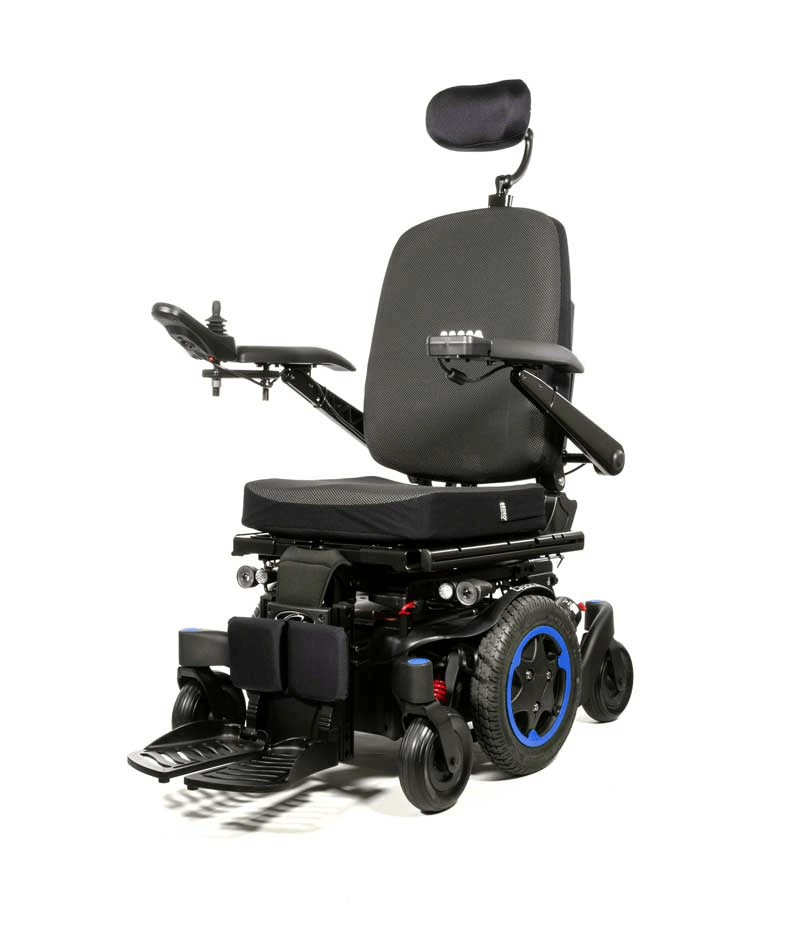

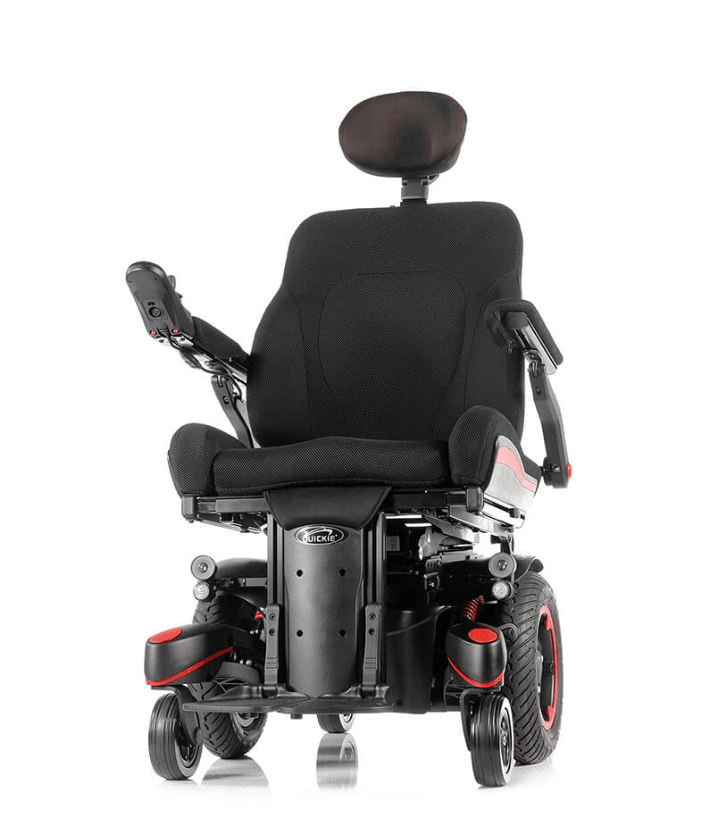

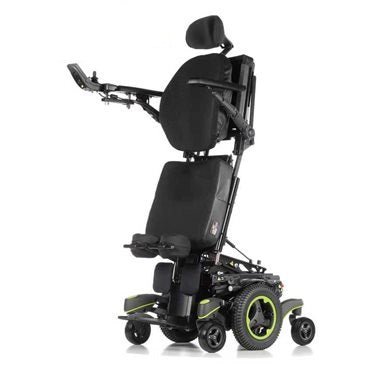

| Model(s) | Q400 M, 500 H, Q500 M, Q700 M, Q700-UP M, QM-700/10/20, QM-715 HD |
| QLK Part # | Q04BR082 |
| Instructions | Click here to view as a PDF |

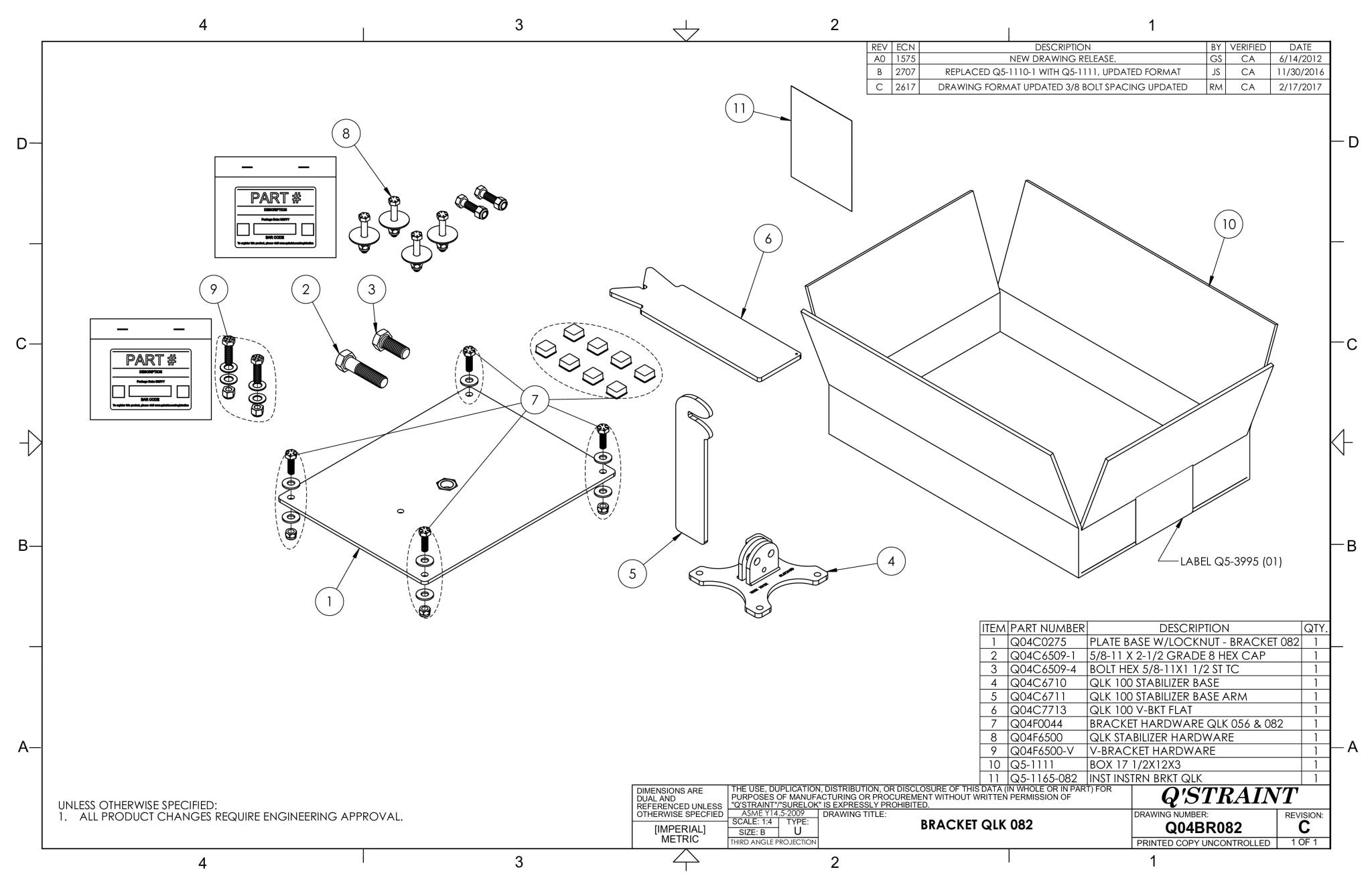

Includes: PDF Drawing
Qty 1 PLATE BASE W/LOCKNUT - BRACKET 082 | Q04C0275
Qty 1 - 1 5/8-11 X 2-1/2 GRADE 8 HEX CAP | Q04C6509-1
Qty 1 - 4 BOLT HEX 5/8-11X1 1/2 ST TC | Q04C6509-4
Qty 1 QLK 100 STABILIZER BASE | Q04C6710
Qty 1 QLK 100 STABILIZER BASE ARM | Q04C6711
Qty 1 QLK 100 V-BKT FLAT | Q04C7713
Qty 1 BRACKET HARDWARE QLK 056 & 082 | Q04F0044
Qty 1 QLK STABILIZER HARDWARE | Q04F6500
Qty 1 V-BRACKET HARDWARE | Q04F6500-V
Qty 1 BOX 17 1/2X12X3 | Q5-1111
Qty 1 INST INSTRN BRKT QLK | Q5-1165-082
