What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

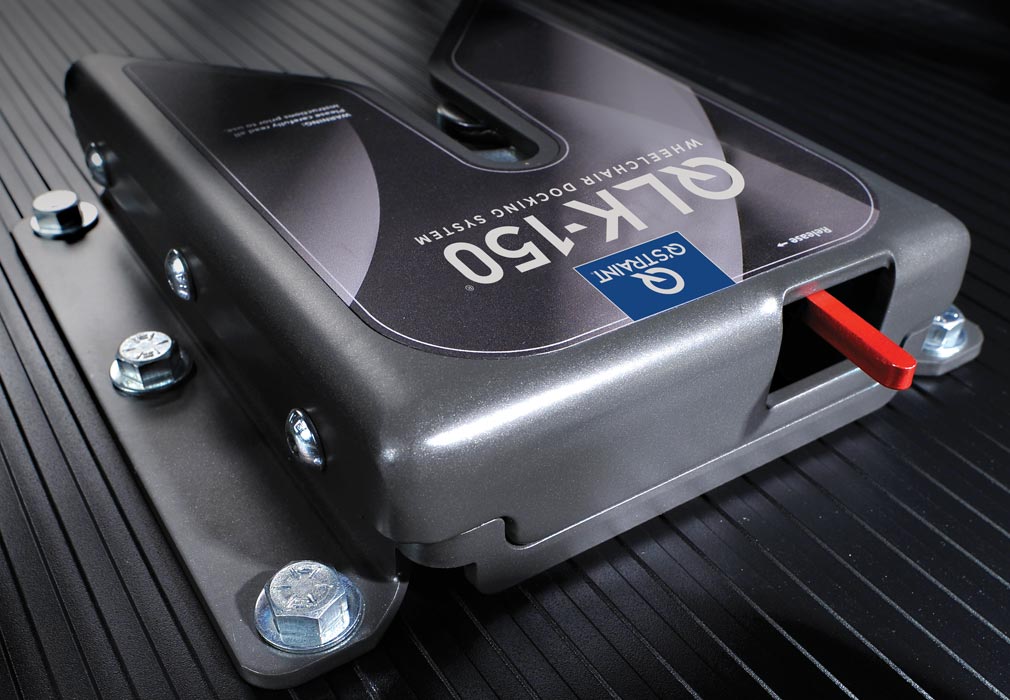

Q'Straint QLK-150 Docking System Kit & Remote without Base Mount | Q04S162

Vendor: Q'Straint
Regular price: $1,222.00
Sale price: $1,222.00
Unit price: per

Shipping calculated at checkout.

QLK-150 Docking System Kit & Remote without Base Mount - Q04S162 THIS PART HAS BEEN SUPERSED BY Q04S183 (Audible) The next step in independent wheelchair securement from Q'Straint , QLK-150 offers more options and features than any other docking system on the market. QLK-150 was designed to work simply , function intelligently , and look beautiful.

SKU: Q04S162 | VENDOR: Q'STRAINT

Q'Straint QLK-150 Docking System Kit & Remote without Base Mount | Q04S162

✔ Free Shipping 📦 Securement Kit 🏷 Q'Straint

Key Features

⚡

Vehicle-Powered Retraction

Integrates with your vehicle's 12V electrical system for automatic belt deployment and retraction.

🏆

RESNA WC18 Rated

Built to the higher load requirements of the WC18 standard.

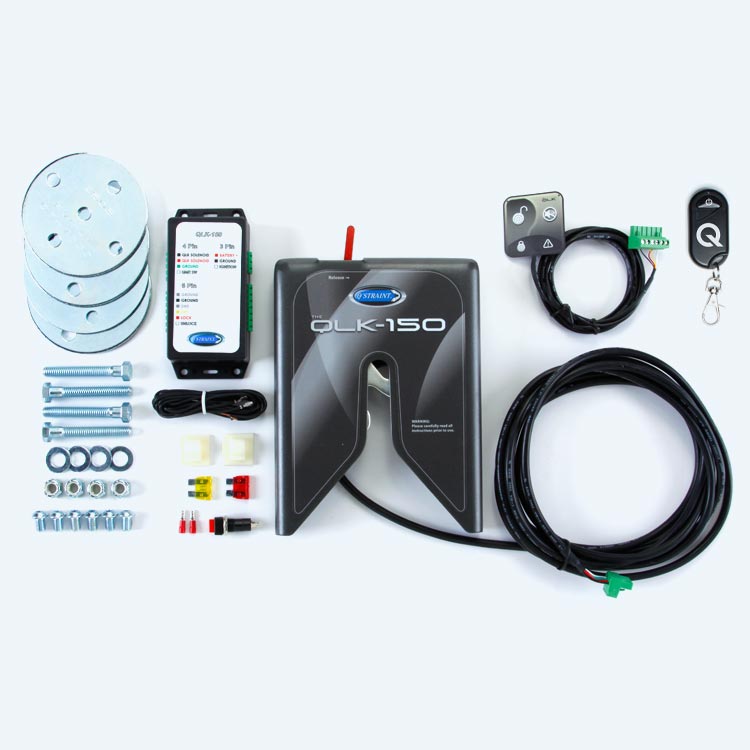

What's Included

Qty	Component	SKU
1	QLK-150 Docking System	Q041000

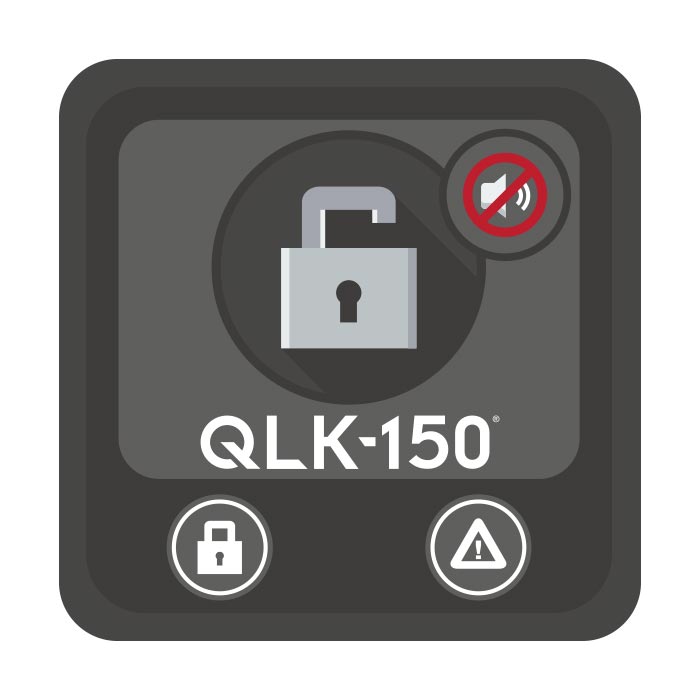

1	QLK-150 Dash Control ( QS99007 )	QS99007

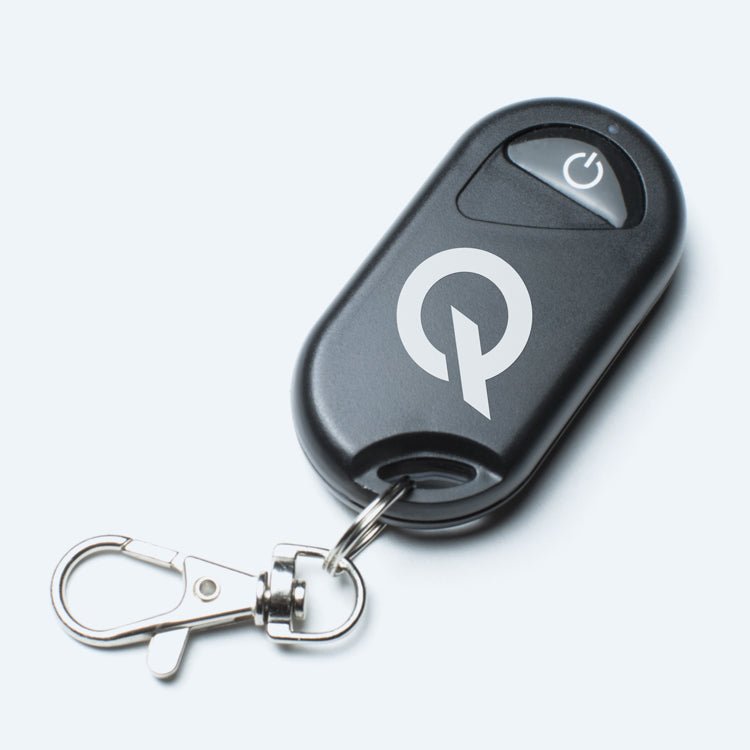

1	QLK-150 Remote Control ( QS00248 )	QS00248
1	Electronic Control Module (ECM)	QS99012
1	Auxiliary Release Switch	No SKU
2	Wire Clips	No SKU
1	Mounting Hardware Kit	No SKU

⚠ Also required — not included: Occupant lap & shoulder belt · L-Track rail and floor pocket hardware

Full Feature Details

THIS PART HAS BEEN SUPERSED BY Q04S183 (Audible)

Vehicle Applications

🚐 Wheelchair-Accessible Van (WAV)🚌 Paratransit / Minibus🚑 Non-Emergency Medical Transport (NEMT)🚌 School Bus🚐 Sprinter / Transit Van🚆 Rail / Community Transit

Standards & Compliance

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

RESNA WC18Wheelchair Tie-Down & Restraint Systems — Heavy Duty (ANSI/RESNA)

FMVSS 222School Bus Passenger Seating & Crash Protection

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 302Flammability of Interior Materials

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

🛡 Warranty: 3-year limited. * Registration required at qstraint.com for full coverage. Without registration, 1-year limited applies.

⚠ Warranty terms should be verified directly with the manufacturer.

⚠ California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See qstraint.com/prop-65

📄 QLK Bracket Guide: View QLK Bracket Instruction List | All User Guides

📄 Product Documents: PDF QLK-150 BROCHURE | QLK-150 PRODUCT SPEC SHEET

Frequently Asked Questions

Does this kit include everything I need for one wheelchair position? +

A complete wheelchair tie-down and occupant restraint system — often called a 4-point securement system — has three primary components: floor anchorages (L-Track rail and floor pockets), wheelchair securement retractors (4-point tie-downs), and an occupant restraint (lap and shoulder belt). See the What's Included section for exactly what this kit contains and what may need to be purchased separately.

Do I need to buy floor anchors separately? +

Check the What's Included section. If L-Track rail or floor pockets are not listed, they need to be purchased separately. Your vehicle may already have floor anchorage installed — check before ordering.

Is professional installation required? +

The retractors connect to existing floor anchorage and require no special tools for daily use. Floor anchorage components must be installed by a qualified WAV modifier.

Can I mix brands within the same vehicle? +

We do not recommend mixing brands within the same 4-point wheelchair position. All four retractors at each position should be the same brand and series for system-level compatibility and compliance.

Do I need to register this product for the full warranty? +

Registration at qstraint.com is required for full warranty coverage.

What vehicle types is this kit designed for? +

See the Vehicle Applications section. Contact us to confirm suitability for your specific vehicle make and model.

Specifications

Specification	Detail
Brand	Q'Straint
SKU	Q04S162
Price	$1222.00 — price shown is per kit
Shipping	Free Shipping
Warranty	3-year limited
Use / Installation	Retractors require no special installation for daily use. Floor anchorage components require professional installation by a qualified WAV modifier.

Q'Straint QLK-150 Docking System Kit & Remote without Base Mount | Q04S162

Key Features

Vehicle-Powered Retraction

RESNA WC18 Rated

What's Included

Full Feature Details

Vehicle Applications

Standards & Compliance

Frequently Asked Questions

Specifications

Related Products

Not sure which kit is right for your vehicle?
