What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

Q'Straint 4 QRT Max Retractors w/ Manual Lap & Shoulder Belt | Q - 8300 - AT - L - WheelchairStrap.com

Q'Straint 4 QRT Max Retractors with Manual Lap & Shoulder Belt, L-Track | Q-8300-AT-L

Vendor: Q'Straint
Regular price: $715.95
Sale price: $715.95
Unit price: per

Shipping calculated at checkout.

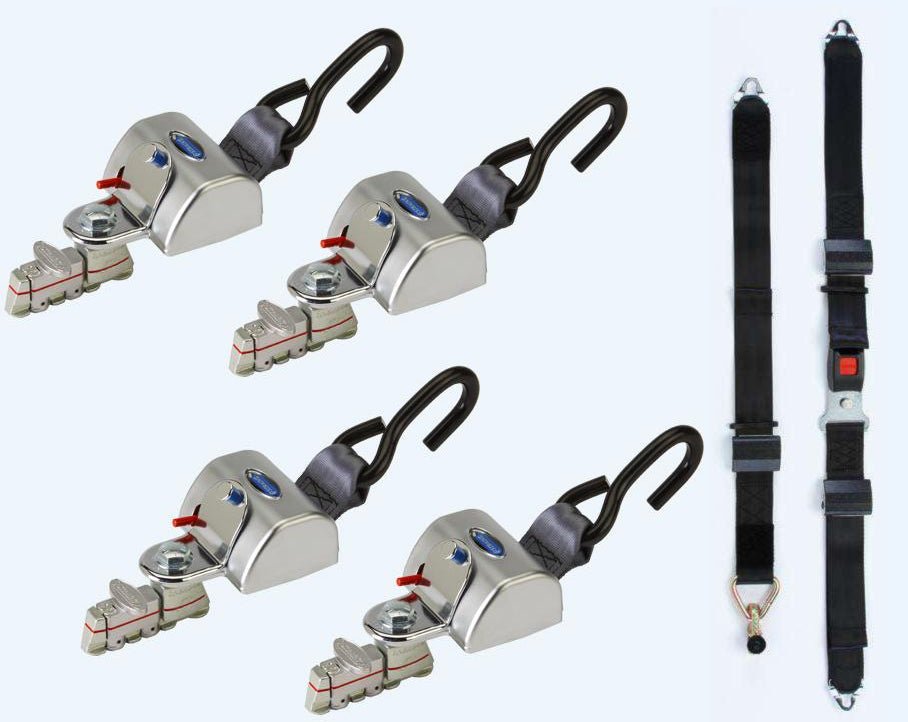

The Q-8300-AT-L is a complete 4-retractor QRT Max kit with L-Track fittings and a manual lap and shoulder belt assembly. The knobless QRT Max retractors provide one-handed operation. Lap belt attaches to rear retractor studs. L-Track flooring not included.

SKU: Q-8300-AT-L | VENDOR: Q'STRAINT

Q'Straint 4 QRT Max Retractors with Manual Lap & Shoulder Belt, L-Track | Q-8300-AT-L

✔ Free Shipping📦 4-Retractor Complete Kit🏷 Q'Straint

Key Features

👆

Knobless One-Handed Operation

Engage and disengage the retractor with a single hand — no knobs required.

🔄

Fully Automatic Retraction

Webbing auto-retracts when released, reducing trip hazards.

🔃

360° Swivel Hook

Hook rotates freely for easier attachment to any wheelchair anchor point.

✅

Crash Tested & Certified

Meets FMVSS 209, FMVSS 210, and SAE J2249 standards.

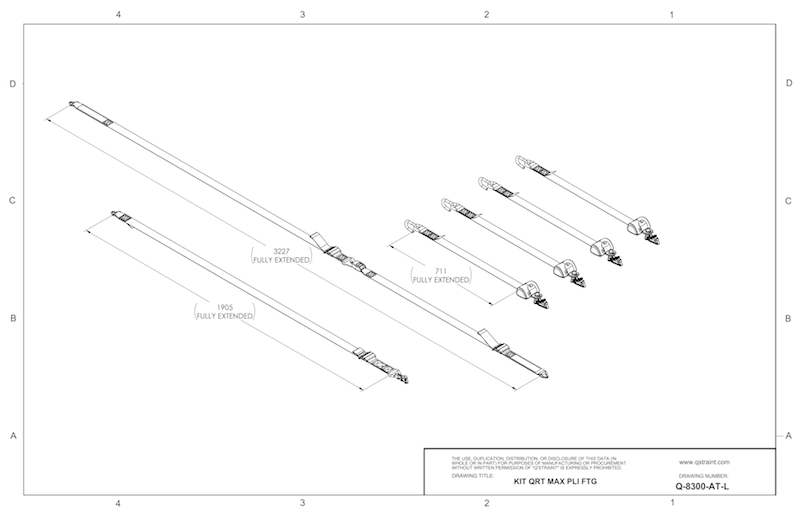

What's Included

Qty	Component	SKU

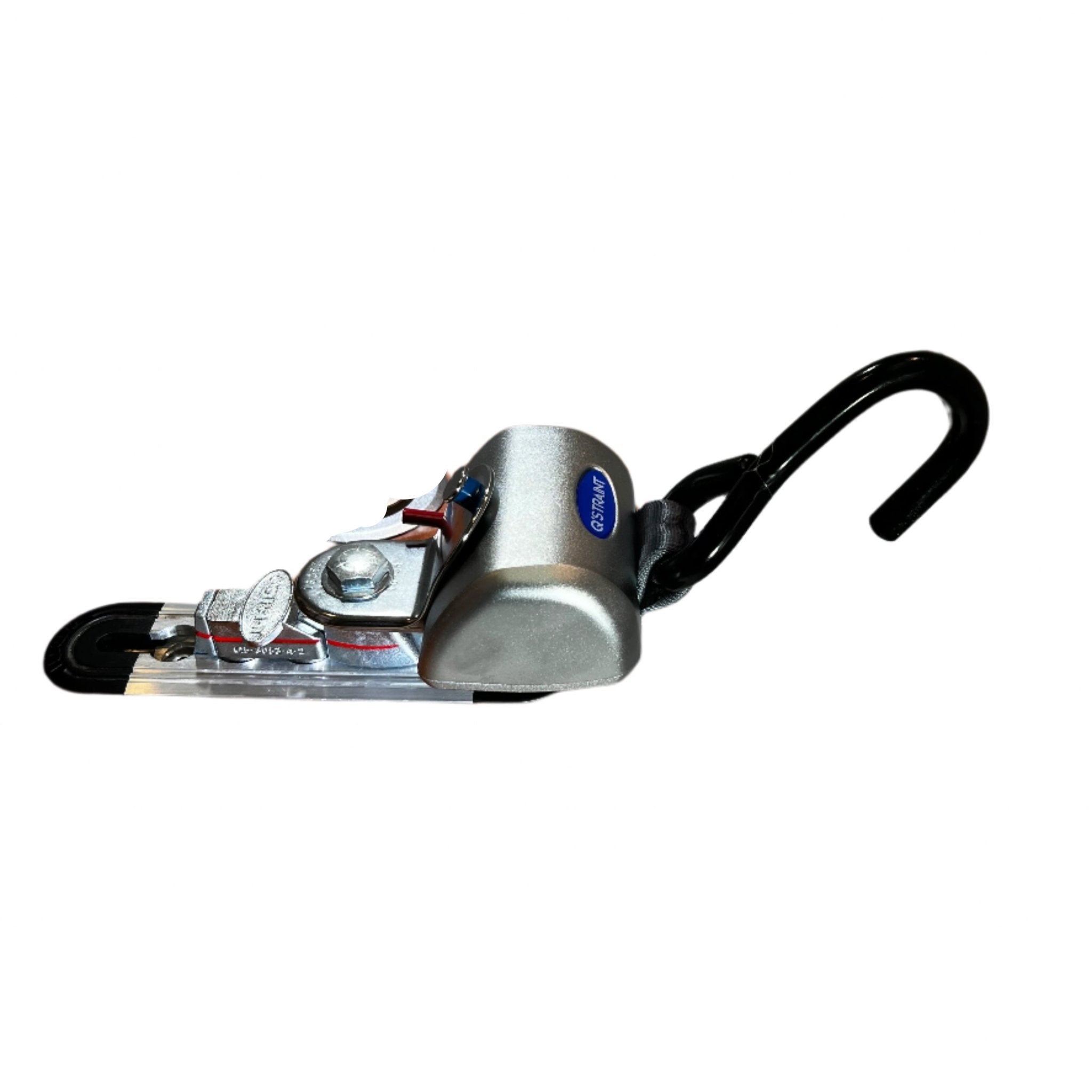

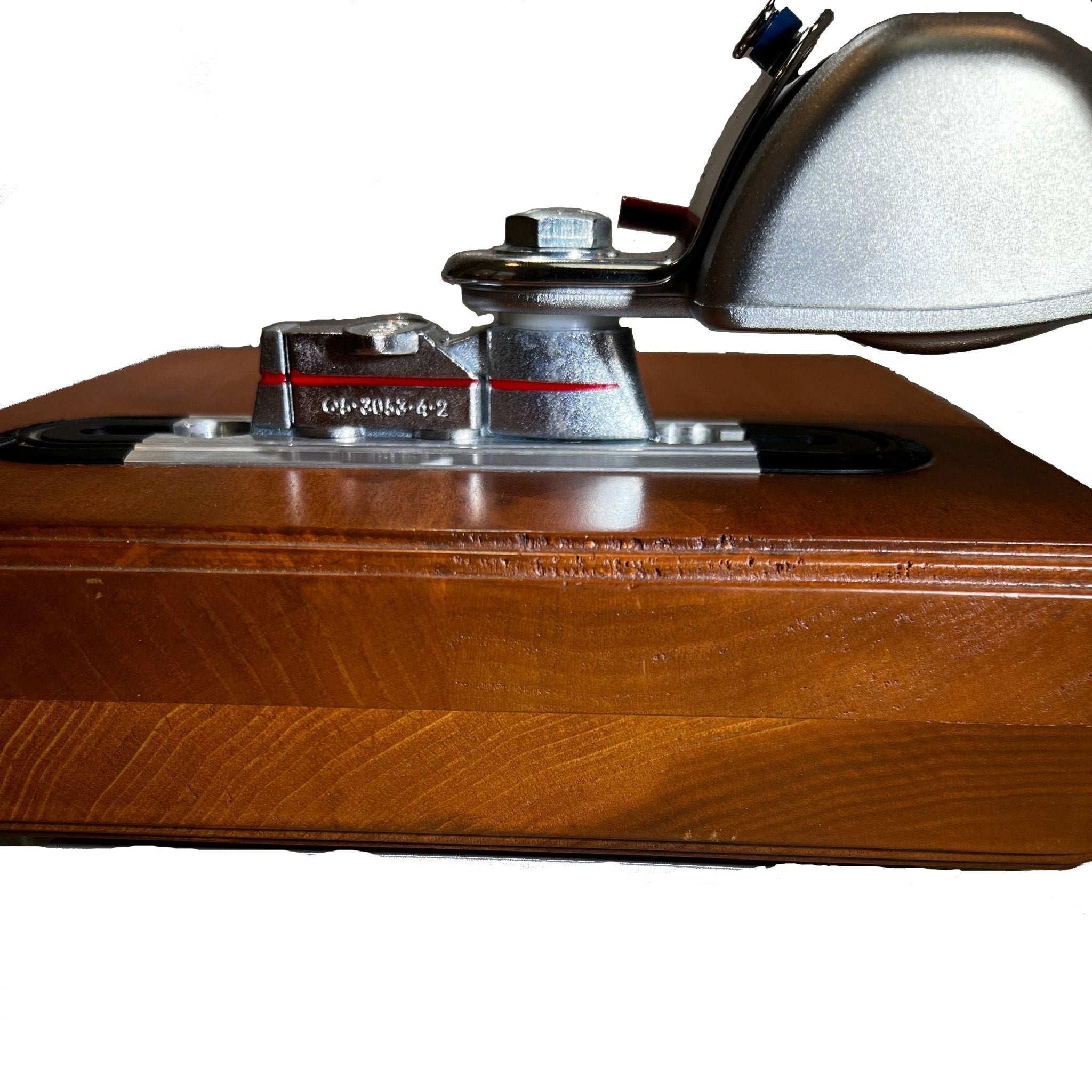

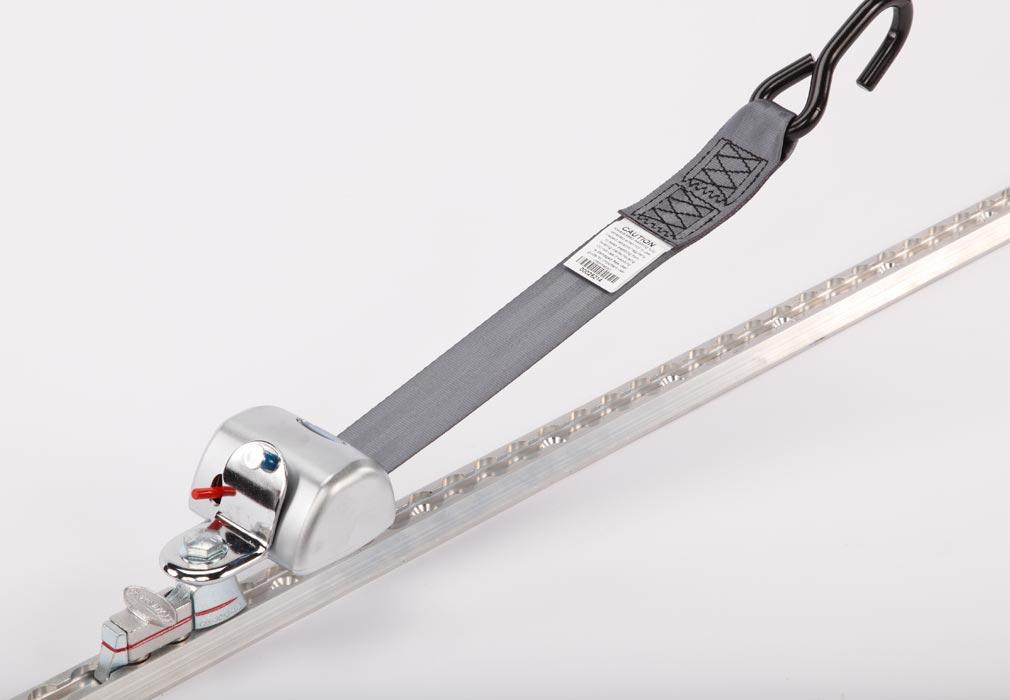

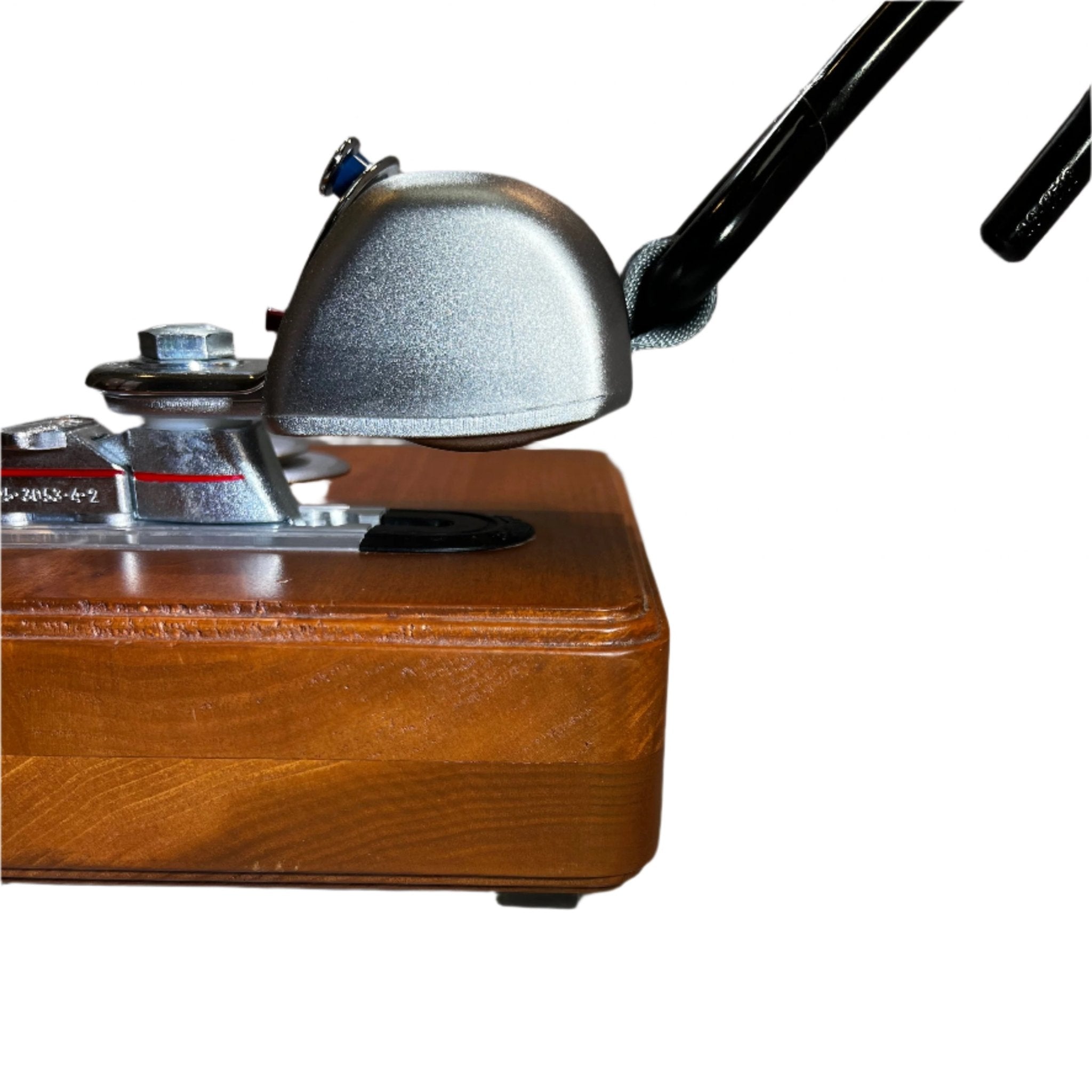

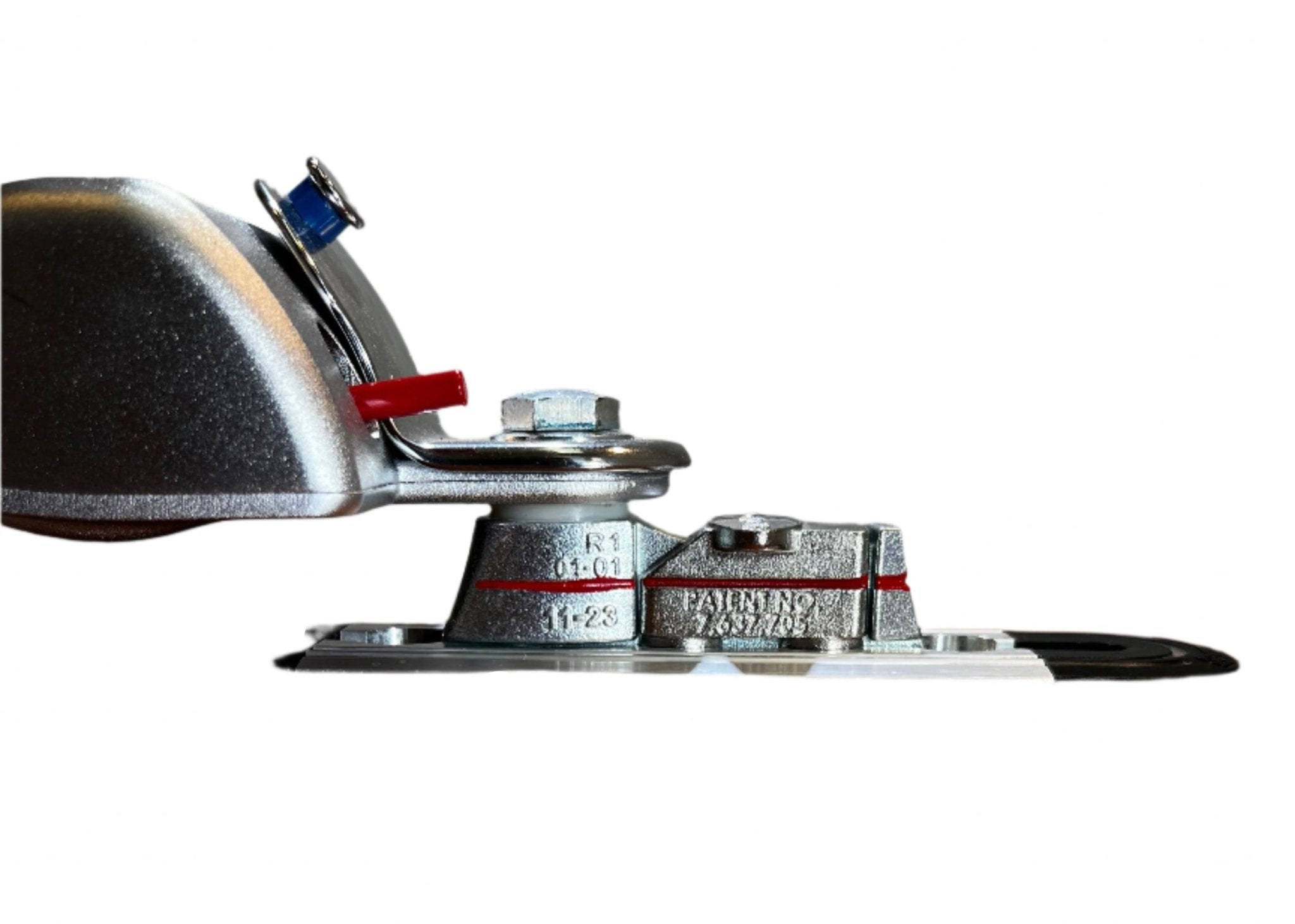

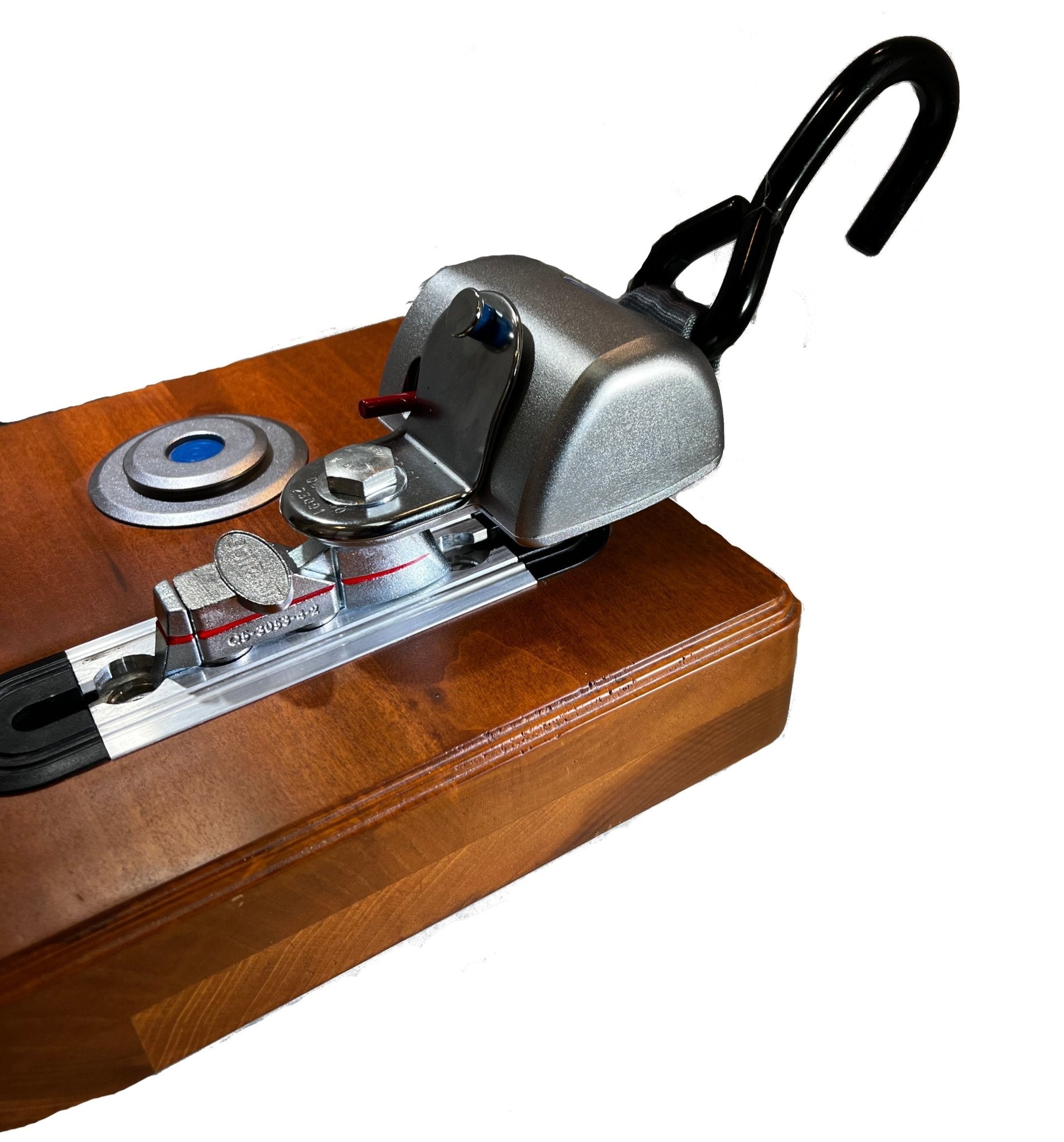

4	QRT Max Retractors with L-Track (PLI) Fitting	Q8-6209-L

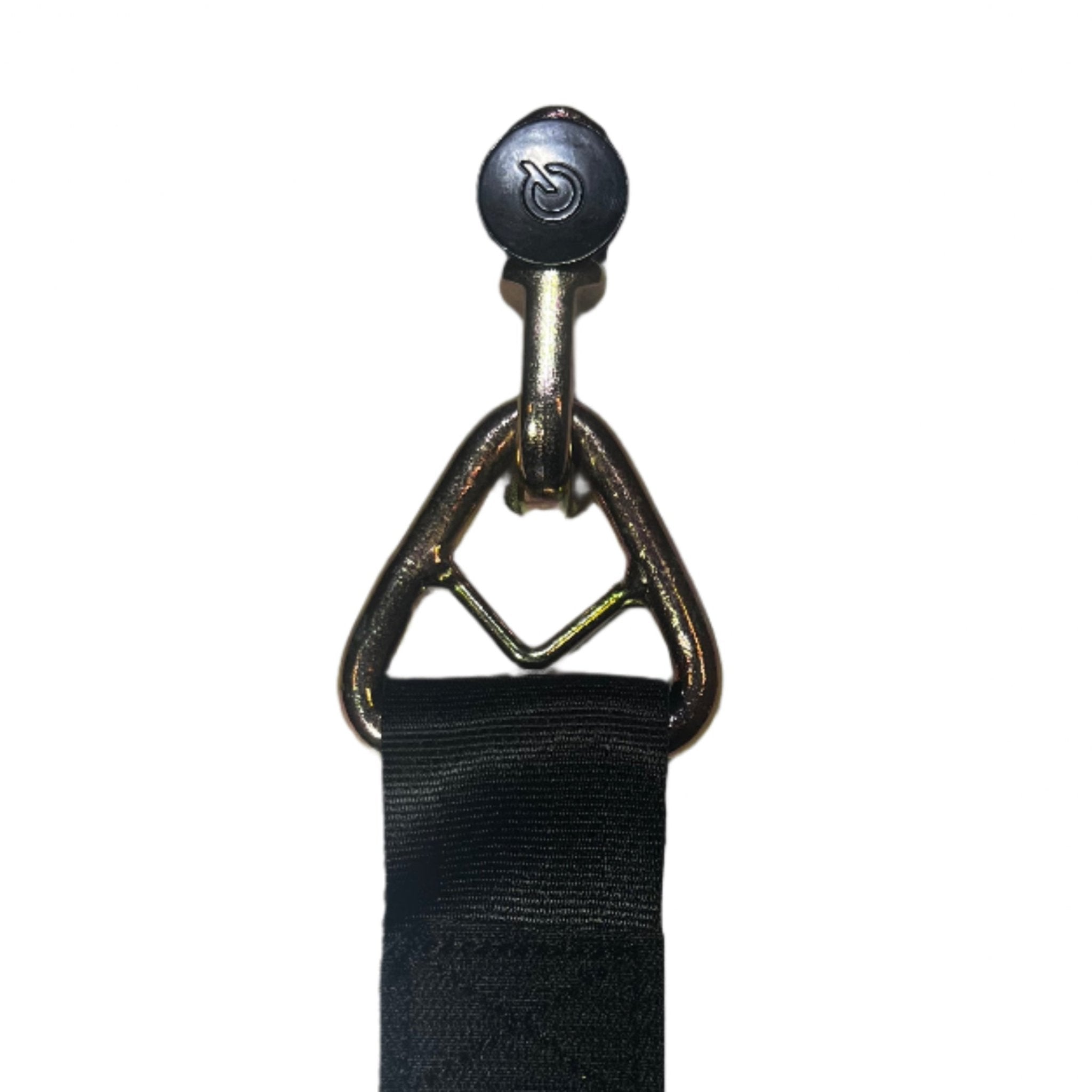

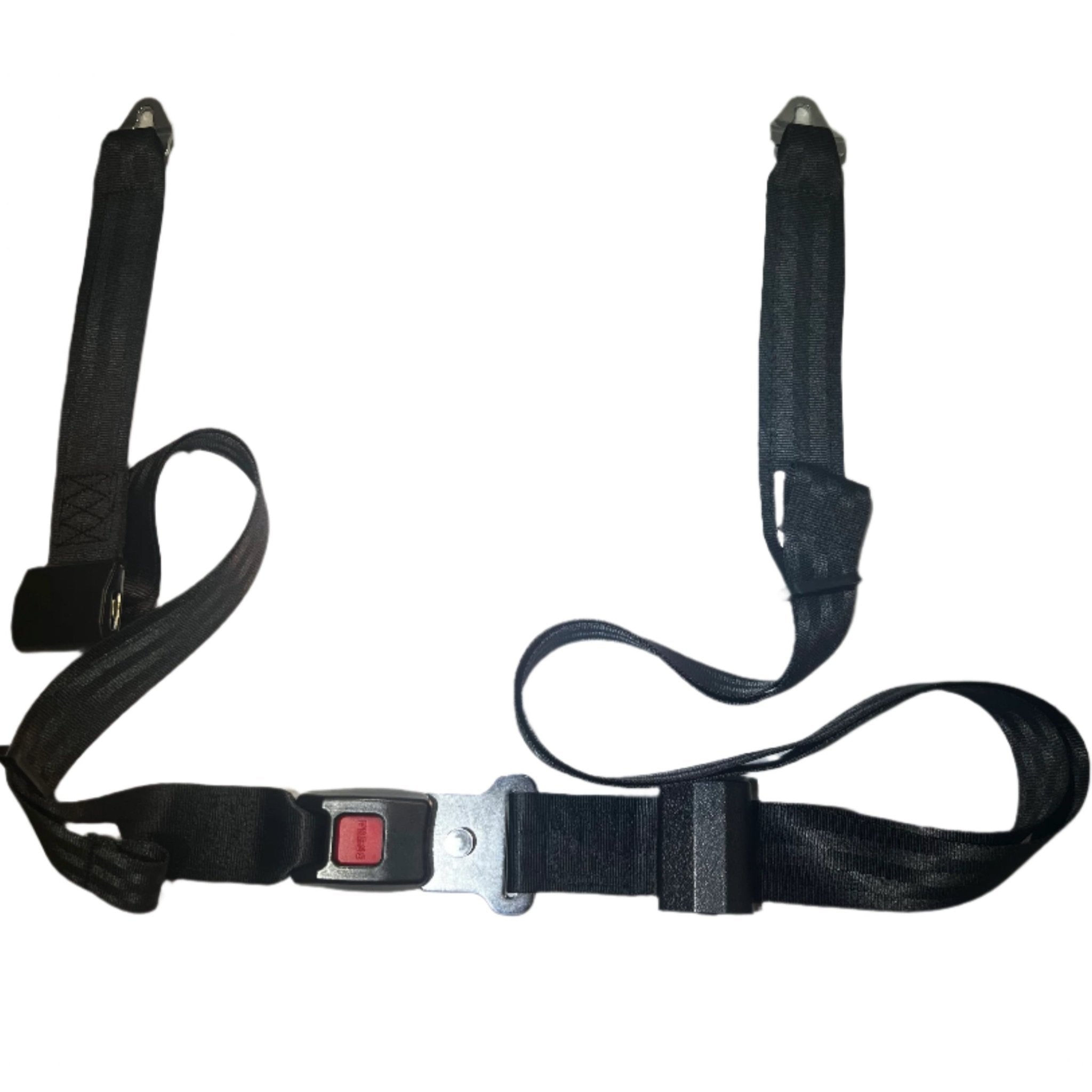

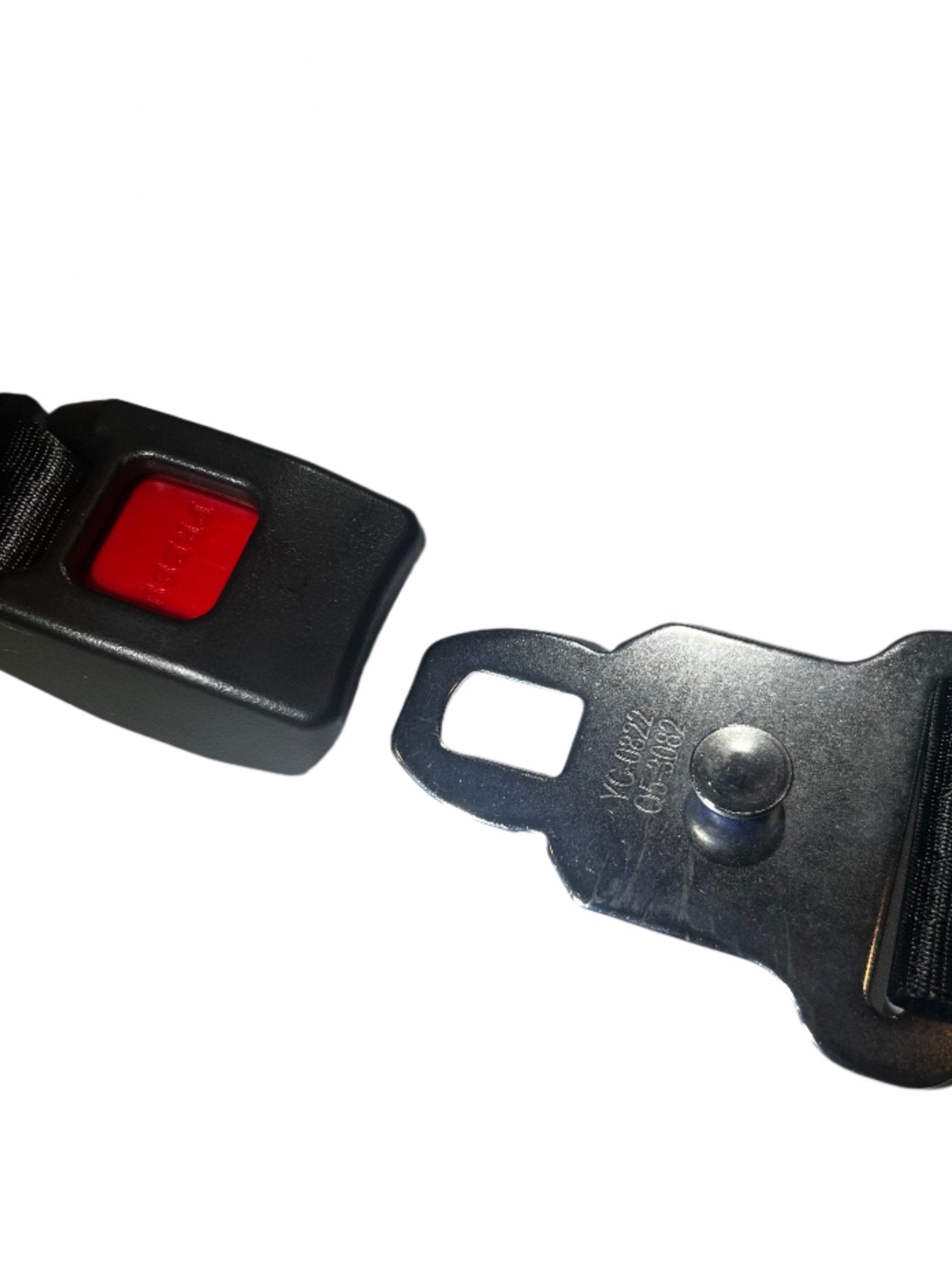

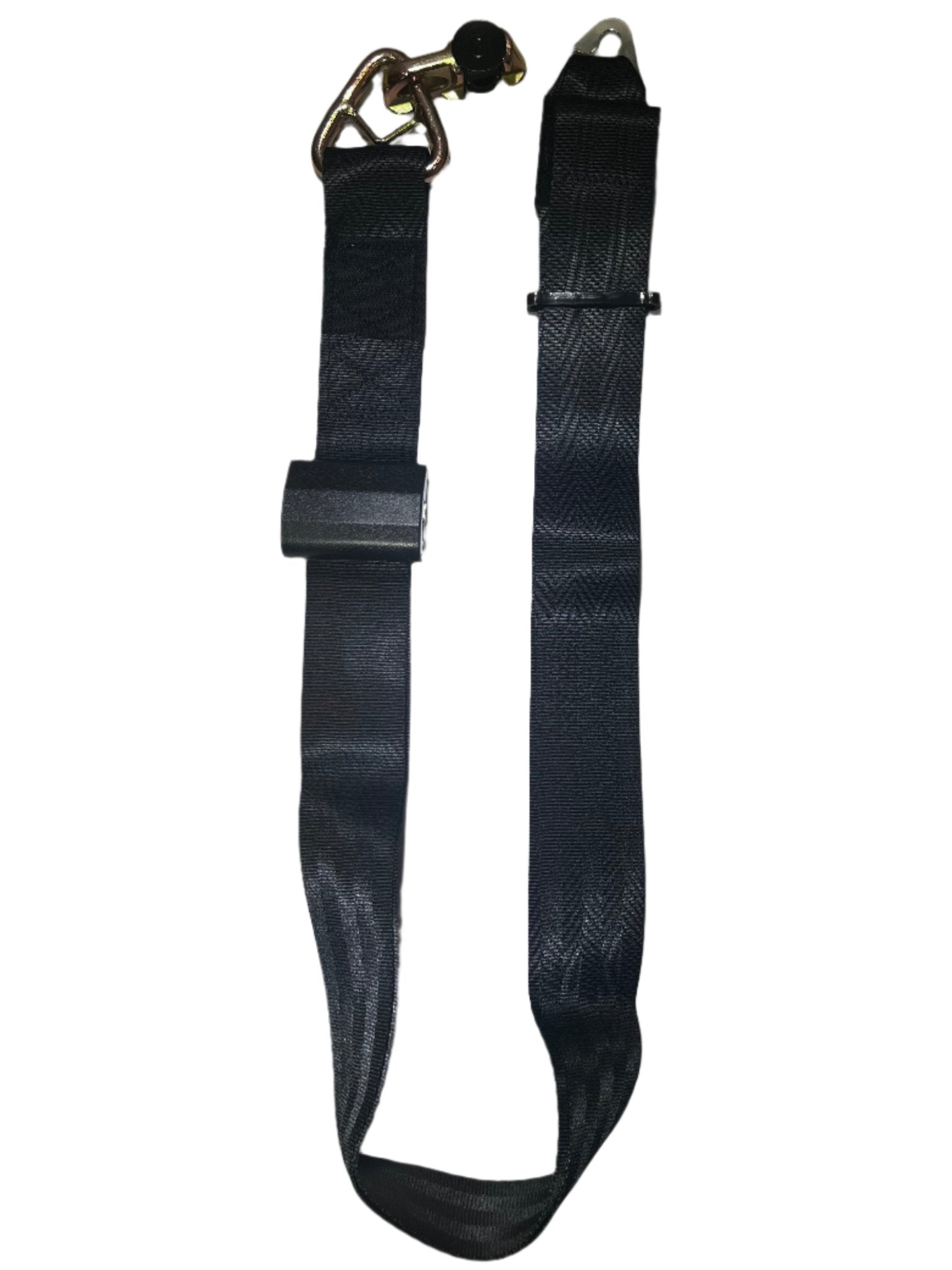

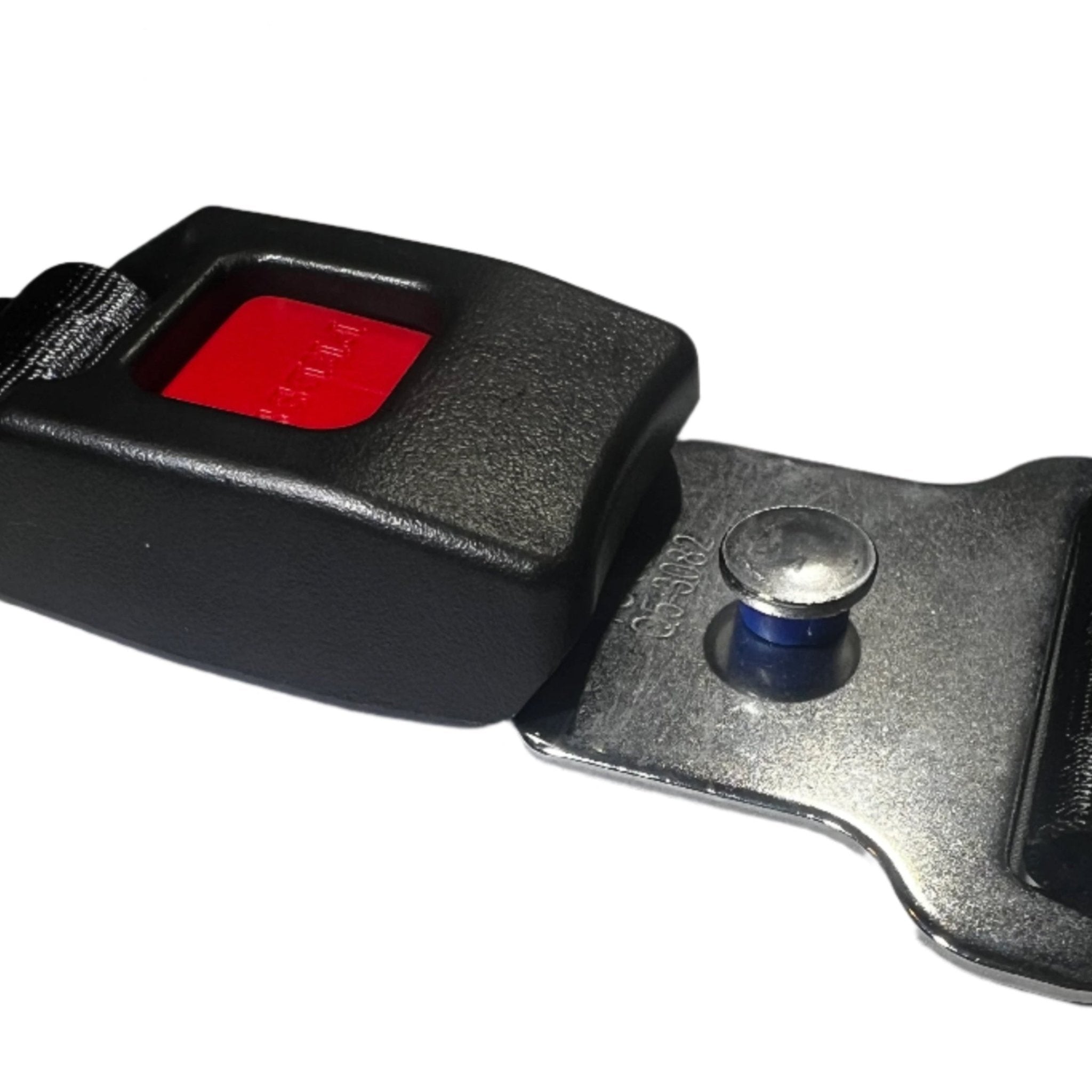

1	Manual Lap & Shoulder Belt with L-Track Fitting	Q8-6325-AT
—	L-Track flooring (not included)	—

Full Feature Details

The Q’Straint QRT Max Kit provides a complete 4-point wheelchair securement and occupant-restraint solution for accessible vans, buses, paratransit vehicles, and non-emergency medical transportation applications. Designed for use with compatible vehicle-mounted L-Track, this kit secures one occupied wheelchair or mobility scooter.

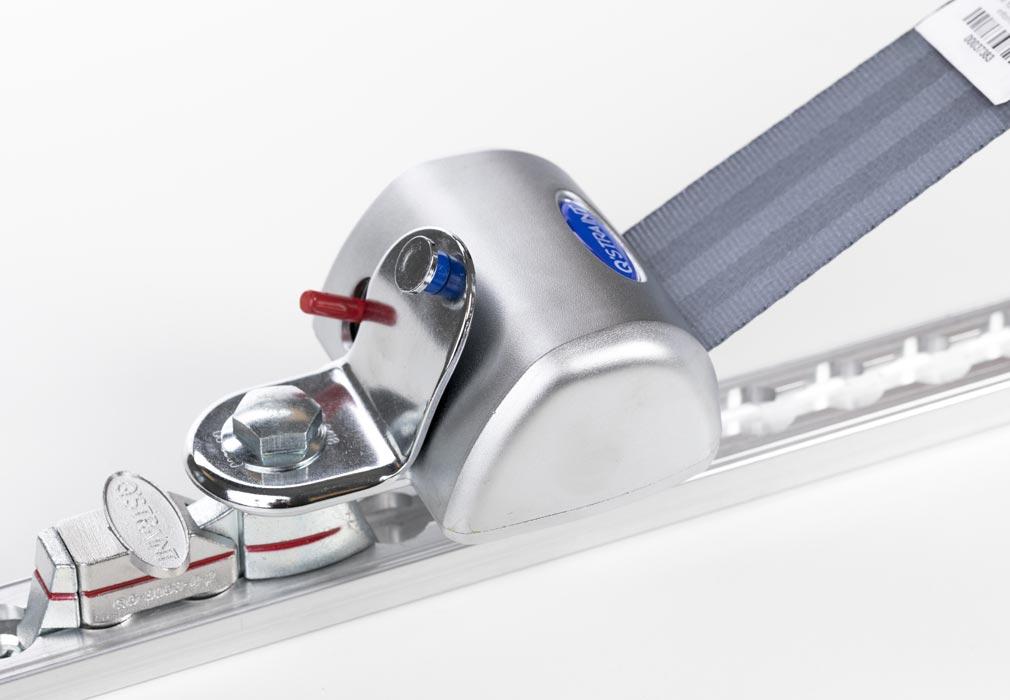

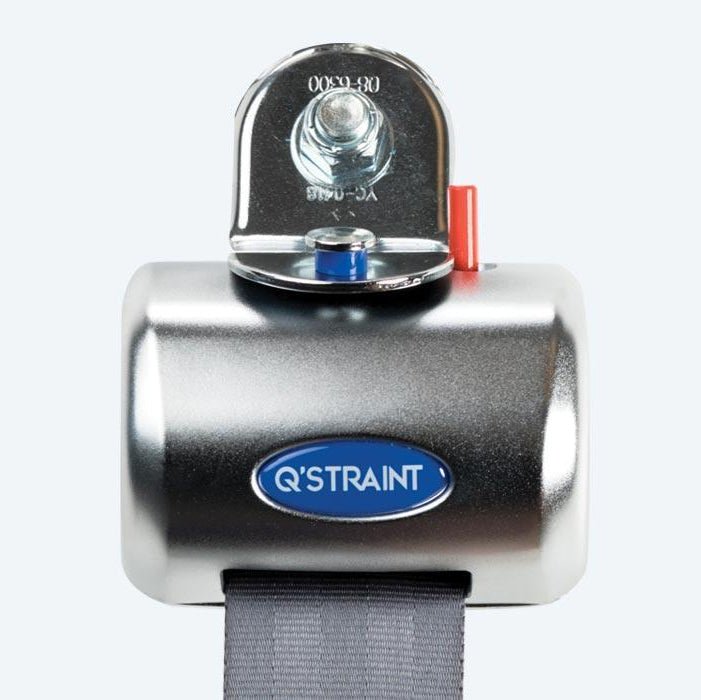

The kit includes four QRT Max retractors with L-Track fittings and a retractable lap and shoulder belt combination with a retractable height adjuster. QRT Max retractors feature a fully automatic, knobless design that is self-locking and self-tensioning. After the integrated J-hooks are attached to approved rigid wheelchair frame points, the retractors automatically take up slack to help provide dependable securement without manual tensioning.

Key Feature Summary

Feature	Description
Knobless One-Handed Operation	Engage and disengage the retractor with a single hand — no knobs required.
Fully Automatic Retraction	Webbing auto-retracts when released, reducing trip hazards.
360° Swivel Hook	Hook rotates freely for easier attachment to any wheelchair anchor point.
Crash Tested & Certified	Meets FMVSS 209, FMVSS 210, and SAE J2249 standards.

Vehicle Applications

🚌 School Bus🚌 Transit / City Bus🚐 Minivan / WAV🚑 Paratransit / NEMT🚂 Rail / Coach

Standards & Compliance

SAE J2249Wheelchair Tie-Down & Occupant Restraint Systems

FMVSS 209/210Federal Motor Vehicle Safety Standards — Belts & Buckles

📘 Compliance & Documentation: Visit our Compliance Resource Center.

🛡 Warranty: 3-year limited. *Registration required at qstraint.com for full coverage.

⚠ California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See qstraint.com/prop-65

Specifications

Specification	Detail
Brand	Q'Straint
SKU	Q-8300-AT-L
Price	$715.95 — per unit
Shipping	Free Shipping
Warranty	3-year limited
Fitting Type	L-Track (PLI)
Retractors	4
Lap Belt	Manual with L-Track fitting

Frequently Asked Questions

Is professional installation required? +

Yes. Q'Straint wheelchair securement systems must be installed by a qualified technician. Improper installation may void the warranty and compromise safety.

What is the warranty? +

Q'Straint offers a 3-year limited when registered at qstraint.com. See qstraint.com for full terms.

What vehicles is this compatible with? +

See Vehicle Applications above. Contact us at (972) 420-0800 or sales@wheelchairstrap.com for fleet questions.
