The Q'Straint DropLok Complete System (Q10-008) is the all-in-one EMS bag securement bundle: the SAE J3043 crash-certified wall mount, the large LokBox retrofit kit, and a Q'Straint LokBox large EMT case — everything your ambulance needs to go from zero to crash-compliant in a single order. The DropLok Easy Mount with Safe Release mounts in 4 bolts to the ambulance wall or a countertop surface, vertically or horizontally. Your crew loads the LokBox case into the receiver, it locks automatically, and deploys in a single motion with a top-button or bottom-release trigger. It's the same crash-certified standard Q'Straint builds their cot securement systems to — SAE J3043 dynamic and static testing, including SAE J2917 frontal and SAE J2956 side impact — certified ready for loads up to 25 lbs. For agencies that want a plug-and-play solution with no sourcing, no guesswork, and no installation compromises, this is it.
Q'Straint DropLok • Complete System Bundle
DropLok Complete System — Large LokBox Case
Part No. Q10-008 • Includes Q10-005 + Q10-004 + Large LokBox
The complete DropLok securement solution in one bundle: SAE J3043 crash-certified wall mount, large retrofit kit, and Q'Straint LokBox large EMT case. 4-bolt install, vertical or horizontal mounting, instant one-motion deployment. Nothing else to source.
✓ Free Shipping
✓ SAE J3043 Crash Certified
△ 90-Day Lead Time
3-Year Warranty on Easy Mount
Everything Included — Complete Bundle
Complete Bundle — No Additional Components Required
🛡
SAE J3043 Crash Certified — Ready Up to 25 lbs
The DropLok system is fully crash tested and certified per SAE J3043, including SAE J2917 (frontal impact) and SAE J2956 (side impact). The same certification standard Q'Straint applies to their cot securement systems — now for your EMS bags.
⚠ Current Lead Time: Approximately 90 Days. Contact us for fleet orders or time-sensitive deployments: 800.884.6456.
How the DropLok System Works
-
Mount the Easy Mount with Safe Release (Q10-005) — 4 bolts to the ambulance wall (vertical) or countertop (horizontal). Both orientations supported.
-
Retrofit the LokBox Case with the Large Retrofit Kit (Q10-004) — attach the Stabilizer Plate and Securement Plate to the included LokBox case. One-time setup per case.
-
Load and Lock — place the retrofitted LokBox into the wall receiver. It locks automatically. No secondary action required.
-
Instant Deployment — top button or bottom release. The LokBox is in your crew's hands in one motion. Muscle memory from day one.
Key Features
🛡
SAE J3043 Crash Certified
Fully tested to SAE J3043 — dynamic and static, frontal (J2917) and side impact (J2956). Certified ready up to 25 lbs. Not "designed to meet" — certified.
✅
Complete Bundle — Nothing Else Needed
Wall mount, retrofit kit, and LokBox case all included. Unbox, bolt in, retrofit the LokBox, and your DropLok station is operational. No additional sourcing required.
🔄
Vertical OR Horizontal Mounting
The Easy Mount with Safe Release installs in 4 bolts on the ambulance wall or countertop surface — whatever your compartment layout calls for.
⚡
One-Motion Deployment
Multi-option release: top button or bottom release trigger. The LokBox deploys in a single motion — built for gloved hands under pressure.
🛡
Safety Hook Fail-Safe
Safety hooks on the Easy Mount provide a mechanical fail-safe backup, ensuring the LokBox stays secured even under the most demanding conditions.
👥
Muscle Memory Design
The load-and-lock procedure is so intuitive most crews master it on the first run. Critical in EMS environments where cognitive load is high and seconds matter.
🆕
Ergonomic & Durable LokBox
Q'Straint LokBox cases are ergonomic, customizable, reflective, and built for repeated use in demanding EMS environments.
🅳
3-Year Warranty on Easy Mount
The Easy Mount with Safe Release (Q10-005) carries a 3-year Q'Straint warranty. Fleet-grade durability backed by the industry leader in EMS securement.
What's Included
| Component |
Description |
|

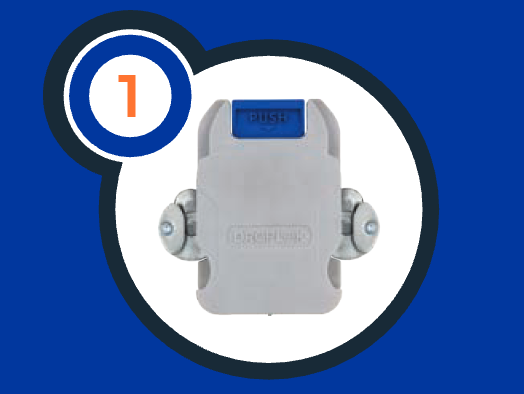

Q10-005 • Vehicle-Side Wall/Countertop Mount
|
The vehicle-side receiver unit. Mounts in 4 bolts vertically on the ambulance wall or horizontally on a countertop surface. Dimensions: 8.3" W × 8.5" H × 1.16" D, 5.4 lbs. Multi-option release: top button and bottom trigger. Safety hook fail-safe. 3-Year Warranty. |
|

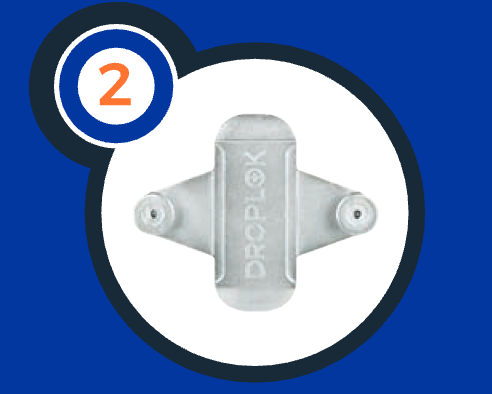

Q10-004 • Case-Side Retrofit Kit
|
Includes Stabilizer Plate, Securement Plate with Straps and Buckles, and all installation hardware. Attaches to the LokBox case to create the DropLok docking interface. One-time setup per case. |
|

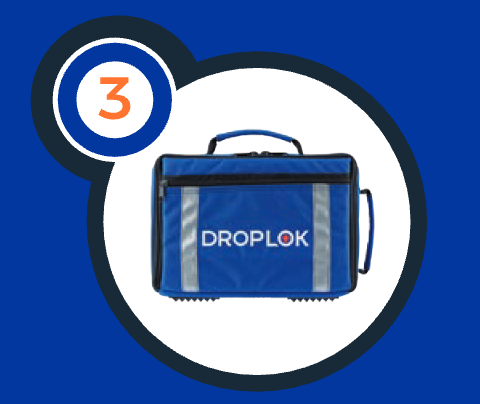

Q'Straint LokBox — Large EMT Case
Included in Q10-008 Bundle
|
Q'Straint LokBox large EMT case. Ergonomic design: customizable, reflective, and highly durable. Pre-matched to the Q10-004 Large Retrofit Kit for DropLok compatibility. |
Vehicle Applications
| Vehicle / Application |
Typical Deployment |
| ALS Ambulance — Primary Unit |
Wall-mount DropLok station in the patient care compartment; LokBox carries primary ALS supplies |
| BLS Ambulance |
Countertop-mount configuration for compact compartment layouts |
| Fire Department EMS First Response |
Apparatus compartment mount for EMS jump case deployed on fire apparatus |
| EMS Supervisor / Fly Car |
Compact vehicle ALS case securement — vertical wall or countertop orientation |
| Mobile Integrated Health Unit |
Community paramedicine vehicle with secure equipment storage requirements |
Standards & Compliance
SAE J3043✓ Crash Certified — Emergency Vehicle Equipment Mount
SAE J2917✓ Frontal Impact Testing
SAE J2956✓ Side Impact Testing
Prop 65California Proposition 65 warning applies
The DropLok system is crash certified per SAE J3043 dynamic and static parameters up to 25 lbs. Certification covers the complete system — Easy Mount with Retrofit Kit and case.
📌 This product meets SAE J3043 crash certification for emergency vehicle equipment mounts. For contract documentation and compliance verification, visit our
Compliance Resource Center.
Specifications
| Specification |
Detail |
| Part Number |
Q10-008 |
| Brand |
Q'Straint |
| Product Name |
DropLok Complete System — Large LokBox Case |
| Product Line |
DropLok Emergency Vehicle Securement System |
| Bundle Contents |
Q10-005 Easy Mount with Safe Release + Q10-004 Large Retrofit Kit + Large LokBox EMT Case |
| Mount Dimensions (Easy Mount) |
8.3" W × 8.5" H × 1.16" D |
| Easy Mount Weight |
5.4 lbs |
| Mounting Orientation |
Vertical (wall) or Horizontal (countertop) — both supported |
| Installation |
4-bolt mount — no specialized tools required |
| Release Options |
Top button release & bottom release trigger |
| Fail-Safe |
Safety hooks provide mechanical backup retention |
| Crash Certification |
SAE J3043, SAE J2917 (frontal), SAE J2956 (side) — certified up to 25 lbs |
| Easy Mount Warranty |
3 Years (Q10-005 component) |
| Lead Time |
Approximately 90 days from order date |
| Shipping |
Free Shipping |
| Prop 65 |
Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. |
Frequently Asked Questions
Can I mount the Easy Mount horizontally on a countertop instead of the wall?
Yes — the DropLok Easy Mount with Safe Release supports both vertical (wall) and horizontal (countertop or module shelf) mounting. You need 4 bolt holes and clearance for the case to engage and release cleanly. Both orientations are fully supported and crash-certified in the same configuration. If you're unsure which orientation works best for your vehicle's compartment layout, call us at 800.884.6456 — we're experienced in DropLok installations across a range of ambulance floor plans.
