What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

Reach Key Wheelchair Retractor Access Tool | Sky Blue | RKBL

Vendor: Insightfuel LLC
Regular price: $70.00
Sale price: $70.00
Unit price: per

Shipping calculated at checkout.

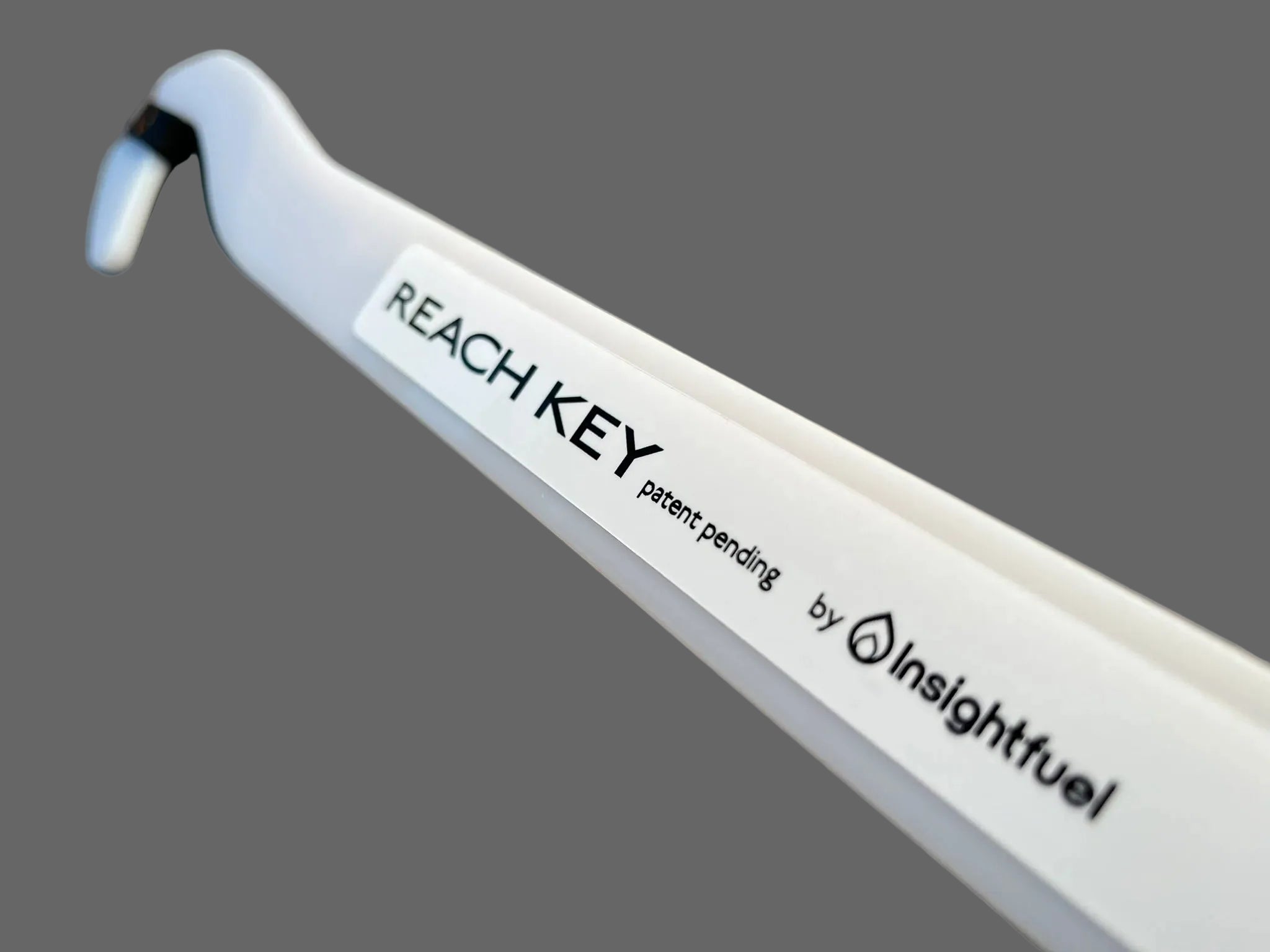

The Reach Key is an ergonomic operator-assist tool purpose-built for wheelchair vehicle operators who work with floor-mounted retractor systems. Instead of bending or crouching to engage securement hardware at floor level, the operator uses the Reach Key to access and activate the fitting from a standing or seated position. Built from durable thermoplastic with a custom silicone anti-slip band and a safety breakaway connector strap, the Reach Key reduces repetitive-strain risk for drivers performing multiple securement cycles per shift — in WAVs, paratransit vehicles, NEMT vans, and school buses.

SKU: RKBL | VENDOR: INSIGHTFUEL | COLOR: SKY BLUE

Reach Key Wheelchair Retractor Access Tool — Sky Blue | RKBL

🚚 Free Shipping on Orders Over $100 🔧 Operator Assist Tool 🏷 Insightfuel

Key Features

🎯

Ergonomic New Design

Updated for improved operator ergonomics — reach and engage floor-mounted retractor fittings without bending, crouching, or straining. Reduces repetitive-motion risk on high-cycle routes.

🛡

Durable Thermoplastic Construction

Built from high-quality thermoplastic rated for daily fleet use. Resists wear and impact from repeated on-vehicle operation across all weather and shift conditions.

🔗

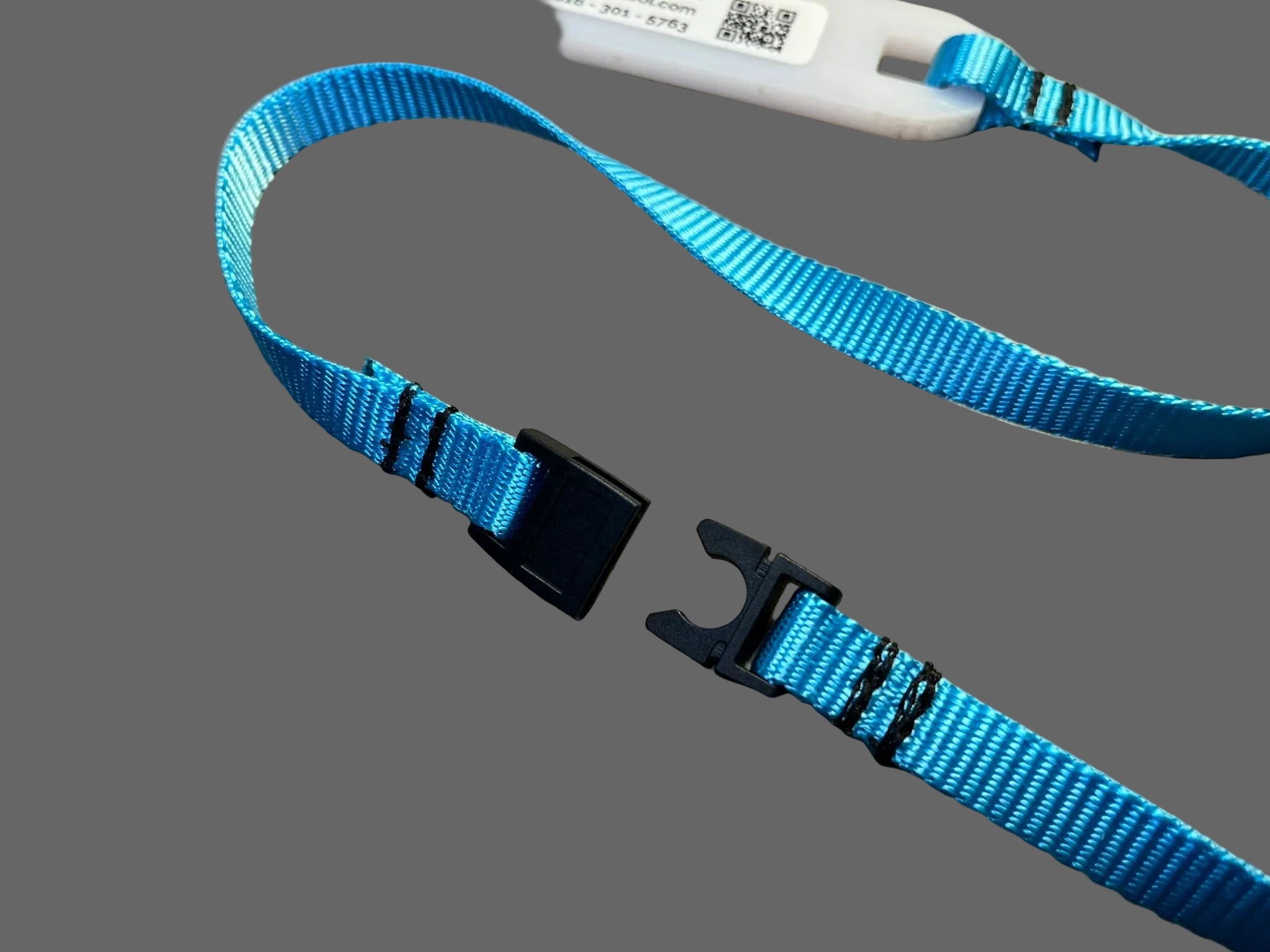

Breakaway Connector Strap

The ~34" strap keeps both handles together between uses. The breakaway feature releases under unexpected load — protecting the operator and tool if it becomes snagged during a securement cycle.

✋

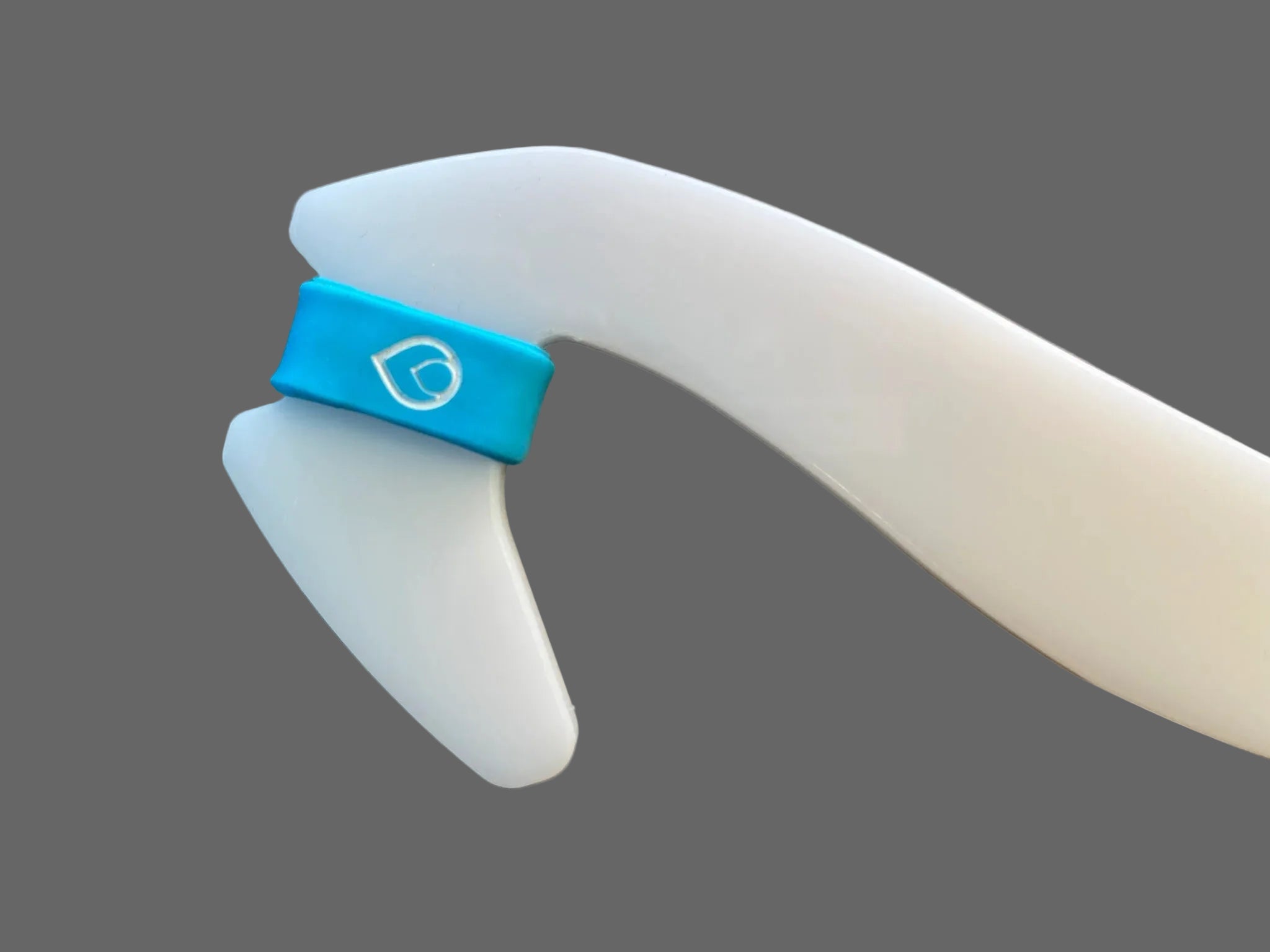

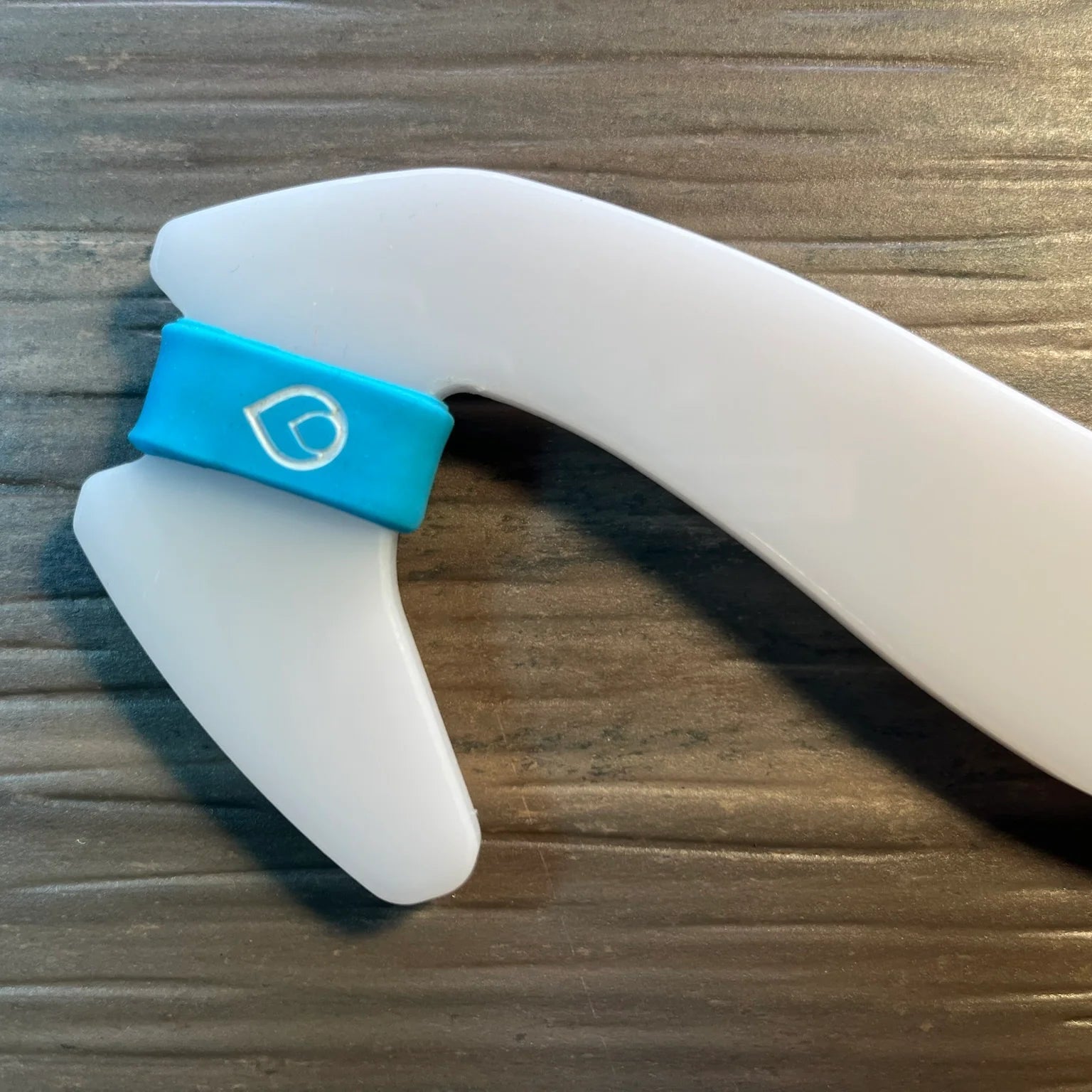

Silicone Anti-Slip Band

Custom silicone anti-slip band provides confident grip during operation. Sky blue color enables quick visual identification in the vehicle — operators locate it at a glance, even in dim cabin lighting.

🔧

Versatile Across Use Cases

Accommodates various wheelchair loading and unloading needs and use cases. Designed to work alongside floor-mounted retractor systems across a range of vehicle types and body styles.

📐

Purpose-Built Dimensions

Each handle is 17" × 2.35" — sized to clear wheelchair footrests and cabin structure while reaching floor-level retractor hardware without putting the operator off-balance.

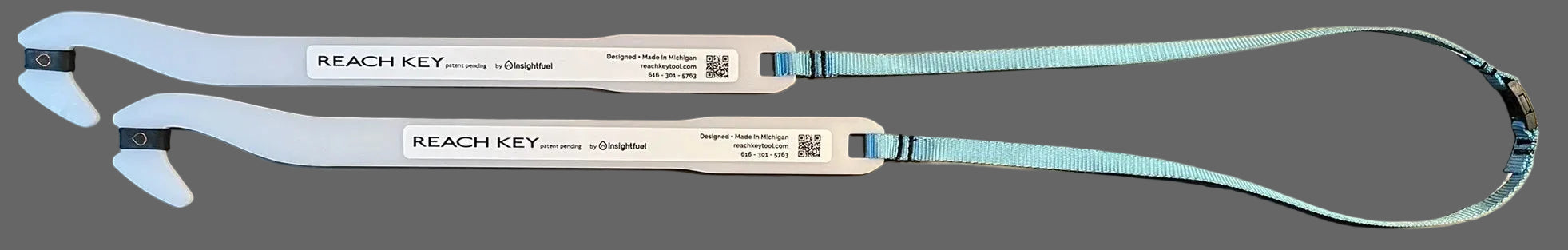

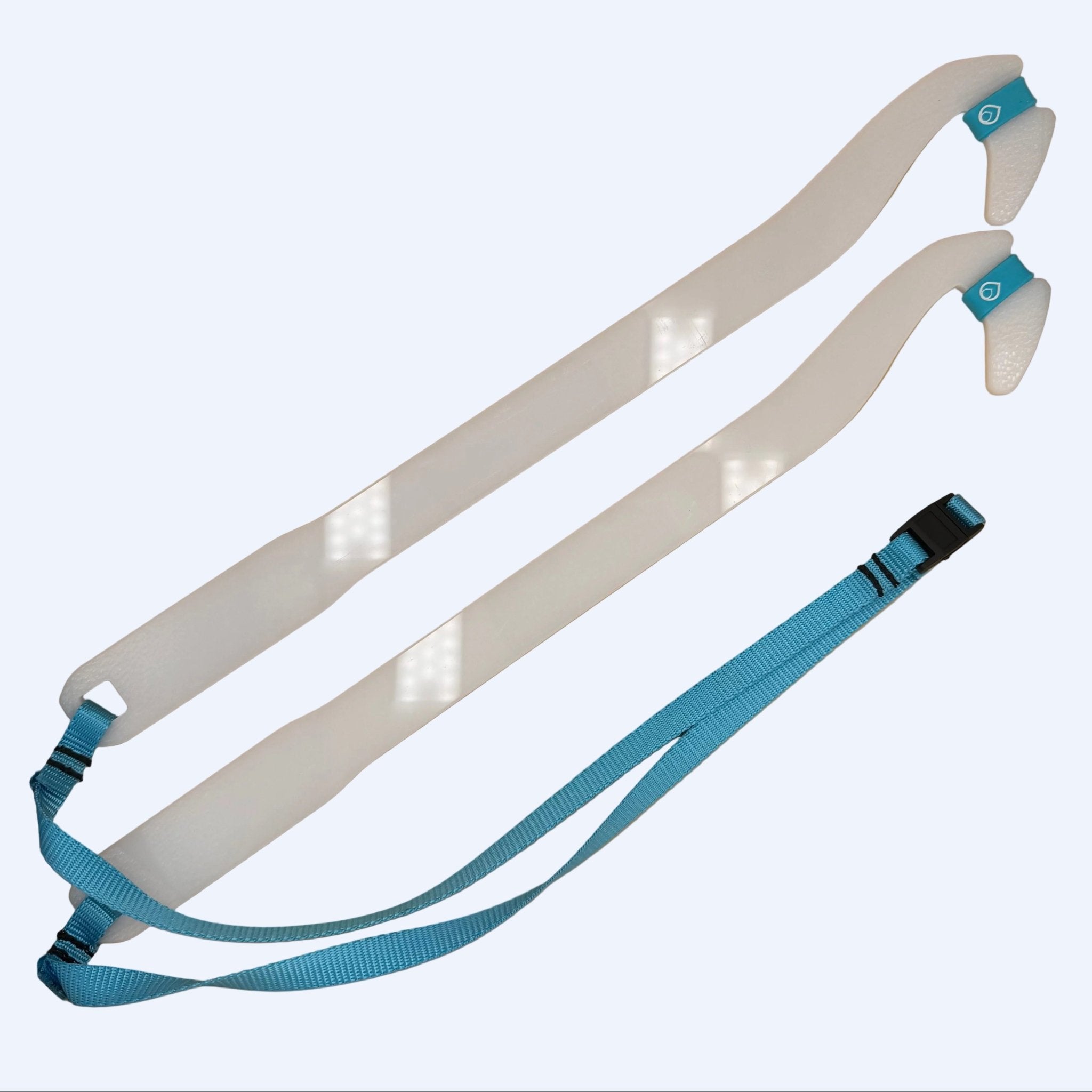

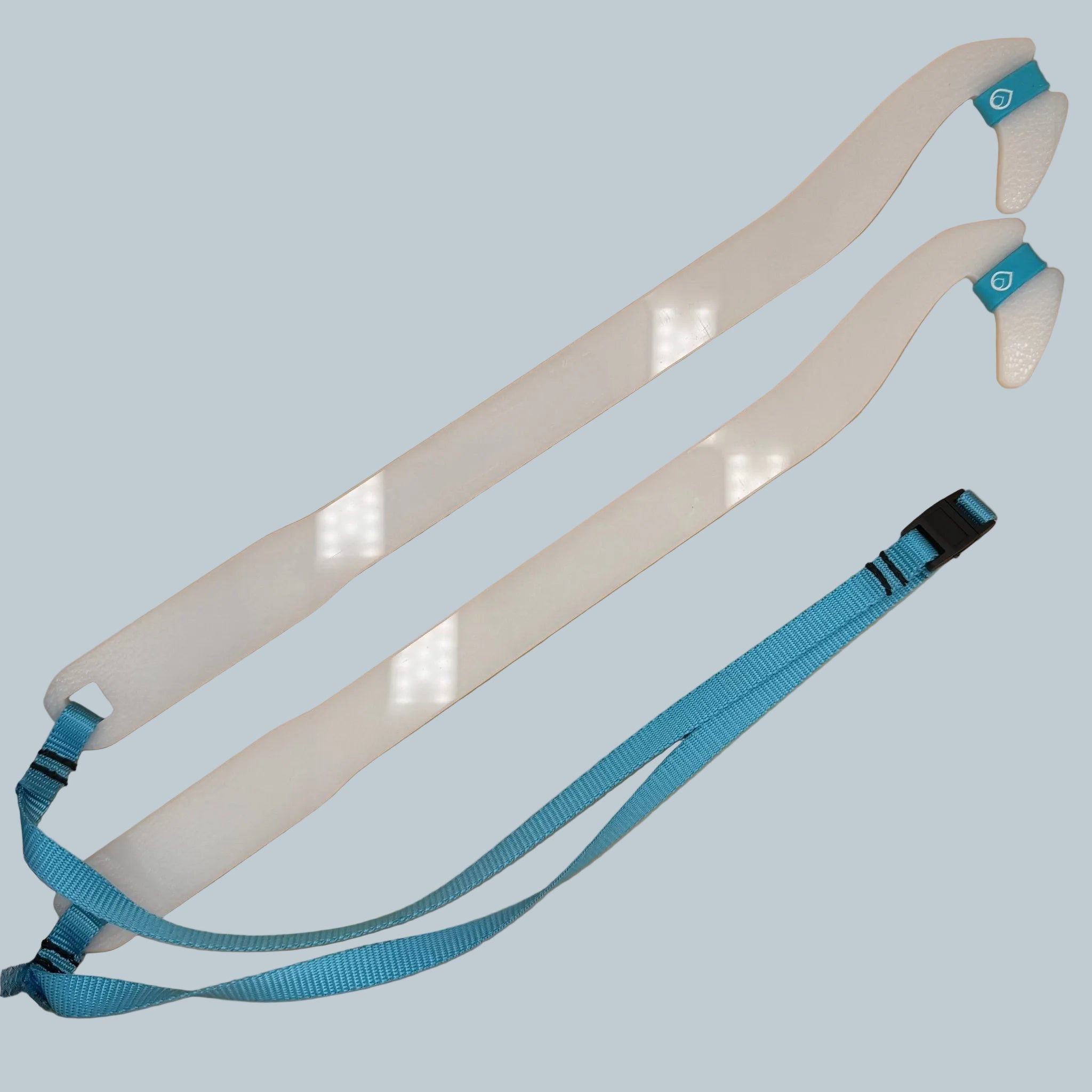

What's Included

Qty	Component	Detail
2	Reach Key Thermoplastic Handles (17" × 2.35" each)	RKBL
1	Breakaway Connector Strap (~34")	Included
1	Custom Silicone Anti-Slip Band	Sky Blue

⚠ Floor-mounted retractor system sold separately. The Reach Key is an operator ergonomic assist tool — it does not replace any component of the wheelchair securement system. Compatible retractors, floor anchorage, and occupant belts are available at WheelchairStrap.com.

Vehicle Applications

🚐 Wheelchair-Accessible Van (WAV) 🚑 Non-Emergency Medical Transport (NEMT) 🚌 Paratransit / Minibus 🚌 School Bus 🚐 Sprinter / Transit Van 🚗 Personal Vehicle / Minivan

Standards & Compliance

ℹ️ Product Classification Note: The Reach Key is an operator ergonomic assist tool — it is not a wheelchair securement component and does not carry wheelchair tie-down safety certifications such as FMVSS 209/210, SAE J2249, or RESNA WC18. Those standards apply to the retractors, belts, and floor hardware used to secure wheelchairs and occupants. The Reach Key is designed to assist operators in using those compliant systems — from Q'Straint, Sure-Lok, and AMF Bruns — more efficiently and with less physical strain.

ℹ️ ADA Compliance Note: The Reach Key supports operators performing wheelchair securement in ADA-accessible vehicles. Proper securement of wheelchair passengers is required under 49 CFR Part 37. Verify that your installed WTORS meets all applicable ADA and FMVSS requirements for your vehicle type and application.

Specifications

Specification	Detail
Brand	Insightfuel — Reach Key
SKU	RKBL
Color	Sky Blue
Handle Dimensions	17" × 2.35" each (2 handles included)
Connector Strap	~34" breakaway design
Material	Durable thermoplastic; custom silicone anti-slip band
Price	$70.00 per unit
Shipping	Free Shipping on Orders Over $100 \|
Warranty	3-year limited from date of purchase
Use	Operator ergonomic assist — no special installation required. Ready for daily use out of the box.

🛡 Warranty: 3-year limited from date of purchase. No product registration required. Verify full terms with Insightfuel at the time of purchase.

⚠ Warranty terms should be verified directly with the manufacturer.

📋 Compliance Resource Center: For state-by-state compliance requirements, fleet documentation, and securement training resources, visit the WheelchairStrap.com Compliance Resource Center.

Frequently Asked Questions

What does the Reach Key actually do? +

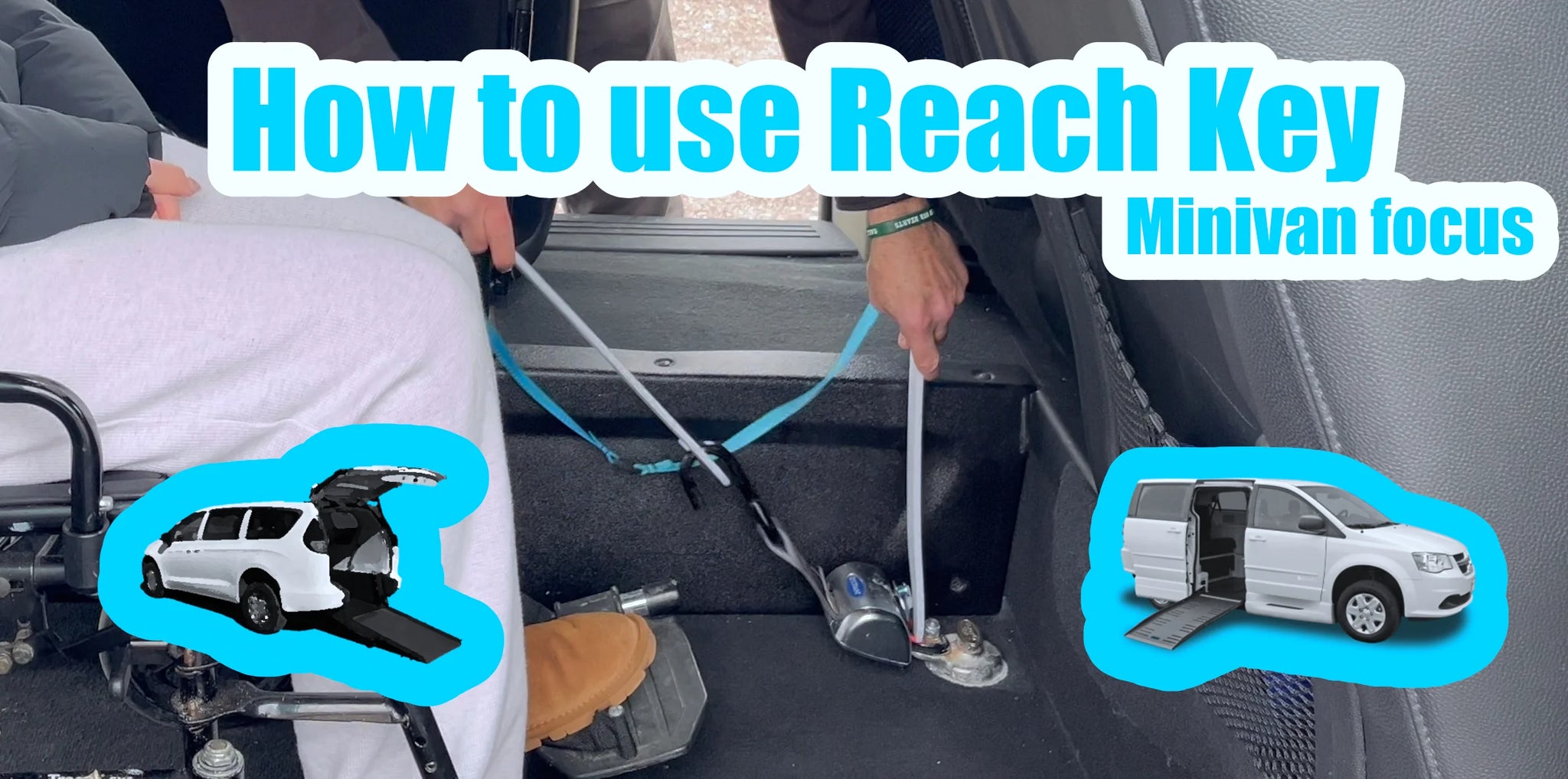

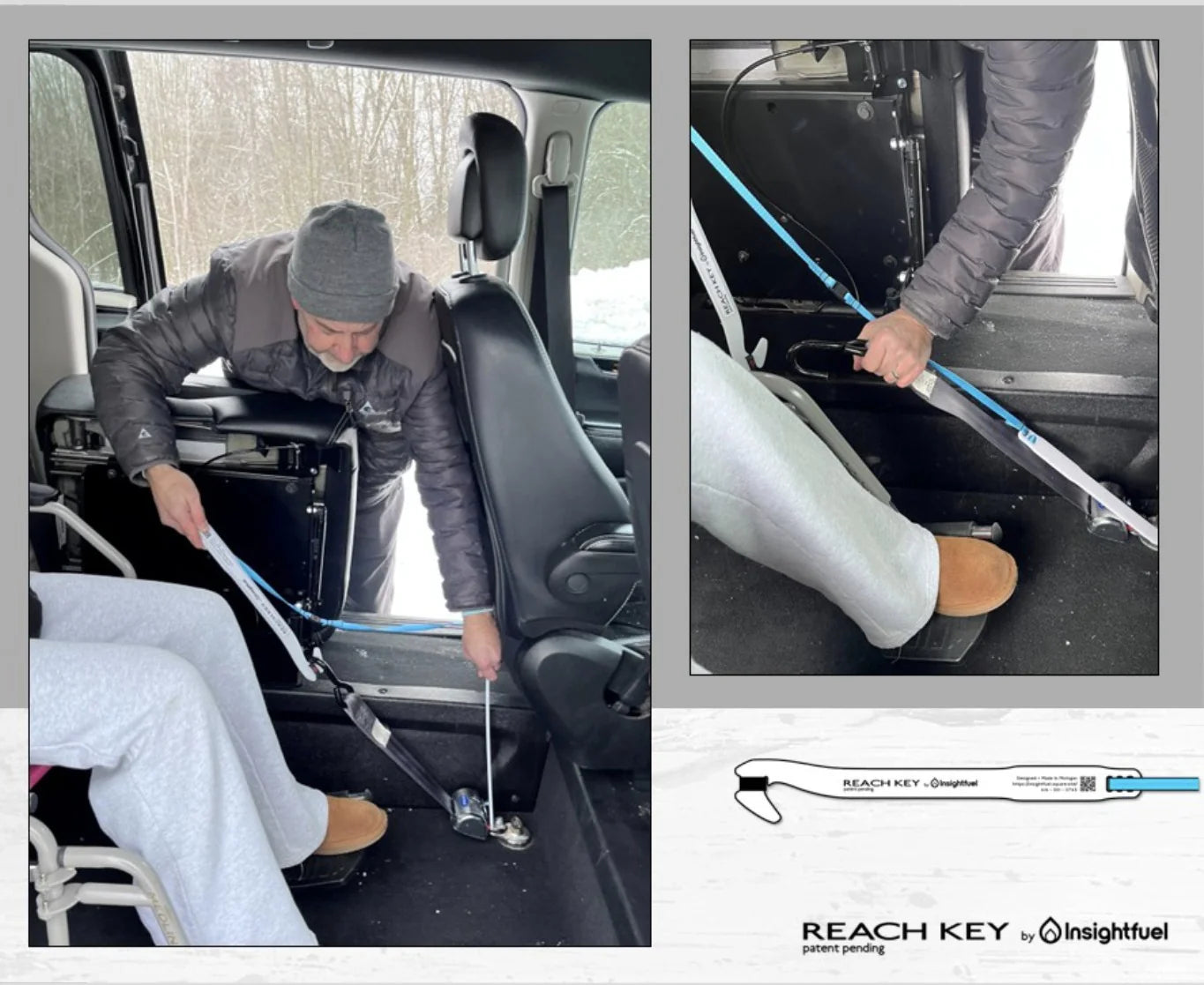

The Reach Key is an ergonomic tool designed to help operators access and activate floor-mounted retractor systems in wheelchair transport vehicles — without bending or crouching to floor level. It extends the operator's reach to the securement fitting, reducing physical strain during wheelchair loading and unloading. It is not a securement component itself; it's a daily-use tool for operators working with existing Q'Straint, Sure-Lok, or AMF Bruns retractor systems.

Is the Reach Key compatible with Q'Straint, Sure-Lok, and AMF Bruns systems? +

The Reach Key is designed for use with floor-mounted retractor systems across vehicle types. It accommodates various wheelchair loading and unloading use cases and is not specific to a single brand of securement hardware. Contact us at 800.884.6456 if you have a specific question about your fleet's hardware setup.

What is the breakaway strap and why does it matter? +

The ~34" breakaway connector strap keeps the two handles together when not in use. If the strap becomes snagged on a seat, wheel, or vehicle component during operation, the breakaway feature releases under load — preventing operator injury or equipment damage. This is a built-in safety element of the new Reach Key design that distinguishes it from a standard tethered tool.

How long does shipping take and what is the return policy? +

Allow approximately 1–2 weeks for shipment within the contiguous US. Large order quantities or shipments outside the contiguous US may result in additional lead time. Shipping cost is calculated at checkout. For return or warranty questions, contact us at info@wheelchairstrap.com or 800.884.6456.
