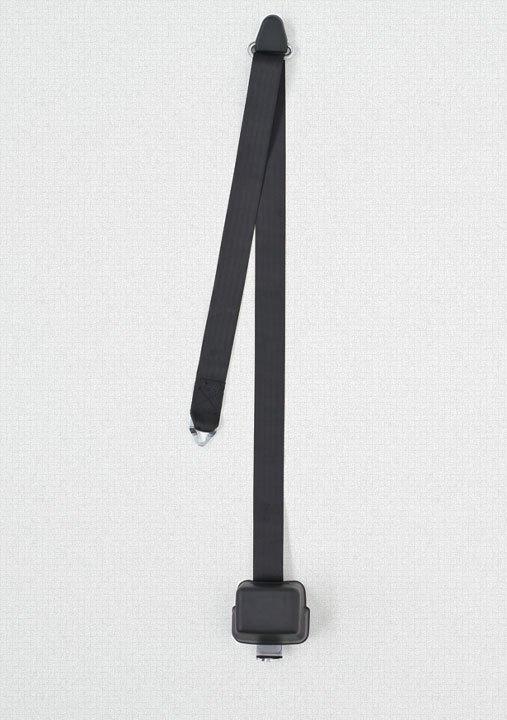

Retractable Fixed-Point Shoulder Belt
SKU: FE200604 Length: 112″
SKU: FE200604L Length: 136″
Retractable Fixed-Point Shoulder Belt provides automatic webbing adjustment. Web guide can be mounted directly to the vehicle sidewall or Series L Track with FE200745, FE200747 or FE200736 Mounting Hardware Kit. Retractor can be mounted to the vehicle floor or sidewall, or can be converted from a fixed-point to a track application with FE200747, FE201037 or FE201039 Mounting Hardware Kit.
Sure-Lok Occupant Restraint Systems provide a wide range of options, allowing you to select the products that are best suited for the needs of each user and the layout of each vehicle.
The 3 styles of Occupant Restraints:
Lap Belts, Shoulder Belts, or Integrated Combination Belts.
Occupant Restraints, when properly used with a complete Sure-Lok System (comprised of wheelchair tie-down, a complete occupant restraint system, including lap and shoulder belt), track and anchorages are designed to meet the following requirements where applicable:
30mph/20g Impact Test Criteria per SAE J2249
30mph/20g Impact Test Criteria per Canadian Z605 Standard
30mph/20g Impact Test Criteria per National Standards for School Buses
49 CFR Part 38 Americans with Disabilities Act (ADA)
49 CFR Part 571.222 (FMVSS 222) School Bus Passenger Seating and Crash Protection
FMVSS 302 Flammability Test
Certificates of Conformance available upon request
Occupant Restraints are not wheelchair securements. Always secure the occupant in the vehicle with a complete Sure-Lok Occupant Restraint System, consisting of lap and shoulder belts.
