What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

Q'Straint 1.5" L-Track / A-Track Anchorage Bolt | M7-6509

Vendor: Q'Straint
Regular price: $1.00
Sale price: $1.00
Unit price: per

Shipping calculated at checkout.

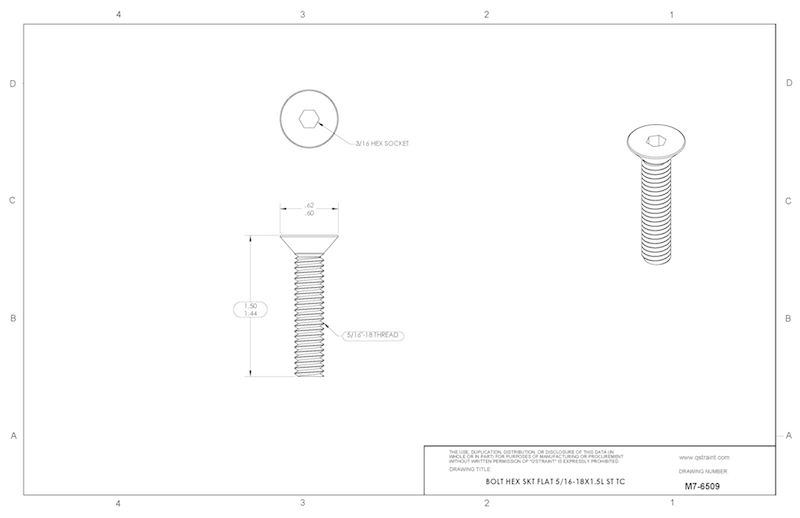

The M7-6509 is a 1.5" Grade 8 anchorage bolt used for L-Track and A-Track floor anchorages in wheelchair securement installations. This hex flat bolt (5/16" – 18 x 1.5") is the correct fastener for Q'Straint L-Track and A-Track floor anchorage systems.

SKU: M7-6509 | VENDOR: Q'STRAINT

Q'Straint 1.5" L-Track / A-Track Anchorage Bolt | M7-6509

🚚 Free Shipping on Orders Over $100🔩 Replacement Hardware🏷 Q'Straint

Key Features

🔩

Grade 8 Bolt

1.5" Grade 8 bolt for high-strength floor anchorage installations.

🔗

L-Track / A-Track Use

Specifically designed for Q'Straint L-Track and A-Track anchorage systems.

📐

Hex Flat Head

5/16"-18 x 1.5" hex flat design for proper torque and seating in track slots.

🔧

Replacement Hardware

Individual bolt sold separately for repair or replacement of anchorage hardware.

What's Included

Qty	Component	SKU
1	1.5" Grade 8 Hex Flat Anchorage Bolt (5/16"-18 x 1.5")	M7-6509

Full Feature Details

Key Feature Summary

Feature	Description
Grade 8 Bolt	1.5" Grade 8 bolt for high-strength floor anchorage installations.
L-Track / A-Track Use	Specifically designed for Q'Straint L-Track and A-Track anchorage systems.
Hex Flat Head	5/16"-18 x 1.5" hex flat design for proper torque and seating in track slots.
Replacement Hardware	Individual bolt sold separately for repair or replacement of anchorage hardware.

Vehicle Applications

🚌 School Bus🚌 Transit / City Bus🚐 Minivan / WAV🚑 Paratransit / NEMT🚂 Rail / Coach

Standards & Compliance

FMVSS 209Federal Motor Vehicle Safety Standard — Seat Belt Assemblies

📘 Compliance & Documentation: Visit our Compliance Resource Center.

🛡 Warranty: 90-day. *Registration required at qstraint.com for full coverage.

⚠ California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See qstraint.com/prop-65

Specifications

Specification	Detail
Brand	Q'Straint
SKU	M7-6509
Price	$1.00 — per bolt
Shipping	Free Shipping on Orders Over $100
Warranty	90-day
Size	5/16"-18 x 1.5"
Grade	8
Head Type	Hex Flat
Use	L-Track / A-Track Anchorage

Frequently Asked Questions

Is professional installation required? +

Yes. Q'Straint wheelchair securement systems must be installed by a qualified technician. Improper installation may void the warranty and compromise safety.

What is the warranty? +

Q'Straint offers a 90-day when registered at qstraint.com. See qstraint.com for full terms.

What vehicles is this compatible with? +

See Vehicle Applications above. Contact us at (972) 420-0800 or sales@wheelchairstrap.com for fleet questions.
