Sure - Lok | FE2011723 Lug Stud Fitting for L - Track - WheelchairStrap.com

Sure-Lok Lug Stud Fitting for L-Track | FE2011723

Vendor: Sure-Lok
Regular price: $13.00
Sale price: $13.00
Unit price: per

Shipping calculated at checkout.

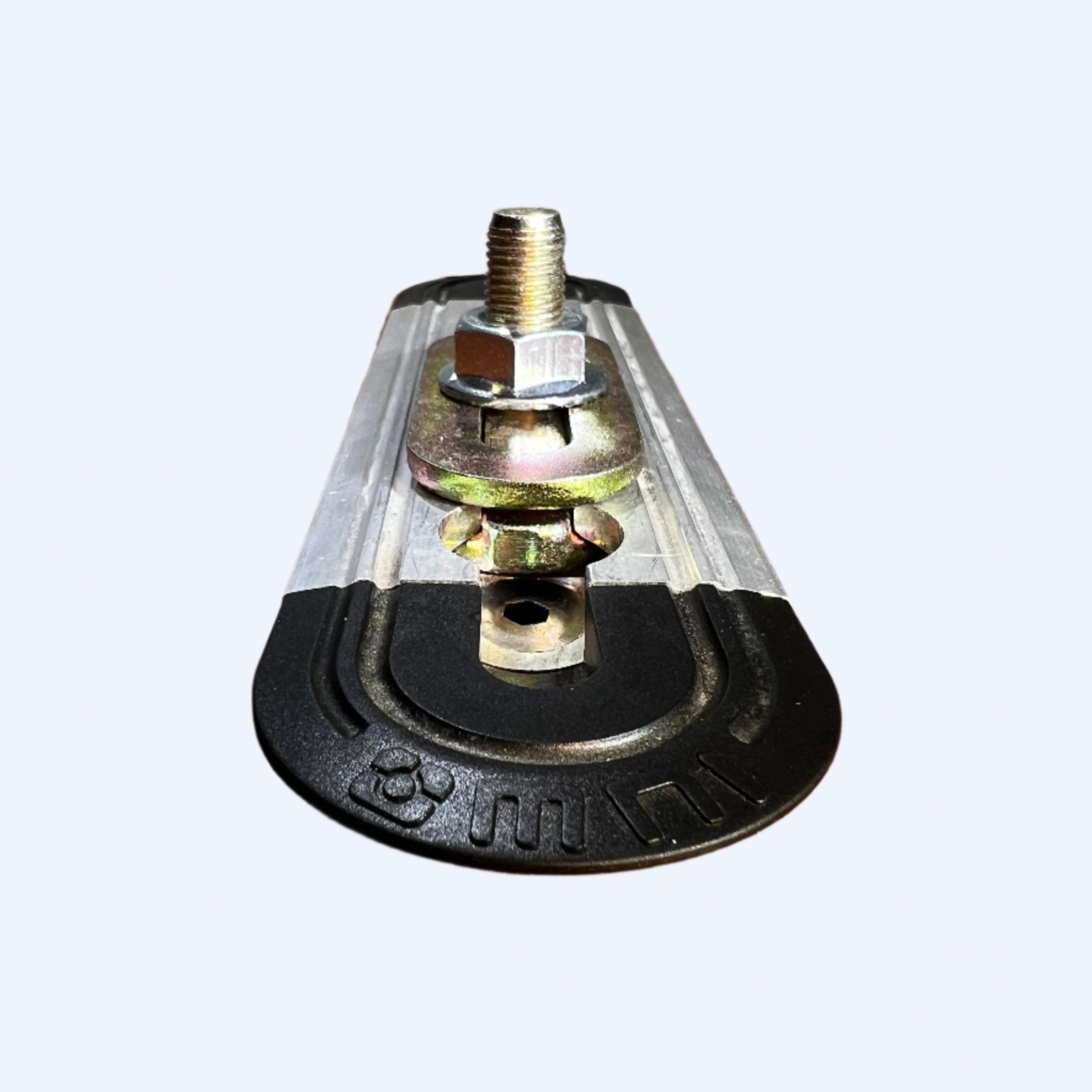

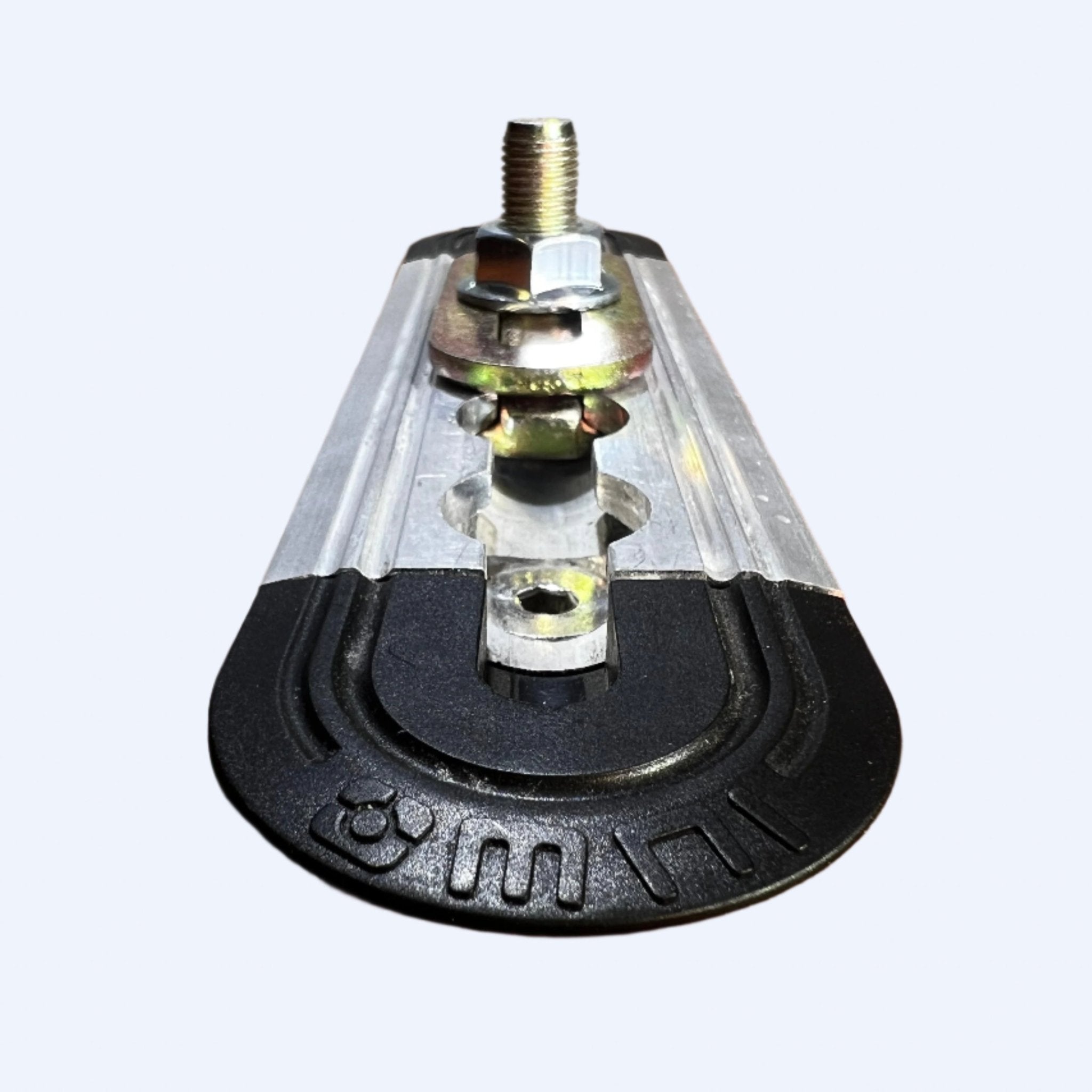

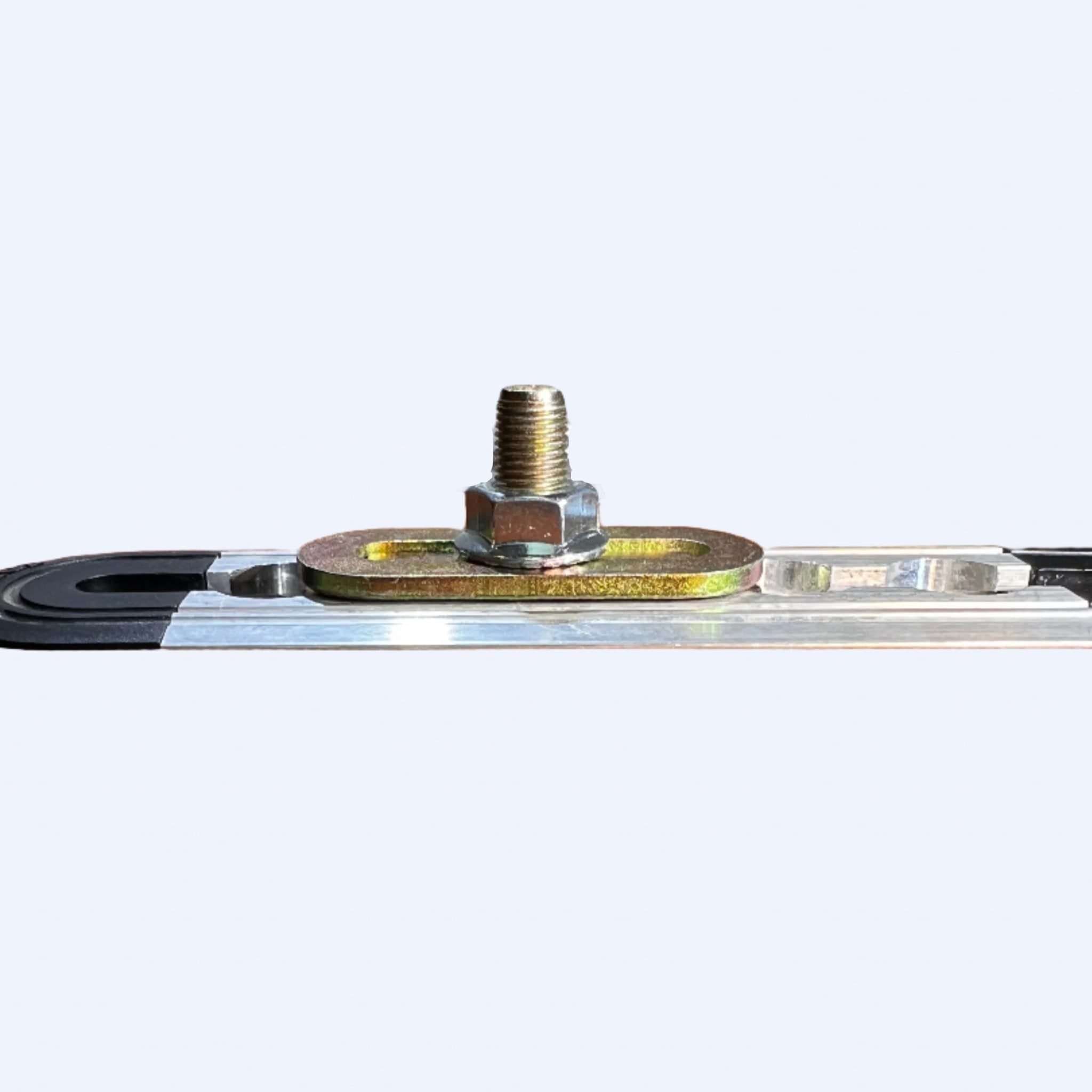

3 Lug Stud Fitting for L-Track - FE201172 Sure-Lok 3 Lug Stud Fitting for L-Track FE201172 provides the strongest movable anchor point for L-Track wheelchair securement systems, outperforming single or double stud fittings with superior load distribution across three contact points.

SKU: FE201172 | VENDOR: SURE-LOK

🚚 Free Shipping on Orders Over $100 🔩 Floor Anchorage Hardware 🏷 Sure-Lok

Key Features

🔩

Accepts L-Track Retractor Fittings

L-Track retractor fittings from Q'Straint, Sure-Lok, and AMF Bruns slide and lock directly into this floor pocket.

📐

Surface Mount

Mounts to the existing vehicle floor without cutting through the floor structure.

🔲

Low-Profile Flush Fit

Recessed flush with the floor — minimizes tripping hazards and keeps the vehicle interior clean when not in use.

✅

OMNI-Approved

Compatible with Q'Straint, Sure-Lok, and AMF Bruns retractors on OMNI-approved anchorage systems.

⭕

Oval Profile

Oval floor pocket design provides extra clearance for easy retractor fitting insertion and removal.

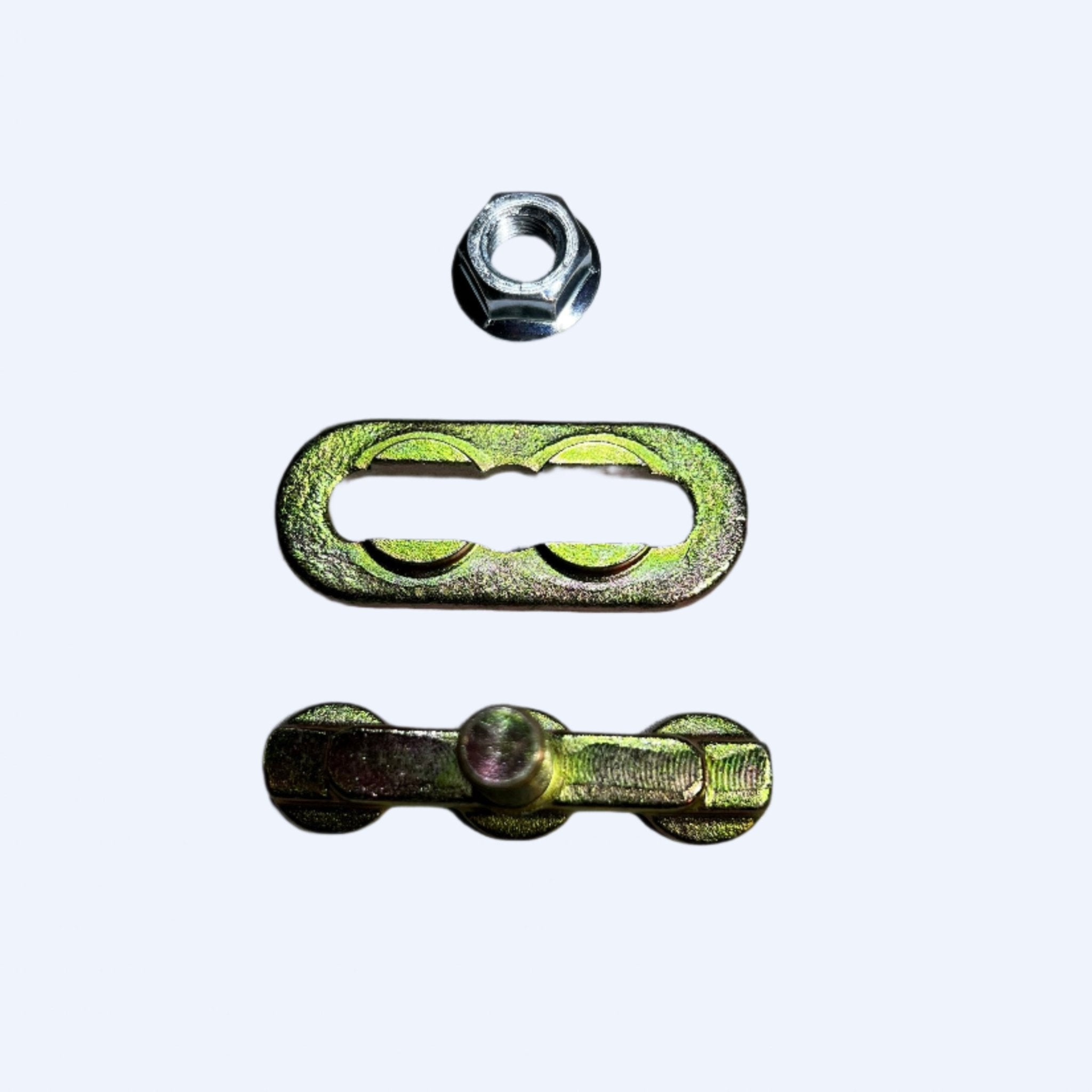

What's Included

Qty	Component	SKU
1	3 Lug L-Track Fitting	FE2011723
1	Oval Washer	No SKU
1	Hex Nut	No SKU

Full Feature Details

Sure-Lok 3 Lug Stud Fitting for L-Track FE201172 provides the strongest movable anchor point for L-Track wheelchair securement systems, outperforming single or double stud fittings with superior load distribution across three contact points.

Feature	Description
Triple Contact Strength	Three lugs grip L-Track slots ~50% stronger than double stud fittings.
Universal L-Track Compatible	Fits all standard 2" aluminum L-Track profiles (flange, recessed, surface).
Spring-Loaded Insertion	Quick snap-in/out positioning without tools.
Commercial Grade	Forged steel construction for daily fleet securement.
Complete Kit	Ready-to-install with washer and nut included.

Load Ratings (Typical)

Fitting Type	Working Load Limit	Breaking Strength
Single Lug	1,333 lbs	4,000 lbs
Double Lug	2,000 lbs	6,000 lbs
3 Lug (FE201172)	3,000+ lbs	9,000+ lbs

Standards & Compliance

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 222School Bus Passenger Seating & Crash Protection

FMVSS 302Flammability of Interior Materials

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

🛡 Warranty: 1-year limited. Verify warranty terms at sure-lok.com.

⚠ Warranty terms should be verified directly with the manufacturer.

📄 Installation & User Guide: View Installation & User Guide List

Specifications

Specification	Detail
Brand	Sure-Lok
SKU	FE201172
Price	$13.00 — price shown is per unit
Shipping	Free Shipping on Orders Over $100
Warranty	1-year limited
Use / Installation	Professional installation required by a qualified WAV modifier or accessibility vehicle technician.

Frequently Asked Questions

What is L-Track? +

L-Track (also called aero track) is the standard floor rail system used in wheelchair-accessible vehicles. Retractors and other equipment attach to L-Track via fitting hardware that slides along the track and locks into position.

Do I need professional installation? +

Yes. Floor anchorage components must be installed by a qualified WAV (wheelchair-accessible vehicle) modifier or certified accessibility vehicle technician.

How many floor anchors do I need? +

A standard 4-point wheelchair securement position requires 4 floor anchorage points — typically 2 rear and 2 front. Contact us with your vehicle type and number of wheelchair positions for a precise count.

Are all L-Track systems compatible? +

Q'Straint, Sure-Lok, and AMF Bruns retractors are compatible with OMNI-approved L-Track. Verify fitting compatibility before purchase.
