What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

AMF Bruns | H470254 - 5100 Retractable Shoulder Belt Height Adjuster, L - 90° Bracket on Bottom - WheelchairStrap.com

AMF Bruns Retractable Shoulder Belt Height Adjuster, L-Track on Top, 90° Bracket on Bottom | H470254-5100

Vendor: AMF Bruns
Regular price: $150.00
Sale price: $150.00
Unit price: per

Shipping calculated at checkout.

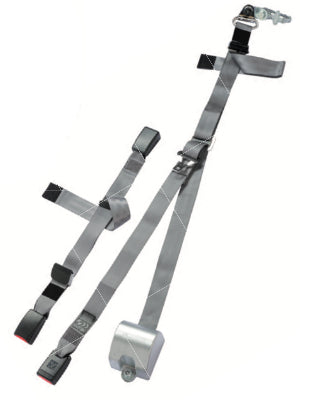

Achieve perfect shoulder belt positioning for any passenger with the AMF Bruns Retractable Shoulder Belt Height Adjuster. This complete kit features L-Track fitting on top and a 90° bracket on bottom, providing secure, adjustable upper body protection for wheelchair passengers in transport vehicles.

SKU: H470254-5100 | VENDOR: AMF BRUNS

✔ Free Shipping 🏷 AMF Bruns

Key Features

✅

Quality Construction

Built to complement your existing wheelchair securement system.

🔧

Easy to Use

Designed for daily use without special tools or training required.

What's Included

Qty	Component	SKU
1	AMF Bruns Retractable Shoulder Belt Height Adjuster, L-Track on Top, 90° Bracket on Bottom	H470254-5100

🛡 Warranty: 1-year limited. Verify warranty terms at amfbrunsamerica.com.

⚠ Warranty terms should be verified directly with the manufacturer.

📄 Installation & User Guide: View Installation & User Guide List

📄 Product Documents: Anchorage installation instructions.

Full Feature Details

The manual height adjuster allows you to customize belt positioning for passengers of different sizes, ensuring the shoulder belt crosses the shoulder centrally for optimal safety. The retractable design maintains constant tension and automatically retracts when disconnected, keeping your vehicle's interior clean and organized.

Feature	Description
Manual height adjuster	Customize belt position for passengers of all sizes
L-Track fitting on top	Secure attachment to L-track floor rail system
90° bracket on bottom	Stable mounting angle for proper belt alignment
Retractable design	Constant tension with automatic retraction when disconnected
Adjustable shoulder belt	Ensures belt crosses shoulder center for optimal safety

Specifications

Specification	Detail
Brand	AMF Bruns
SKU	H470254-5100
Price	150.00 — price shown is per unit
Shipping	Free Shipping
Warranty	1-year limited
Use / Installation	Follow manufacturer instructions. Consult a qualified technician if vehicle integration is required.
