What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

Sure-Lok | FF627-4C FF600 Wheelchair Tie-Down Retractor Kit For L-Track w/ Buckle And Tab Connection

Vendor: Sure-Lok
Regular price: ~~$468.95~~
Sale price: $275.00
Unit price: per

Shipping calculated at checkout.

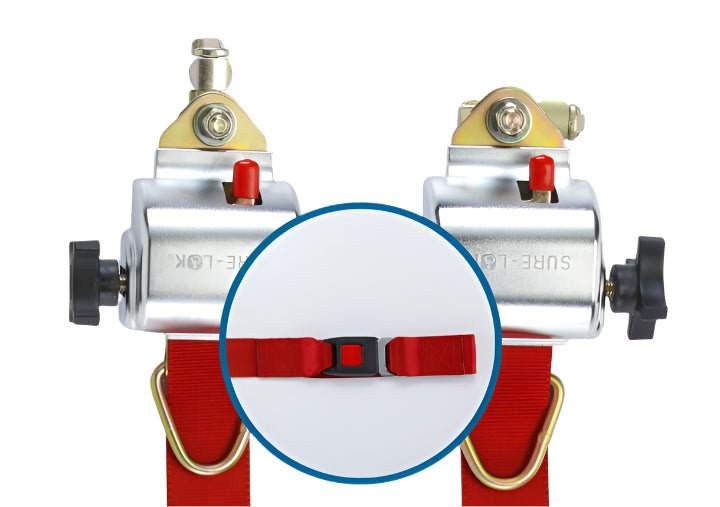

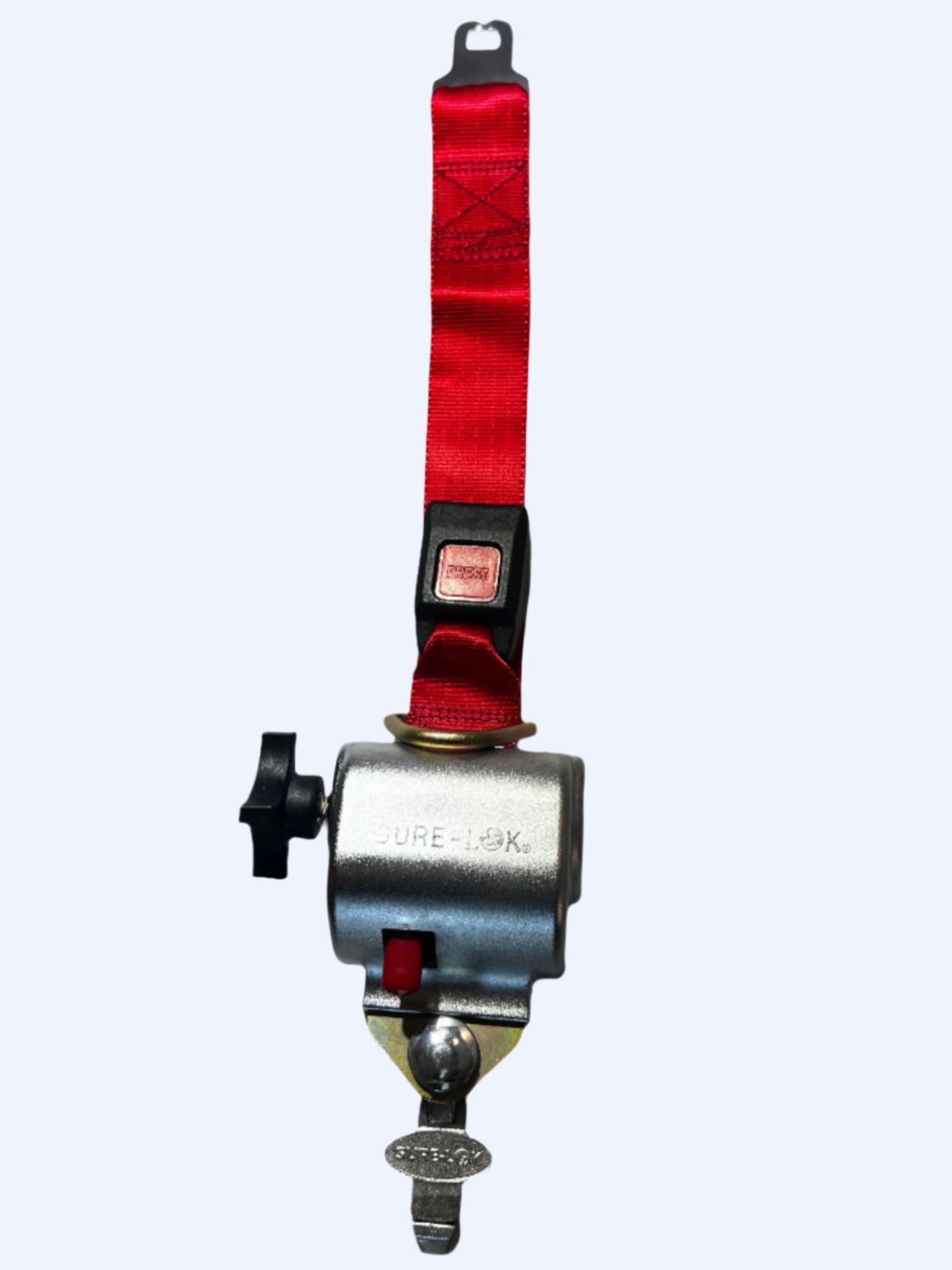

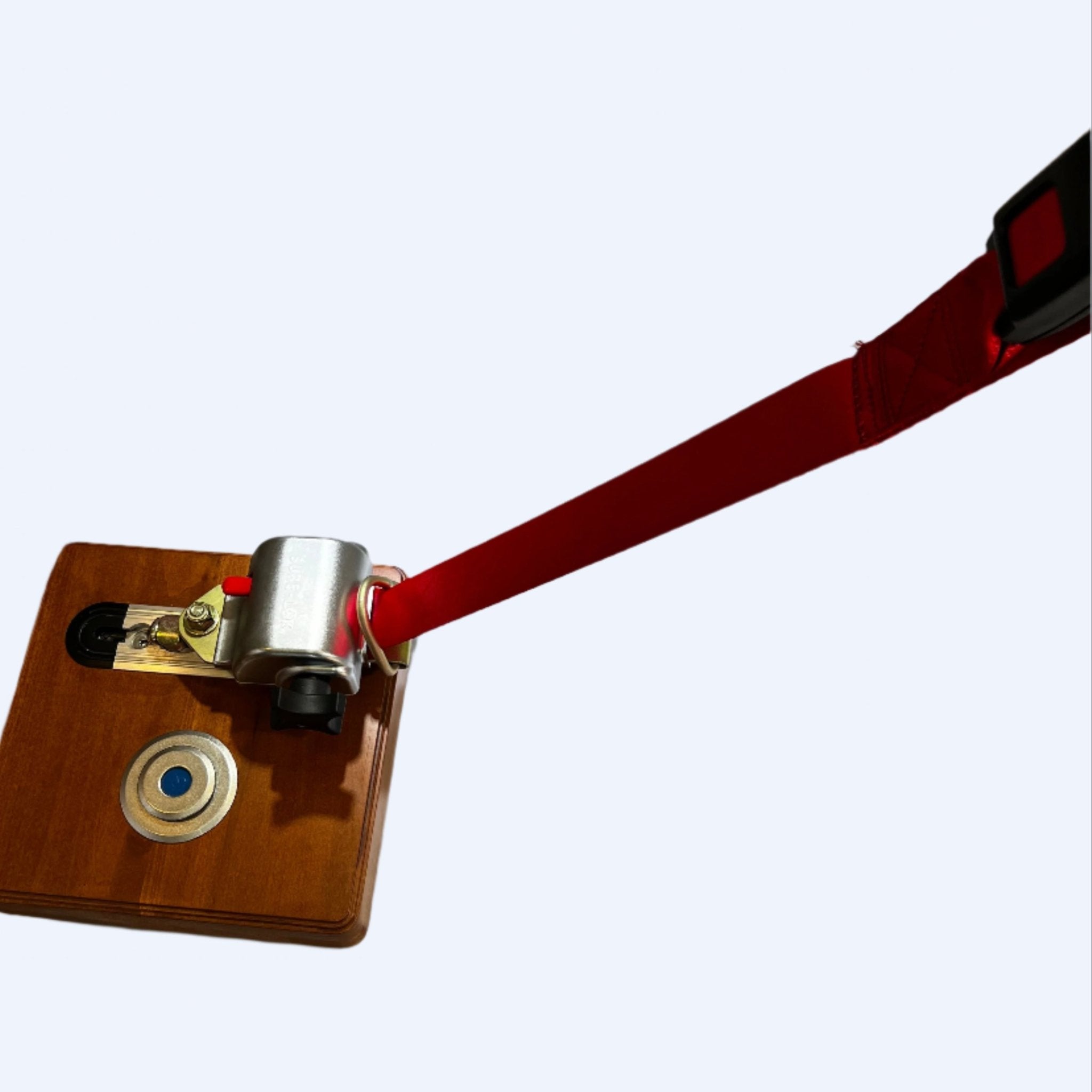

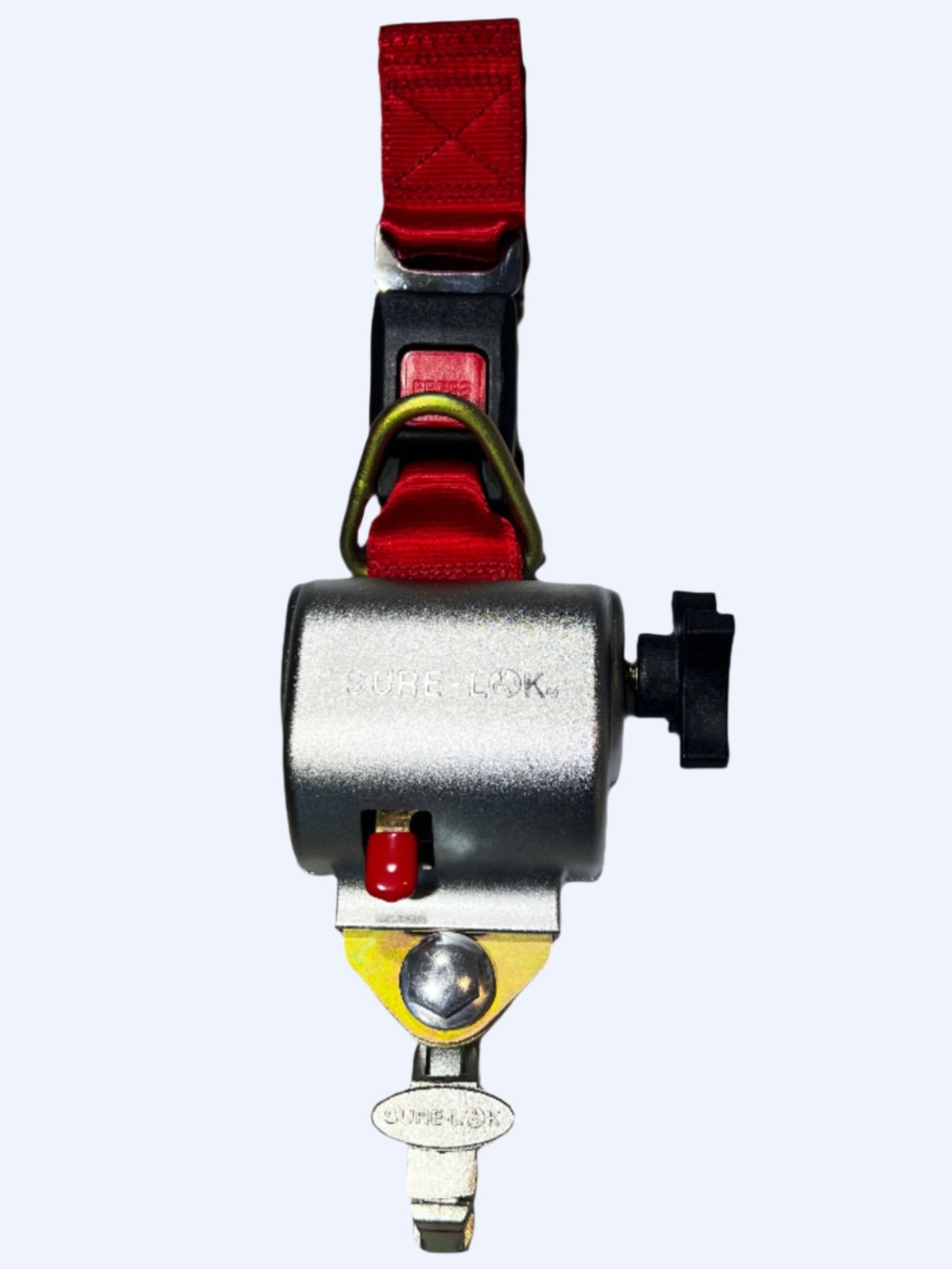

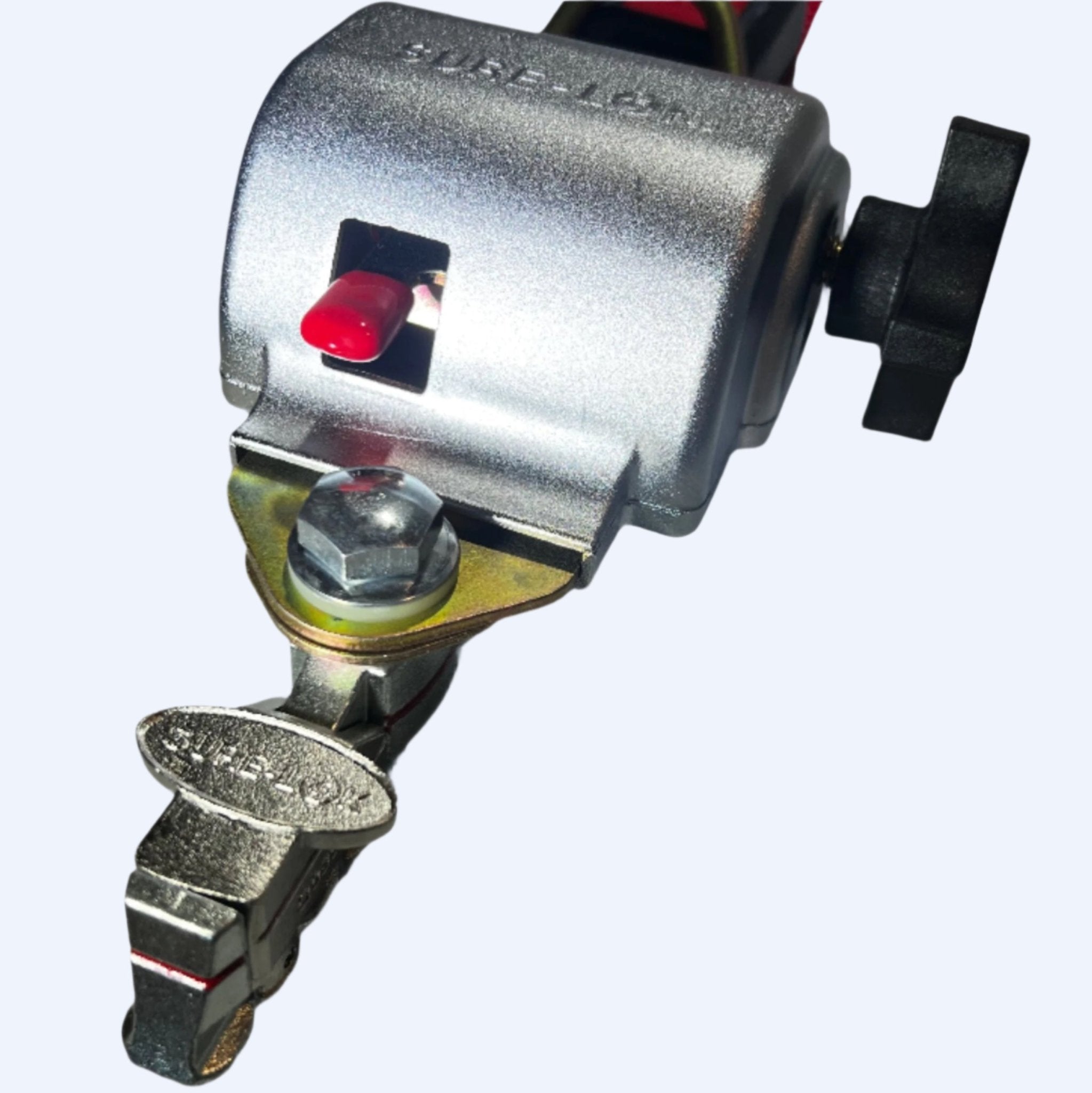

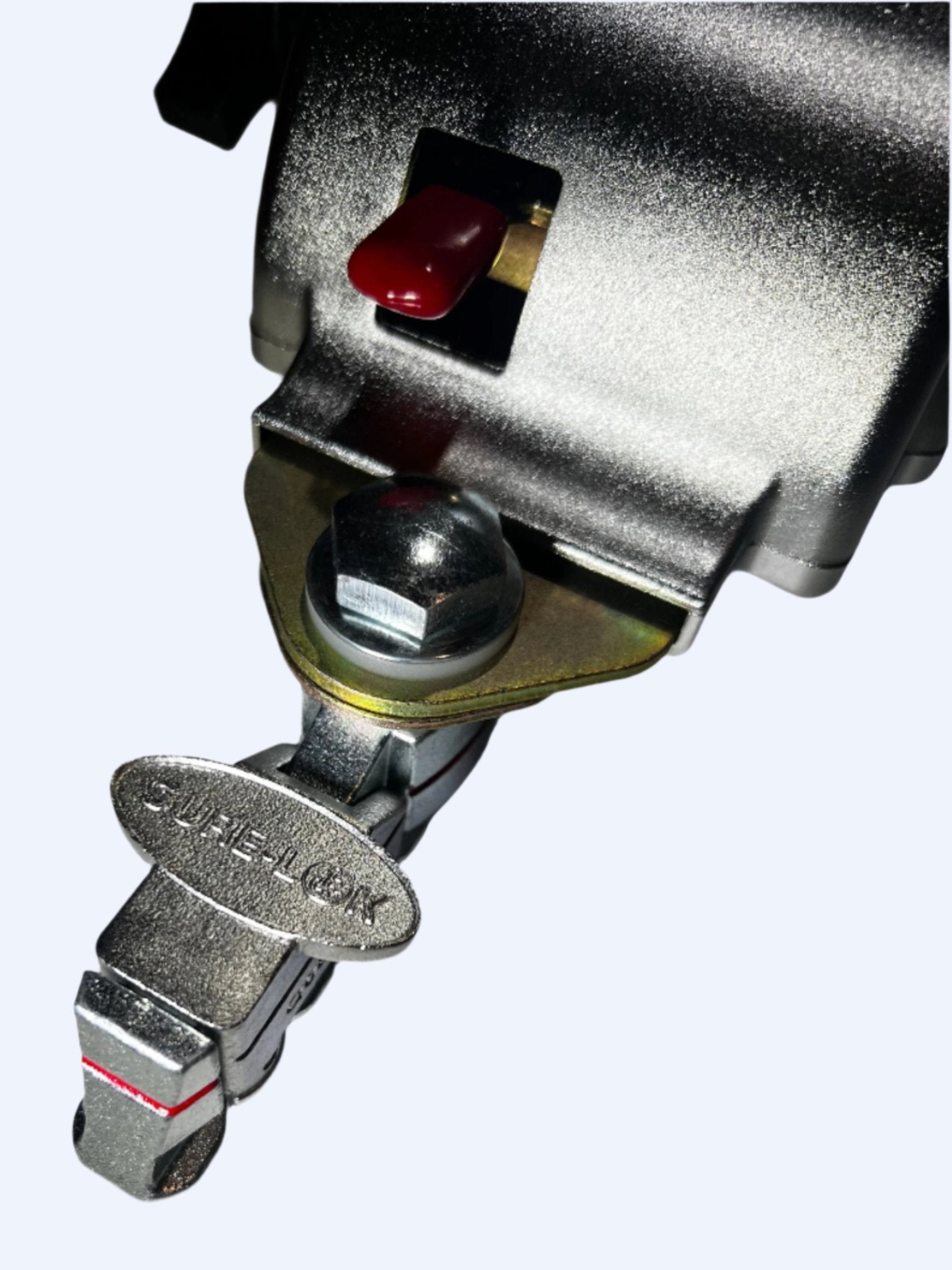

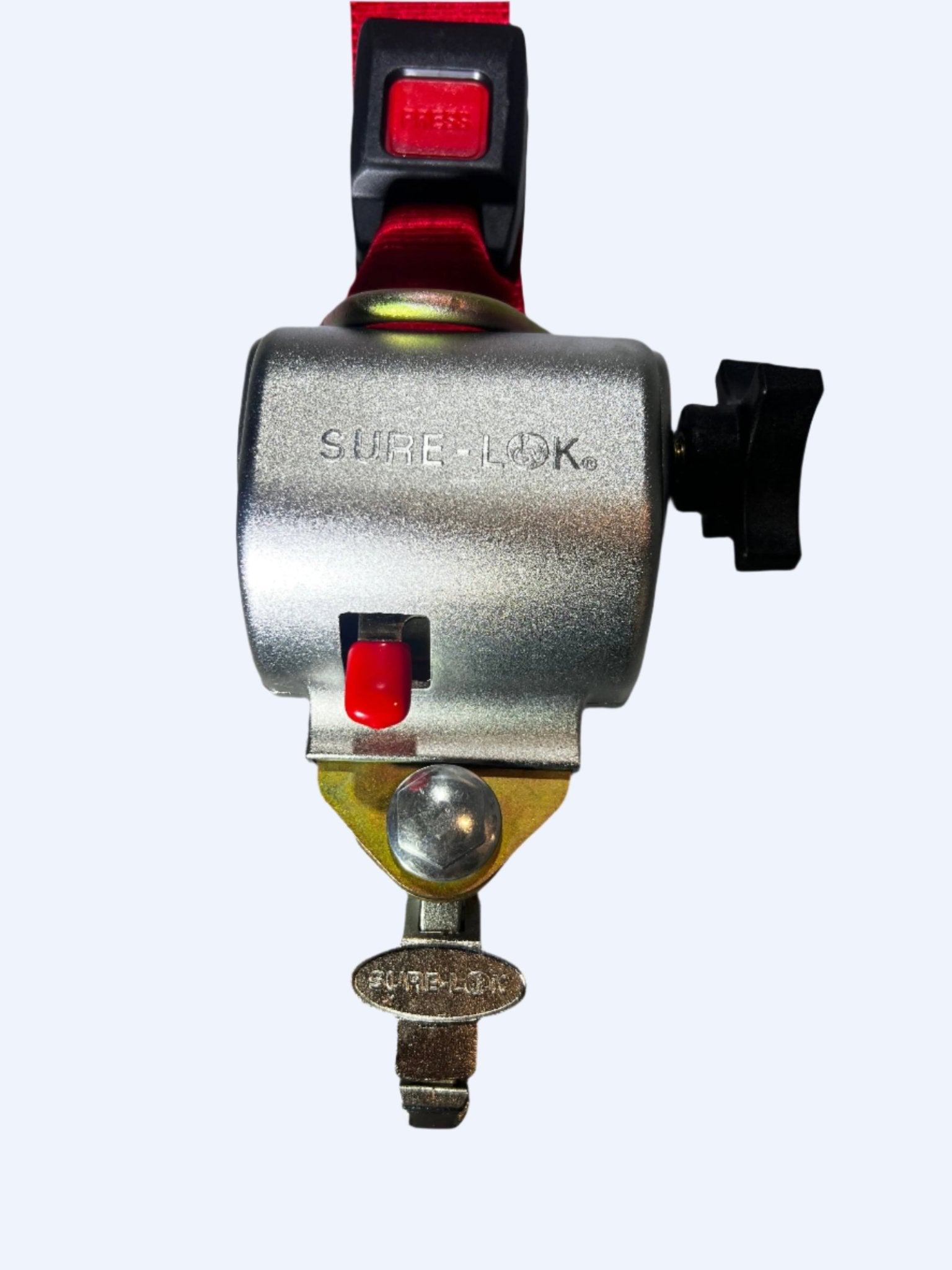

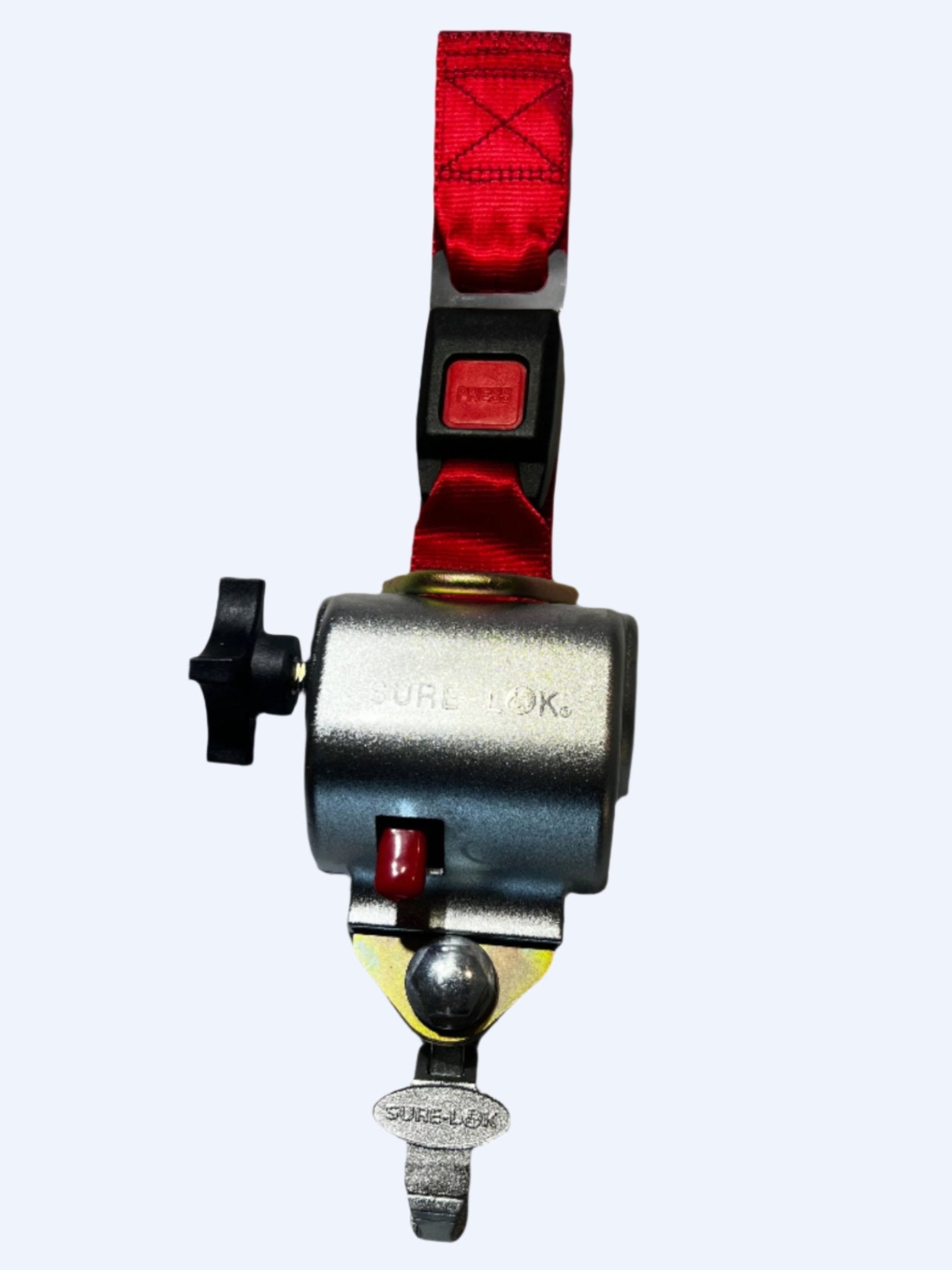

FF600 Series Wheelchair Retractor Kit For L-Track With Buckle And Tab Connection - FF627-4C

Sure-Lok FF627-4C FF600 Wheelchair Retractor Kit for L-Track with Buckle/Tab Connection provides proven 4-point Series L-Track securement with ergonomic retractors and secure buckle/tab wheelchair frame attachments for transit applications.

FF600 Restraint Brochure

Kit Contents:

Component	Quantity	SKU/Link
Right-Hand FF600 Retractor (L-Track/Buckle-Tab)	2	FE200855
Left-Hand FF600 Retractor (L-Track/Buckle-Tab)	2	FE200907

KEY FEATURES:

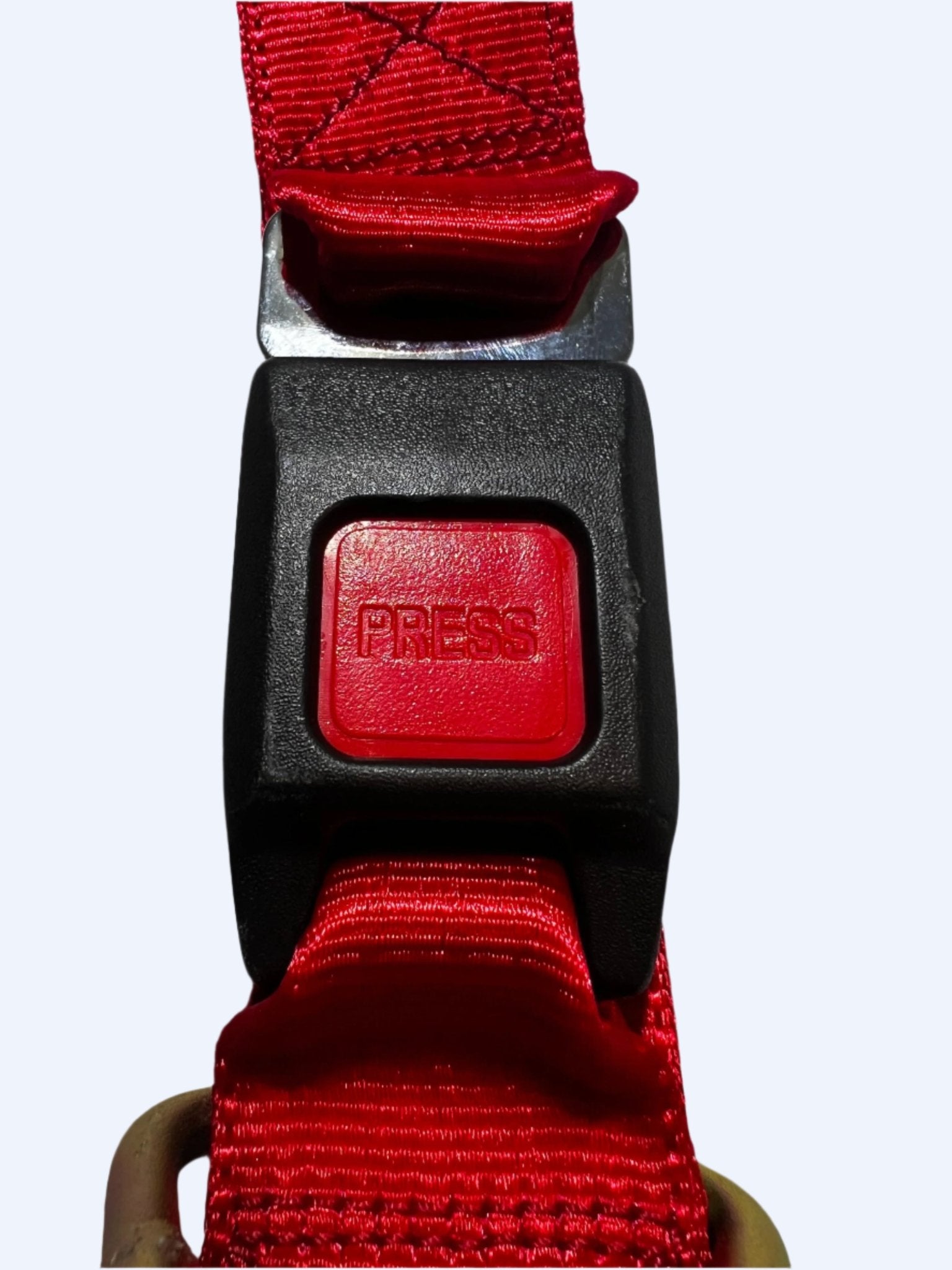

Buckle/Tab Attachments: Positive-lock wheelchair frame corner connections.
Dual 24-Tooth Sprockets: Reduces tensioning effort by 60% vs. standard cranks.
Pivoting L-Track Fittings: Self-aligns for optimal 45° securement angles.
Ergonomic Chrome Handles: Glove-friendly grip with chemical-resistant finish.
Positive-Lock Retractors: Secures at any webbing length including full retraction.

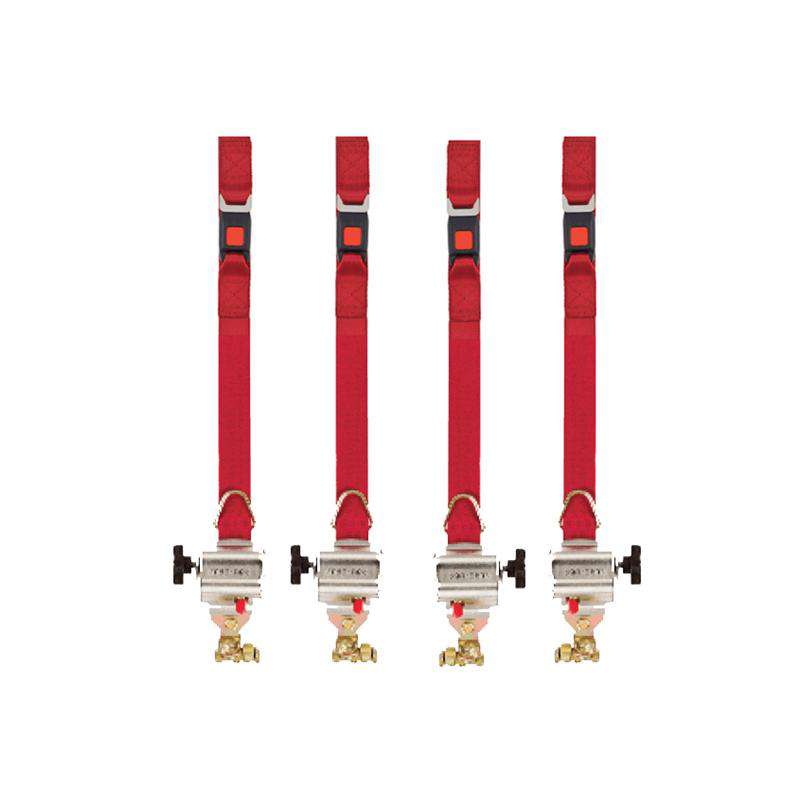

This reliable FF600 kit includes 2 right-hand (FE200855) and 2 left-hand (FE200907) retractors featuring dual 24-tooth sprocket handles for effortless tensioning and pivoting L-Track fittings for optimal 45° belt alignment. Meets SAE J2249, FMVSS 222, ADA, and CSA Z605 30mph/20g standards when used in complete Sure-Lok systems.

Standards Compliance:

Standard	Test Criteria
SAE J2249	30mph/20g impact
CSA Z605	30mph/20g Canadian
FMVSS 222	School bus crash protection
ADA 49 CFR Part 38	Accessibility
FMVSS 209/210	Seat belt assemblies

Compatible Components:

Component	SKU/Link	Purpose
L-Track (100")	FE753NA100-04-3	Floor anchorage
Occupant Restraints	FE200868-4	Lap/shoulder belts
Filler Strips	FE200751	ADA T302 compliance
End Caps	QC06058 Black	Track finishing

SKU: FF627-4C
