What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

AMF Bruns | K534225 - 1000HL 4 BronzeSeries Retractors J Hook & L - Track with Static Lap Belt, Static Shoulder Belt

REPLACEMENT Bronzeseries - PROTEKTOR® 2.0 System Wheelchair Restraints - ATTACHMENT OPTIONS

Vendor: AMF Bruns
Regular price: $135.95
Sale price: $135.95
Unit price: per

Shipping calculated at checkout.

Retractor System w/

Fitting

Quantity

Quantity must be 1 or more

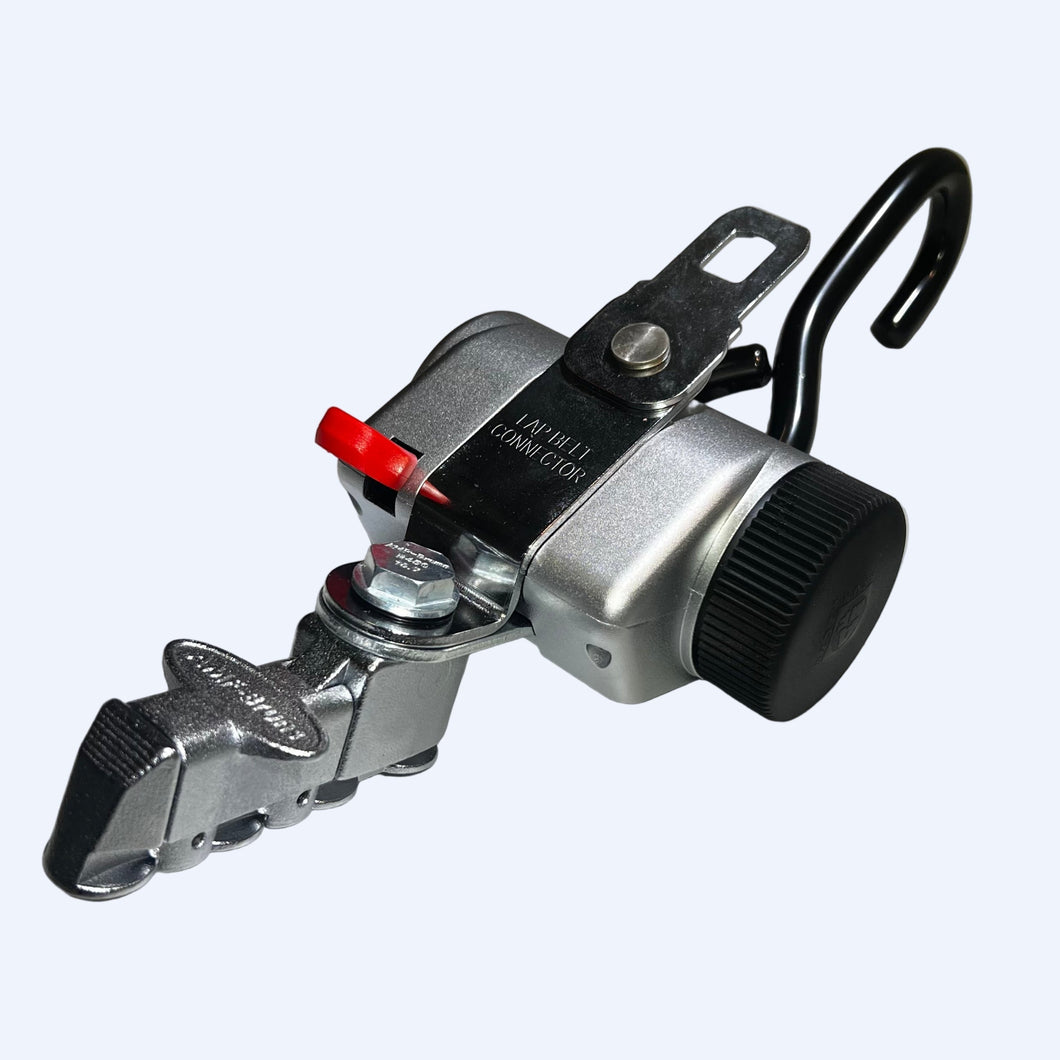

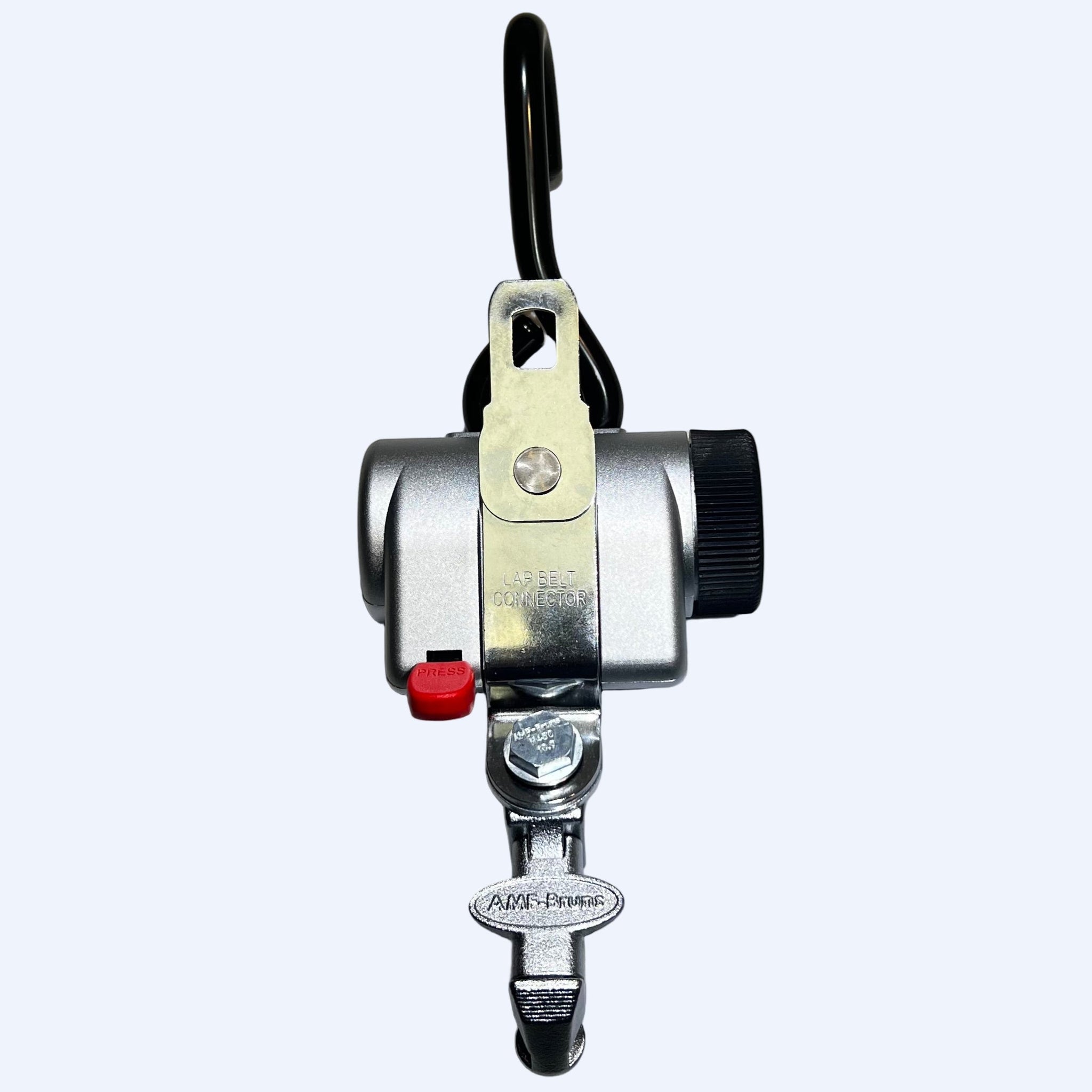

The new-generation PROTEKTOR 2.0 BronzeSeries retractor strap replaces the legacy BlackSeries PROTEKTOR and delivers a single replacement retractor for 4-pack kits with award-winning design, intuitive operation, and superior safety. Built for daily commercial use, this manual retractoring system combines a zinc die-casting cover, ABS single-tensioning knob, and compact low-profile design for reliable wheelchair securement in a wide range of accessible vehicles.

SKU: H 470 534 HL | VENDOR: AMF BRUNS

REPLACEMENT Bronzeseries - PROTEKTOR® 2.0 System Wheelchair Restraints - ATTACHMENT OPTIONS

✔ Free Shipping 🔄 Replacement Retractor 🏷 AMF Bruns

Key Features

🎛

Single Tensioning Knob

Single knob tensioning secures wheelchair and occupant quickly and reliably.

🔗

J-Hook Design

Reduces belt twisting and ensures proper securement angle — accommodates virtually all wheelchair designs.

📐

Low Profile & Compact

No mounting bracket required — retractors fit under most wheelchair footrests.

♿

Universal Design

Accommodates virtually all wheelchair designs, including scooters.

🏅

Red Dot Design Award 2020

Recognized for combination of safety engineering and operator-friendly design.

What's Included

Qty	Component
1	REPLACEMENT Bronzeseries - PROTEKTOR® 2.0 System Wheelchair Restraints - ATTACHMENT OPTIONS

Legacy to New Part Number Replacement

Legacy SKU	New Part Number
H 350 560 CV	H 450 530 HM
H 350 560 CM	H 450 530 HM
H 350 530 HV	H 450 530 HM
H 350 530 HM	H 450 530 HM
H 350 505 LV	H 450 530 HM
H 350 505 LM	H 450 530 HM

Full Feature Details

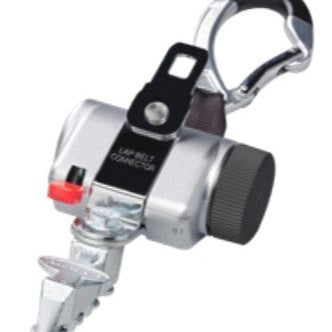

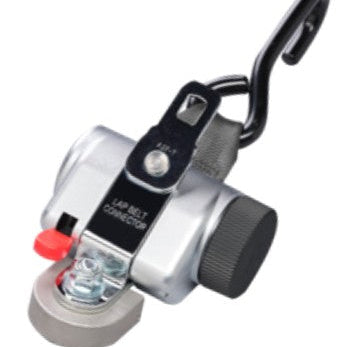

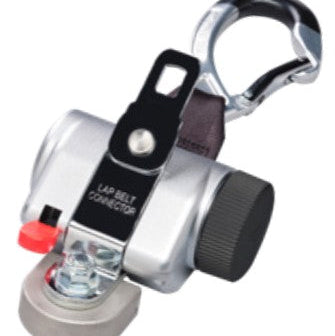

Designed for use with L-Track or Smart Fitting floor anchorages, the BronzeSeries connects to wheelchairs using J-hooks, carabiners, or loops. It is fully compatible with all wheelchairs and vehicles when paired with the proper occupant securement system, making it a practical upgrade for fleet applications that need durability, flexibility, and compliance.

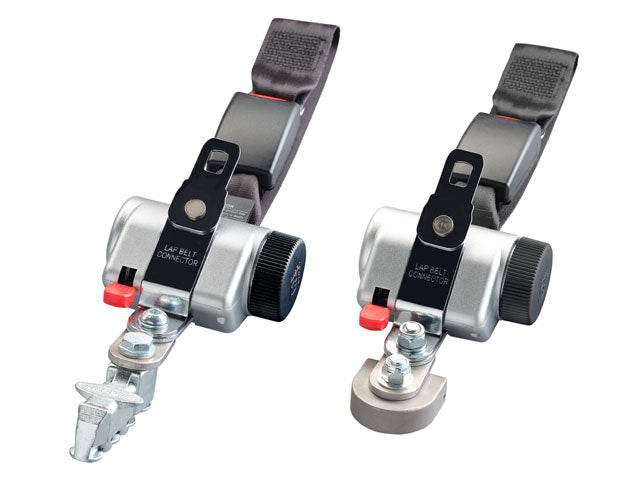

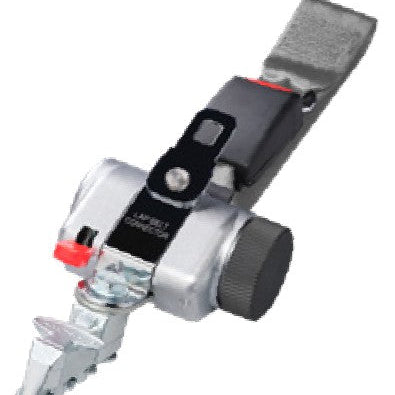

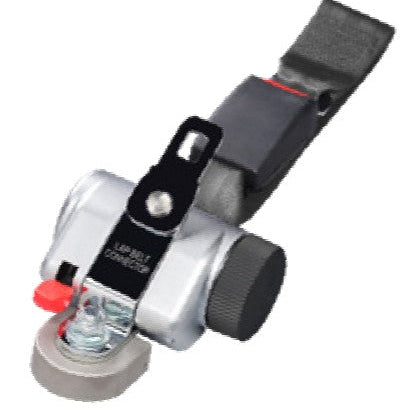

This SilverSeries EX retractor excels in safety, aesthetics, and functionality with premium zinc die-casting covers for exceptional robustness. It anchors to floors via 4-stud or mono fittings and connects to wheelchairs using loops, hooks, or carabiners. Pair it with pelvis and shoulder belts for complete ISO 10542-compliant occupant securement.

Feature	Description
Zinc Die-Casting Cover	Noble, durable performance for robust daily use
Fully Automatic Pull-Out	Self-tensioning with rotary knob for effortless adjustment
Compact Low-Profile Design	Easy, intuitive operation with minimal floor obstruction
Versatile Attachments	Loop, hook (J-hook), or carabiner for wheelchair connection
Floor Anchorage Options	4-stud fitting or mono (Smart) fitting
Single Replacement Unit	For 4-pack securement kits (replace one retractor at a time)

Vehicle Applications

🚌 School Bus🚌 City Bus / Transit Bus🚌 Coach Bus🚆 Rail / Community Transit🚑 Non-Emergency Medical Transport (NEMT)🚐 Wheelchair-Accessible Van (WAV)🚗 Personal Vehicle / Minivan

Standards & Compliance

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 302Flammability of Interior Materials

CMVSS 209Canadian Motor Vehicle Safety Standards — Seat Belt Assemblies

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

AS 2596Occupant Restraint Systems — Australia

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

🛡 Warranty: 3-year limited. Verify warranty terms at amfbrunsamerica.com.

⚠ Warranty terms should be verified directly with the manufacturer.

📄 Installation & User Guide: View Installation & User Guide List

📄 Product Documents: Bronze Series Product Sheet PDF | Protektor Installation Manual | Protektor User Manual

Specifications

Specification	Detail
Brand	AMF Bruns
SKU	H 470 534 HL
Price	From 102.97 — price shown is per unit (varies by option)
Shipping	Free Shipping
Warranty	3-year limited
Use / Installation	No special installation required — designed for daily operator use.

Frequently Asked Questions

Is this a replacement for an existing retractor? +

Yes — this is a single replacement retractor unit. Match the brand, series, and fitting type to your existing system.

Do all four retractors need to be the same? +

Yes. All four retractors at each wheelchair securement position should be the same brand and series for system-level compatibility and compliance.

What fitting type do I need? +

Match to your existing floor anchorage: L-Track (most common in transit), Slide 'N Click (Q'Straint system), A-Track, or Smart Fitting (AMF Bruns). Check your current retractors or floor hardware to confirm.

Does this include floor hardware or a belt? +

No — this is a single retractor unit only. Floor anchorage and occupant belts are purchased separately.

Related Products

🥉

AMF Bruns BronzeSeries 4-Pack Kit

$440

🥈

AMF Bruns SilverSeries 4-Pack Kit

View Price

🔩

L-Track Floor Pocket 6-Pack

$148

🪢

AMF Bruns Occupant Belts

Multiple options

Need help identifying the right replacement retractor?

Tell us your vehicle, current model, and wheelchair type — we'll confirm the correct unit.

📞 800.884.6456 ✉ Email Us Contact Form
