The Q'Straint DropLok Universal Securement Kit (Large) is the case-side retrofit component that brings your existing large EMT bags, hard-shell ALS cases, and full-size LokBox cases into the DropLok crash-certified securement system. Attach the Stabilizer Plate and Securement Plate to your large portable case and it becomes fully compatible with any DropLok Easy Mount with Safe Release (Q10-005) installed in the vehicle. The complete DropLok system is SAE J3043 certified — the same crash standard Q'Straint applies to cot securement systems — meaning your large ALS bag stays locked to the wall in a frontal or side-impact event just as securely as your patient's cot. Keep your existing cases. Make them crash-compliant.
Q'Straint DropLok • Universal Securement Kit — Large
DropLok Retrofit Kit — Large
Part No. Q10-004
Retrofit your existing large EMT bags, hard-shell ALS cases, and full-size LokBox cases for use with the DropLok SAE J3043 crash-certified wall mount system. Includes Stabilizer Plate, Securement Plate with Straps and Buckles, and all installation hardware. For large cases that exceed the Q10-003 Small kit range.
✓ Free Shipping
✓ SAE J3043 System Certified
△ 90-Day Lead Time
Large LokBox & Hard-Case Compatible
$497.42 | Requires Q10-005 Safe Release System — sold separately
🛡
Part of the SAE J3043 Crash-Certified DropLok System
The complete DropLok system — Easy Mount + Retrofit Kit — is crash tested and certified per SAE J3043, including SAE J2917 (frontal) and SAE J2956 (side impact). Crash-ready up to 25 lbs. Bring your large ALS cases up to regulation.
⚠ Current Lead Time: Approximately 90 Days. Contact us for fleet orders or time-sensitive deployments: 800.884.6456.
How the DropLok System Works
-
Install the Easy Mount with Safe Release (Q10-005) — 4 bolts, mounted vertically on the ambulance wall or horizontally on a countertop or module shelf.
-
Attach this Retrofit Kit (Q10-004) — secure the Stabilizer Plate and Securement Plate with Straps to your large EMT bag or full-size LokBox case.
-
Load and Lock — engage the retrofitted large case into the wall-mounted Safe Release. It secures automatically. No extra steps.
-
Instant Deployment — trigger the top button or bottom release; the large case is in your crew's hands in one motion.
Key Features
🛡
SAE J3043 System Certified
The DropLok system including this large kit is crash certified to SAE J3043 — dynamic and static, frontal and side impact. Brings your full-size ALS cases up to EMS vehicle mount standards.
📦
Retrofits Large Cases & LokBox
No need to replace your agency's current large hard-shell cases or full-size soft bags. The Large Retrofit Kit brings them into DropLok compliance — protecting your agency's equipment investment.
📌
Full-Size ALS Case Ready
Designed for large ALS tackle boxes, full-size jump bags, and Q'Straint LokBox cases that exceed the Small Retrofit Kit (Q10-003) dimensions. If your large case rides in the ambulance, this kit secures it.
👥
Muscle Memory Design
The load-and-lock procedure is so intuitive that most crews master the DropLok system on the first run — critical in EMS where cognitive load is high and every second counts.
🆕
Ergonomic & Durable
Industry-standard construction: ergonomic, customizable, reflective, and built for repeated use under demanding EMS conditions shift after shift.
⚙
Complete Hardware Included
Everything needed for standard large case installation ships in the kit — no additional hardware sourcing required. Ready to mount from the box.
What's Included
| Item |
Description |

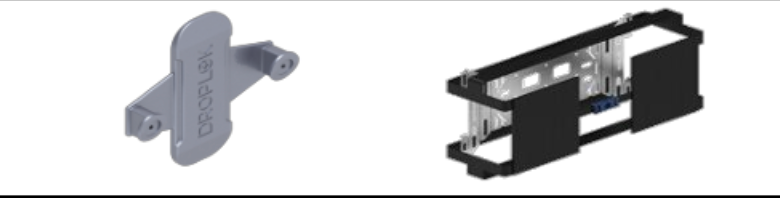

| 1× Stabilizer Plate |
Mounts to the large EMT bag or LokBox case; creates the DropLok docking interface that connects to the Q10-005 wall receiver |
| 1× Securement Plate with Straps & Buckles |
Strap-and-buckle system anchors the Stabilizer Plate firmly to the large case body — compatible with soft bags and hard-shell cases |
| Hardware Pack |
All installation fasteners for standard large case attachment |
Easy Mount with Safe Release (Q10-005) required and sold separately. LokBox EMT case not included. See Q10-008 for the complete bundle with Large LokBox.
Compatible Use Cases
| Application |
Typical Case Type |
| ALS Primary Response Case |
Full-size ALS tackle box or large hard-shell first-in case |
| Large LokBox EMT Case |
Q'Straint LokBox full-size case (sold as Q10-008 complete bundle) |
| Airway / Ventilator Case |
Large ventilator carry case or airway management kit |
| Cardiac Monitor Case |
Large defibrillator / cardiac monitor hard-shell carry case |
| IV / Medication Case |
Full-size medication case, IV therapy kit, or paramedic drug box |
| Trauma & Mass Casualty Kit |
Large trauma bag or MCI supply case deployed from unit storage |
Standards & Compliance
SAE J3043✓ System Certified — Emergency Vehicle Equipment Mount
SAE J2917✓ Frontal Impact Testing
SAE J2956✓ Side Impact Testing
Prop 65California Proposition 65 warning applies
The complete DropLok system (Easy Mount + Retrofit Kit) is crash certified up to 25 lbs per SAE J3043 dynamic and static parameters.
Specifications
| Specification |
Detail |
| Part Number |
Q10-004 |
| Brand |
Q'Straint |
| Product Name |
DropLok Universal Securement Kit — Large |
| Product Line |
DropLok Emergency Vehicle Securement System |
| Component Role |
Case-side — retrofit kit for large EMT bags, hard-shell ALS cases, and full-size LokBox cases |
| Compatible Case Size |
Large cases; for small bags (7.5"–14" L × 11"–18" W) see Q10-003 |
| Compatible Receiver |
Q10-005 DropLok Easy Mount with Safe Release |
| Crash Certification |
SAE J3043, SAE J2917 (frontal), SAE J2956 (side) — system certified up to 25 lbs |
| Includes |
Stabilizer Plate, Securement Plate with Straps and Buckles, Hardware |
| EMT Case Included |
No — retrofit kit only. See Q10-008 for complete bundle with Large LokBox |
| Lead Time |
Approximately 90 days from order date |
| Shipping |
Free Shipping |
| Prop 65 |
Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. |
Frequently Asked Questions
What's the difference between the Small (Q10-003) and Large (Q10-004) Retrofit Kits?
The Small Retrofit Kit (Q10-003) is sized for EMT bags with dimensions between 7.5"–14" (L) × 11"–18" (W) — typical BLS jump bags, portable AEDs, and small drug boxes. The Large Retrofit Kit (Q10-004) is designed for larger cases that exceed those dimensions, such as full-size ALS tackle boxes, large hard-shell ventilator cases, or Q'Straint LokBox cases. If you're unsure which kit fits your case, call us at 800.884.6456 with your case's exterior dimensions and we'll confirm the right fit before you order.
Do I need to buy anything else to use this kit?
Yes — the Q10-004 is the case-side component and must be paired with the Q10-005 Easy Mount with Safe Release installed in the vehicle. Both are required for a functional DropLok installation. If you're looking for a complete out-of-the-box bundle that includes the wall mount, this retrofit kit, and a Q'Straint LokBox case, see the Q10-008 Complete System.
Will the straps work on both soft bags and hard-shell cases?
Yes — the Securement Plate with Straps and Buckles is designed to work with both soft bags and hard-shell cases. For soft bags, the strap system cinches around the bag body to hold the Stabilizer Plate firmly in position. For hard cases, the hardware attaches directly to the case structure. The DropLok design philosophy is to keep existing agency equipment in service — whatever your current large case is, the kit is built to retrofit it.
Can I use multiple Large Retrofit Kits in the same ambulance?
Yes — each Retrofit Kit configures one bag or case, and each requires its own Easy Mount with Safe Release (Q10-005) at a separate vehicle mounting position. Agencies deploying multiple large cases per unit can have multiple independent DropLok stations. Contact us for multi-unit and fleet pricing at 800.884.6456.
Build the Complete DropLok System
