What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

Retractor Kit for L - Track w/ L - Track Floor Pockets | QRT STANDARD - WheelchairStrap.com

Q'Straint Retractor Kit for L-Track w/ L-Track Floor Pockets | QRT STANDARD

Vendor: Q'Straint
Regular price: $560.95
Sale price: $560.95
Unit price: per

Shipping calculated at checkout.

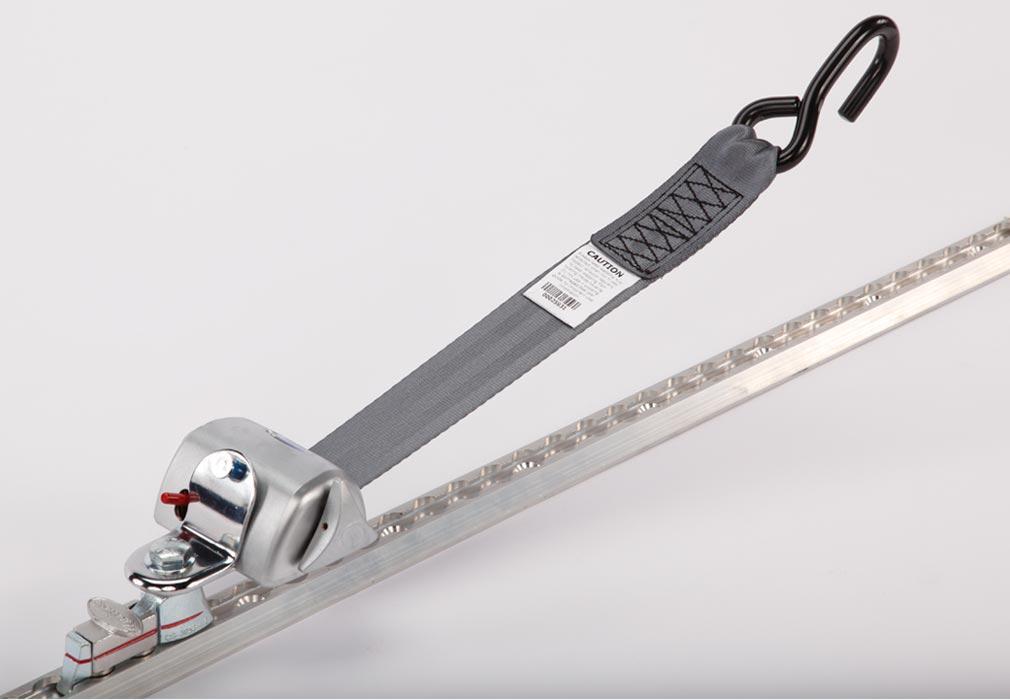

The Q8-8201-L-KIT pairs four Q'Straint QRT Standard retractors with four OMNI Oval L-Track floor pockets — a budget-conscious, semi-automatic 4-point wheelchair tie-down solution for fleets that already have (or are installing) L-Track rail. The single-knob QRT Standard retractor secures a wheelchair and occupant in under 10 seconds, while the included floor pockets give you the anchorage points to mount it. L-Track rail itself is sold separately (see below).

SKU: Q8-8201-L-KIT | VENDOR: Q'STRAINT

QRT Standard Retractor Kit for L-Track w/ L-Track Floor Pockets

✔ Free Shipping 🔒 4-Point Tie-Down Kit 🏷 Q'Straint

Key Features

🎛

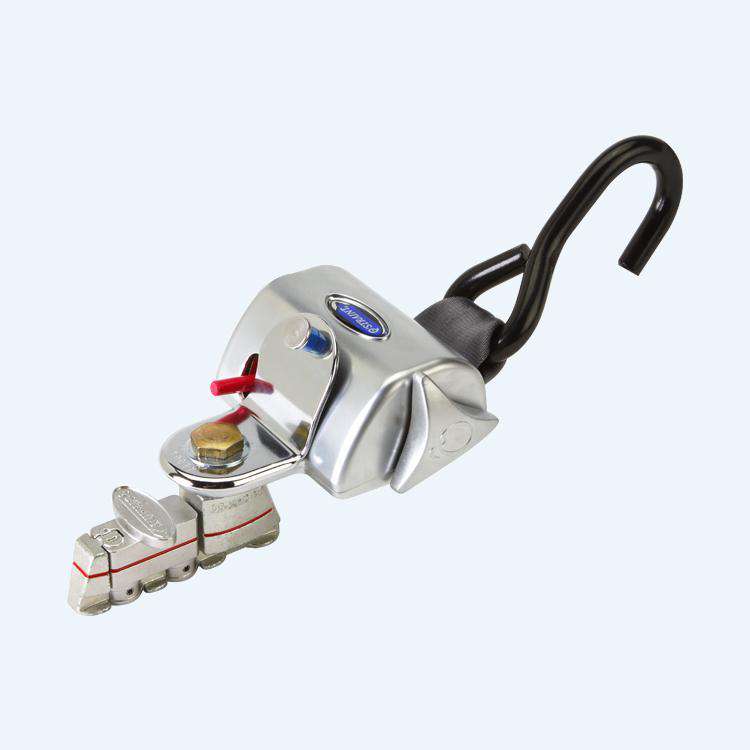

Single Tensioning Knob

Safely secures wheelchair and occupant in under 10 seconds.

🟡

Positive Lock Indicator (PLI)

Patented feature clearly shows when the fitting is locked in the L-Track anchorage.

↔️

Interchangeable

Eliminates confusion — no designated right, left, front, or rear positions.

🔗

J-Hook Design

Reduces belt twisting with a quarter turn, accommodating virtually all wheelchair designs.

📐

Low Profile & Compact

No mounting bracket required — retractors fit under most wheelchair footrests.

👟

Foot Release Lever

Hands-free release lets the operator disengage the retractor without bending down.

What's Included

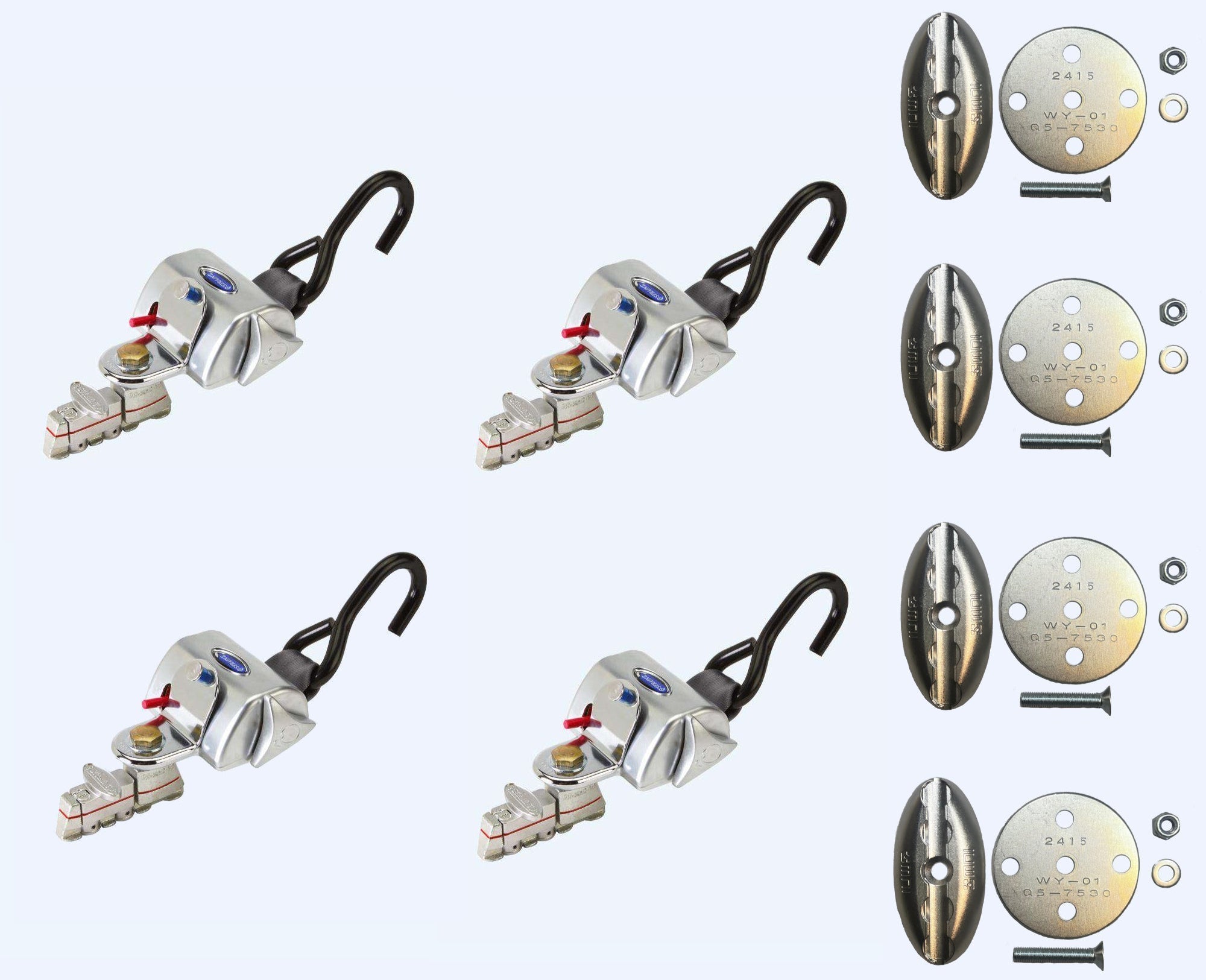

Qty	Component	SKU
4	QRT Standard Retractors with L-Track End Fittings (PLI)	Q8-6201-L
4	OMNI Oval L-Track Floor Pockets	Q5-7571-A

⚠ Also required — not included: L-Track rail (floor track strip) and occupant lap & shoulder belt. Floor pockets mount into L-Track rail — rail is purchased separately based on your vehicle's floor length. This kit secures the wheelchair only; occupant restraint requires a separate lap & shoulder belt for occupied use.

Vehicle Applications

🚌 School Bus 🚌 City Bus 🚌 Coach Bus 🚆 Rail 🚑 Community Transport 🚗 Minivan 🚐 WAV

Standards & Compliance

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 222School Bus Passenger Seating & Crash Protection

FMVSS 302Flammability of Interior Materials

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

Note: The QRT Standard retractor is not RESNA certified. applies only to the Q'Straint QRT-360, QLK/QLK-150 docking systems, and Q'STRAINT ONE. This kit meets SAE J2249 — the standard tier for QRT Standard, Deluxe, and Max retractors.

📘 Compliance & Documentation: For state-by-state compliance requirements and fleet documentation resources, visit our Compliance Resource Center.

🛡 Warranty: QRT Standard retractors — 2-year limited*. OMNI floor pockets — 1-year limited*. * Registration required at qstraint.com for full coverage on the retractors; without registration, 1-year limited applies to the retractors.

⚠ Warranty terms should be verified directly with the manufacturer.

⚠ California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See qstraint.com/prop-65

📄 Installation & User Guide: View Installation & User Guide List

Specifications

Specification	Detail
Brand	Q'Straint
SKU	Q8-8201-L-KIT
Price	$560.95 — per kit (4 retractors + 4 floor pockets)
Shipping	Free Shipping
Warranty	Retractors: 2-year limited* \| Floor Pockets: 1-year limited*
Use / Installation	Retractors require no special tools for daily use. Floor pockets require professional installation by a qualified WAV modifier.

Frequently Asked Questions

Does this kit include L-Track rail? +

No. This kit includes the four retractors and four floor pockets that mount into L-Track rail — the rail itself (sold by the foot) is purchased separately based on your vehicle's floor length.

Is this certified? +

No. The QRT Standard meets SAE J2249. certification on Q'Straint products is limited to the QRT-360, QLK/QLK-150 docking systems, and Q'STRAINT ONE.

Do I need an occupant restraint belt too? +

Yes, for occupied transport. This kit secures the wheelchair only. A lap and shoulder belt is required separately to restrain the occupant.

What is the warranty? +

Retractors carry a 2-year limited warranty (registration required at qstraint.com for full coverage). Floor pockets carry a 1-year limited warranty. Verify current terms directly with the manufacturer.

Related Products

Q'Straint Manual Lap & Shoulder Belt | Q8-6325-A

$110

🔄

QRT Deluxe Retractor | Q8-6200-L

$150

📦

Browse All Q'Straint Kits

Multiple options

Not sure which kit is right for your vehicle?

Tell us your vehicle type, wheelchair positions, and floor system — we'll spec the correct kit.

📞 800.884.6456 ✉ Email Us Contact Form
