What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

Single | Q8 - 6200 - F QRT Deluxe Retractor Permanent Floor Mount | Permanent Floor Mount - WheelchairStrap.com

Q'Straint | QRT Deluxe Retractor Permanent Floor Mount | Q8-6200-F

Vendor: Q'Straint
Regular price: $175.95
Sale price: $175.95
Unit price: per

Shipping calculated at checkout.

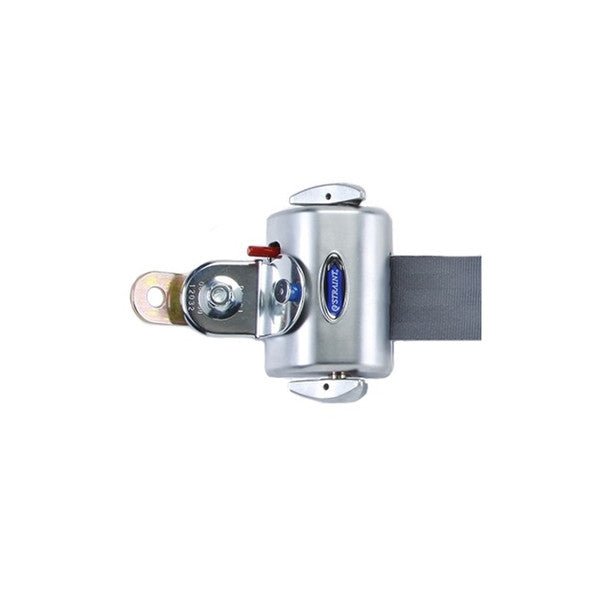

The QRT Deluxe is a self-locking and self-tensioning retractor with ergonomic housing and dual tightening knobs for fine manual tensioning when required. Automatically takes up slack to ensure the wheelchair passenger is always secured. The Positive Lock Indicator (PLI) confirms the fitting is locked in the floor anchorage. Eliminates confusion — no designated right, left, front, or rear positions.

SKU: Q8-6200-F | VENDOR: Q'STRAINT

Single | Q8-6200-F QRT Deluxe Retractor Permanent Floor Mount | Permanent Floor Mount

✔ Free Shipping 🔄 Replacement Retractor 🏷 Q'Straint

Key Features

🎛

Dual Tightening Knobs

Two knobs for precise tensioning — fine-tune the securement after auto-locking engages.

🔒

Automatic, Self-Locking

Allows easy, one-handed hook-up of wheelchairs without a manual locking step.

⚙️

Self-Tensioning

Automatically takes up slack — no manual tensioning required.

🟡

Locked Indicator

Highly visible indicator tag confirms the retractor is in locked mode — eliminates guesswork for operators.

🔗

J-Hook Design

Reduces belt twisting and ensures proper securement angle — accommodates virtually all wheelchair designs.

🛡

Ultra-Durable Construction

Constructed from hardened steel and coated in zinc for maximum corrosion resistance.

What's Included

Qty	Component	SKU
1	Single	Q8-6200-F

Full Feature Details

Key Feature Summary

Feature	Description
Dual Tightening Knobs	Two knobs for precise tensioning — fine-tune the securement after auto-locking engages.
Automatic, Self-Locking	Allows easy, one-handed hook-up of wheelchairs without a manual locking step.
Self-Tensioning	Automatically takes up slack — no manual tensioning required.
Locked Indicator	Highly visible indicator tag confirms the retractor is in locked mode — eliminates guesswork for operators.
J-Hook Design	Reduces belt twisting and ensures proper securement angle — accommodates virtually all wheelchair designs.
Ultra-Durable Construction	Constructed from hardened steel and coated in zinc for maximum corrosion resistance.

Vehicle Applications

🚌 School Bus🚌 City Bus / Transit Bus🚌 Coach Bus🚆 Rail / Community Transit🚑 Non-Emergency Medical Transport (NEMT)🚐 Wheelchair-Accessible Van (WAV)🚗 Personal Vehicle / Minivan

Standards & Compliance

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 302Flammability of Interior Materials

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

📘 Compliance & Documentation: For state-by-state Medicaid/NEMT requirements, ADA guidance, and fleet documentation tools, visit our Compliance Resource Center.

🛡 Warranty: 1-year limited. * Registration required at qstraint.com for full coverage. Without registration, 1-year limited applies.

⚠ Warranty terms should be verified directly with the manufacturer.

⚠ California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See qstraint.com/prop-65

📄 Installation & User Guide: View Installation & User Guide List

📄 Product Documents: Download

Specifications

Specification	Detail
Brand	Q'Straint
SKU	Q8-6200-F
Price	152.00 — price shown is per unit
Shipping	Free Shipping
Warranty	1-year limited
Use / Installation	No special installation required — designed for daily operator use.

Frequently Asked Questions

Is this a replacement for an existing retractor? +

Yes — this is a single replacement retractor unit. Match the brand, series, and fitting type to your existing system.

Do all four retractors need to be the same? +

Yes. All four retractors at each wheelchair securement position should be the same brand and series for system-level compatibility and compliance.

What fitting type do I need? +

Match to your existing floor anchorage: L-Track (most common in transit), Slide 'N Click (Q'Straint system), A-Track, or Smart Fitting (AMF Bruns). Check your current retractors or floor hardware to confirm.

Does this include floor hardware or a belt? +

No — this is a single retractor unit only. Floor anchorage and occupant belts are purchased separately.

Related Products

🔄

QRT Deluxe Replacement Retractor L-Track | Q8-6200-L

$150

🔄

QRT Standard Replacement Retractor L-Track | Q8-6201-L

$144

📦

Q'Straint Complete Kits

Multiple options

🔩

L-Track Floor Anchorage

From $47

Need help identifying the right replacement retractor?

Tell us your vehicle, current model, and wheelchair type — we'll confirm the correct unit.

📞 800.884.6456 ✉ Email Us Contact Form

This is my second one. I liked it so much on my old chair i purchased one for my new chair.

A perfect fit for my Whill C2. Quick shipping.

Great fast shipping and a great safe product

Fit great. Firm installation.
Great company to deal with.
A little expensive.

I had such a great experience buying this part, I ordered it, the cost was exactly what I though, the shipping happened very quickly and installing the piece was so easy that I had it done in minutes. I had a great experience ordering from this company.

I have 2 sets of these - they work great! so much better that the manual straps.

wie beschrieben

We've been using your company to order equipment for our small business. Frankly, your service has so much better over the last few years. My last order was processed and delivered within 1 day of ordering it. Impeccable! I will continue doing business with you.

Thanks worked perfectly!!

I was amazed by the speed of the delivery. Thank you. I would recommned anyone interested in those products to shop at this great company

thank you for providing the product we needed at a good price

Very helpful on the phone finding the right product and they are currently responding to some questions. Pretty good customer service is say

I was pleased with this co.Efficient and the strap is grear

Good stuff

I wanted the red one and it was supposed to be with a wider clip

YOUR PRODUCT WAS AS ADVERTIZED AND IS EXCELLENT.

TOP ++++++++++++++1A!!!Danke❣️🍾🥂🥂🥂

Always great service!

Great product, using this to store to go catheters under the seat of my wheelchair.

‘

Exactly what I needed

Works great!

Just whatI want

they are perfect just what I ordered!

These are just what we needed!
