What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

TITAN800 Retractor Kit with Dual Retractor Occupant Restraint S-Hooks & L-Track | AL812S-4C-7

Vendor: Sure-Lok
Regular price: $1,030.00
Sale price: $1,030.00
Unit price: per

Shipping calculated at checkout.

TITAN800 Retractor Kit with Dual Retractor Occupant Restraint | S-Hooks & L-Track TITAN 800 - The Strongest TITAN Retractor Ever Made Included in Kit: AL800855S (4 each) - TITAN800 L-Track Fitting AL700868-4 (1 each) - Single Retracting Occupant Restraint In addition to its familiar technology and distinctive blue webbing, the new TITAN 800 was built with an innovative energy distribution desi

SKU: AL812S-4C-7 | VENDOR: SURE-LOK

TITAN800 Retractor Kit with Dual Retractor Occupant Restraint | S-Hooks & L-Track | AL812S-4C-7

✔ Free Shipping 🔒 4-Point Tie-Down Kit 🏷 Sure-Lok

Key Features

⚙️

Self-Tensioning

Automatically takes up slack — no manual tensioning required.

🟢

Positive Lock Indicator (PLI)

Clearly indicates when the fitting is locked into the anchorage. Eliminates guesswork for operators.

🔗

J-Hook Design

Reduces belt twisting and ensures proper securement angle — accommodates virtually all wheelchair designs.

📐

Low Profile & Compact

No mounting bracket required — retractors fit under most wheelchair footrests.

🏆

RESNA WC18 Rated

Built to the higher load requirements of the WC18 standard.

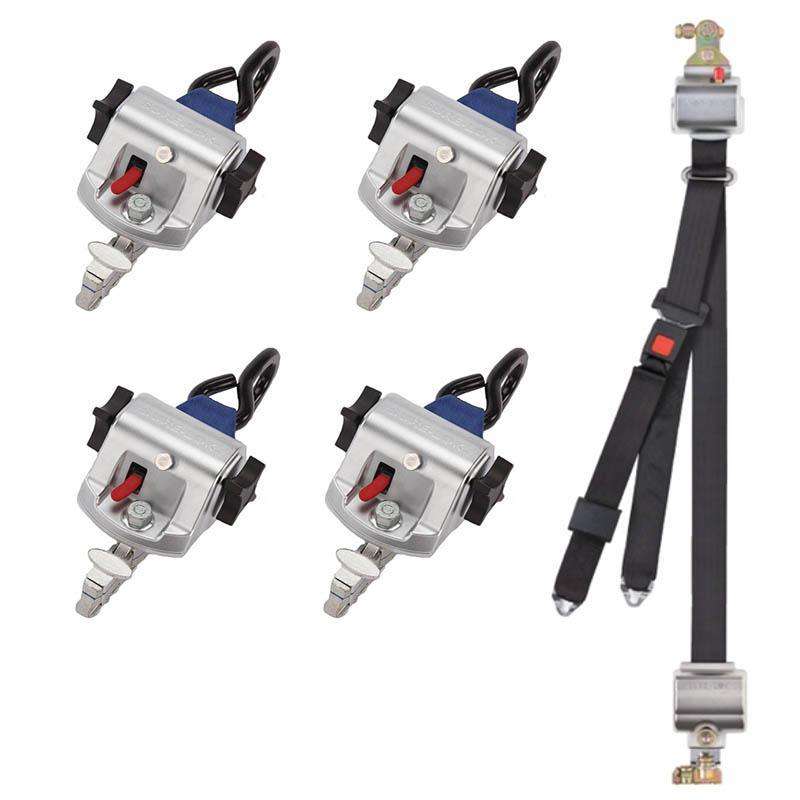

What's Included

Qty	Component	SKU
4	TITAN800 L-Track Fitting Retractor	AL800855S
1	Single Retracting Occupant Restraint	AL700868-4

Full Feature Details

In addition to its familiar technology and distinctive blue webbing, the new TITAN 800 was built with an innovative energy distribution design for maximum load capacity to meet the latest industry regulations.

Feature	Description
AL800855S (4 each)	TITAN800 L-Track Fitting
AL700868-4 (1 each)	Single Retracting Occupant Restraint
Meets the Requirements of WC18:	Built with an energy distribution design and stronger webbing to withstand the higher load requirements of the newest standards.
J Hook:	J-Hook attachment improves your belt angles by minimizing twists.
Positive Locking Interface (PLI) Fitting:	Innovative fitting tells operators when the retractor is locked into place.
Auto-Tension & Auto-Lock:	Allows operators to secure a wheelchair within seconds with just one hand.
Low Profile:	Minimizes interference with wheelchairs to eliminate potential tripping hazards.

Vehicle Applications

🚐 Wheelchair-Accessible Van (WAV)🚌 Paratransit / Minibus🚑 Non-Emergency Medical Transport (NEMT)🚌 School Bus🚐 Sprinter / Transit Van🚆 Rail / Community Transit

TITAN700 vs TITAN800

Feature	TITAN700	TITAN800
Hook Type	S-Hook	J-Hook
WC18 Compliant	Yes	Yes
Energy Distribution Design	Standard	Enhanced (maximum load capacity)
Locking Confirmation	Yellow locked indicator tag	Positive Locking Interface (PLI) fitting
Unit Configuration	Right-hand & left-hand units	Universal — one unit for all 4 positions
Belt Angle Optimization	Standard S-hook	J-hook minimizes webbing twists
Best For	Proven everyday transit performance	Maximum load capacity & newest standards

Standards & Compliance

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

RESNA WC18Wheelchair Tie-Down & Restraint Systems — Heavy Duty (ANSI/RESNA)

FMVSS 222School Bus Passenger Seating & Crash Protection

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 302Flammability of Interior Materials

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

🛡 Warranty: 5-year limited. Verify warranty terms at sure-lok.com.

⚠ Warranty terms should be verified directly with the manufacturer.

📄 Installation & User Guide: View Installation & User Guide List

📄 Product Documents: Titan800 Printable Pages

Specifications

Specification	Detail
Brand	Sure-Lok
SKU	AL812S-4C-7
Price	$1030.00 — price shown is per kit
Shipping	Free Shipping
Warranty	5-year limited
Use / Installation	Retractors require no special installation for daily use. Floor anchorage components require professional installation by a qualified WAV modifier.

Frequently Asked Questions

Does this kit include everything I need for one wheelchair position? +

A complete wheelchair tie-down and occupant restraint system — often called a 4-point securement system — has three primary components: floor anchorages (L-Track rail and floor pockets), wheelchair securement retractors (4-point tie-downs), and an occupant restraint (lap and shoulder belt). See the What's Included section for exactly what this kit contains and what may need to be purchased separately.

Do I need to buy floor anchors separately? +

Check the What's Included section. If L-Track rail or floor pockets are not listed, they need to be purchased separately. Your vehicle may already have floor anchorage installed — check before ordering.

Is professional installation required? +

The retractors connect to existing floor anchorage and require no special tools for daily use. Floor anchorage components must be installed by a qualified WAV modifier.

Can I mix brands within the same vehicle? +

We do not recommend mixing brands within the same 4-point wheelchair position. All four retractors at each position should be the same brand and series for system-level compatibility and compliance.
