What is a 4-point wheelchair tie-down system?

A 4-point tie-down uses four retractors or straps — two at the front and two at the rear of the wheelchair — to secure the chair to the vehicle floor. When combined with a lap and shoulder belt for the occupant, it meets federal ADA and WC18 securement standards for paratransit, NEMT, and school bus transport.

Is wheelchair securement required by law?

Yes. The Americans with Disabilities Act (ADA) requires that all public transit vehicles equipped to transport wheelchair users must have an approved securement system. NEMT providers, paratransit operators, and school bus fleets are all subject to federal and state securement regulations. Failure to comply can result in fines and significant liability in the event of an accident.

What does WC18 compliant mean?

WC18 is the RESNA/ANSI standard that defines performance requirements for wheelchair tie-down and occupant restraint systems (WTORS). WC18-compliant products have been crash-tested to withstand higher load forces than previous standards, providing greater protection for wheelchair users in the event of a collision or sudden stop.

Which wheelchair securement brands do you carry?

We are an authorized dealer for Q'Straint, AMF Bruns, and Sure-Lok — the three leading manufacturers of wheelchair tie-down and occupant restraint systems worldwide. All products meet or exceed WC18 compliance standards where applicable.

What is the difference between an L-track and a Slide N' Click system?

L-track is a recessed floor channel that accepts fittings at any point along its length, giving installers maximum flexibility in retractor placement. Slide N' Click is Q'Straint's proprietary system using pre-set anchor points that allow faster, tool-free securement — popular in high-volume paratransit operations where speed of securement matters.

What is the difference between a manual and retractable wheelchair strap?

Manual straps are fixed-length webbing straps with a hook or loop connection — simple, affordable, and reliable. Retractable systems use a spring-loaded mechanism to automatically take up slack, making securement faster and reducing trip hazards from loose webbing. Electric retractors add powered retraction, ideal for operators or drivers with limited hand strength or mobility.

Do you offer fleet pricing for multiple vehicles?

Yes. We offer fleet pricing for operators outfitting five or more vehicles. Submit your vehicle count, vehicle type, and preferred brand through our Fleet Quote form and a specialist will respond within one business day.

Do your products come with installation instructions?

Yes. All products ship with manufacturer installation guides. We also maintain a full library of installation and user guides on our website for Q'Straint, AMF Bruns, and Sure-Lok products. Our specialists are also available by phone at 800.884.6456 if you need installation support at no charge.

FREE STANDARD SHIPPING ON ORDERS OVER $100 - 800.884.6456

Q'Straint 4 QRT Max Retractors w/L | Q - 8306 - L2 - WheelchairStrap.com

Q'Straint QRT Max Retractors LTrack Retractable Lap & Shoulder Belt Retractable Adjuster | Q-8306-L2

Vendor: Q'Straint
Regular price: $845.95
Sale price: $845.95
Unit price: per

Shipping calculated at checkout.

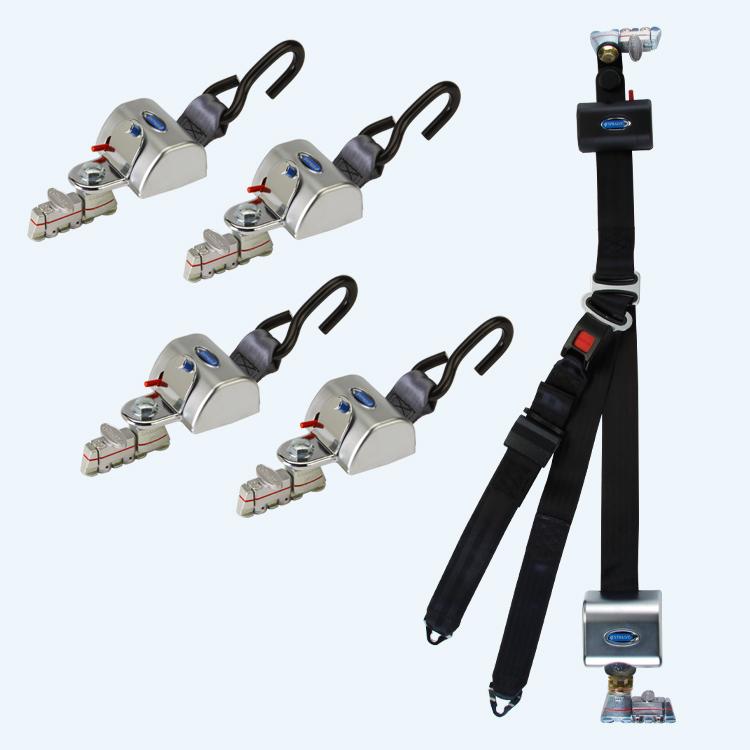

The QRT MAX 4-Point Wheelchair Securement Kit with L-Track Fittings and HR131 Retractable Lap & Shoulder Belt is a premium wheelchair tiedown and occupant restraint system for compatible wheelchair-accessible vehicles. This complete kit includes four QRT MAX fully automatic, knobless retractors with L-Track fittings and an HR131 retractable lap and shoulder belt assembly with a retractable L-Track height adjuster and 131° bracket.

SKU: Q-8306-L2 | VENDOR: Q'STRAINT

Q'Straint QRT Max Retractors LTrack Retractable Lap & Shoulder Belt Retractable Adjuster | Q-8306-L2

✔ Free Shipping 🦺 4-Point WTORS Kit 🏷 Q'Straint

Key Features

🎛

Knobless Operation

No knobs to interfere with wheelchair wheels or footrests. Eliminates confusion about whether additional tightening is needed.

🔒

Automatic, Self-Locking

Allows easy, one-handed hook-up of wheelchairs without a manual locking step.

⚙️

Self-Tensioning

Automatically takes up slack — no manual tensioning required.

🟡

Locked Indicator

Highly visible indicator tag confirms the retractor is in locked mode — eliminates guesswork for operators.

👟

Foot Release Lever

Hands-free release — operator can disengage the retractor with a foot lever without bending down.

🔗

J-Hook Design

Reduces belt twisting and ensures proper securement angle — accommodates virtually all wheelchair designs.

What's Included

Qty	Component	SKU
Component list not available — see product description above.

Full Feature Details

QRT MAX retractors provide self-locking, self-tensioning operation that automatically takes up excess webbing as the wheelchair is secured. The knobless design helps prevent interference with wheelchair wheels and footrests while eliminating uncertainty about whether additional tensioning is needed. This supports fast, consistent, one-handed wheelchair hook-up for drivers, attendants, and transit personnel.

Each retractor uses an L-Track fitting with a Positive Lock Indicator to provide a visual confirmation that the fitting is engaged in compatible L-Track. J-hooks attach to suitable wheelchair securement points and help reduce webbing twist. The compact, low-profile retractor design can fit beneath most wheelchair footrests and helps provide more room for larger wheelchairs and scooters.

The included HR131 retractable lap and shoulder belt features a retractable L-Track height adjuster and 131° bracket. The height adjuster allows the shoulder-belt D-ring position to be set along compatible L-Track, helping support proper shoulder-belt routing for the passenger and vehicle layout. The 131° bracket is designed to help guide the shoulder belt into an appropriate position in compatible installations.

Key Feature Summary

Feature	Description
Knobless Operation	No knobs to interfere with wheelchair wheels or footrests. Eliminates confusion about whether additional tightening is needed.
Automatic, Self-Locking	Allows easy, one-handed hook-up of wheelchairs without a manual locking step.
Self-Tensioning	Automatically takes up slack — no manual tensioning required.
Locked Indicator	Highly visible indicator tag confirms the retractor is in locked mode — eliminates guesswork for operators.
Foot Release Lever	Hands-free release — operator can disengage the retractor with a foot lever without bending down.
J-Hook Design	Reduces belt twisting and ensures proper securement angle — accommodates virtually all wheelchair designs.

Vehicle Applications

🚌 School Bus🚌 City Bus / Transit Bus🚌 Coach Bus🚆 Rail / Community Transit🚑 Non-Emergency Medical Transport (NEMT)🚐 Wheelchair-Accessible Van (WAV)🚗 Personal Vehicle / Minivan

Standards & Compliance

SAE J2249Wheelchair Tie-Down Systems for Motor Vehicles

ISO 10542Wheelchairs — Tie-Down & Occupant Restraint Systems

FMVSS 209Seat Belt Assemblies

FMVSS 210Seat Belt Assembly Anchorages

FMVSS 222School Bus Passenger Seating & Crash Protection

FMVSS 302Flammability of Interior Materials

CSA Z605Wheelchair Securement in Motor Vehicles (Canada)

ℹ️ ADA Compliance Note: This product is designed for use in ADA-accessible transportation applications. Verify that installation meets applicable ADA requirements for your specific vehicle type and use.

📘 Compliance & Documentation: For state-by-state Medicaid/NEMT requirements, ADA guidance, and fleet documentation tools, visit our Compliance Resource Center.

🛡 Warranty: 3-year limited. * Registration required at qstraint.com for full coverage. Without registration, 1-year limited applies.

⚠ Warranty terms should be verified directly with the manufacturer.

⚠ California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See qstraint.com/prop-65

📄 Installation & User Guide: View Installation & User Guide List

📄 Product Documents: Download

Specifications

Specification	Detail
Brand	Q'Straint
SKU	Q-8306-L2
Price	810.00 — price shown is per kit
Shipping	Free Shipping
Warranty	3-year limited
Use / Installation	Retractors require no special installation for daily use. Floor anchorage components require professional installation by a qualified WAV modifier.

Frequently Asked Questions

Does this kit include everything I need for one wheelchair position? +

A complete wheelchair tie-down and occupant restraint system — often called a 4-point securement system — has three primary components: floor anchorages (L-Track rail and floor pockets), wheelchair securement retractors (4-point tie-downs), and an occupant restraint (lap and shoulder belt). See the What's Included section for exactly what this kit contains and what may need to be purchased separately.

Do I need to buy floor anchors separately? +

Check the What's Included section. If L-Track rail or floor pockets are not listed, they need to be purchased separately. Your vehicle may already have floor anchorage installed — check before ordering.

Is professional installation required? +

The retractors connect to existing floor anchorage and require no special tools for daily use. Floor anchorage components must be installed by a qualified WAV modifier.

Can I mix brands within the same vehicle? +

We do not recommend mixing brands within the same 4-point wheelchair position. All four retractors at each position should be the same brand and series for system-level compatibility and compliance.

Related Products

📦

Browse All Q'Straint Kits

Multiple options

🔄

Q'Straint QRT Max Retractor | Q8-6209-L

View Price

🪢

Q'Straint Manual Lap & Shoulder Belt | Q8-6325-A

$110

🔩

L-Track Floor Anchorage

From $47

Not sure which kit is right for your vehicle?

Tell us your vehicle type, wheelchair positions, and floor system — we'll spec the correct kit.
